P27OC835Waterproof HD IP Camera

ADT Pulse ® Interactive Solutions OC835-ADT    Quick Installation Guide Table of Contents CHAPTER 1 INTRODUCTION ............................................................................ 3 Overview ............................................................................................................... 3 Physical Details ................................................................................................... 4 Package Contents ............................................................................................... 6 CHAPTER 2 BASIC SETUP ................................................................................. 7 Installation ............................................................................................................ 7 CHAPTER 3 ADT PULSE ENROLLMENT ......................................................... 9 Wired Connection to the Gateway Using the Pulse Portal......................... 9 Wireless Connection to the Gateway Using the Pulse Portal .................. 13 Wireless Connection to the TS Base Using the Installer App .................. 17 If the Camera Continually Goes Offline ........................................................ 20 CHAPTER 4 WALL MOUNTING ...................................................................... 21 APPENDIX A SPECIFICATIONS ...................................................................... 23 OC835-ADT Outdoor Day/Night HD Camera ............................................ 23 Regulatory Approvals ...................................................................................... 24 Property of ADT LLC. Information accurate as of published date and is provided “as is” without warranty of any kind. ©2015 ADT LLC dba ADT Security Services. All rights reserved. ADT, the ADT logo, 800 ADT.ASAP and the product/service names listed are marks and/or registered marks of ADT. Unauthorized use is strictly prohibited. Third party marks are property of their respective owners. OC835-ADT-QIG-00 (08/15) 2 OC835-ADT Outdoor HD Camera Installation Guide Chapter 1 Introduction This section provides information about the OC835-ADT Outdoor Day/Night HD Camera's features, components and capabilities. Overview The OC835-ADT is a true outdoor day/night wireless camera with HD resolution, 802.11n Wi-Fi connectivity and Wi-Fi Protected Setup (WPS) support. This camera is intended for use with ADT Pulse ® . Features  Standalone Design. The camera is a standalone system with built-in CPU and video encoder. It requires only a power source and a connection to the ADT Pulse Gateway or ADT Total Security (TS) Base panel.  Dual Video Support. The OC835-ADT supports H.264 and MJEPG video compression.  Day/Night Switch: With the day/night switching feature, you can view and record images even at night.  IR LED Support. The infrared LED can provide illumination for up to 6 meters, providing superior video quality under low-light conditions such as on cloudy days, or in the early morning or evening.  PIR (Passive Infrared Sensor) Support. The embedded PIR Sensor senses infrared light radiating from human bodies in its field of view.  Built-in Heater. The built-in heater ensures that the camera will continue to operate even in extremely cold outdoor climates. The heater turns on when the temperature falls below 42F (6C). Wireless Features  Supports 802.11n Wireless Standard. The 802.11n standard provides backward compatibility with the 802.11b and g standards.  Supports WPS. Wi-Fi Protected Setup (WPS) can simplify the process of connecting the Wireless HD Camera to the wireless network by using the push button configuration.  Wired and Wireless Network. The OC835-ADT can be connected to the Pulse network wirelessly. It can also be hardwired to the network. 1 OC835-ADT Outdoor HD Camera Installation Guide 3 Chapter 1 Introduction Physical Details Front Figure 1: Front Panel Light Sensor This is a hardware sensor to detect lux. Lens The lens cannot be adjusted. Please ensure that the lens cover remains clean. PIR Sensor This is a Passive Infrared sensor to detect motion. Rear Figure 2: Rear Panel Light Sensor Lens PIR Sensor Network Port WPS/Reset Button DC Power Input Power LED Network/Wireless LED 4 OC835-ADT Outdoor HD Camera Installation Guide Chapter 1 Introduction DC Power Input Connect the supplied 12V power adapter here. Do not use other power adapters; doing so may damage the camera. Power LED (Green, Amber) On (Green). Power on. Off. No power. Blinking (Green). The Power LED blinks during start up for approximately 1 minute. Blinking (Amber). The firmware is being upgraded. On (Amber). The firmware upgrade has failed. Network/Wireless LED (Green, Amber) On (Green). Network connection is available (wired or wireless). Off. Wired/wireless network is not connected or camera is not sending/receiving data. Blinking (Green). Data is being transmitted or received via the wired/wireless connection. On (Amber). If the LED is on for 5 seconds and then turns off, the WPS function has failed. Blinking (Amber). The WPS connection is active. WPS/Reset Button This button serves two functions on the camera.  WPS Pin Code Mode. When pressed and held for 5 seconds during the Pulse enrollment process, the camera creates an encryption-secured wireless connection.  Reset. When pressed and held over 15 seconds, the camera reboots and the settings are restored to default values. Network Port Use a Micro USB to RJ-45 Adapter Cable (not included) and a standard Ethernet cable (not included) to connect the camera to the Pulse Gateway or TS Base panel. Note:  Plugging in the Micro USB to RJ-45 Adapter Cable will disable the wireless interface. Only one interface can be active at any time.  The Micro USB to RJ-45 Adapter Cable should only be connected or disconnected when the camera is powered OFF. Attaching or detaching the Micro USB to RJ-45 Adapter Cable while the camera is powered on does NOT switch the interf…

Text truncated - open the document above for the full version.

Date：August 24, 2015 BABT TCB FCC ID: P27OC835 Dear Sir or Madam, We, Sercomm Corporation hereby authorize Compliance Certification Services Inc / Sam.Chuang . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2016/2/14 Yours Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：August 24, 2015 BABT TCB Confidentiality Request FCC ID: P27OC835 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sercomm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：September 9, 2015 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: P27OC835, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Sercomm / OC835-ADT FCC ID: P27OC835 Product Name: Waterproof HD IP Camera Regards, Yours Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

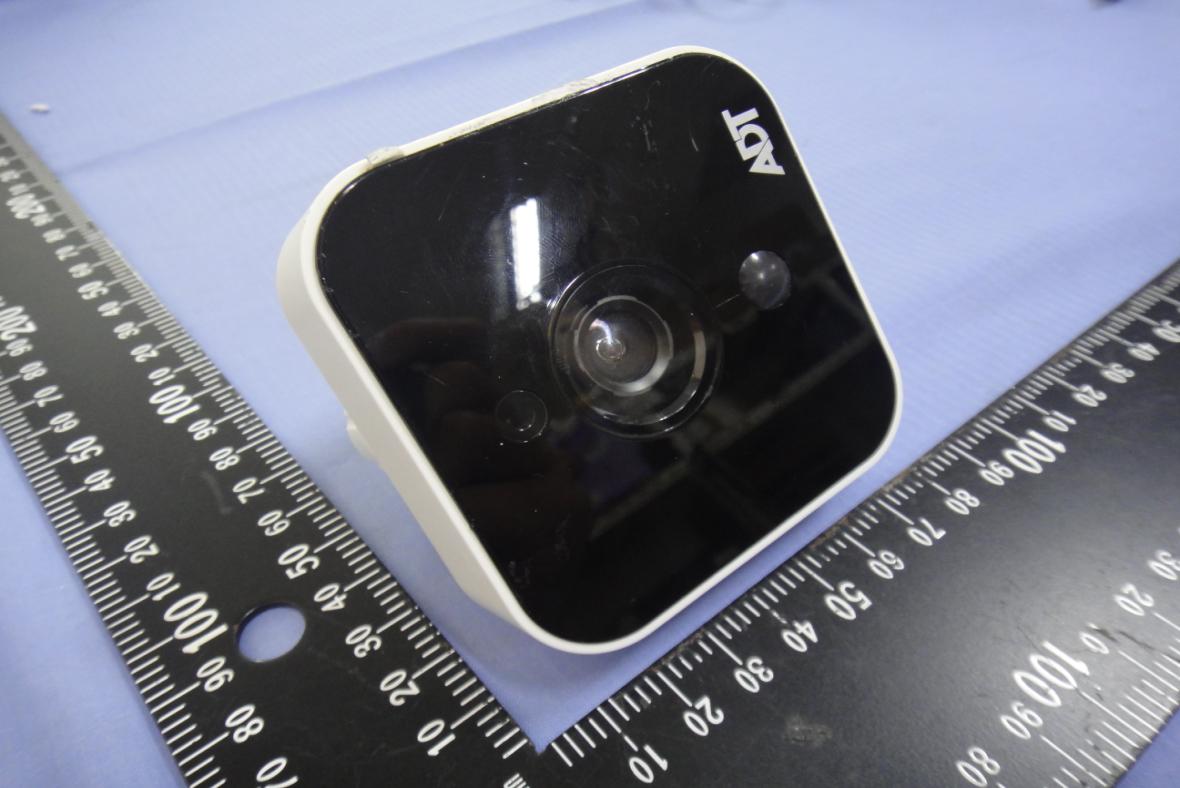

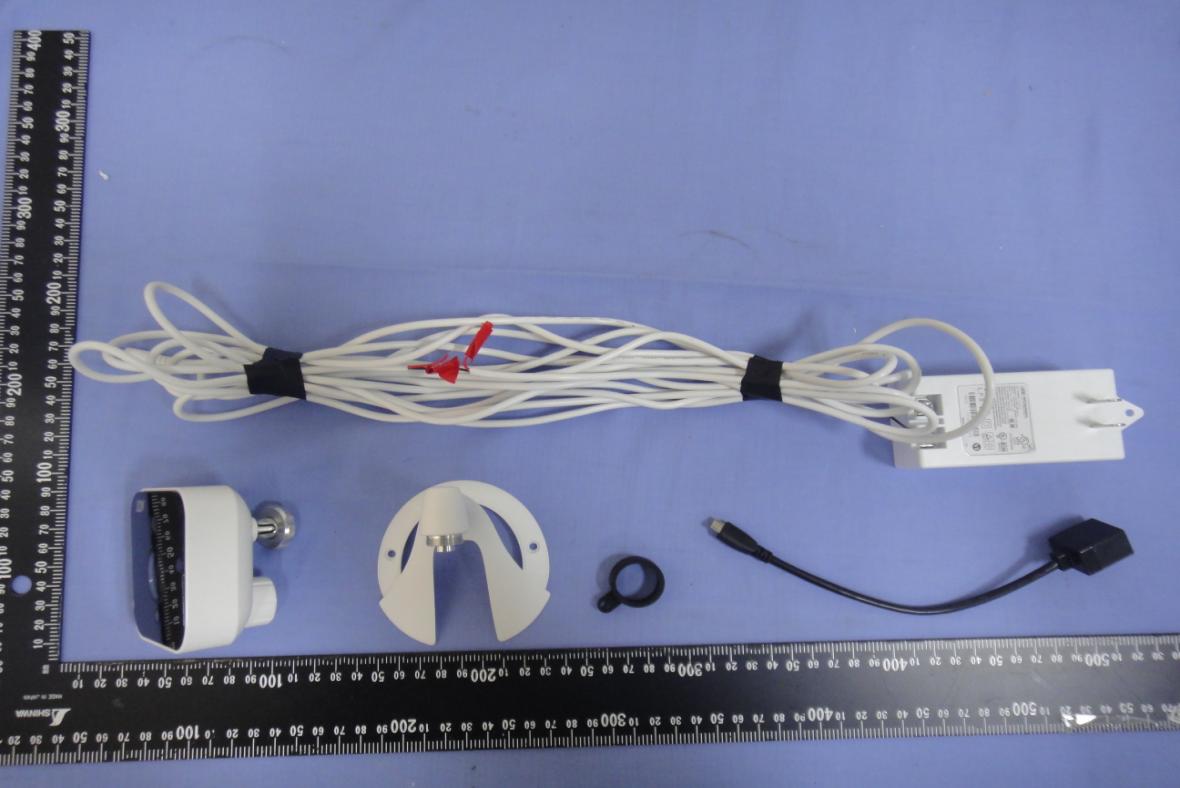

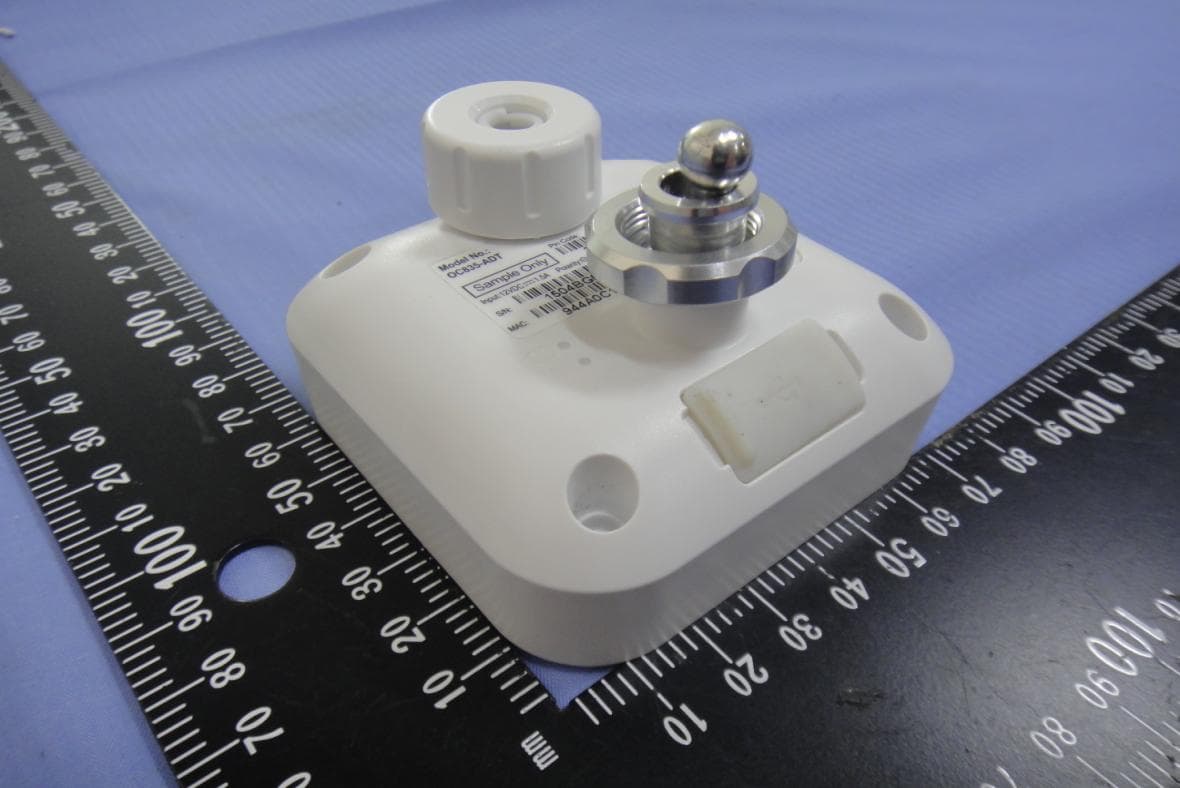

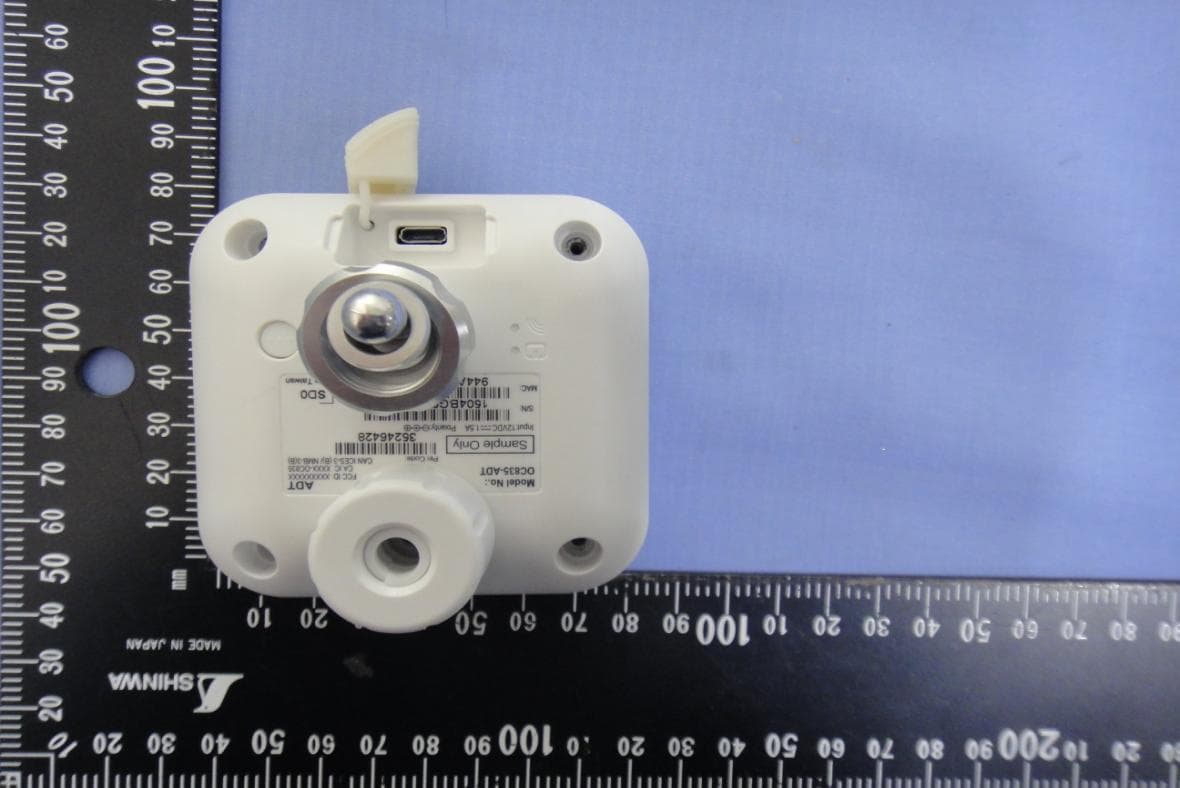

Compliance Certification Services Inc. Report No.: T150508D07 A1 - 1 / 13 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150508D07 A1 - 2 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 3 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 4 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 5 / 13 Rev. 00

Compliance Certification Services Inc. Report No.: T150508D07 A1 - 6 / 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T150508D07 A1 - 7 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 8 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 9 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 10 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 11 / 13 Rev. 00 RF IC Compliance Certification Services Inc. Report No.: T150508D07 A1 - 12 / 13 Rev. 00 Compliance Certification Services Inc. Report No.: T150508D07 A1 - 13 / 13 Rev. 00 Antenna

Snap-on Diagnostics Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: IEEE 802.11b mode: 16.5 dBm± 2dB IEEE 802.11g mode: 16 dBm± 2dB IEEE 802.11n HT 20 MHz mode : 16.5 dBm± 2dB IEEE 802.11n HT 40 MHz mode: 16.5 dBm± 2dB Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Compliance Certification Services Inc. Report No.: T150508D07-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. KDB 447498 D03 IEEE C95.1 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Waterproof HD IP Camera Model: OC835-ADT Trade Name: Sercomm Issued to Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: June 2, 2015 Compliance Certification Services Inc. Report No.: T150508D07-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2015/06/02 Initial Issue ALL Becca Chen Compliance Certification Services Inc. Report No.: T150508D07-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS ................................................................................................... 5 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 6 Compliance Certification Services Inc. Report No.: T150508D07-MF Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 2. EUT SPECIFICATION EUT Waterproof HD IP Camera Model OC835-ADT RF Module REALTEK Model: RTL8192EU Model Discrepancy N/A Frequency band (Operating) 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11 n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 1. PIFA Antenna / P/N: 617210HS 2.4GHz: Antenna Gain :2.14 dBi (Numeric gain:1.64) 2. PIFA Antenna / P/N: 617210HR 2.4GHz: Antenna Gain :2.69 dBi (Numeric gain:1.86) 3. PIFA Antenna / P/N: 617210K8 2.4GHz: Antenna Gain :2.18 dBi (Numeric gain:1.65) Maximum Average output power IEEE 802.11b Mode: 18.31 dBm(67.764 mW) IEEE 802.11g Mode:16.34 dBm(43.053 mW) IEEE 802.11n HT 20 Mode: 18.24 dBm(66.681 mW) IEEE 802.11n HT 40 Mode: 18.26 dBm(66.988 mW) Maximum Tune up Power IEEE 802.11b Mode: 18.50 dBm(70.795 mW) IEEE 802.11g Mode:18.00 dBm(63.096 mW) IEEE 802.11n HT 20 Mode: 18.50 dBm(70.795 mW) IEEE 802.11n HT 40 Mode: 18.50 dBm(70.795 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T150508D07-MF Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 3. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T150508D07-MF Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 4. MAXIMUM PERMISSIBLE EXPOSURE Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243770.7951.86200.02621 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246263.0961.86200.02341 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243770.7951.86200.02621 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9245270.7951.86200.02621

Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Waterproof HD IP Camera Model: OC835-ADT Trade Name: Sercomm Issued to Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: August 7, 2015 Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 7, 2015 Initial Issue ALL Becca Chen Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ......................................................................................... 4 2. EUT DESCRIPTION ............................................................................................................. 5 3. TEST METHODOLOGY ....................................................................................................... 6 3.1 EUT CONFIGURATION .................................................................................................. 6 3.2 EUT EXERCISE .............................................................................................................. 6 3.3 GENERAL TEST PROCEDURES ................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................ 7 3.5 DESCRIPTION OF TEST MODES .................................................................................. 8 4. INSTRUMENT CALIBRATION ............................................................................................. 9 4.1 MEASURING INSTRUMENT CALIBRATION .................................................................. 9 4.2 MEASUREMENT EQUIPMENT USED ............................................................................ 9 4.3 MEASUREMENT UNCERTAINTY ................................................................................ 10 5. FACILITIES AND ACCREDITATIONS ............................................................................... 11 5.1 FACILITIES ................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................. 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ........................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ............................................................................ 13 6.1 SETUP CONFIGURATION OF EUT .............................................................................. 13 6.2 SUPPORT EQUIPMENT ............................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ................................................................................ 14 7.1 6DB BANDWIDTH ......................................................................................................... 14 7.2 PEAK POWER .............................................................................................................. 34 7.3 AVERAGE POWER ...................................................................................................... 36 7.4 BAND EDGES MEASUREMENT .................................................................................. 38 7.5 PEAK POWER SPECTRAL DENSITY .......................................................................... 68 7.6 SPURIOUS EMISSIONS ............................................................................................... 88 7.7 RADIATED EMISSIONS ............................................................................................. 107 7.8 POWERLINE CONDUCTED EMISSIONS ................................................................... 124 APPENDIX I PHOTOGRAPHS OF TEST SETUP .................................................................. 127 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Waterproof HD IP Camera Trade Name: Sercomm Model Number: OC835-ADT Date of Test: May 26 ~ August 5, 2015 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 5 Rev. 00 2. EUT DESCRIPTION Product Waterproof HD IP Camera Trade Name Sercomm Model Number OC835-ADT Received Date May 8, 2015 Power Adapter Asian Power Devices Inc. Model: WA-18D12FU I/P: 100-240V, 50-60Hz, 0.5A MAX O/P: 12V, 1.5A Frequency Range 2412…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 127 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 128 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: P27OC835 Report No.: T150508D07-RP Page 129 Rev. 00 Powerline Conducted Emissions Setup Photos
