P27OT4221Dual Band ONT

Sercomm Corporation
Dual Band ONT - FCC ID P27OT4221 - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Jan 29, 2023
Application Purpose
Original Equipment
Date of Application
Jan 17, 2023
Equipment Note
Dual Band ONT
Frequency Range
5745.00000000 - 5825.00000000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5 GETTINGTOKNOWYOUDEVICE Packagecontents  Customer Premise Equipment-ONT AOT-4221SR unit 12V2Apowersupply  QuickInstallationGuide RJ45Ethernetcable RJ11 Telephone cable Fiber cable Deviceoutlook LEDindicators LEDStatus WhiteSolidInternetupwithactiveconnection WhiteDimInternetupwithnoactiveconnection GreenBlinkingUserconnectingtoRouter PinkBlinkingStartingWPSfunction RedSolidInternetDown SETTING UP THE CUSTOMER PREMISE EQUIPMENT-ONT Check the device and note the Wi�i SSID/password information from the label on the back of unit. Position the Customer Premise Equipment-ONT on a desktop. Make sure you leave enough space around the unit for ventilation and access to the cables.  Ensuretheconnectivityasshowninthepicturebelow.  Afterpowerup,theSystemLEDlightsupasAmbercolor. CONFIGURINGTHEDEVICE Onthecomputer,launchthewebbrowser(e.g.InternetExplorer)andenterthe followingIPaddressintheURLbar: https://192.168.225.1 Whenprompted,enterthedefaultUsername(admin)andPassword(admin)and pressLogintoaccessto  Connectthedevicetoyourcomputer. QuickstartGuide 5 DECLARATIONOFCONFORMITY This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE2 - 2012/19/EU). Instead, it should be disposed of by returning it to the point of sale, or to a designated recycling collection point. TECHNICALSPECIFICATION Environmental Conditions Temperature:-5°Cto45°C Humidity:5%to95% The product does not contain any Hazardous substances as listed in 2011/65/EU+(EU)2015/863 RoHS Directive. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modi�ications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 957DFV00AD The device for operation in the band 5150-5250 MH is only for indoor use. z 24

Cover Letter(s)

RF_160,Issue04 DeclarationofAuthorization We Name:SercommCorporation Address:8F,No.3-1,YuanQuSt,NanKang City:Taipei Country:Taiwan Declarethat: NameRepresentativeofagent:ChenzKer AgentCompanyname:MRTTechnology(Taiwan)Co.,Ltd Address:No.38,FuxingSecondRd.,GuishanDist., City:Taoyuan CountryTaiwan isauthorizedtoapplyforCertificationofthefollowingproduct(s): Productdescription:DualBandONT FCCID:P27OT4221 Typedesignation:AOT-4221SR Trademark:Airtel Validity/expirydate2023/2/30 onourbehalf. Date:2023/01/05 City:Taipei Name:NickWu Function:AssociateManager Signature:

Cover Letter(s)

FCC,Requestfornon-disclosureDate:19-Oct-10 RF_501,Issue7Page1of1 CompanyName:SercommCorporation Address:8F,No.3-1,YuanQuSt,NanKang City:Taipei Country:Taiwan To:TeleficationB.V.,Dept.FCCTCB Edisonstraat12A 6902PKZEVENAAR TheNetherlands Subject:RequestforconfidentialityFCCID:P27OT4221 Referencenumber:###### DearFCCTCB, 1.Long-TermConfidentiality Pursuantto47CFRSection0.459(a)&(b),weherebyrequestsnon-disclosureandconfidentialtreatment ofthefollowingmaterialssubmittedinsupportofFCCcertificationapplication: Bill(s)ofMaterialBlockDiagrams OperationalDescriptionSchematicDiagramsTune-upProcedure Abovematerialscontainsecrets,proprietaryandtechnicalinformation,whichwouldcustomarilybe guardedfromcompetitorsunder47CFR,section0.457(d)(2).Disclosureorpublicationoranyportionof thiscompanyconfidentialmaterialtootherpartiescouldcausesubstantialcompetitiveharmandprovide unjustifiedbenefitsforcompetitors. 2.Short-TermConfidentiality(STC) PursuanttoPublicNoticeDA04-1705oftheCommission’spolicy,inordertocomplywiththemarketing regulationsin47CFR§2.803andtheimportationrulesin47CFR§2.1204,applicantherebyrequests Short-TermConfidentialtreatmentofthefollowingmaterials(note1): InternalPhotosUser’sManualTestSet-upPhotosExternalPhotos Justification: PlannedReleaseDateSTC:(notes2,3,4,5).Ifnodateisgiven,45daysfromgrantdatewillbeused. Date:2023/01/05Nameandsignatureofapplicant:NickWu Notes: 1)AdocumentortypeofdocumentcanonlyhaveONEtypeofconfidentiality! 2)Short-Termconfidentialityisinprinciplefor45daysfromdateofgrant;itcanbeextendedmax3times(totaltime180daysmax.)! 3)FCCmustbeinformedwhenmarketingbeginsearlier. 4)Releasetakesplaceautomaticallythusextensionmustberequestedintime.Teleficationdoesnotremindyouofthis! 5)RequestforextensionorforreleasemustbereceivedbyTeleficationatleast7daysbeforedateofactualmarketingorbefore expirationoftheSTCperiod

Cover Letter(s)

UNIIDeclarationLetter WehavedeclaredbelowfeaturedforFCCequipmentauthorization,deviceFCCID:P27OT4221 (1)DFSDevice--Master,ClientwithRadardetectioncapability, Clientwithoutradardetectioncapability,N/A (2)Active/PassiveScanning,adhocmode,accesspointcapability FrequencyBand (MHz) ActiveScanning (thedevicecan transmitaprobe (beacon)) passivescanning (wherethedevice is canlistenonly withno probes) AdHocMode capability Accesspoint capability 2412–2462MHz ■Yes,NoYes,■NoYes,■No■Yes,No 2422–2452MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5745–5825MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5755–5795MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5180–5240MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5190–5230MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5260–5320MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5270–5310MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5500–5700MHz ■Yes,NoYes,■NoYes,■No■Yes,No 5510–5670MHz ■Yes,NoYes,■NoYes,■No■Yes,No (3)Countrycodeselectionability-Yes,No Ifno,plsexplainhowwasimplemented:CountryisselcectedasUSbydefaultandusercannot changethecountrycode. (4)Meet15.202requirement-Yes,No, plscheckbelow: Amasterdeviceisdefinedasadeviceoperatinginamodeinwhichithasthecapabilityto transmitwithoutreceivinganenablingsignal.Inthismodeitisabletoselectachannelandinitiatea networkbysendingenablingsignalstootherdevices Aclientdeviceisdefinedasadeviceoperatinginamodeinwhichthetransmissionsofthedevice areundercontrolofthemaster.Adeviceinclientmodeisnotabletoinitiateanetwork. (5)Forclientdevicesthathavesoftwareconfigurationcontroltooperateindifferentmodes(active scanninginsomeandpassivescanninginothers)indifferentbands(deviceswithmultipleequipment classesorthosethatoperateonnon-DFSfrequencies)ormodulardeviceswhichconfigurethemodes ofoperationsthroughsoftware,theapplicationmustprovidesoftwareandoperationsdescriptionon howthesoftwareand/orhardwareisimplementedtoensurethatproperoperationsmodescannot bemodifiedbyenduseroraninstaller. Apply,NoApply, (Ifapply,plshelptoprovideexplanationonhowitwasimplement(Byhardwareorsoftware,andhowsoftwarewascontrolled) BySoftwarecontrol. Ifyouhaveanyquestions,pleasefeelfreetocontactmeattheaddressshownbelow. Yourssincerely, Signatory: PrintedName:NickWu Position:AssociateManager

External Photos

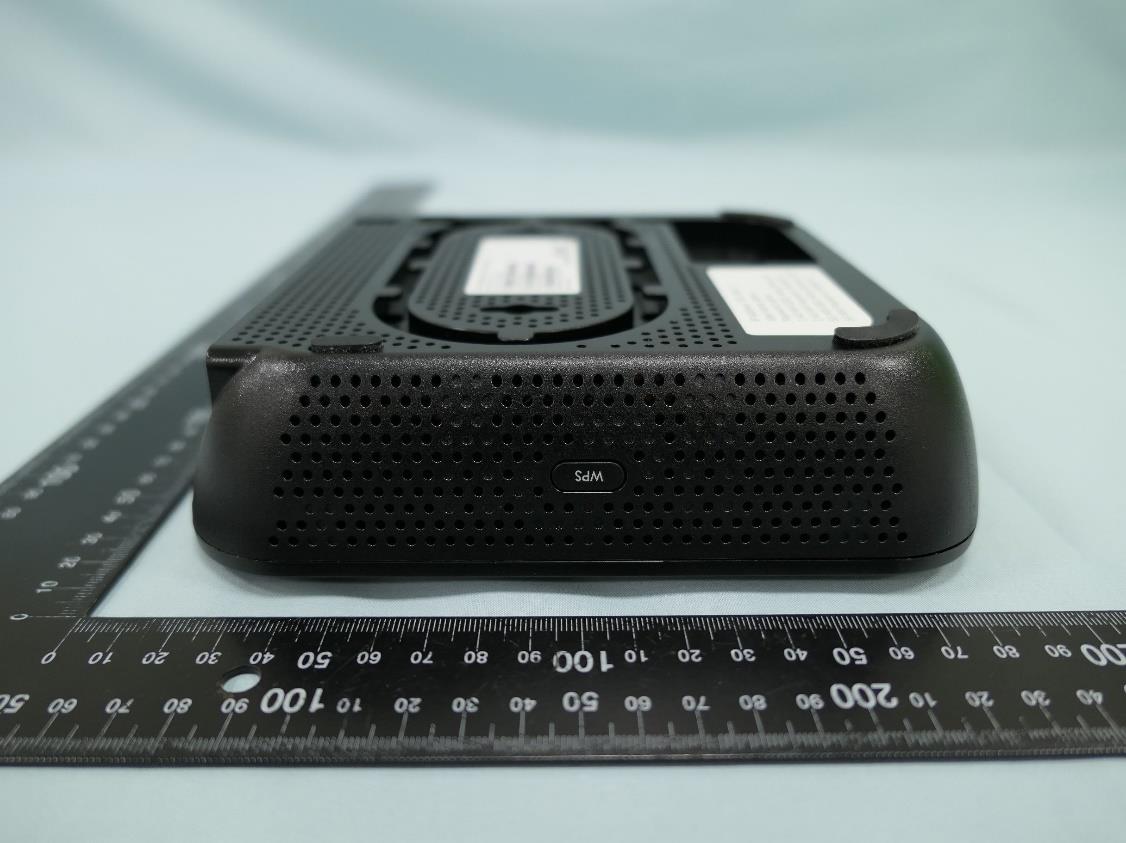

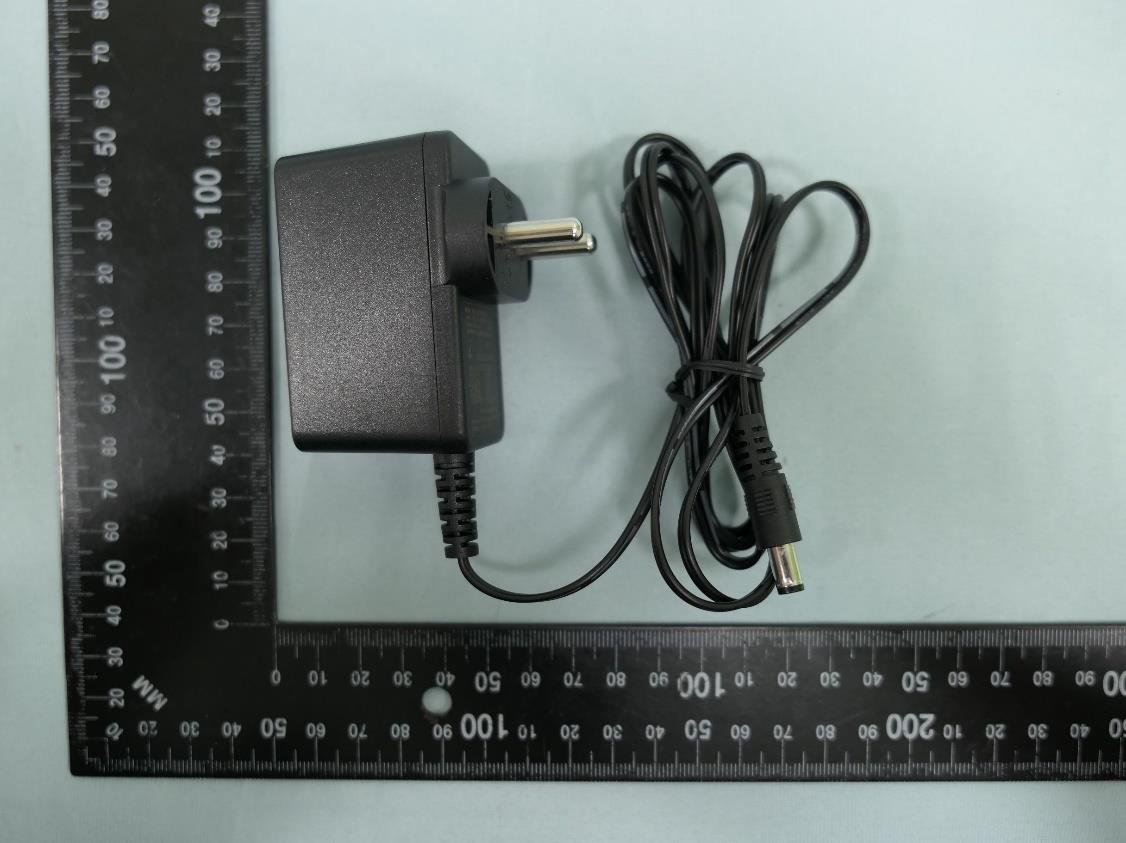

Report No.: 2211TWD801-U1~U3 Product: Dual Band ONT Brand Name: Airtel Model Number: AOT-4221SR 1 of 12 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2211TWD801-U1~U3 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 2211TWD801-U1~U3 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 2211TWD801-U1~U3 4 of 12 (7) EUT Photo (8) Adapter Photo (MSA-C2000IS12.0-24W-IN) Report No.: 2211TWD801-U1~U3 5 of 12 (9) Adapter Photo (MSA-C2000IS12.0-24W-IN) (10) Adapter Photo (MSA-C2000IS12.0-24W-IN) Report No.: 2211TWD801-U1~U3 6 of 12 (11) Adapter Photo (MSA-C2000IS12.0-24W-IN) (12) Adapter Photo (MSA-C2000IS12.0-24W-IN) Report No.: 2211TWD801-U1~U3 7 of 12 (13) Adapter Photo (MSA-C2000IS12.0-24W-IN) (14) Adapter Photo (MSA-C2000IS12.0-24W-IN) Report No.: 2211TWD801-U1~U3 8 of 12 (15) Adapter Photo (MSA-C2000IS12.0-24W-IN) (16) Adapter Photo (WS1202000A10F1) Report No.: 2211TWD801-U1~U3 9 of 12 (17) Adapter Photo (WS1202000A10F1) (18) Adapter Photo (WS1202000A10F1) Report No.: 2211TWD801-U1~U3 10 of 12 (19) Adapter Photo (WS1202000A10F1) (20) Adapter Photo (WS1202000A10F1) Report No.: 2211TWD801-U1~U3 11 of 12 (21) Adapter Photo (WS1202000A10F1) (22) Adapter Photo (WS1202000A10F1) Report No.: 2211TWD801-U1~U3 12 of 12 (23) Adapter Photo (WS1202000A10F1) (24) Lan Cable Photo

ID Label/Location Info

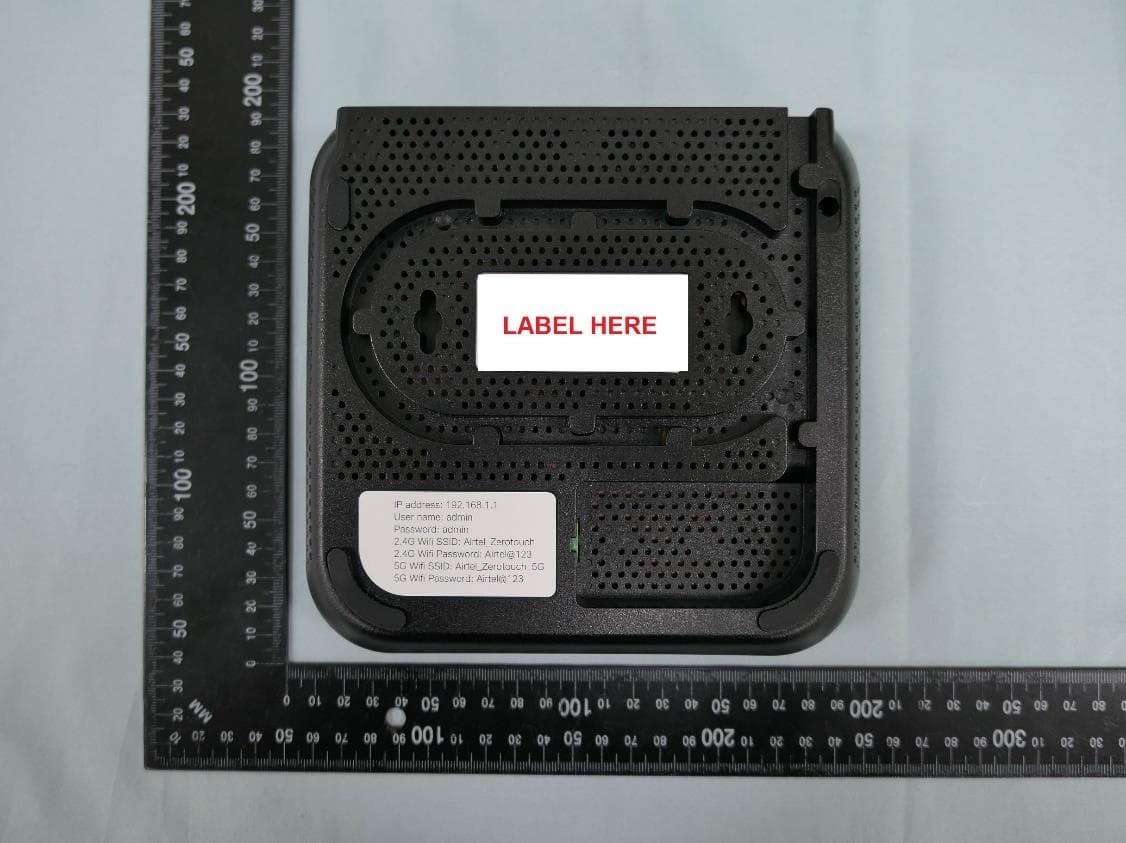

Label Label location

Internal Photos

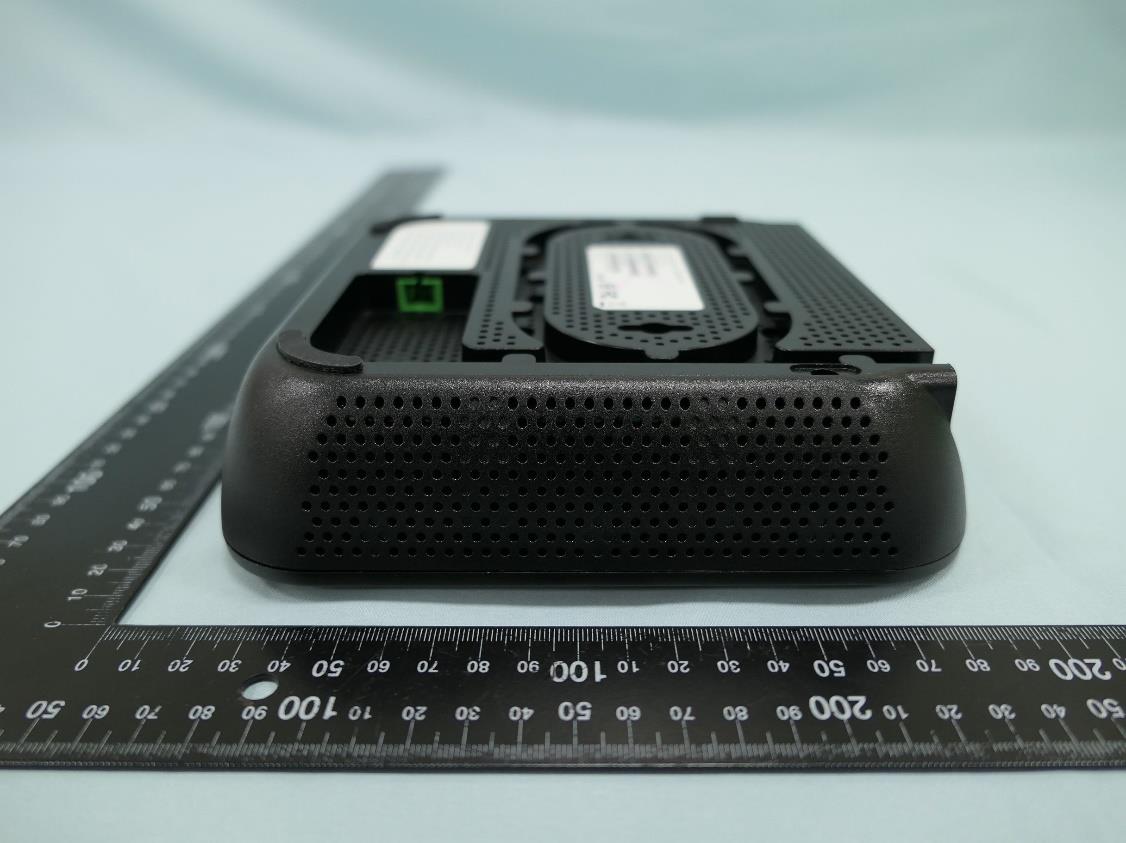

Report No.: 2211TWD801-U1~U3 Product: Dual Band ONT Brand Name: Airtel Model Number: AOT-4221SR 1 of 7 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2211TWD801-U1~U3 2 of 7 (3) EUT Photo (4) EUT Photo Report No.: 2211TWD801-U1~U3 3 of 7 (5) EUT Photo (6) EUT Photo Report No.: 2211TWD801-U1~U3 4 of 7 (7) EUT Photo (8) EUT Photo Report No.: 2211TWD801-U1~U3 5 of 7 (9) EUT Photo (10) EUT Photo Report No.: 2211TWD801-U1~U3 6 of 7 (11) EUT Photo (12) EUT Photo Report No.: 2211TWD801-U1~U3 7 of 7 (13) EUT Photo

RF Exposure Info

MRT Technology (Taiwan) Co., Ltd Report No.: 2211TWD801-U3 Phone: +886-3-3288388 Report Version V1.0 Web: www.mrt-cert.com Issue Date: 2023-01-10 FCC ID: P27OT4221 Page Number: 1 of 9 RF Exposure Evaluation Declaration FCC ID : P27OT4221 Applicant : Sercomm Corporation Application Type : Certification Product : Dual Band ONT Model No. : AOT-4221SR Brand Name : Airtel FCC Classification : Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) Received Date : November 9, 2022 Test Date : November 10 ~ 23, 2022 Test By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 2 of 9 Revision History Report No. Version Description Issue Date Note 2211TWD801-U3 1.0 Original Report 2023-01-10 Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 3 of 9 CONTENTS Description Page 1. INTRODUCTION ................................................................................................................... 5 1.1. Scope ........................................................................................................................ 5 1.2. MRT Test Location .................................................................................................... 5 2. PRODUCT INFORMATION ................................................................................................... 6 2.1. Feature of Equipment under Test .............................................................................. 6 2.2. Description of Available Antennas .............................................................................. 7 3. RF Exposure Evaluation ..................................................................................................... 8 3.1. Limits ......................................................................................................................... 8 3.2. Test Result of RF Exposure Evaluation ...................................................................... 9 Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 4 of 9 General Information Applicant Sercomm Corporation Applicant Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer Sercomm Corporation Manufacturer Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Test Site MRT Technology (Taiwan) Co., Ltd Test Site Address No. 38, Fuxing Second Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C) MRT FCC Registration No. 291082 Test Facility / Accreditations 1. MRT facility is a FCC registered (Reg. No. 291082) test facility with the site description report on file and is designated by the FCC as an Accredited Test Firm. 2. MRT facility is an IC registered (MRT Reg. No. 21723) test laboratory with the site description on file at Industry Canada. 3. MRT Lab is accredited to ISO 17025 by the Taiwan Accreditation Foundation (TAF Cert. No. 3261) in EMC, Telecommunications and Radio testing for FCC (Designation Number: TW3261), Industry Taiwan, EU and TELEC Rules. Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 5 of 9 1. INTRODUCTION 1.1. Scope Measurement and determination of electromagnetic emissions (EMC) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission and the Innovation, Science and Economic Development Canada and Certification and Engineering Bureau. 1.2. MRT Test Location The map below shows the location of the MRT LABORATORY, its proximity to the Taoyuan City. These measurement tests were conducted at the MRT Technology (Taiwan) Co., Ltd. Facility located at No.38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 33377, Taiwan (R.O.C). Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 6 of 9 2. PRODUCT INFORMATION 2.1. Feature of Equipment under Test Product Name: Dual Band ONT Model No.: AOT-4221SR Brand Name: Airtel Wi-Fi Specification: 802.11a/b/g/n/ac (2TX / 2RX) Accessory Adapter#1 BRAND: airtel MODEL: MSA-C2000IS12.0-24W-IN INPUT: 90-270V ~ 50/60Hz 0.7A max. OUTPUT: DC 12.0V 2A Adapter#2 BRAND: Wisepower MODEL: WS1202000A10F1 INPUT: 90-270V ~ 50/60Hz 0.6A OUTPUT: DC 12V 2.0A Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 7 of 9 2.2. Description of Available Antennas Antenna Type Frequency Band (MHz) T X Paths Max Antenna Gain (dBi) Beamforming Directional Gain (dBi) CDD Directional Gain (dBi) For Power For PSD PIFA Antenna 2412 ~ 2462 2 3.50 6.51 3.50 6.51 5150 ~ 5350 2 3.20 6.21 3.20 6.21 5470 ~ 5725 2 3.30 6.31 3.30 6.31 5725 ~ 5850 2 3.20 6.21 3.20 6.21 Note: 1. The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; 2. The EUT also supports Beam Forming mode, and the Beam Forming support 802.11ac/ax, not include 802.11a/b/g/n. BF Directional gain = G ANT + 10 log (N ANT ). 3. All messages of antenna were declared by manufacturer. Report No.: 2211TWD801-U3 FCC ID: P27OT4221 Page Number: 8 of 9 3. RF Exposure Evaluation 3.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic…

Text truncated - open the document above for the full version.

Test Report

Copyright,SercommCorporation, All Rights Reserved. Airtel GPONAntenna Test ReportDate : May 22, 2020Prepared by : Vangie Wen Confidential & Proprietary 2 Outline • Antenna Structure & Placement• Return Loss & Isolation• Radiation Pattern• Peak Gain & Efficiency Confidential & Proprietary 3 Antenna Structure & Placement X Z Y Ant No. Operating Band Type Material Feeding Dimension Ant 1 WiFi2.4G PIFA Metal Cable 45(L) x 11.4(W) x 8.45(H) mm 3 Ant 2 WiFi2.4G PIFA Metal Cable 45(L) x 11.4(W) x 8.45(H) mm 3 Ant 3 WiFi 5G PIFA Metal Cable 15(L) x 19(W) x 10.8(H) mm 3 Ant 4 WiFi 5G PIFA Metal Cable 15(L) x 19(W) x 10.8(H) mm 3 Ant 4 WiFi5G Ant 3 WiFi5G Ant 1 WiFi2G Ant 2 WiFi2G Confidential & Proprietary 4 Return Loss –Ant 1 WiFi 2G Confidential & Proprietary 5 Return Loss –Ant 2 WiFi 2G Confidential & Proprietary 6 Return Loss –Ant 3 WiFi 5G Confidential & Proprietary 7 Return Loss –Ant 4 WiFi 5G Confidential & Proprietary 8 Isolation –Ant 1 to Ant 2 Confidential & Proprietary 9 Isolation –Ant 1 to Ant 3 Confidential & Proprietary 10 Isolation –Ant 1 to Ant 4 Confidential & Proprietary 11 Isolation –Ant 2 to Ant 3 Confidential & Proprietary 12 Isolation –Ant 2 to Ant 4 Confidential & Proprietary 13 Isolation –Ant 3 to Ant 4 Confidential & Proprietary 14 Antenna Measurement Chamber • ETS AMS8923 antenna measurement system• Interior dimensions : 4.9(L) × 4.9(W) × 4.9(H)m 3 • Operating band : 600 MHz –6 GHz • Support passive test & TRP/TIS test• Provide graphic data display Confidential & Proprietary 15 Radiation Pattern –WiFi 2G Z-X plane Z-Y plane X-Y plane Ant 1 Ant 2 Confidential & Proprietary 16 Radiation Pattern –WiFi 5G X-Y plane Z-X plane Z-Y plane Ant 3 Ant 4 Confidential & Proprietary 17 Peak Gain & Efficiency Ant 1 (WiFi 2.4G) Freq. (MHz) Peak Gain (dBi) Efficiency(%) 2400 3.4 62 2450 3.2 62 2500 3.5 65 Ant 2 (WiFi 2.4G) Freq. (MHz) Peak Gain (dBi) Efficiency(%) 2400 3.2 64 2450 3.4 62 2500 3.3 64 Ant 4 (WiFi 5G) Freq. (MHz) Peak Gain (dBi) Efficiency(%) 5150 3.0 62 5500 3.3 60 5850 3.2 61 Ant 3 (WiFi 5G) Freq. (MHz) Peak Gain (dBi) Efficiency(%) 5150 3.2 61 5500 3.2 63 5850 3.1 62

Test Report

MRT Technology (Taiwan) Co., Ltd Report No.: 2211TWD801-U2 Phone: +886-3-3288388 R e p o r t Ve r s i o n : 1.0 Web: www.mrt-cert.com Issue Date: 2023-01-10 FCC ID: P27OT4221 Page Number: 1 of 338 FCC ID : P27OT4221 APPLICANT : Sercomm Corporation Application Type : Certification Product : Dual Band ONT Model No. : AOT-4221SR Brand Name : Airtel FCC Classification : Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s) : Part 15 Subpart E (Section 15.407) Test Procedure(s) : ANSI C63.10-2013 Received Date : November 9, 2022 Test Date : November 10, 2022~November 23, 2022 MEASUREMENT REPORT Tested By : ( Owen Tsai ) Reviewed By : ( Paddy Chen ) Approved By : ( Chenz Ker) The test results only relate to the tested samples. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Taiwan) Co., Ltd. eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 2 of 338 Revision History Report No. Version Description Issue Date Note 2211TWD801-U2 1.0 Original Report 2023-01-10 eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 3 of 338 CONTENTS Description Page §2.1033 General Information ......................................................................................................... 5 1. INTRODUCTION ..................................................................................................................... 6 1.1. Scope ............................................................................................................................ 6 1.2. MRT Test Location ........................................................................................................ 6 2. PRODUCT INFORMATION ..................................................................................................... 7 2.1. Equipment Description .................................................................................................. 7 2.2. Operation Frequencies and Channel List ...................................................................... 8 2.3. Test Mode ................................................................................................................... 10 2.4. Description of Test Software ........................................................................................ 10 2.5. Test Configuration ....................................................................................................... 10 2.6. EMI Suppression Device(s)/Modifications ................................................................... 11 2.7. Labeling Requirements ............................................................................................... 11 3. DESCRIPTION OF TEST .......................................................................................................12 3.1. Evaluation Procedure .................................................................................................. 12 3.2. AC Line Conducted Emissions .................................................................................... 12 3.3. Radiated Emissions ..................................................................................................... 13 4. ANTENNA REQUIREMENTS .................................................................................................14 4.1. Description of Available Antennas ............................................................................... 14 5. TEST EQUIPMENT CALIBRATION DATE .............................................................................15 6. MEASUREMENT UNCERTAINTY ..........................................................................................16 7. TEST RESULT .......................................................................................................................17 7.1. Summary ..................................................................................................................... 17 7.2. 26dB Bandwidth Measurement ................................................................................... 18 7.2.1. Test Limit ..................................................................................................................... 18 7.2.2. Test Procedure used ................................................................................................... 18 7.2.3. Test Setting ................................................................................................................. 18 7.2.4. Test Setup ................................................................................................................... 18 7.2.5. Test Result .................................................................................................................. 19 7.3. 6dB Bandwidth Measurement ..................................................................................... 36 7.3.1. Test Limit ..................................................................................................................... 36 7.3.2. Test Procedure used ................................................................................................... 36 7.3.3. Test Setting ................................................................................................................. 36 eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 4 of 338 7.3.4. Test Setup ................................................................................................................... 36 7.3.5. Test Result .................................................................................................................. 37 7.4. Output Power Measurement ................................................................................…

Text truncated - open the document above for the full version.

Test Report

eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 36 of 338 7.3. 6dB Bandwidth Measurement 7.3.1. Test Limit The minimum 6dB bandwidth shall be at least 500 kHz. 7.3.2. Test Procedure used KDB 789033 D02v02r01 - Section C.2 7.3.3. Test Setting 1. Set center frequency to the nominal EUT channel center frequency. 2. RBW = 100 kHz. 3. VBW ≧ 3 × RBW. 4. Detector = Peak. 5. Trace mode = max hold. 6. Sweep = auto couple. 7. Allow the trace to stabilize. 8. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 7.3.4. Test Setup eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 37 of 338 7.3.5. Test Result Product Dual Band ONT Test Engineer Marvin Test Site SR5 Test Date 2022/11/22 Test Item 6dB Bandwidth Test Mode Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result Ant 1 / Ant 0+1 802.11a 149 5745 15.37 ≥ 0.5 Pass 802.11a 157 5785 15.31 ≥ 0.5 Pass 802.11a 165 5825 15.08 ≥ 0.5 Pass 802.11n-HT20 149 5745 15.05 ≥ 0.5 Pass 802.11n-HT20 157 5785 17.25 ≥ 0.5 Pass 802.11n-HT20 165 5825 16.89 ≥ 0.5 Pass 802.11n-HT40 151 5755 32.62 ≥ 0.5 Pass 802.11n-HT40 159 5795 33.83 ≥ 0.5 Pass 802.11ac-VHT20 149 5745 15.68 ≥ 0.5 Pass 802.11ac-VHT20 157 5785 16.92 ≥ 0.5 Pass 802.11ac-VHT20 165 5825 16.63 ≥ 0.5 Pass 802.11ac-VHT40 151 5755 34.99 ≥ 0.5 Pass 802.11ac-VHT40 159 5795 34.98 ≥ 0.5 Pass 802.11ac-VHT80 155 5775 75.17 ≥ 0.5 Pass eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 38 of 338 802.11a 6dB Bandwidth - Ant 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 39 of 338 802.11n-HT20 6dB Bandwidth - Ant 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 40 of 338 802.11n-HT40 6dB Bandwidth - Ant 1 Channel 151 (5755MHz) Channel 159 (5795MHz) eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 41 of 338 802.11ac-VHT20 6dB Bandwidth - Ant 1 Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 42 of 338 802.11ac-VHT40 6dB Bandwidth - Ant 1 Channel 151 (5755MHz) Channel 159 (5795MHz) eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 43 of 338 802.11ac-VHT80 6dB Bandwidth - Ant 1 Channel 155 (5775MHz) eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 44 of 338 7.4. Output Power Measurement 7.4.1. Test Limit For client operating in the band 5.15-5.25 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 250mW. For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW (23.98dBm) or 11dBm +10 log (26dB BW). For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W (30dBm). If transmitting antennas of directional gain greater than 6dBi are used, the maximum conducted output power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 7.4.2. Test Procedure Used KDB 789033 D02v02r01 - Section E) 3) b) Method PM-G eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 45 of 338 7.4.3. Test Setting Average power measurements were perform only when the EUT was transmitting at its maximum power control level using a broadband power meter with a pulse sensor. The power meter implemented triggering and gating capabilities which were set up such that power measurements were recorded only during the ON time of the transmitter. The trace was averaged over 100 traces to obtain the final measured average power. 7.4.4. Test Setup eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 46 of 338 7.4.5. Test Result Product Dual Band ONT Test Engineer Marvin Test Site SR5 Test Date 2022/11/15 Test Item CDD Mode Model Rate Ch. Freq. (MHz) Ant 0 Power (dBm) Ant 1 Power (dBm) Ant 0+1 Power (dBm) Power Limit (dBm) 802.11a Band1 6M 36 5180 23.62 24.29 26.98 30.00 6M 44 5220 24.67 25.17 27.94 30.00 6M 48 5240 24.53 25.13 27.85 30.00 802.11a Band2 6M 52 5260 17.55 18.42 21.02 23.98 6M 60 5300 17.59 18.45 21.05 23.98 6M 64 5320 17.61 18.39 21.03 23.98 802.11a Band3 6M 100 5500 18.86 18.75 21.82 23.98 6M 116 5580 18.47 18.14 21.32 23.98 6M 140 5700 19.01 18.14 21.61 23.98 6M 144 5720 18.85 18.08 21.49 22.66 802.11a Band4 6M 149 5745 26.37 27.34 29.89 30.00 6M 157 5785 26.26 27.17 29.75 30.00 6M 165 5825 26.12 26.83 29.50 30.00 n-HT20 Band1 MCS0 36 5180 23.86 24.76 27.34 30.00 MCS0 44 5220 24.51 25.17 27.86 30.00 MCS0 48 5240 24.53 25.12 27.85 30.00 n-HT20 Band2 MCS0 52 5260 17.63 18.57 21.14 23.98 MCS0 60 5300 17.53 18.47 21.04 23.98 MCS0 64 5320 17.38 18.45 20.96 23.98 n-HT20 Band3 MCS0 100 5500 18.36 18.43 21.41 23.98 MCS0 116 5580 18.38 18.19 21.30 23.98 MCS0 140 5700 18.89 17.75 21.37 23.98 MCS0 144 5720 18.83 17.77 21.34 22.69 n-HT20 Band4 MCS0 149 5745 26.42 27.12 29.79 30.00 MCS0 157 5785 26.31 27.07 29.72 30.00 MCS0 165 5825 26.28 26.73 29.52 30.00 eport No.: 2211TWD801-U2 FCC ID: P27OT4221 Page Number: 47 of 338 n-HT40 Band1 MCS0 38 5190 18.81 19.53 22.20 30.00 MCS0 46 5230 26.25 26.32 29.30 30.00 n-HT40 Band2 MCS0 54 5270 20.23 20.95 23.62 23.98 MCS0 62 5310 19.14 19.31 22.24 23.98 n-HT40 Band3 MCS0 102 5510 18.62 18.49 21.57 23.98 MCS0 110 5550 21.01 20.49 23.77 23.98 MCS0 134 5670 21.25 20.18 23.76 23.98 MCS0 142 5710 21.09 20.03 23.60 23.98 n-HT40 Band4 MCS0 151 5755 25.87 26.31 29.11 30.00 MCS0 159 5795 25.75 26.63 29.22 30.00 ac-VHT20 Band1 MCS0 36 5180 21.94 22.92 25.47 30.00 MCS0 44 5220 24.79 25.33 28.08 30.00 MCS0 48 5240 24.61 25.27 27.96 30.00 ac-VHT20 Band2 MCS0 52 5260 17.70 18.39 21.07 23.98 MCS0 60 5300 17.67 18.32 21.02 23.98 MCS0 64 5320 1…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Technical Contact

MRT Technology (Taiwan) Co., Ltd.Chenz Ker
[email protected]+88633288388

No. 38, Fuxing Second Rd., Guishan Dist., · Taiwan

Non-Technical Contact

MRT Technology (Taiwan) Co., Ltd.Chenz Ker
[email protected]+88633288388

Test Firm

MRT Technology (Taiwan) Co.,LtdChenz Ker
[email protected]+886-3-328-8388Fax: +886-3-328-8918

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.83 GHz980.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz, 5290 MHz, 5530 MHz, 5610 MHz, 5690 MHz and 5775 MHz. Operations in 5150-5250 MHz band is for indoor use only.
