P27PS801H-V2Wireless USB Print Server

Wireless USB Print Server User Guide Wireless USB Print Server User Guide Home Installation Configuration Tutorials Help Introduction Warranty Copyright Regulatory The Wireless USB Print Server can be used in any home or office network environment to share a USB printer via an Ethernet network or a wireless network. By using the USB Print Server to connect a USB printer to a wireless or Ethernet network device, such as a wireless router or a switch, the USB printer can be shared by each user on the network without having to tie up the resources of one computer to act as the dedicated print server. file:///G|/CSO/T-Writer Repository/Networking/5436A Wireless Gutenberg/User Guide/English/index.html (1 of 4)9/14/2006 4:31:22 PM Wireless USB Print Server User Guide System Requirements l A computer with an Ethernet internet connection l The Installation CD-ROM that came with your printer l An HTML 4.01-compliant Web Browser (such as Internet Explorer 5.5 or later or Netscape 8.0 or later) with JavaScript enabled l Ethernet cable l USB cable Physical Features LEDs LEDStateFunction LAN Solid Ethernet LAN link is achieved. Flashing Sending or receiving LAN data. OffNot connected to LAN. WAN Solid Ethernet WAN link is achieved. Flashing Sending or receiving WAN data. OffNot connected to WAN. ACT Flashing Sending or receiving WAN data. ERR Solid No printer connection is detected. OffPrinter is connected. file:///G|/CSO/T-Writer Repository/Networking/5436A Wireless Gutenberg/User Guide/English/index.html (2 of 4)9/14/2006 4:31:22 PM Wireless USB Print Server User Guide Back ItemFunction RESET Restores your print server to the factory default setting, or prints a test page. To restore your print server to the factory default settings: 1. Unplug the power adapter from the print server. 2. Press and hold the RESET button 3. Plug the power adapter back in to the print server. 4. Release the RESET button. To print a status page: l Press the RESET button once. LAN Connects the print server to your computer’s Ethernet adapter. USB Connects the print server to your computer’s USB adapter. POWER Connects your print server to the supplied power adapter. © 2004-2006 U.S. Robotics Corporation. R46.1414.00 rev 0.4 6/06 file:///G|/CSO/T-Writer Repository/Networking/5436A Wireless Gutenberg/User Guide/English/index.html (3 of 4)9/14/2006 4:31:22 PM Wireless USB Print Server User Guide Wireless USB Print Server User Guide Home Installation Configuration Tutorials Help Introduction Warranty Copyright Regulatory U.S. Robotics Corporation Two (2) Year Limited Warranty 1.0 GENERAL TERMS: 1.1 This Limited Warranty is extended only to the original end-user purchaser (CUSTOMER) and is not transferable. 1.2 No agent, reseller, or business partner of U.S. Robotics Corporation (U.S. ROBOTICS) is authorised to modify the terms of this Limited Warranty on behalf of U. S. ROBOTICS. 1.3 This Limited Warranty expressly excludes any product that has not been purchased as new from U.S. ROBOTICS or its authorised reseller. 1.4 This Limited Warranty is only applicable in the country or territory where the product is intended for use (As indicated by the Product Model Number and any local telecommunication approval stickers affixed to the product). 1.5 U.S. ROBOTICS warrants to the CUSTOMER that this product will be free from defects in workmanship and materials, under normal use and service, for TWO (2) YEARS from the date of purchase from U.S. ROBOTICS or its authorised reseller. 1.6 U.S. ROBOTICS sole obligation under this warranty shall be, at U.S. ROBOTICS sole discretion, to repair the defective product or part with new or reconditioned parts; or to exchange the defective product or part with a new or reconditioned product or part that is the same or similar; or if neither of the two foregoing options is reasonably available, U.S. ROBOTICS may, at its sole discretion, provide a refund to the CUSTOMER not to exceed the latest published U.S. ROBOTICS recommended retail purchase price of the product, less any applicable service fees. All products or parts that are exchanged for replacement will become the property of U.S. ROBOTICS. file:///G|/CSO/T-Writer Repository/Networking/5436A Wireless Gutenberg/User Guide/English/warranty.html (1 of 6)9/14/2006 4:33:45 PM Wireless USB Print Server User Guide 1.7 U.S. ROBOTICS warrants any replacement product or part for NINETY (90) DAYS from the date the product or part is shipped to Customer. 1.8 U.S. ROBOTICS makes no warranty or representation that this product will meet CUSTOMER requirements or work in combination with any hardware or software products provided by third parties. 1.9 U.S. ROBOTICS makes no warranty or representation that the operation of the software products provided with this product will be uninterrupted or error free, or that all defects in software products will be corrected. 1.10 U.S. ROBOTICS shall not be responsible for any software or other CUSTOMER data or information contained in or stored on this product. 2.0 CUSTOMER OBLIGATIONS: 2.1 CUSTOMER assumes full responsibility that this product meets CUSTOMER specifications and requirements. 2.2 CUSTOMER is specifically advised to make a backup copy of all software provided with this product. 2.3 CUSTOMER assumes full responsibility to properly install and configure this product and to ensure proper installation, configuration, operation and compatibility with the operating environment in which this product is to function. 2.4 CUSTOMER must furnish U.S. ROBOTICS a dated Proof of Purchase (copy of original purchase receipt from U.S. ROBOTICS or its authorised reseller) for any warranty claims to be authorised. 3.0 OBTAINING WARRANTY SERVICE: 3.1 CUSTOMER must contact U.S. ROBOTICS Technical Support or an authorised U.S. ROBOTICS Service Centre within the applicable warranty period to obtain warranty service authorisation. 3.2 Customer must provide Product Model Number, Product Serial Number and dated Proof of Purcha…

Text truncated - open the document above for the full version.

1. BLOCK DIAGRAM System BUS CPU RDC R2886 Clock= 150MHz Flash RAM 1M Bytes SDRAM 8M Bytes PHY controller RTL8201CP-25MHz LEDs LAN port RJ45 STP USB Connect Wireless Mini PCI Module Debug Consol

Helen Zhao Subject: FW: RE: SerComm Corporation, FCC ID: P27PS801H-V2, Assessment NO.: AN06T6182, Notice#1 10/11/2006 -----Original Message----- From: amanda.wu [mailto:[email protected]]On Behalf Of application Sent: Tuesday, October 10, 2006 11:14 PM To: Helen Zhao Subject: Re:RE: SerComm Corporation, FCC ID: P27PS801H-V2, Assessment NO.: AN06T6182, Notice#1 Dear Helen: Please see my reply. Thank you. Best Regards, Amanda -----Original Message----- Sent: Thursday, October 05, 2006 3:08 PM Subject: SerComm Corporation, FCC ID: P27PS801H-V2, Assessment NO.: AN06T6182, Notice#1 Question #1: The antenna gain listed on page 4 of the report is different from the one in MPE calculation. Please clarify and make necessary change. Ans: The test report had been revised on page 55-56. Question #2: The user manual indicates that user can select the Region or Domain where the Wireless USB Print Server will be used. Please explain how you prevent users from using unauthorized channels by choose incorrect Region or Domain. Ans: It's limited by software which has been stated in P13, thus, end user will not be able to execute the selection. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

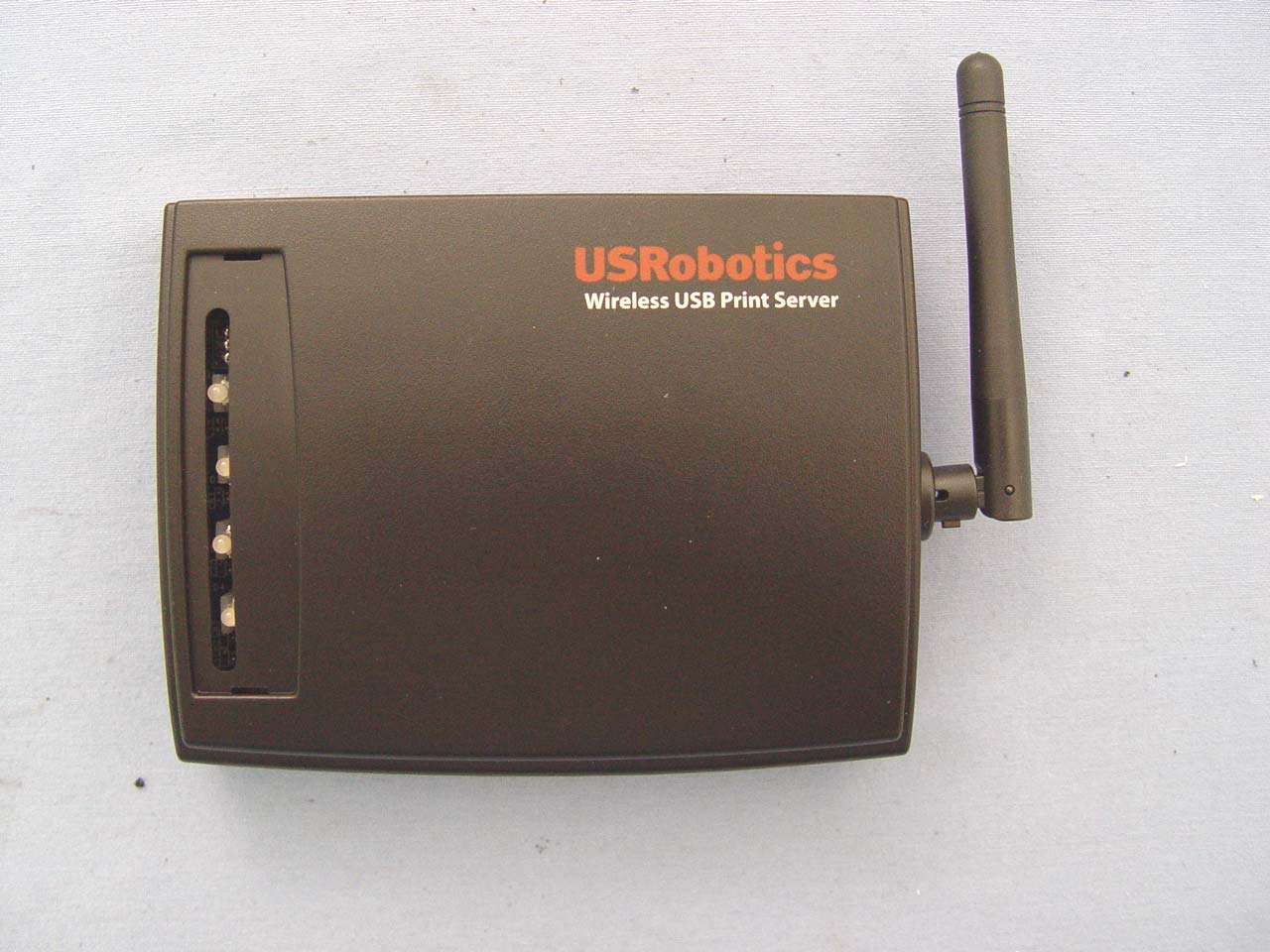

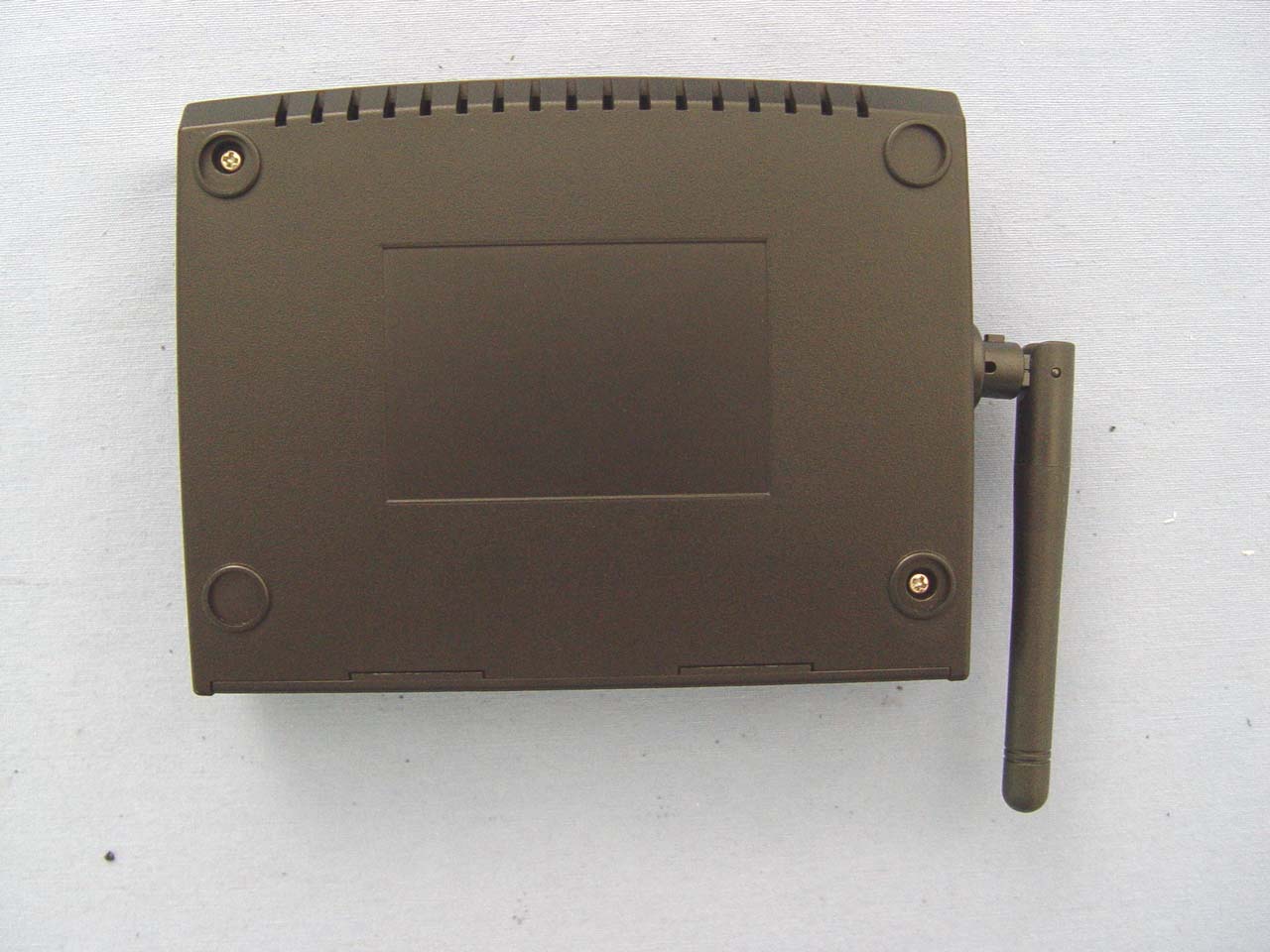

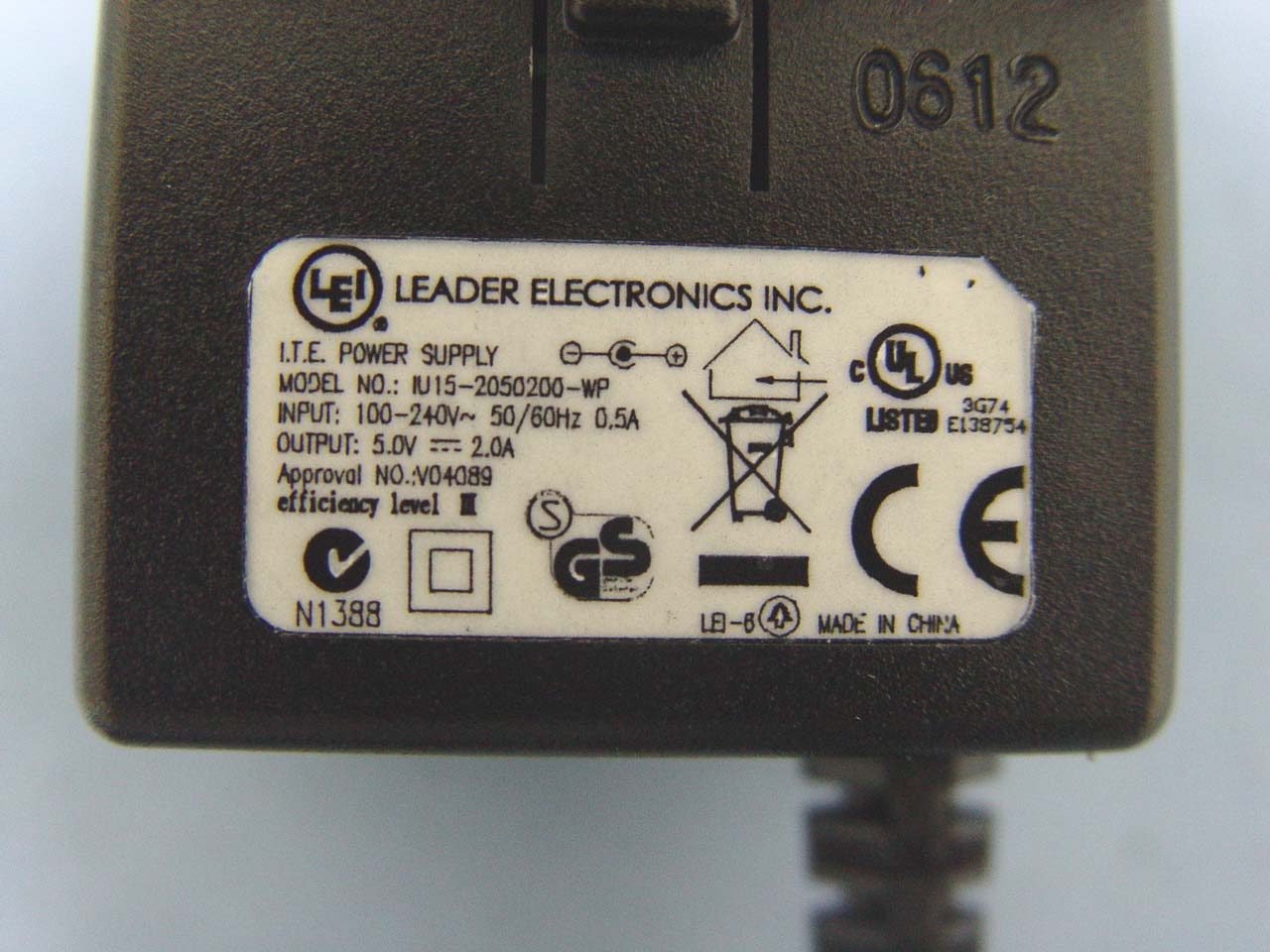

Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 1 Total Page: 7 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 2 Rev.00 Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 3 Rev.00

Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Reference No.: 60427201 Report No: 60712206 Date of Issue: September 8, 2006 Page 7 Rev.00

Compliance Certification Services Inc. Reference No.: 60427201 Report No.: 60712206-RP1 FCC ID: P27PS801H-V2 Date of Issue: September 12, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless USB Print Server Trade Name: U.S. Robotics Model: USRxx5436A, the “xx” should be for the adapter different used. the "xx" mean is from 0~9, A~Z, or Blank Issued to SerComm Corporation 8F, No. 3-1, YuanQu St, NanKang Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Reference No.: 60427201 Report No.: 60712206-RP1 FCC ID: P27PS801H-V2 Date of Issue: September 8, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................52 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................55 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................57 Compliance Certification Services Inc. Reference No.: 60427201 Report No.: 60712206-RP1 FCC ID: P27PS801H-V2 Date of Issue: September 8, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No. 3-1, YuanQu St, NanKang Equipment Under Test: Wireless USB Print Server Trade Name: U.S. Robotics Model: Model: USRxx5436A, the “xx” should be for the adapter different used. the "xx" mean is from 0~9, A~Z, or Blank Date of Test: July 4 ~ 7, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compl…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: 60427201 Report No.: 60712206-RP1 FCC ID: P27PS801H-V2 Date of Issue: September 8, 2006 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Reference No.: 60427201 Report No.: 60712206-RP1 FCC ID: P27PS801H-V2 Date of Issue: September 8, 2006 Page 58 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Reference No.: 60427201 Report No.: 60712206-RP1 FCC ID: P27PS801H-V2 Date of Issue: September 8, 2006 Page 59 Rev. 00 Powerline Conducted Emissions Setup Photos
