P27RC8111Wireless Network HD Camera

Wireless Network HD Camera User’s Guide Table of Contents CHAPTER 1 INTRODUCTION.............................................................................................. 1 Overview ............................................................................................................................ 1 Physical Details - Wireless Network HD Camera ........................................................... 4 Package Contents .............................................................................................................. 6 CHAPTER 2 BASIC SETUP ................................................................................................... 7 System Requirements ........................................................................................................ 7 Installation - Wireless Network HD Camera .................................................................. 7 CHAPTER 3 VIEWING LIVE VIDEO .................................................................................. 9 Overview ............................................................................................................................ 9 Requirements ..................................................................................................................... 9 Connecting to a Camera on your LAN ............................................................................ 9 Connecting to a Camera via the Internet ...................................................................... 11 Viewing Live Video ......................................................................................................... 13 CHAPTER 4 ADVANCED VIEWING SETUP ................................................................... 15 Introduction ..................................................................................................................... 15 Adjusting the Video Image ............................................................................................. 15 Controlling User Access to the Video Stream ............................................................... 17 Making Video available from the Internet .................................................................... 18 Viewing Live Video via the Internet .............................................................................. 20 Motion Detection Alerts .................................................................................................. 21 CHAPTER 5 WEB-BASED MANAGEMENT .................................................................... 22 Introduction ..................................................................................................................... 22 Connecting to Wireless Network HD Camera .............................................................. 22 Welcome Screen ............................................................................................................... 23 Administration Menu ...................................................................................................... 24 System Screen .................................................................................................................. 25 Network Screen................................................................................................................ 27 Wireless Screen ................................................................................................................ 30 Streamings ........................................................................................................................ 32 Video & Audio Screen ..................................................................................................... 34 Video Access Screen ........................................................................................................ 36 User Database Screen ...................................................................................................... 38 Pan/Tilt Screen ................................................................................................................ 39 Motion Detection Screen ................................................................................................. 41 Audio Detection Screen ................................................................................................... 42 FTP Screen ....................................................................................................................... 43 HTTP Screen.................................................................................................................... 44 Trigger & Recording Screen .......................................................................................... 45 Maintenance Screen ........................................................................................................ 47 Status Screen .................................................................................................................... 49 Log Screen ........................................................................................................................ 51 CHAPTER 7 TROUBLESHOOTING .................................................................................. 52 Overview .......................................................................................................................... 52 Problems ........................................................................................................................... 52 APPENDIX A SPECIFICATIONS ........................................................................................ 54 Wireless Network HD Camera ..................................................... 錯誤! 尚未定義書籤。 Regulatory Approvals ..................................................................................................... 54 Copyright Notice ...........................................................................................................…

Text truncated - open the document above for the full version.

Date：December 5, 2014 BABT TCB FCC ID: P27RC8111 Dear Sir or Madam, We, Sercomm Corporation hereby authorize Compliance Certification Services Inc / Miller.Lee . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/6/5 Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：December 5, 2014 BABT TCB Confidentiality Request FCC ID: P27RC8111 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sercomm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：December 5, 2014 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: P27RC8111, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Sercomm / RC8111xxxxxxxx(x= 0~9, A~Z, Blank or any Character) FCC ID: P27RC8111 Product Wireless Network HD Camera Regards, Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

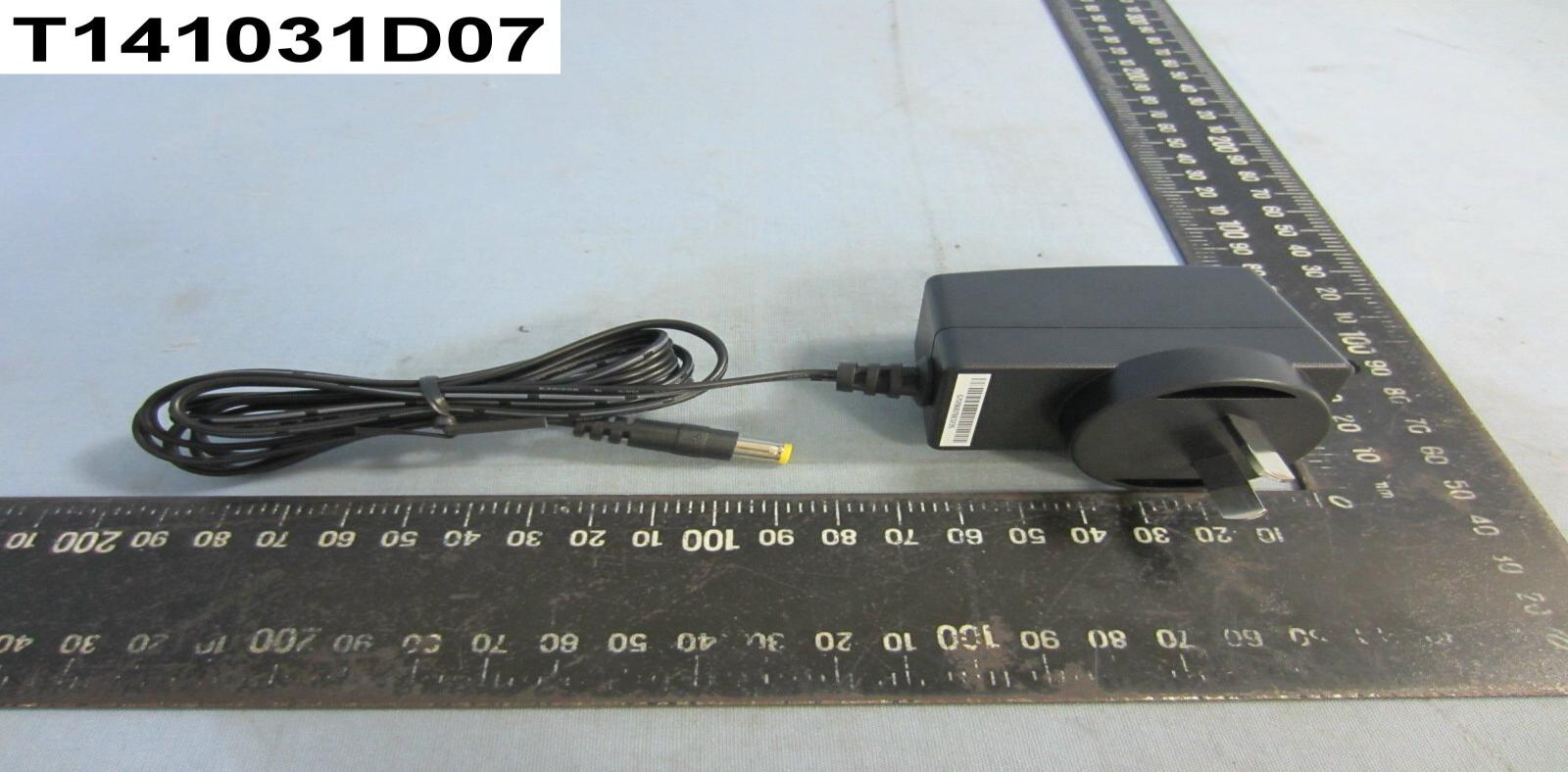

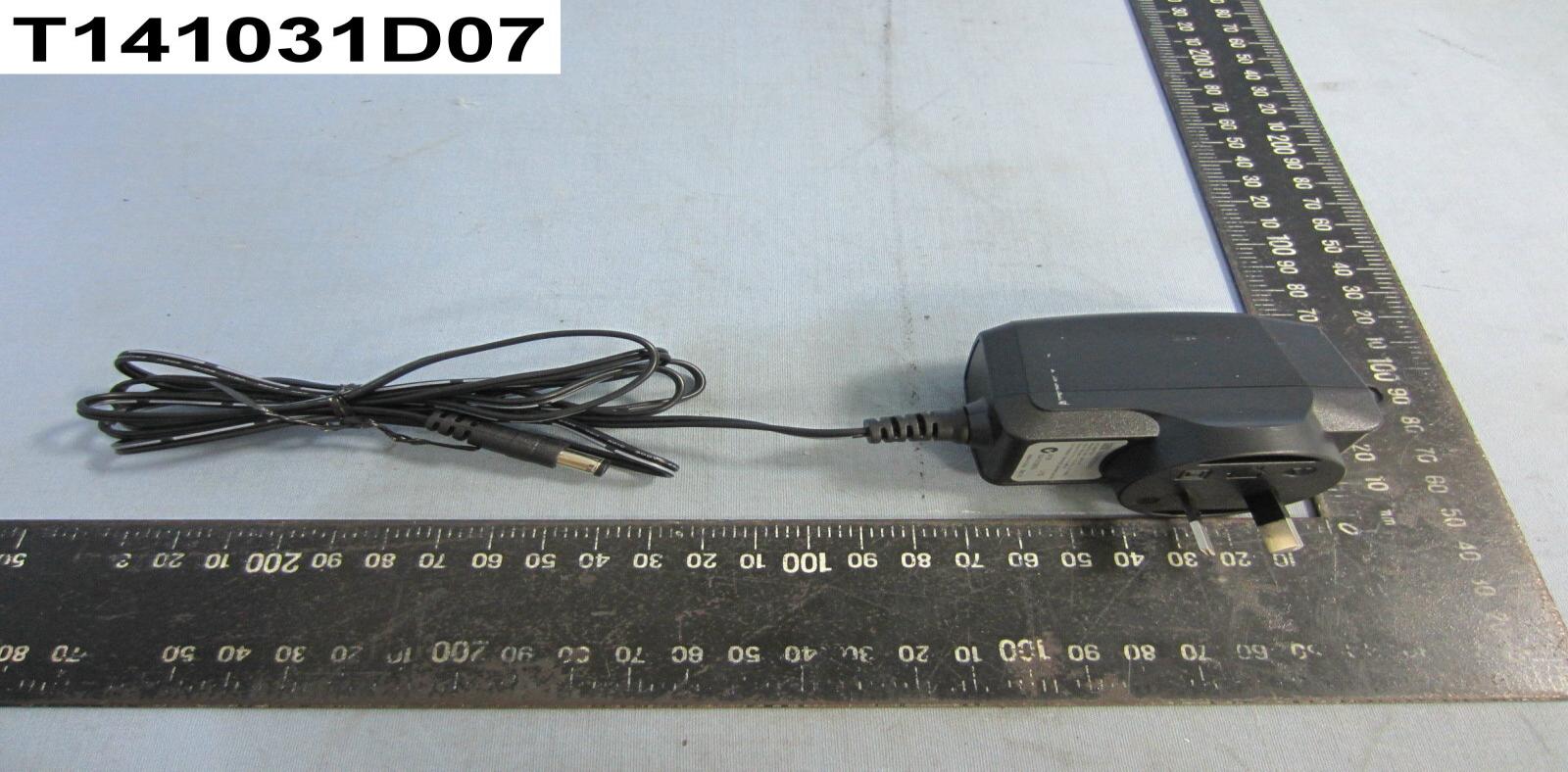

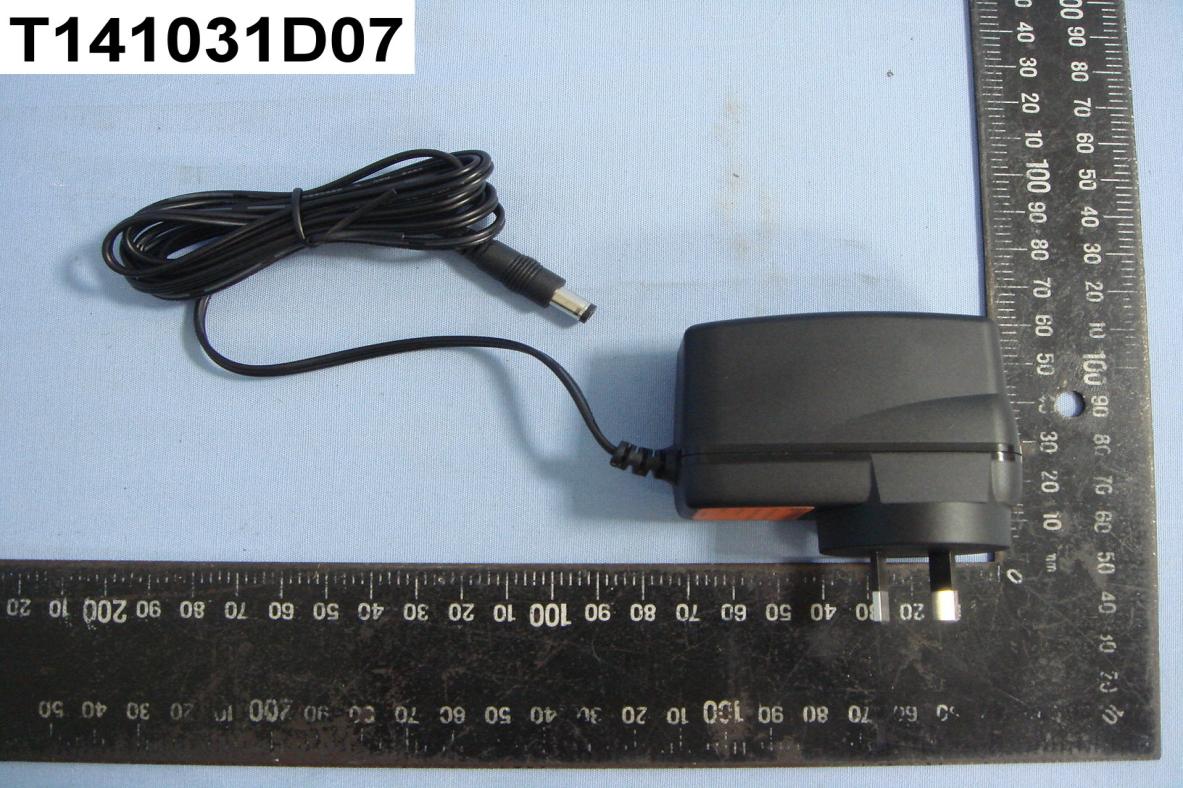

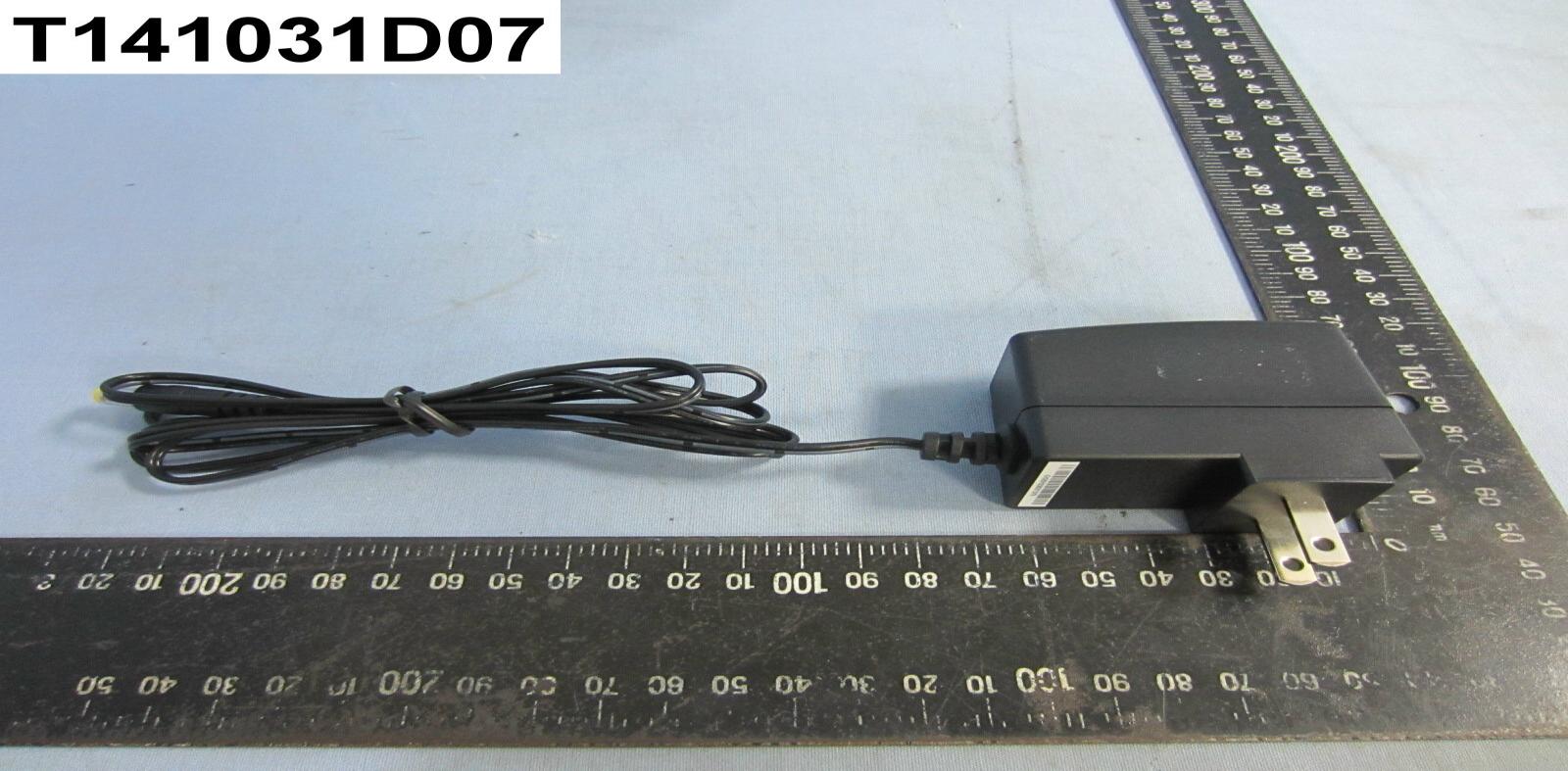

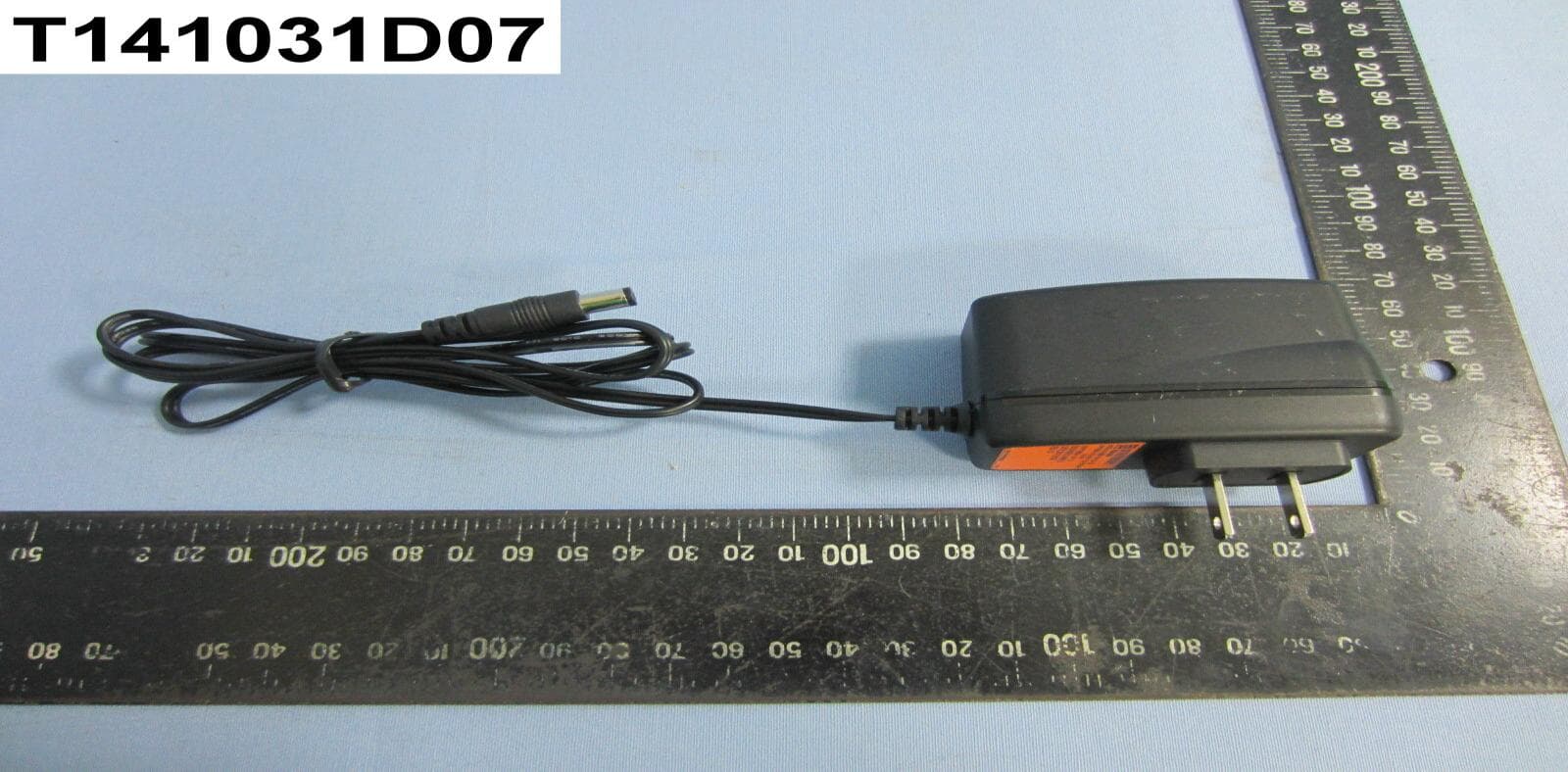

Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 1 / 22 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 2 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 3 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 4 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 5 Rev. 00 Adapter For Sunny / SYS1381-1212-W2 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 6 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 7 Rev. 00 For Sunny / SYS1381-1212-W2A Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 9 Rev. 00 For Phihung / PSAA12A-120 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 11 Rev. 00 For Phihung / PSAA12S-120(SC)-R Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 12 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 13 Rev. 00 For APD / WA-12M12FU Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 15 Rev. 00 For APD / WA-12M12FN Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 16 Rev. 00

單位用量x1

Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 17 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 20 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 21 Rev. 00 Compliance Certification Services Inc. Report No.: T141031D07 Date of Issue: December 2, 2014 A1 - 22 Rev. 00 Antenna RF IC

Compliance Certification Services Inc. Report No.: T141031D07-MF Date of Issue: December 2, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless Network HD Camera Model RC8111xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Trade Name Sercomm Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz 802.11n HT40: 2.422GHz ~ 2.452GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification 2.4GHz: Antenna Gain :2.81 dBi (Numeric gain:1.91) Maximum Average output power IEEE 802.11b Mode: 17.71 dBm(59.020 mW) IEEE 802.11g Mode: 15.66 dBm(36.813 mW) IEEE 802.11n HT 20 Mode: 17.79 dBm(60.117 mW) IEEE 802.11n HT 40 Mode: 17.73 dBm(59.293 mW) Maximum Tune up Power IEEE 802.11b Mode: 18.00 dBm(63.096 mW) IEEE 802.11g Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 20 Mode: 18.00 dBm(63.096 mW) IEEE 802.11n HT 40 Mode: 18.00 dBm(63.096 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T141031D07-MF Date of Issue: December 2, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/12/2 Initial Issue ALL Doris Chu Compliance Certification Services Inc. Report No.: T141031D07-MF Date of Issue: December 2, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T141031D07-MF Date of Issue: December 2, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.11b mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246263.0961.91200.02401 IEEE 802.11g mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 11246263.0961.91200.02401 IEEE 802.11n HT20 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 6243763.0961.91200.02401 IEEE 802.11n HT40 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 3242263.0961.91200.02401

Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Network HD Camera Model Name: RC8111xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Trade Name: Sercomm Issued to Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 2, 2014 Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 2, 2014 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................................... 4 2. EUT DESCRIPTION ........................................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................................... 6 3.1 EUT CONFIGURATION ........................................................................................................................ 6 3.2 EUT EXERCISE .................................................................................................................................... 6 3.3 GENERAL TEST PROCEDURES ............................................................................................................. 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................... 7 3.5 DESCRIPTION OF TEST MODES ........................................................................................................... 8 4. INSTRUMENT CALIBRATION ........................................................................................................ 9 4.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED ......................................................................................... 9 4.3 MEASUREMENT UNCERTAINTY ............................................................................................. 10 5. FACILITIES AND ACCREDITATIONS ........................................................................................ 11 5.1 FACILITIES 11 5.2 EQUIPMENT ...................................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................................... 12 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 13 6.1 SETUP CONFIGURATION OF EUT ....................................................................................................... 13 6.2 SUPPORT EQUIPMENT ............................................................................................................... 13 7. FCC PART 15.247 REQUIREMENTS ............................................................................................. 14 7.1 6DB BANDWIDTH ............................................................................................................................. 14 7.2 PEAK POWER .................................................................................................................................... 34 7.3 AVERAGE POWER ............................................................................................................................ 36 7.4 BAND EDGES MEASUREMENT ................................................................................................ 38 7.5 PEAK POWER SPECTRAL DENSITY .................................................................................................... 68 7.6 SPURIOUS EMISSIONS ................................................................................................................. 88 7.7 RADIATED EMISSIONS ............................................................................................................ 107 7.8 POWERLINE CONDUCTED EMISSIONS ............................................................................................. 124 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Wireless Network HD Camera Model Name: RC8111xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Trade Name: Sercomm Date of Test: November 21 ~ 26, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Miller Lee Angel Cheng Section Manager Section Manager Compliance Certification Services Inc. Complian…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Page 127 Rev. 00 Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Page 128 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: P27RC8111 Report No.: T141031D07-RP Page 129 Rev. 00 Powerline Conducted Emissions Setup Photos
