P27SMATK42LPWA Asset Tracker, AirFinder SuperTag Plus

LL-AF2-ST-SM-ATK42 SuperTag Plus User Guide LL-AF2-ST-SM-ATK42 SuperTag Plus 1 Contents LL-AF2-ST-SM-ATK42 SuperTag Plus 2 Device Specifications 2 Device Lifespan 2 Electrical 2 Mechanical 2 Device notification payload 2 Powering on the device and Installation 3 Optional mounting bracket 5 Frequently Asked Questions (FAQ) 7 LL-AF2-ST-SM-ATK42 SuperTag Plus 2 LL-AF2-ST-SM-ATK42 SuperTag Plus The LL-AF2-ST-SM-ATK42 SuperTag Plus interfaces with Link Labs AirFinder User Interface (app.airfinder.com) to provide customers with a highly accurate GPS, Wi-Fi, Bluetooth positioning service, and accelerometer and temperature. The LL-AF2-ST-SM-ATK42 SuperTag Plus is an IP67 rated device with a 5-color LED indicator. Device Specifications Electrical  Lithium manganese oxide 4x2.3Ah Battery Mechanical  Case Material: ABS  Dimensions: 118 x 83.1 x 34.3mm  Weight: 238 g  IP67 Rating Device notification payload contains  GPS for outdoor positioning  WiFi for outdoor positioning o Only when GPS positioning data is not available  Cell Tower ID for outdoor positioning  Bluetooth for indoor positioning  Movement and Impact reports LL-AF2-ST-SM-ATK42 SuperTag Plus 3 Powering on the device and installation The device has the multi-function button located on the back side of the device and a LED light indication located on the front of the device. Please note the location of the Power Button and LED Lights Shipping Mode After initial programming, the device will enter a low power shipping mode. In this mode the device will perform no operation other than monitor the pushbutton. To exit shipping mode the user must press and hold the pushbutton for at least 5 seconds. After a successful exit from shipping mode the device will only re-enter shipping mode if re-programmed or user pushbutton sequence to re-enter is performed. LED behavior The device has a visible multi-colored LED used to provide user feedback about device mode and status. Shipping mode: Button hold Red LED blink Red LED solid White LED blink End state Button < 1 sec -- 3 sec -- Shipping mode Button >= 1 sec and Button < 3 sec 1x per sec 3 sec -- Shipping mode Button > 3 sec 1x per sec -- 5x rapid Normal operation LL-AF2-ST-SM-ATK42 SuperTag Plus 4 Startup from shipping mode: blink blue LED 3 times (exit shipping mode), blink white LED 5 times (application start). Startup/reset normal: blink blue LED 3 times (bootloader), blink white LED 5 times (application start). Operation mode: 1 White blink fast during location scan Cloud sync: see cloud sync behavior Device cannot connect/constantly resetting: the blue LED will blink 3 times, then there will be a pause, and the blue LED will blink 3 more times. This behavior will continue indefinitely, without the device’s white LED blinking. This means that the device has an error. Some causes are: low battery; battery types that cannot handle the pulse current for LTE-M. Cloud sync The cloud sync feature allows the user to force the device to send an uplink and check for any pending mailbox messages. When the cloud sync pushbutton sequence is performed the device will immediately send a diagnostic event count message and check downlink mailbox using the current modes network (SymBLE or LTE-m). If a location update is in progress this will also be sent with the uplink; however, if a GPS is in progress the scan will be stopped due to potential long GPS scan times and the next location type will be started. The LED is used to indicate to the user the result of the downlink mailbox check: 1 - Green LED blink (5s): downlink mailbox check success with mail 2 - White LED blink (5s): downlink mailbox check success no mail 3 - Red LED blink (5s): downlink mailbox check failed LL-AF2-ST-SM-ATK42 SuperTag Plus 5 Optional mounting bracket An optional mounting bracket for the LL-AF2-ST-SM-ATK42 SuperTag Plus is available for purchase. Customers may use screws, zip ties or VHB tape to affix the mounting bracket to a variety of surfaces. Using Screws to affix bracket LL-AF2-ST-SM-ATK42 SuperTag Plus 6 Using zip ties to affix bracket Using VHB tape to affix bracket After affixing the mounting bracket, insert the into the mounting bracket and secure it by tightening the screw located on the bottom. LL-AF2-ST-SM-ATK42 SuperTag Plus 7 Frequently Asked Questions (FAQ) Question Answer How do I power on the device? Device is powered on by pressing/holding the button for 5 seconds. The LED will blink blue 3 times and white 5 times to indicate it is powered up. How do I diagnose what is going on with my device? Most of the device diagnostics can be observed from the LED light on the device. Can I power down the device? Devices do not have the ability to be powered off after the initial power on unless the batteries are removed. Can I change the configuration of the device? Device configurations can be changed by setting up an AirFinder account at apps.airfinder.com, or submitting a support ticket to https://link-labs.zendesk.com/hc/en- us/requests/new?ticket_form_id=360000334931 LL-AF2-ST-SM-ATK42 SuperTag Plus 8 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference t…

Text truncated - open the document above for the full version.

SercommCorporation中磊電子股份有限公司 TaipeiOffice:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. TEL:886-2-2655-3988FAX:886-2-2655-3966 Date:2021-04-23 Declarationletter ToWhomItMayConcern We,SercommCorp,declarethatWi-Fifunctionislimitedbyfirmwaretoreceivesignalonlyandthereisno methodtoactivetransmissionfunctionaftershipping. FCCID:P27SMATK42 ----------------------------------------------- SercommCorporation NickWu/Engineer TEL:886-2-2655-3988*2556 FAX:886-2-2655-3965 E-mail:[email protected]

SercommCorporation中磊電子股份有限公司 TaipeiOffice:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. TEL:886-2-2655-3988FAX:886-2-2655-3966 Date:2021-04-23 FCCID:P27SMATK42 Totheattentionof FederalCommunicationsCommission AuthorizationandEvaluationDivision PermanentConfidentialityRequest PursuanttoSections0.457and0.459oftheCommission’sRules,theApplicantherebyrequestsconfidential treatmentofinformationaccompanyingthisApplicationasoutlinedbelow: Schematics BlockDiagram OperationalDescription Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic. ThepublicdisclosureofthesemattersmightbeharmfultotheApplicantandprovideunjustifiedbenefitstoits competitors. TheApplicantunderstandsthatpursuanttoRule0.457,disclosureofthisApplicationandallaccompanying documentationwillnotbemadebeforethedateoftheGrantforthisapplication. Sincerelyyours, ----------------------------------------------- SercommCorporation NickWu/Engineer TEL:886-2-2655-3988*2556 FAX:886-2-2655-3965 E-mail:[email protected]

SercommCorporation中磊電子股份有限公司 TaipeiOffice:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. TEL:886-2-2655-3988FAX:886-2-2655-3966 Date:2021-04-23 FCCID:P27SMATK42 Totheattentionof FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequest PursuanttoSections0.457and0.459ofthecommission’srules,werequestshort-term confidentialtreatmentforthefollowinginformationuntil180daysaftertheGrant DateofEquipmentAuthorizationinordertoensuresensitivebusinessinformation remainsconfidentialuntiltheactualmarketingofthedevice: Externalphotos TestSetupphotos User’smanual InternalPhotos Sincerelyyours, ------------------------------------------ SercommCorporation NickWu/Engineer TEL:886-2-2655-3988*2556 FAX:886-2-2655-3965 E-mail:[email protected]

SercommCorporation中磊電子股份有限公司 TaipeiOffice:8F,No.3-1,YuanQuSt.,NanKang,Taipei115,Taiwan,R.O.C. TEL:886-2-2655-3988FAX:886-2-2655-3966 Date:2021-04-23 FCCID:P27SMATK42 AUTHORIZATIONLETTER Towhomitmayconcern: We,theundersigned,herebyauthorizeAndreaHsia/SupervisorofBureauVeritasConsumer ProductsServices(H.K.)Ltd.,TaoyuanBranch(BVCPSTaoyuan)ofTaiwantoactonourbehalfinall mannersrelatingtoFCCapplicationforequipmentauthorization,includingsigningofalldocuments relatingtothesematters.AnyandallactscarriedoutbyAndreaHsia/SupervisorofBVCPSTaoyuan onourbehalfshallhavethesameeffectasactsofourown. Ifyouhaveanyquestionsregardingtheauthorization,pleasedon’thesitatetocontactus. Sincerelyyours, ----------------------------------------------- SercommCorporation NickWu/Engineer TEL:886-2-2655-3988*2556 FAX:886-2-2655-3965 E-mail:[email protected]

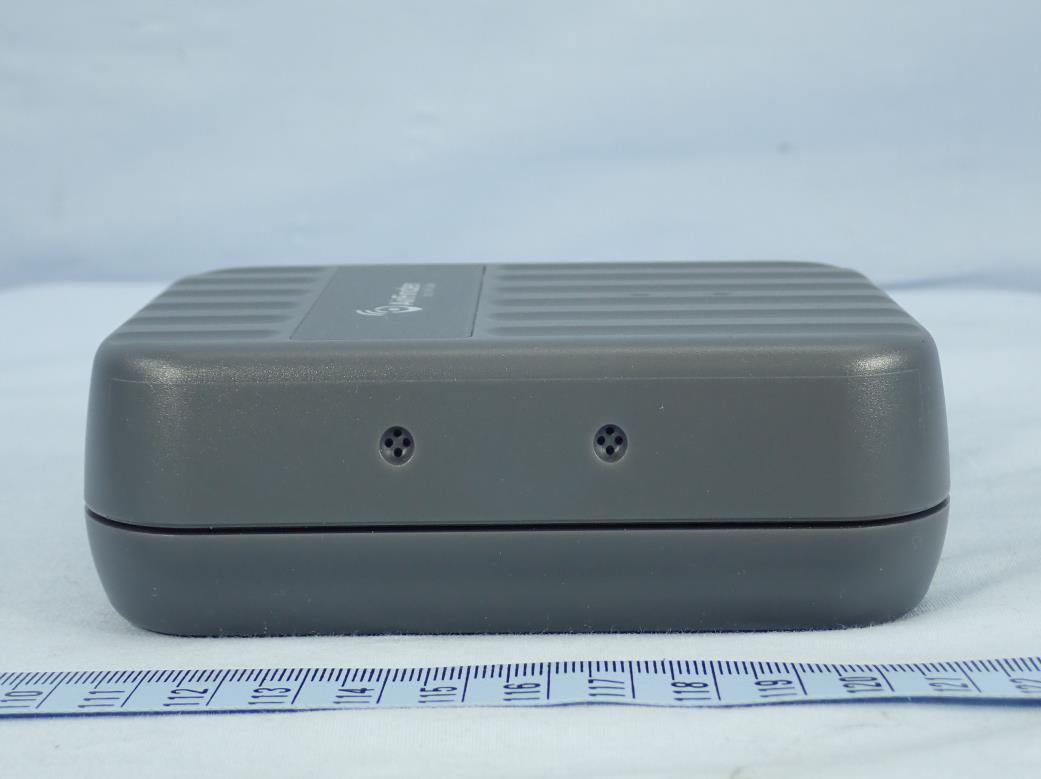

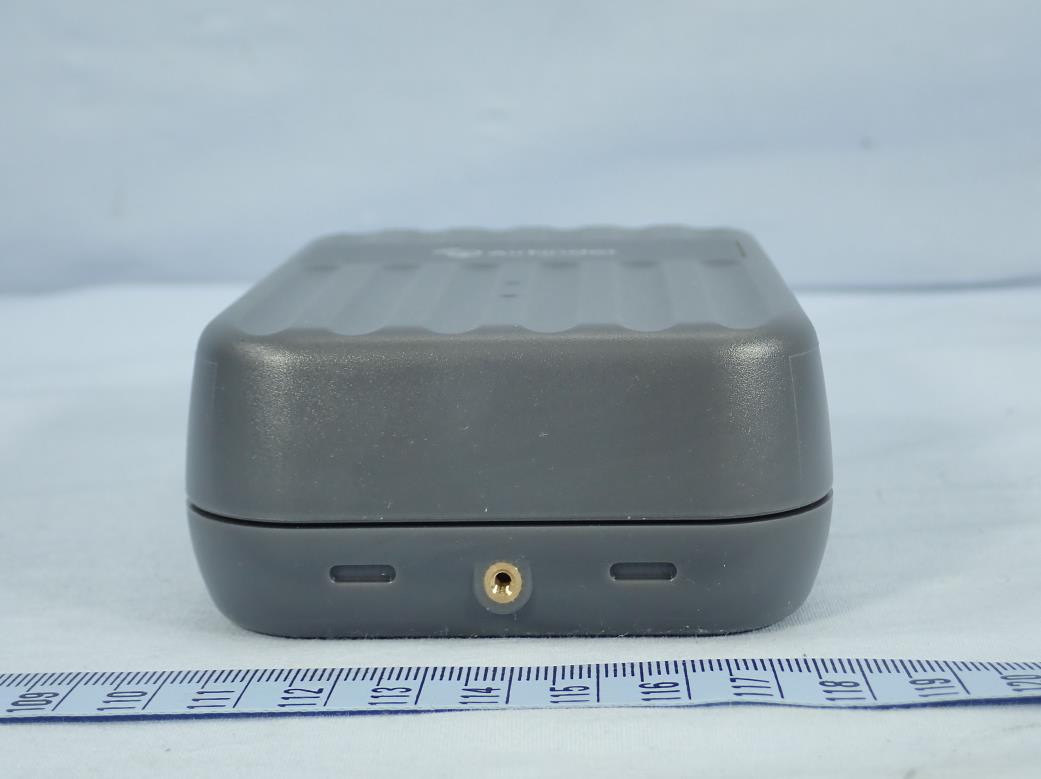

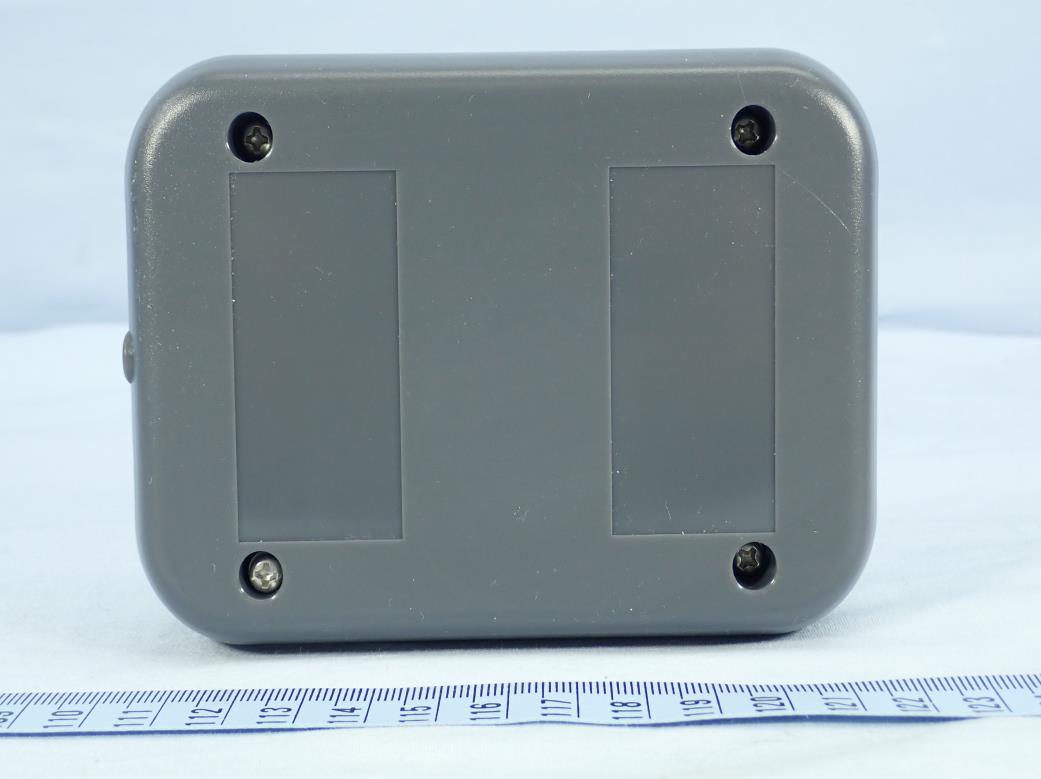

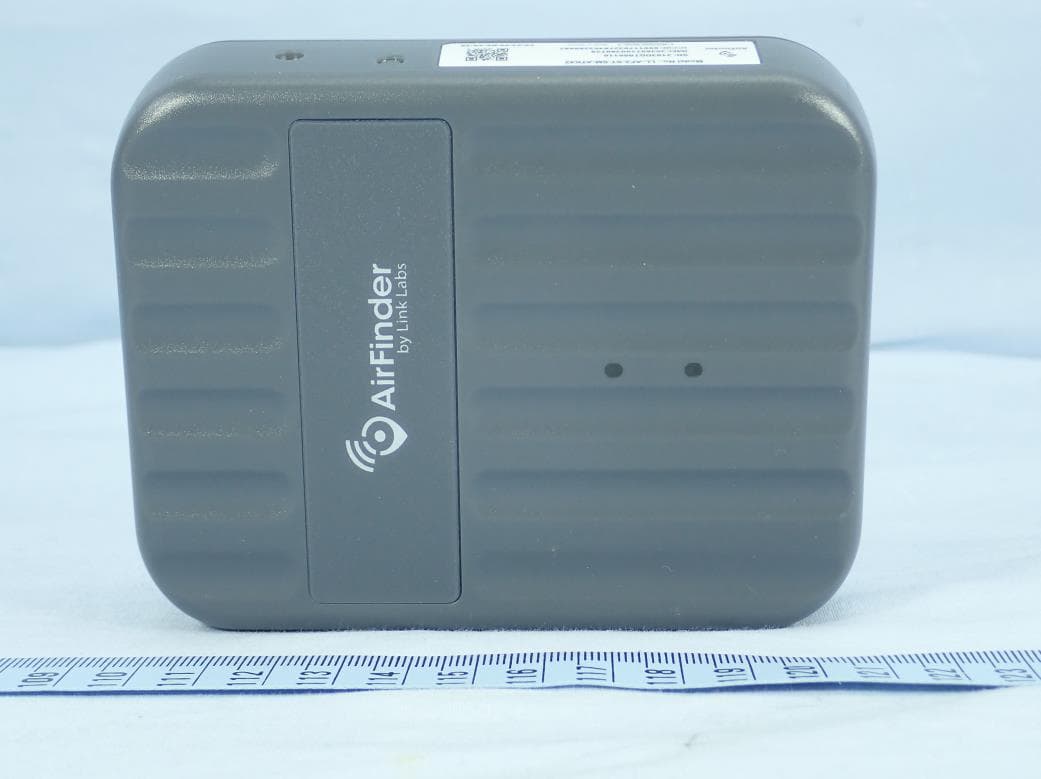

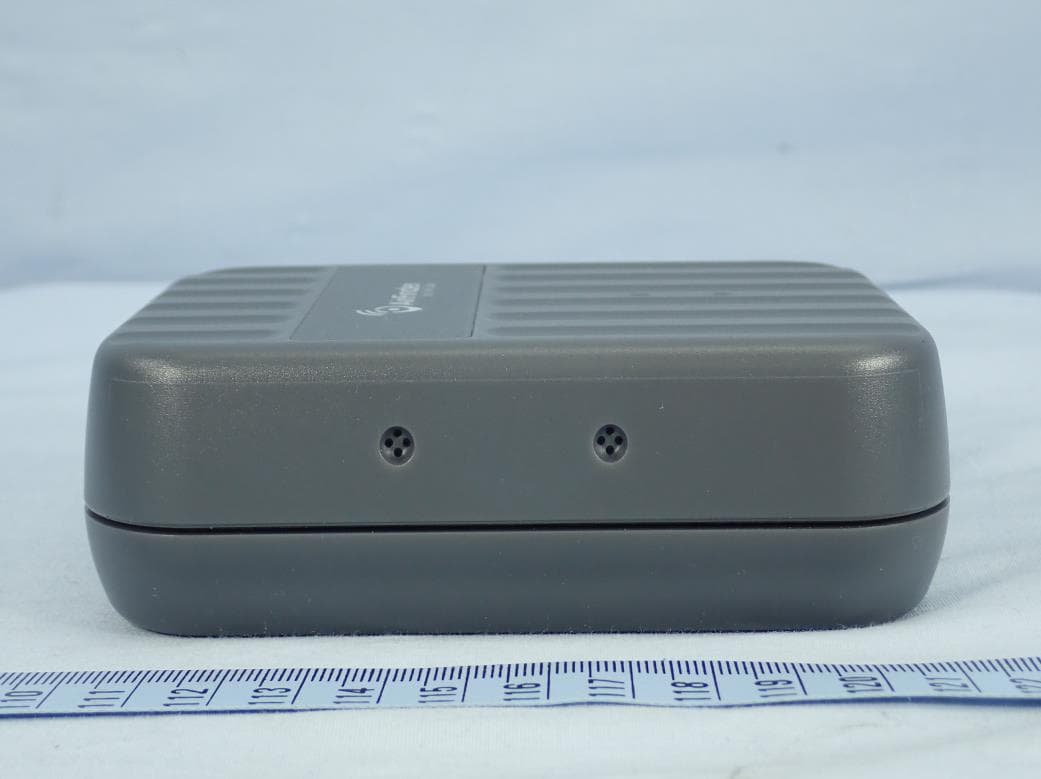

Reference No.:B EIH-W TW-P21040025_ExtP ho CONSTRUCTION PHOTOS OF EUT Reference No.:B EIH-W TW-P21040025_ExtP ho Reference No.:B EIH-W TW-P21040025_ExtP ho

FCC ID: P27SMATK42 IC: 12201A-ATK42 Label sample

Reference No.:B EIH-W TW-P21040025_IntP ho CONSTRUCTION PHOTOS OF EUT Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Antenna Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho Reference No.:B EIH-W TW-P21040025_IntP ho

Report No.: SABEIH-WTW-P21040025 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SABEIH-WTW-P21040025 FCC ID: P27SMATK42 Test Model: LL-AF2-ST-SM-ATK42 Series Model: SM-ATK42xxx (the 1st x should be "blank" or "-"; the rest x could be 0 to 9, A to Z, a to z, "blank" or "-", for the marketing purpose) Received Date: Apr. 1, 2021 Test Date: Apr. 16 to 17, 2021 Issued Date: Apr. 23, 2021 Applicant: Sercomm Corporation Address: 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan FCC Registration / Designation Number: 198487 / TW2021 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written perm ission. This report sets forth our findings solely with respect to the test sam ples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any m aterial error or om ission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the com pleteness of this report, the tests conducted and the correctness of the report contents. Unless specific m ention, the uncertai measurement nty of has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABEIH-WTW-P21040025 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record ........................................................................................................................ 3 1 Certificate of Conformity ............................................................................................................. 4 2 RF Exposure ............................................................................................................................... 5 2.1 Limits For Maximum Permissible Exposure (MPE) ....................................................................... 5 2.2 MPE Calculation Formula........................................................................................................... 5 2.3 Classification ............................................................................................................................. 5 2.4 Calculation Result Of Maximum Conducted Power ...................................................................... 6 Report No.: SABEIH-WTW-P21040025 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SABEIH-WTW-P21040025 Original release. Apr. 23, 2021 Report No.: SABEIH-WTW-P21040025 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: LPWA Asset Tracker, AirFinder SuperTag Plus Brand: Sercomm, AirFinder Test Model: LL-AF2-ST-SM-ATK42 Series Model: SM-ATK42xxx (the 1st x should be "blank" or "-"; the rest x could be 0 to 9, A to Z, a to z, "blank" or "-", for the marketing purpose) Sample Status: Engineering sample Applicant: Sercomm Corporation Test Date: Apr. 16 to 17, 2021 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Apr. 23, 2021 Jessica Cheng / Senior Specialist Approved by : , Date: Apr. 23, 2021 Rex Lai / Associate Technical Manager Report No.: SABEIH-WTW-P21040025 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits For Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABEIH-WTW-P21040025 Page No. 6 / 6 Report Format Version: 6.1.1 2.4 Calculation Result Of Maximum Conducted Power EUT (BT LE): Function Frequency Band (MHz) Max AV Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) BT LE 2.402-2.480 -3.85 3.12 20 0.0002 1 Note: 1. Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. 2. The above Antenna information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. 3. BT LE + LTE tec…

Text truncated - open the document above for the full version.

Report No.: RFBEIH-WTW-P21040025 Page No. 1 / 32 Report Format Version: 6.1.1 FCC Test Report (BT LE) Report No.: RFBEIH-WTW-P21040025 FCC ID: P27SMATK42 Test Model: LL-AF2-ST-SM-ATK42 Series Model: SM-ATK42xxx (the 1st x should be "blank" or "-"; the rest x could be 0 to 9, A to Z, a to z, "blank" or "-", for the marketing purpose) Received Date: Apr. 1, 2021 Test Date: Apr. 16 to 17, 2021 Issued Date: Apr. 23, 2021 Applicant: Sercomm Corporation Address: 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan FCC Registration / Designation Number: 198487 / TW2021 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written perm ission. This report sets forth our findings solely with respect to the test sam ples identified herein. The res ults s et forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any m aterial error or om ission caused by our negligence, provided, however, that such notice shall be in writing and shall s pecifically address the issue you wis h to rais e. A failure to rais e s uch issue within the prescribed time shall constitute your unqualified acceptance of the com pleteness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBEIH-WTW-P21040025 Page No. 2 / 32 Report Format Version: 6.1.1 Table of Contents Release Control Record ........................................................................................................................ 4 1 Certificate of Conformity ............................................................................................................. 5 2 Summary of Test Results ............................................................................................................ 6 2.1 Measurement Uncertainty .......................................................................................................... 6 2.2 Modification Record ................................................................................................................... 6 3 General Information .................................................................................................................... 7 3.1 General Description of EUT........................................................................................................ 7 3.2 Description of Test Modes .......................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ....................................................................... 9 3.3 Description of Support Units ..................................................................................................... 10 3.3.1 Configuration of System under Test ........................................................................................... 10 3.4 Duty Cycle of Test Signal ......................................................................................................... 11 3.5 General Description of Applied Standards and references .......................................................... 11 4 Test Types and Results ............................................................................................................. 12 4.1 Radiated Emission and Bandedge Measurement ....................................................................... 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement .......................................................... 12 4.1.2 Test Instruments ...................................................................................................................... 13 4.1.3 Test Procedures ....................................................................................................................... 14 4.1.4 Deviation from Test Standard .................................................................................................... 14 4.1.5 Test Setup ............................................................................................................................... 15 4.1.6 EUT Operating Conditions ........................................................................................................ 16 4.1.7 Test Results............................................................................................................................. 17 4.2 6dB Bandwidth Measurement................................................................................................... 22 4.2.1 Limits of 6dB Bandwidth Measurement ...................................................................................... 22 4.2.2 Test Setup ............................................................................................................................... 22 4.2.3 Test Instruments ...................................................................................................................... 22 4.2.4 Test Procedure ........................................................................................................................ 22 4.2.5 Deviation from Test Standard .............................................................................................…

Text truncated - open the document above for the full version.

Reference No.: RFBEIH-WTW-P21040025 Page No. 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST <Frequency Range below 1GHz> Reference No.: RFBEIH-WTW-P21040025 Page No. 2 / 2 RADIATED EMISSION TEST <Frequency Range above 1GHz>
