P27SZBSW01ZigBee Binary Switch

Sercomm Corporation
ZigBee Binary Switch - FCC ID P27SZBSW01 - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 18, 2013
Application Purpose
Original Equipment
Date of Application
Jun 18, 2013
Equipment Note
ZigBee Binary Switch
Frequency Range
2405.00000000 - 2480.00000000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 SZ-BSW01 ZigBee Binary Switch Installation Guide SZ-BSW01 can provide "smart" lighting remote control with its embedded radio frequency (RF) technology that is compatible with ZigBee enabled devices. This device is designed to give you one-touch control of your home's lighting. In a ZigBee network, each device is designed to act as a router. These routers will re-transmit the RF signal from one device to another until the signal is received by the final destination. Using RF technology ensures SerComm to provide great signal through all the obstacles and radio dead spots. The plug-in Lamp Module of SZ-BSW01 is compatible with any ZigBee enabled network, regardless of the manufacturer and can also be used with other devices with the ZigBee logo. CAUTION: Remember to have common sense while using the remote control, especially when scheduling unattended devices. There can be some unexpected consequences if used without care. For example, if an empty coffee pot is remotely turned on, and your coffee pot could be damaged from overheating. Or if an electric heater is turned on by remote control while clothing is draped over it, it may result a fire. DO NOT USE the remote for controlling the high power heating appliances such as portable heaters. This device will not control lighting used with electronic low-voltage and high frequency power supply transformers, nor high pressure discharge lamps (HID lighting), which include mercury-vapor, sodium vapor and metal halide lamps. DO NOT change location after unit is enrolled in ZigBee network. Specification Rado Frequency 2.4GHz RF Communication Range Open Aire:100M (Max) LED Indicator Red / Greed LED x 1 Power Source Input:120 VAC, 0.5A, 50-60 Hz Output Max Current 10A Dimensions (H x W x D) 55 mm x 55 mm x 38 mm (2.15” x 2.15” x 1.48”) Operation Temperature 0° - 50°C (32° - 122°F) Storage Temperature -20° - 70°C (-4° - 158°F) Package Contents Warnings and Cautions  To be installed and/or used in accordance with appropriate electrical codes and regulations.  If you are unsure about any part of these instructions, please consult a qualified electrician. 2  To reduce the risk of overheating and possible damage to other equipments, do not install for controlling a motor-operated appliance, fluorescent lighting fixture, or a transformer supplied appliance.  Unplug unit when servicing the connected lighting fixtures.  Save this instruction sheet. It contains important technical data along with testing and troubleshooting information, which will be useful for future reference. LEDs Power (Red/Green) On (Red) - When ON/OFF button is pressed to ON. Blinking (Green):  The LED will blink for 10 seconds when join/leave function is being processed.  The LED will be on for 1 seconds when join/leave function is succeeded and then off Installation NOTE: In order to use SZ-BSW01 in a ZigBee network, the device must be Included into the network by using a Primary Programmer/Remote. Please refer to the Remote Control instruction sheet for complete information. 1. Put the lamp’s plug into SZ-BSW01. 2. Attach the SZ-BSW01 into wall receptacle. Make sure the receptacle is working properly. If it is controlled by a wall switch, which must be set to ON all the times. WARNING: For use with up to 1000 Watts incandescent lights. 3 Operation 1. ON/OFF Button 2. Join/Leave Button Auto Operation: NOTE: For complete details on operating by the Remote Control, please refer to the individual device’s instruction guide. If a power interruption should occur while the device is ON, the light will return to its previous state when power is restored.  ON: This command will turn on the lights to the previous setting.  OFF: This command will turn the lights off. MANUAL Operation:  ON: Press the ON/OFF button of the device to turn the lights on. NOTE: The lights will be turned ON regardless of the previous setting.  OFF: Press the ON/OFF button to turn the lights off. Joing / Leaving to a ZigBee Network  Join Function For "Join" a network, please do the following instruction:  Press the Join/Leave button for less than 1 second. The LED is blinking while processing. If the device has been joined with the controller successfully, the Green LED will be on for 2 seconds and then off. The Green LED will be off instantly if failed.  Leave Function  For "Leave" a network, please do the following instruction: Pressed Join/Leave button for 3 seconds to let the SZ-BSW01 be deleted from the ZigBee Coordinator. If the SZ-BSW01 has been deleted successfully, the LED will be on for 1 second and then off. Troubleshooting If the device appears to be functioning improperly, please follow the suggested steps: 1. Confirm that the device is being supplied from a 120V, 60Hz AC source ONLY. 2. Confirm that the device is being controlled in proper way (local switch is ON) and check for burned-out bulbs. 3. Be sure that the lighting does not exceed the current 10A limit. 4 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an expe…

Text truncated - open the document above for the full version.

Cover Letter(s)

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date:June 5, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: P27SZBSW01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SerComm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

Cover Letter(s)

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date:June 5, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, SerComm Corporation hereby authorize Compliance Certification Services Inc / Stan Lin . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2013/12/31 Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

External Photos

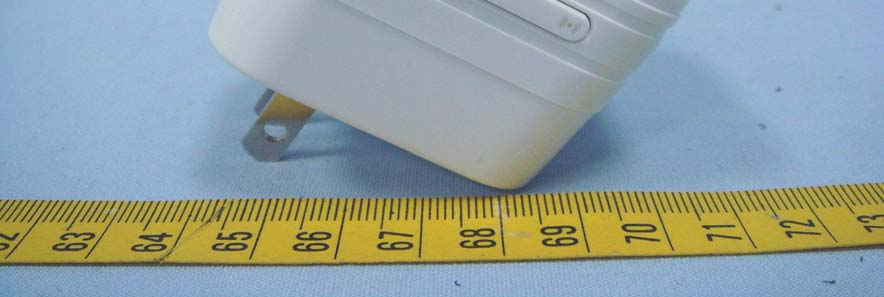

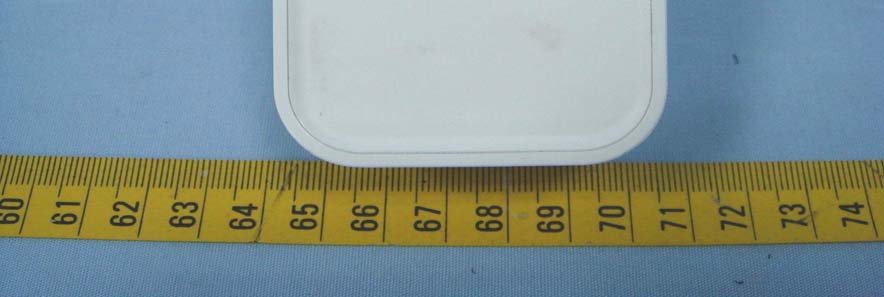

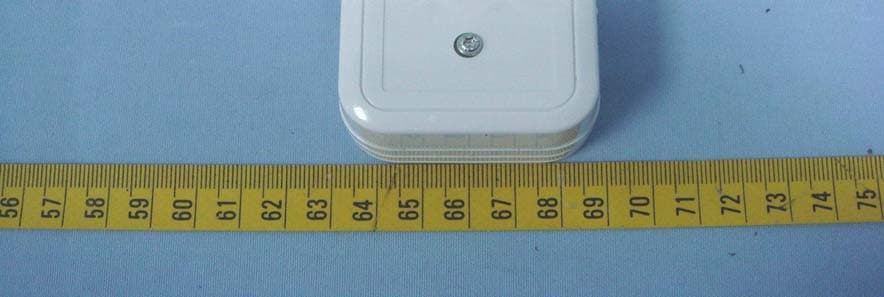

Report No: T130522D04 Page 1 / 8 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130522D04 Page 2 Rev.00

ID Label/Location Info

SZ-BSW01 Label

Internal Photos

Report No: T130522D04 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130522D04 Page 4 Rev.00 Report No: T130522D04 Page 5 Rev.00 Report No: T130522D04 Page 6 Rev.00 Report No: T130522D04 Page 7 Rev.00 Report No: T130522D04 Page 8 Rev.00 Antenna

RF Exposure Info

Compliance Certification Services Inc. Report No.: T130522D04 Date of Issue: June 13, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT ZigBee Binary Switch Frequency band (Operating) ZigBee: 2.405GHz ~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification PCB Antenna / Gain: -1.03 dBi, (Numeric gain: 0.79) Max. output power ZigBee: 17.48 dBm(55.98 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 17.48dBm (55.98mW) at 2405MHz (with 0.79 numeric antenna gain.) Compliance Certification Services Inc. Report No.: T130522D04 Date of Issue: June 13, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 377 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 377 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   22 0796.0 100/377 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130522D04 Date of Issue: June 13, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.15.4 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 1240555.980.79200.00881

Test Report

Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 1 / 45 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ZigBee Binary Switch Model: SZ-BSW01xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Trade Name: SerComm Issued to SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 6, 2013 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................7 4. INSTRUMENT CALIBRATION ...............................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................8 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................8 4.3 MEASUREMENT UNCERTAINTY.....................................................................................9 5. FACILITIES AND ACCREDITATIONS .................................................................................10 5.1 FACILTIES .......................................................................................................................10 5.2 EQUIPMENT....................................................................................................................10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................11 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................12 6.1 SETUP CONFIGURATION OF EUT ................................................................................12 6.2 SUPPORT EQUIPMENT..................................................................................................12 7. FCC PART 15.247 REQUIREMENTS ..................................................................................13 7.1 6 DB BANDWIDTH ............................................................................................................13 7.2 PEAK POWER .................................................................................................................16 7.3 AVERAGE POWER .........................................................................................................17 7.4 BAND EDGES MEASUREMENT .....................................................................................18 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................23 7.6 SPURIOUS EMISSIONS..................................................................................................26 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................39 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................42 Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: ZigBee Binary Switch Trade Name: SerComm Model: SZ-BSW01xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Date of Test: May 28 ~ 29, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample E…

Text truncated - open the document above for the full version.

Test Setup Photos

Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 42 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 43 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 44 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: T130522D04-RP1 FCC ID: P27SZBSW01 Date of Issue: June 6, 2013 Page 45 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Test Firm

Compliance Certification Services Inc.Kurt Chen
[email protected]886-3-3240332Fax: 886-3-3245235

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz56.40 mW
Confidentiality
Long Term
Grant Notes
Output power is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter RF Exposure procedures. End users must be informed of the requirements for satisfying RF Exposure compliance.
