Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
1 SZ-COD01 ZigBee Carbon Monoxide Alarm Installation Guide The SZ-COD01 is a Carbon Monoxide Alarm that is designed to measure CO levels and sound an alarm before dangerous levels of CO accumulate in an environment. Carbon Monoxide, which is known as CO, is odorless, tasteless, transparent and toxic - it’s a silent killer. The SZ-COD01 is a device that can be used to detect the presence of the CO gas in order to prevent carbon monoxide from poisoning human bodies. Specification Sensor Electrochemical carbon monoxide sensor Batter Type DC 4.5V (3 x AA 1.5V alkaline battery) Operating Temperature 0 C to 50 C (32° - 122°F) Operating Humidity 10% to 95% Non-condensing Alarm Audibility At least 85 dB at 3 meters Dimention 125mm (diameter) x 35mm (depth) Package Contents LEDs Power on Mode: All three LEDs (Power/Alarm/Fault) blink and the device will beep for 0.5 second as soon as the batteries are installed. Stand-by Mode: The Power (green) LED flashes once every 60 seconds, which means the device is receiving power and functioning properly. CO Alarm Mode: When the device detects CO, the Alarm (red) LED flashes rapidly with repeating 4 quick loud beeps and another 4 quick beeps after pausing for 5 seconds. Low battery Mode: The Fault (yellow) LED flashes once and the device beeps once a minute. This warning should last for up to 30 days. Please replace the batteries before power is running out. Malfunction (Error) Mode: The Fault (yellow) LED flashes three times and the device beeps once a minute. This indicates the device is malfunctioned and needs to be replaced. Low sensitivity (Aging) Mode: The Fault (yellow) LED flashes twice and the device beeps once a minute. This means the device needs to be replaced. End of life signal Mode: The device will beep once and the yellow LED flashes four times a minute. This indicates the device is reaching the end of this useful life (around 5 years after the unit is purchased), please replace with the new SZ-COD01. 2 Tamper Mode: The device will beep once a minute and the yellow LED is steadily on until the device is mounted back to the bracket properly. Intallation Battery Installation/Replacement 1. Press the transparent locker of the device and remove the battery cover. 2. Install the supplied three AA batteries correctly. 3. Attach the battery cover to the device. Note: The battery cover cannot be closed if the three AA batteries are not installed properly. 4. The device will beep and all the LEDs will flash for about 0.5 second after batteries are properly installed. Recommended Battery Type Please use the following suggested battery. Use of a different battery may cause a detrimental effect on alarm operation. AA 1.5V Energizer # E91 Alkaline battery AA 1.5V Energizer #L91 lithium battery Locations to install your SZ-COD01 The suggested location for installing the device is in or near sleeping areas of your home. For maximum protection, the SZ-COD01 should be located outside primary sleeping areas or on each level of your home. Do not place the device in the following areas: Where the temperature may drop below 40(4.4°C) or exceed 100°F (37.8°C) Near paint thinner fumes Within 5 feet (1.5 meter) of open flame appliances such as furnaces, stoves and fireplaces In exhaust streams from gas engines, vents, flues or chimneys 3 Do not place in close proximity to an automobile exhaust pipe; this will damage the device Wall Mounting 1. Draw a six inches horizontal line at the place where you are going to install the device. 2. Rotate the mounting bracket counterclockwise to remove it from the device. 3. Draw 2 marks to locate the mounting plugs and screws. 4. Drill two holes at the marks and insert wall plugs. 5. Attach the bracket to the wall by using the supplied two screws and wall plugs. 6. Attach the device onto the mounting bracket and turn it clockwise to fix it into place. Make sure it is securely attached to the mounting bracket. Adding/Leaving to a ZigBee Network 4 1. Join Function For "Join" a network, please do the following instruction: Press the Join/Leave button for less than 1 second. The Join/Leave LED is blinking while processing. If the device has been joined with the controller successfully, the Join/Leave LED will be on for 2 seconds and then off. The Join/Leave LED will be off instantly if failed. 2. Leave Function For "Leave" a network, please do the following instruction: Press Join/Leave button for 10 seconds to let the device disassociate from the controller. The Join/Leave LED will be on for 1 second and then off. 3. Test/Mute Button The Test/Mute button is used to test if the device is working properly and mute the SZ-COD01 during alarm. Test After pressing the Test/Mute button, the device will generate 4 short beeps and all three LEDs (Power/Alarm/Fault) will flash for 5 seconds. The device will repeat this process again. Mute If the device is alarming, press the Test/Mute button will have it silenced. While at the same time the Alarm (red) LED will keep flashing. If the CO concentration still remains after 4 minutes, the alarm system will reactivate. Note: The Join/Leave LED will stay off during the normal operation. The device is equipped with a tamper switch. If the device is removed, it will send an alarm message to the ZigBee controller. When SZ-COD01 is alarming WARNING!! Actuation of your SZ-COD01 indicates the presence of carbon monoxide (CO), which can be fatal to human body. Please take the following actions: 1. Operate Test/Mute button. 2. Call your emergency services or fire department. 3. Immediately move to somewhere with fresh air (outdoor or by an open door window). If CO gas has being detected, your SZ-COD01 will go into the CO alarm mode.Try to take the following necessary actions immediately: (a) If there is anyone experiencing the effects of carbon monoxide poisoning such as headache, dizziness, nausea or other flu-like symptoms, call the fire department immediatel…
Text truncated - open the document above for the full version.
SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date:March 7, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: P27SZCOD01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SerComm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]
SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date:March 7, 2013 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, SerComm Corporation hereby authorize Compliance Certification Services Inc / Stan Lin . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2013/08/23 Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

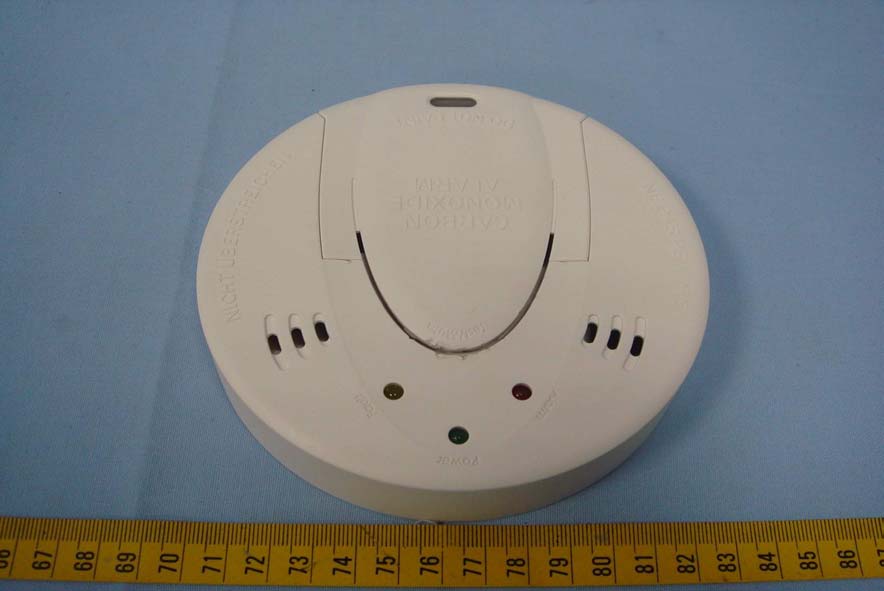

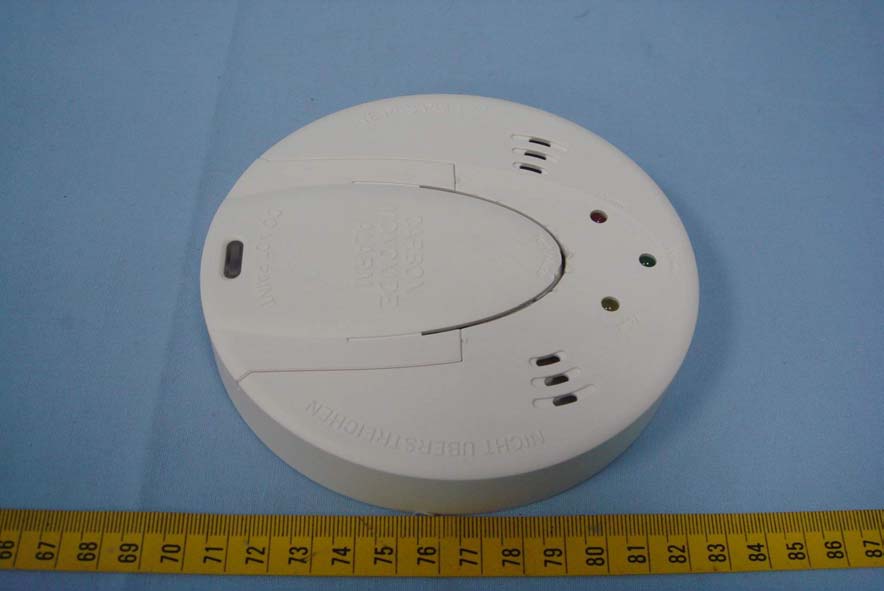

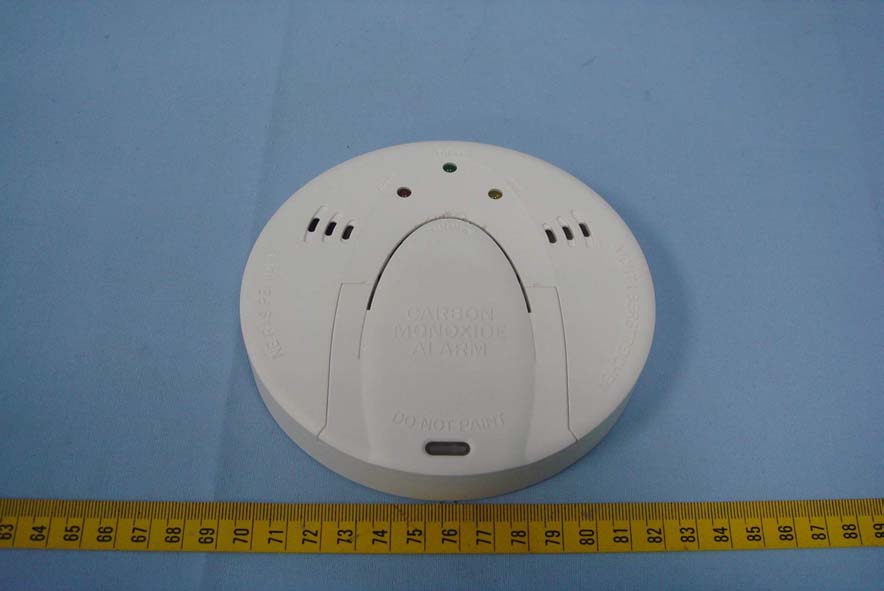

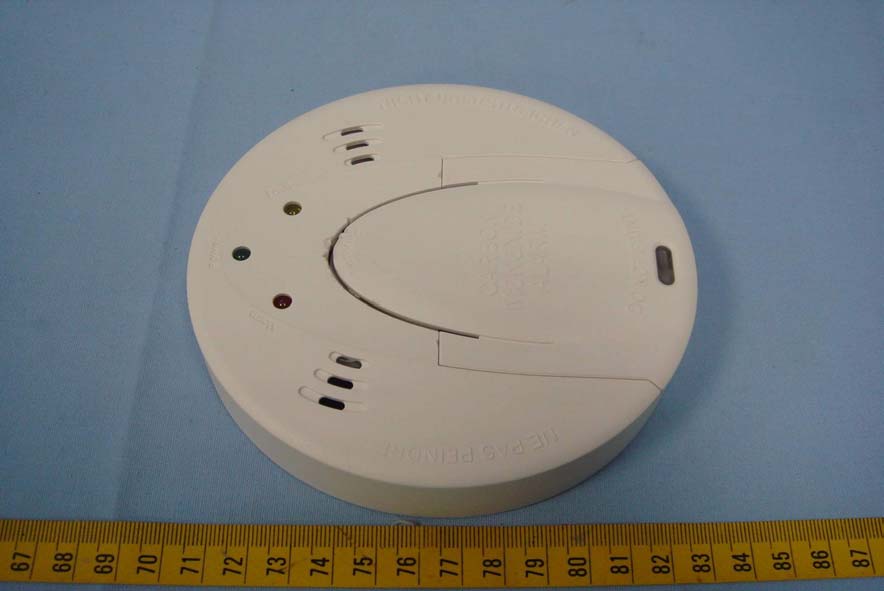

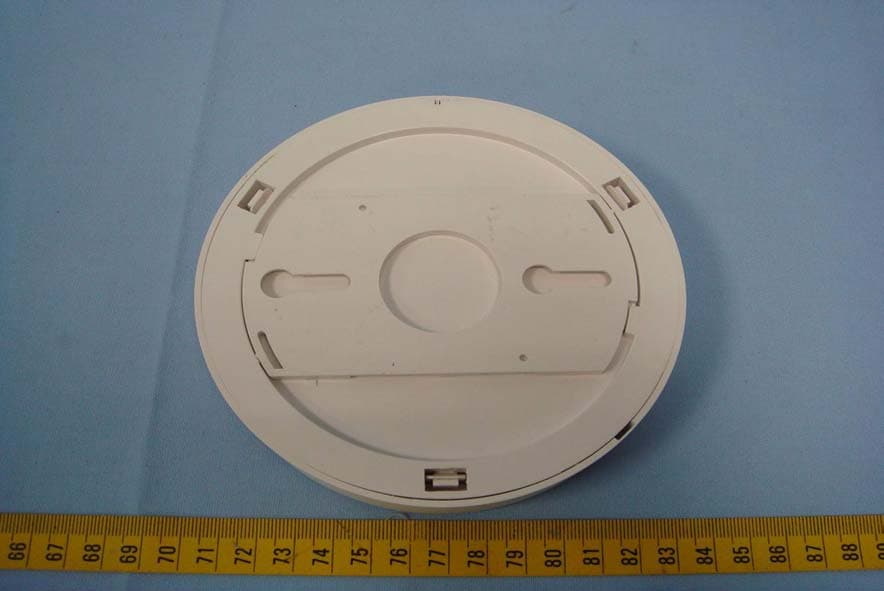

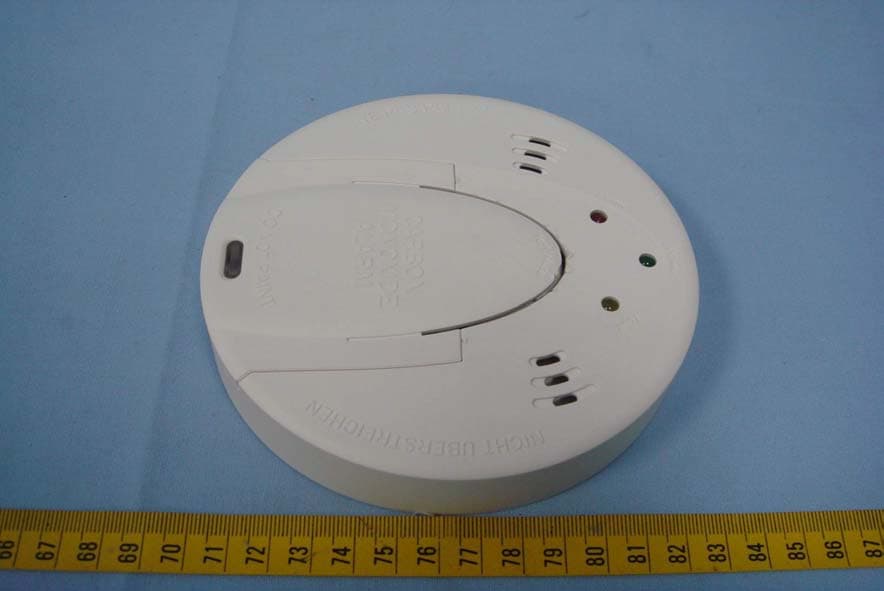

Report No: T130219D03 Page 1 / 7 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130219D03 Page 2 Rev.00 Report No: T130219D03 Page 3 Rev.00
Report No: T130219D03 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130219D03 Page 5 Rev.00 Report No: T130219D03 Page 6 Rev.00 Antenna Report No: T130219D03 Page 7 Rev.00
Compliance Certification Services Inc. Report No.: T130219D03 Date of Issue: March 18, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT ZigBee CO Detector Frequency band (Operating) ZigBee: 2.405GHz ~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification PCB Antenna / Gain: 0.47 dBi, (Numeric gain: 1.11) Max. output power ZigBee: 18.50 dBm(70.80 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 18.50dBm (70.80mW) at 2445MHz (with 1.11 numeric antenna gain.) Compliance Certification Services Inc. Report No.: T130219D03 Date of Issue: March 18, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E 30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields 2 2 0796.0 100/3770 1000/30 d GP d GP S Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130219D03 Date of Issue: March 18, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.15.4 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9244570.81.21200.01701
Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 1 / 39 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ZigBee CO Detector Model: SZ-COD01xxxxxxxx (x= 0~9, A~Z, Blank or any Character) Trade Name: SerComm Issued to SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 12, 2013 Initial Issue ALL Jill Shiau Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................7 4. INSTRUMENT CALIBRATION ...............................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................8 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................8 4.3 MEASUREMENT UNCERTAINTY.....................................................................................8 5. FACILITIES AND ACCREDITATIONS ...................................................................................9 5.1 FACILTIES .........................................................................................................................9 5.2 EQUIPMENT......................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................10 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................11 6.1 SETUP CONFIGURATION OF EUT ................................................................................11 6.2 SUPPORT EQUIPMENT..................................................................................................11 7. FCC PART 15.247 REQUIREMENTS ..................................................................................12 7.1 6 DB BANDWIDTH ............................................................................................................12 7.2 PEAK POWER .................................................................................................................15 7.3 AVERAGE POWER .........................................................................................................16 7.4 BAND EDGES MEASUREMENT .....................................................................................17 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................22 7.6 SPURIOUS EMISSIONS..................................................................................................25 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................36 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................37 Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: ZigBee CO Detector Trade Name: SerComm Model: SZ-COD01xxxxxxxx (x= 0~9, A~Z, Blank or any Character) Date of Test: March 6 ~ 7, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by th…
Text truncated - open the document above for the full version.
Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 37 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 38 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T130219D03-RP1 FCC ID: P27SZCOD01 Date of Issue: March 12, 2013 Page 39 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 71.00 mW |
