P27SZDWS01ZigBee Door Window Sensor

SZ-DWS01 ZigBee Door Window Sensor User Guide ii Table of Contents CHAPTER 1 INTRODUCTION...................................................................................... 1 Package Contents ................................................................................................ 1 Specfication .......................................................................................................... 1 CHAPTER 2 DEVICE DESCRIPTION .......................................................................... 2 Installation............................................................................................................. 2 Operation .............................................................................................................. 4 External contact wiring (Optional) ...................................................................... 5 CHAPTER 3 REGULATORY APPROVAL ................................................................... 7 Copyright 2012. All Rights Reserved. Document Version: 1.0 All trademarks and trade names are the properties of their respective owners. 1 Chapter 1 Introduction This Chapter provides an overview of the ZigBee Door/Window Sensor features and capabilities. Congratulations on the purchase of your new ZigBee Door/Window Sensor. The ZigBee Door/Window Sensor is a consumer electronic device, which is used for home monitoring and security. Package Contents Specification Frequency 2.4GHz Batter Type DC 3V, CR2032 x 2 Magnet Type < 1.27 cm ( 0.5 inch ) Operating Temperature 0° C to 50° C (32° - 122°F) Storage Temperature -20° C to 70° C (-4° - 158°F) Battery Life 1 ~ 2 years RF Range 100M Dimention Main Unit: 13 mm x 20 mm x 115 mm (0.51" x 0.78" x 4.52") Magnet Unit: 10 mm x 12mm x 47 mm (0.39" x 0.47" x 1.85") 1 2 Chapter 2 Device Description This Chapter provides device description for the ZigBee Door/Window Sensor. Installation NOTE: Please make sure that the sensor and magnet is located less then 1.27cm (0.5 inch) from each other. Intallation 1. Hold the sensor near the top of the door, close to the opening edge of the door. This is the mounting location for the sensor. 2. Using a flat head screw driver insert into the notch located on the case and gently twist to open. 2 3 3. Insert CR2032 Battery Use care when installing the battery and observe the correct polarity when the battery is inserted. Use only CR2032 batteries for replacement. WARNING!: Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. 4. Use either one of the following methods to install the sensor: • Remove the back plate of the sensor; use this as the mounting bracket. Use the screwdriver to secure the back plate to the wall with the screws provided. • Use provided adhesive on the sensor. Attach the sensor to the door. Press firmly and hold in place for a few seconds. 4 Magnet Setup 1. Attach the magnet on the location next to the sensor by using either one of the following methods: • Remove the back plate of the magnet; use this as the mounting bracket. Use the screwdriver to secure the back plate to the wall with the screws provided. • Use provided adhesive on the magnet. Attach the sensor to the door. Press firmly and hold in place for a few seconds. 2. Make sure the alignment marks of both devices are facing each other. Operation 5 • Join Function For "Join" a network, please do the following instruction: • Press the Join/Leave button for less than 1 second. The LED is blinking while processing. If the sensor has been joined with the controller successfully, the Green LED will be on for 2 seconds and then off. The Green LED will be off instantly if failed. • Leave Function For "Leave" a network, please do the following instruction: • Press Join/Leave button for 3 seconds to let the sensor disassociate from the controller. • The LED will stay off during the normal operation. • The sensor is equipped with a tamper switch. If the cover of sensor is removed, the sensor will send an alarm to the ZigBee controller. The sensor will be in "Awake" mode before replacing External contact wiring (Optional) 1.remove screw 2.Plug two-pin connector. 3.close screw 4. Connect wire to N/C dry reed switch device. (Option) 6 Use the following specifications for the external reed switch device. • Maximum wire length:1 m 7 Chapter 3 REGULATORY APPROVAL The FCC Statement FCC Radiation Exposure Statement 3 8 CE Approval CE Standards This product complies with the 99/5/EEC directives, including the following safety and EMC standards: • EN30 0328-2 • EN30 1489-1/-17 CE Marking Warning This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. UL Notices: This device complies with UL Standard UL634.

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date：August 13, 2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: P27SZDWS01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SerComm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date：August 13, 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, SerComm Corporation hereby authorize Compliance Certification Services Inc / Stan Lin . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2013/02/13 Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

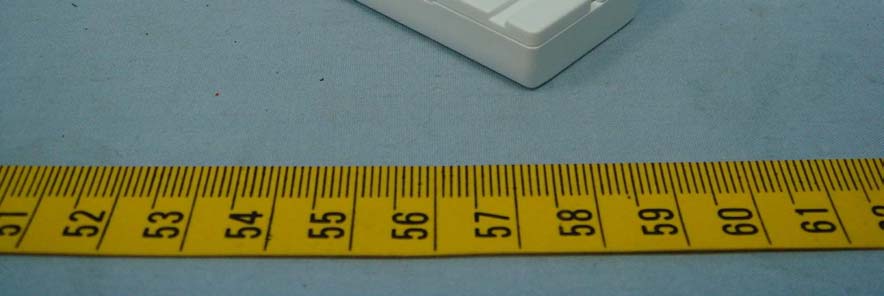

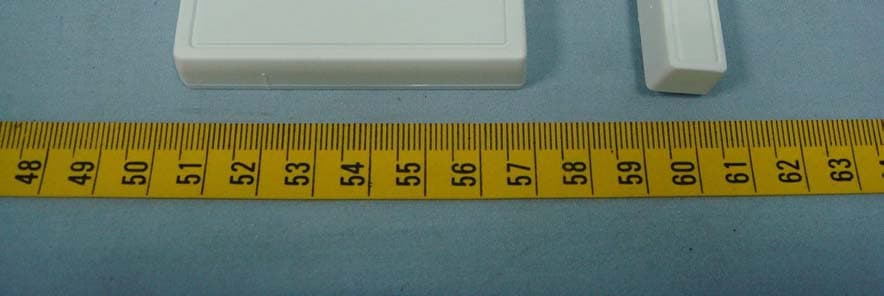

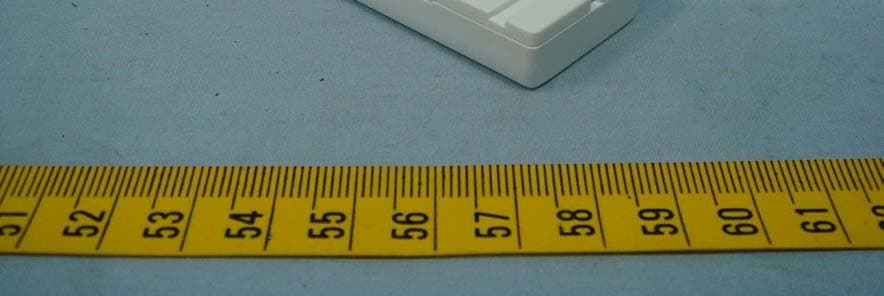

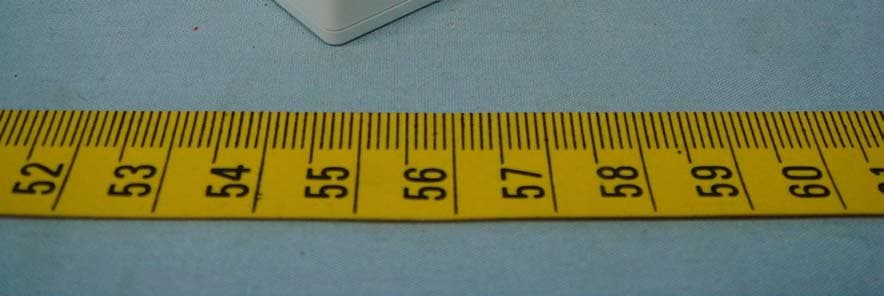

Report No: T120803D05 Page 1 / 5 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T120308D05 Page 2 Rev.00

2012.07.30 Notes: 1.材質: 50#白色Mylar,上打字用霧膜PET 2.背壓克力膠/ 葛拉馨底紙,成捲 3.尺寸/印刷:如圖示 4.公差:+/- 0.2mm 5.本料件使用之材料須符合RoHS FCC ID: P27SZDWS01 Input : DC 3V SerComm 工廠列印範圍:30x8mm 刀模線 S N : X X X X X X X X X X Z I D : X X X X X X X X X X X X X 生產地變更時,請更換地名 ZigBee Door Window Sensor /Model No.: SZ-DWS01 Black 印刷: 單位用量x1 3C Label:40x20mm 44 41.8 Factory ID 10x3mm Made in Taiwan SZ-DWS01 932AHV0001

Report No: T120308D05 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T120308D05 Page 4 Rev.00 Antenna Report No: T120308D05 Page 5 Rev.00

Compliance Certification Services Inc. Report No.: T120803D05-RP1 FCC ID: P27SZDWS01 Date of Issue: Aug. 17, 2012 Page 1 / 45 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ZigBee Door Window Sensor Model: SZ-DWS01xxxxxxxx (x= 0~9, A~Z, Blank or any Character) Trade Name: SerComm Issued to SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T120803D05-RP1 FCC ID: P27SZDWS01 Date of Issue: Aug. 17, 2012 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 Aug. 17, 2012 Initial Issue ALL Jill Shiau Compliance Certification Services Inc. Report No.: T120803D05-RP1 FCC ID: P27SZDWS01 Date of Issue: Aug. 17, 2012 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................7 4. INSTRUMENT CALIBRATION ...............................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................8 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................8 4.3 MEASUREMENT UNCERTAINTY.....................................................................................8 5. FACILITIES AND ACCREDITATIONS ...................................................................................9 5.1 FACILTIES .........................................................................................................................9 5.2 EQUIPMENT......................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................10 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................11 6.1 SETUP CONFIGURATION OF EUT ................................................................................11 6.2 SUPPORT EQUIPMENT..................................................................................................11 7. FCC PART 15.247 REQUIREMENTS ..................................................................................12 7.1 6DB BANDWIDTH ............................................................................................................12 7.2 PEAK POWER .................................................................................................................15 7.3 AVERAGE POWER .........................................................................................................18 7.4 BAND EDGES MEASUREMENT .....................................................................................21 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................26 7.6 SPURIOUS EMISSIONS..................................................................................................29 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................40 8. APPENDIX I RADIO FREQUENCY EXPOSURE .................................................................41 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP...............................................................43 Compliance Certification Services Inc. Report No.: T120803D05-RP1 FCC ID: P27SZDWS01 Date of Issue: Aug. 17, 2012 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Wireless Network Camera Trade Name: SerComm Model: SZ-DWS01xxxxxxxx (x= 0~9, A~Z, Blank or any Character) Date of Test: August 13 ~ 14, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configuratio…
