P27SZDWS04Micro Door Window Sensor

1 SZ-DWS04 ZigBee Door/Window Sensor Installation Guide Specification Frequency 2.4GHz Batter Type CR2032 Battery Sensitivity > 3 cm ( 1.18 inch ) Operating Temperature 0° C to 40° C (32° - 104°F) Storage Temperature -20° C to 60° C (-4° - 140°F) Battery Life 3 years RF Range 40M Dimension Main Unit: 51 mm x 26 mm x 7.4 mm (2" x 1.02" x 0.29") Magnet Unit: 28.3 mm x 15.5 mm x 7.4 mm (1.11" x 0.61" x 0.29") Package Contents 2 Intallation NOTE: Please make sure that the sensor and magnet is located less then 1.27cm (0.5 inch) from each other. Intallation 1. Hold the sensor near the top of the door, close to the opening edge of the door. This is the mounting location for the sensor. 2. Pull the exposed plastic pull tab from the sensor 3. Use either one of the following methods to install the sensor: • Remove the back plate of the sensor; use this as the mounting bracket. Use the screwdriver to secure the back plate to the wall with the screws provided. Then place the hooks into the two holes of the cover and attach the cover to the plate. 3 • Use provided adhesive on the sensor. Attach the sensor to the door. Press firmly and hold in place for a few seconds. Magnet Setup 1. Attach the magnet on the location next to the sensor by using either one of the following methods: • Remove the back plate of the magnet; use this as the mounting bracket. Use the screwdriver to secure the back plate to the wall with the screws provided. • Use provided adhesive on the magnet. Attach the sensor to the door. Press firmly and hold in place for a few seconds. 2. Make sure the alignment marks of both devices are facing each other. 4 Operation • The LED will stay off during the normal operation. • The sensor is equipped with a tamper switch. If the cover of sensor is removed, the sensor will send an alarm to the ZigBee coordinator. The sensor will be in "Awake" mode before replacing the cover. Reset to Factory Defaults A security sensor should be able to be manually defaulted from the device by putting it into a state where it is ready to be paired to a CPE. The process shall be as follows: • Depress the tamper switch after removing the battery from the sensor. • Insert the battery. The sensor should illuminate the LED once all bootup/initialization tasks are complete • Release the tamper switch while the LED is illuminated (4 seconds) The sensor should then reset to default and begin searching for a new network FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Approvals CAN-ICES-3 (B)/ NMB-3(B) This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations:Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. UL Approvals UL Notices: This device complies with UL Standard UL634.

Date：August 12, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Sercomm Corporation hereby authorize Compliance Certification Services Inc / James.Chan . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2015/1/28 Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：August 12, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: P27SZDWS04 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sercomm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Date：August 12, 2014 Subject:DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: P27SZDWS04, would like to declare that the composite Portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name & Model Name of the specified radio equipment: Comcast /SZ-DWS04 FCC ID: P27SZDWS04 Product Name: Micro Door Window Sensor Regards, Your Sincerely, Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

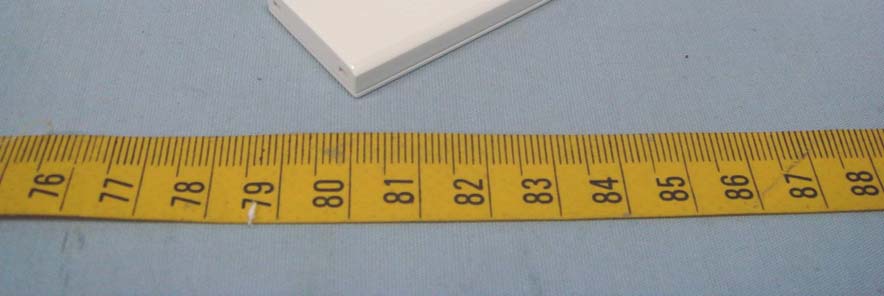

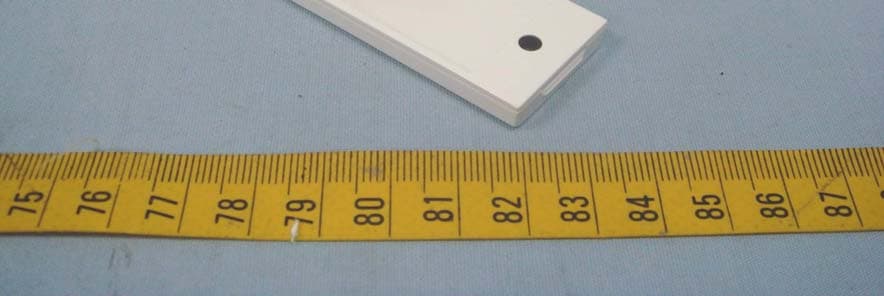

Report No: T140725D05 Page 1 / 4 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT

單位用量x1

Report No: T140725D05 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T140725D05 Page 3 Rev.00 Report No: T140725D05 Page 4 Rev.00 Antenna

Snap-on Diagnostics Tune up procedure The output power setting of EUT is set in the factory and followed the max level in below. There is no tune up procedure except factory default setting: 5.1 dBm± 2dB Kevin Kuo Sr. Manager / R&D Division Sercomm Corporation TEL: 886-2-2655-3988#2631 FAX: 886-2-2655-7379 E-Mail: [email protected]

Compliance Certification Services Inc. Report No.: T140725D05 - MF Date of Issue: August 9, 2014 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 6 dBm +/- 2dB, therefore the highest tune-up power is 7.1 dBm(5.13 mW)@ 2405 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (5mW / 5mm)* (2405.000GHz^0.5 )= 50.3 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 1.6 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

Compliance Certification Services Inc. Report No.: T140725D05-RP1 FCC ID: P27SZDWS04 Date of Issue: August 5, 2014 Page 1 / 46 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Micro Door Window Sensor Model: SZ-DWS04 Trade Name: Comcast Issued to Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T140725D05-RP1 FCC ID: P27SZDWS04 Date of Issue: August 5, 2014 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 5, 2014 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T140725D05-RP1 FCC ID: P27SZDWS04 Date of Issue: August 5, 2014 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................9 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................9 4.3 MEASUREMENT UNCERTAINTY...................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES .......................................................................................................................11 5.2 EQUIPMENT....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT ................................................................................13 6.2 SUPPORT EQUIPMENT..................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6DB BANDWIDTH ............................................................................................................14 7.2 PEAK POWER .................................................................................................................17 7.3 AVERAGE POWER .........................................................................................................18 7.4 BAND EDGES MEASUREMENT .....................................................................................19 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................24 7.6 SPURIOUS EMISSIONS..................................................................................................27 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................40 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................41 APPENDIX 1: PHOTOGRAPHS OF EUT ...................................................................................44 APPENDIX 2: REMARKS ...........................................................................................................45 Compliance Certification Services Inc. Report No.: T140725D05-RP1 FCC ID: P27SZDWS04 Date of Issue: August 5, 2014 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer: Sercomm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: Micro Door Window Sensor Trade Name: Comcast Model: SZ-DWS04 Date of Test: July 29 ~ 31, 2014 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluat…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T140725D05-RC1 IC ID: 5604A-SZDWS04 Date of Issue: August 5, 2014 Page 41 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Compliance Certification Services Inc. Report No.: T140725D05-RC1 IC ID: 5604A-SZDWS04 Date of Issue: August 5, 2014 Page 42 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T140725D05-RC1 IC ID: 5604A-SZDWS04 Date of Issue: August 5, 2014 Page 43 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photos
