P27SZSMK01ZigBee Smoke Detector

1 SZ-SMK01 ZigBee SMOKE ALARM Installation Guide The SZ-SMK01 is a Smoke Alarm that is designed to detect smoke, which maybe a signal of a fire. This device can provide more time by making alarms for you and your family to escape before a fire spreads. Specification Batter Type 3V lithium battery (CR123A 3V) Operating Temperature -10 C to 50 C (14° - 122°F) Operating Humidity 10% to 85% Non-condensing Alarm Audibility At least 85 dB at 3 meters Dimention 120mm (diameter) x 53mm (depth) Package Contents LEDs  Stand-by Mode: The device is under normal operation if the red LED flashes once for 1034 seconds. When the device senses smoke, the red LED will flash continuously and rapidly while sounds an audible alarm with 3 beeps, pause and 3 beeps.  Low Battery Mode: The red LED flashes and the device begins to chirp once in 43 seconds. This warning should last for up to 30 days. Please replace the battery before power is running out to secure your protection.  Malfunction (Error) Mode: The yellow LED flashes three times and the device generates 3 beeps within 43 seconds. This indicates the device is malfunctioned and needs to be repaired or serviced.  Tamper Mode: The device will generate 3 beeps and the yellow LED is steadily on if the smoke alarm is not mounted into the bracket properly within 5 minutes after the battery is installed. 2 Intallation Battery Installation/Replacement 1. Open the battery cover of the device. 2. Install the supplied battery correctly. 3. Close the battery cover. 4. Install the bracket. Note: you will hear a chirp after install the bracket which indicates the device is receiving battery power. Recommended Battery Type Please use the following suggested battery. Use of a different battery may cause a detrimental effect on alarm operation.  CR123A 3V battery Locations to install your SZ-SMK01 Smoke alarms should be installed in accordance with the NFPA Standard 72 (National Fire Protection Association, Battery march Park, Quincy, MA 02169). For complete coverage, smoke alarms should be installed in all rooms, halls, storage areas, basements, and attics in each family. Minimum coverage is one device in each floor and another one in sleeping area.  Install a smoke alarm in the hallway outside every bedroom area. For example, two alarms are required for homes with two bedroom areas.  Install a smoke alarm on every floor of a multi-floor home or apartment.  Install at least two alarms in a household.  Install a smoke alarm inside every bedroom.  Install smoke alarms at both ends of a bedroom hallway if the hallway is more than 40 feet (12 meters) long.  Install a smoke alarm inside every room where a person sleeps with the door partly or completely closed, since smoke could be blocked by the closed door and a hallway alarm may not wake up the person if the door is closed. Do not place the device in the following areas:  Combustion particles are the by-products of something that is burning. Thus, in or near areas where combustion particles are present you do not install the smoke alarms to avoid nuisance alarms, such as kitchens with few windows or poor ventilation, garages where there may be vehicle exhaust, near furnaces, hot water heaters, and space heaters.  Do not install smoke alarms less than 20 feet (6 meters) away from places where combustion particles are normally present, like kitchens. If a 20-foot distance is not possible, e.g. in a mobile home, try to install the alarm as far away from the combustion particles as possible, preferably on the wall. To prevent nuisance alarm alarms, provide good ventilation in such places. Within 5 feet (1.5 meter) of open flame appliances such as furnaces, stoves and fireplaces 3 Wall Mounting 1. Draw a six inches horizontal line at the place where you are going to install the device. 2. Rotate the mounting bracket counterclockwise to remove it from the device. 3. Draw 2 marks to locate the screws. 4. Drill two holes at the marks and insert screws and wall plugs. 5. Attach the bracket to the wall by using the supplied two screws and wall plugs. 6. Attach the device onto the mounting bracket and turn it clockwise to fix it into place. Make sure it is securely attached to the mounting bracket. Adding/Leaving to a ZigBee Network 1. Join Function For "Join" a network, please do the following instruction:  Press the Test button for less than 1 second. The Join/Leave LED is blinking while processing. If the device has been joined with the controller successfully, the Join/Leave LED will be on for 2 seconds and then off. The Join/Leave LED will be off instantly if failed. 2. Leave Function For "Leave" a network, please do the following instruction:  Press Test button for 10 seconds to let the device disassociate from the controller. The Join/Leave LED will be on for 1 second and then off. 4 3. Test/Silence Button The Test button is used to test if the device is working properly and mute the SZ-SMK01 during alarm.  Test Press the Test button for about 4 seconds until it alarms. The device will generate 3 beeps, pause and 3 beeps. While the Alarm (red) LED will flash continuously and rapidly.  Silence If the device is alarming, press the Test button will have it silenced. If the smoke still remains after 10 minutes, the device will alarm again. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equi…

Text truncated - open the document above for the full version.

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date：March 7, 2013 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: P27SZSMK01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SerComm Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

SerComm Corporation中磊電子股份有限公司 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date：March 7, 2013 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, SerComm Corporation hereby authorize Compliance Certification Services Inc / Stan Lin . to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 2013/08/23 Your Sincerely, Ronnie Cheng Associate Manager / R&D Division SerComm Corporation TEL: 886-2-2655-3988#2547 FAX: 886-2-2655-7379 E-Mail: [email protected]

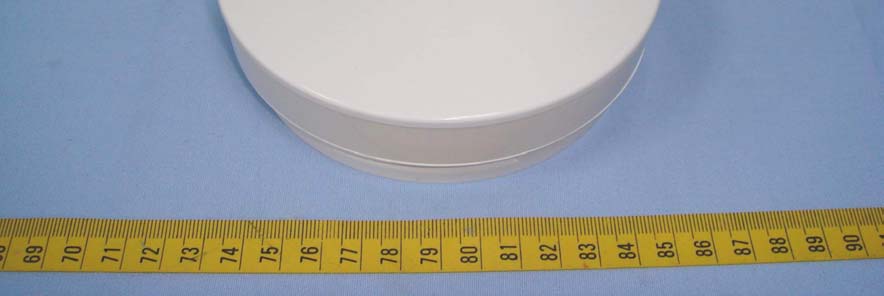

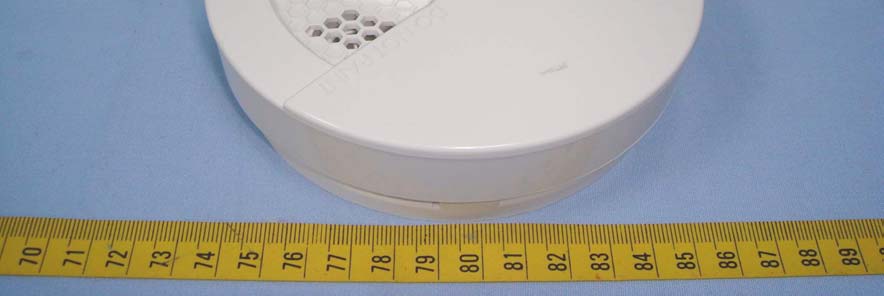

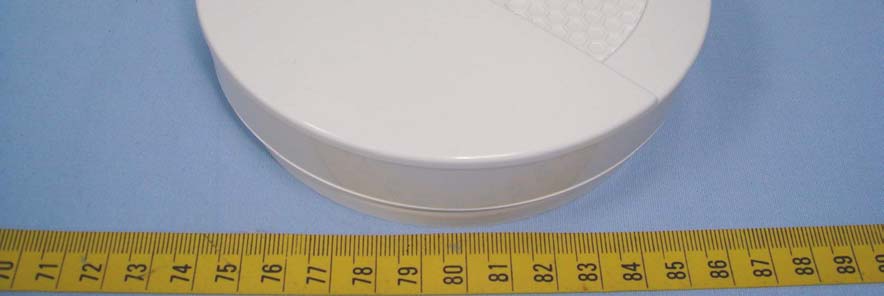

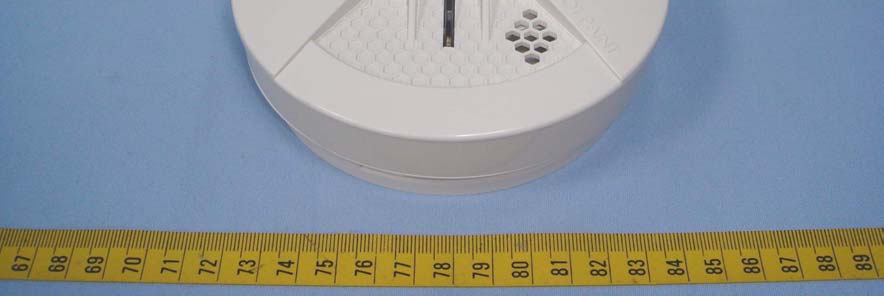

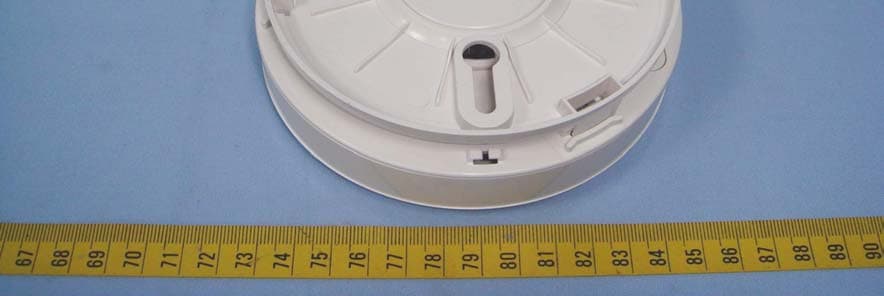

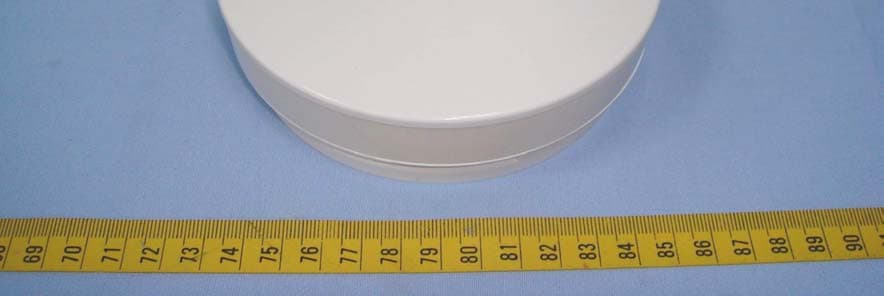

Report No: T130219D02 Page 1 / 9 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130219D02 Page 2 Rev.00 Report No: T130219D02 Page 3 Rev.00

Report No: T130219D02 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130219D02 Page 5 Rev.00 Report No: T130219D02 Page 6 Rev.00 Report No: T130219D02 Page 7 Rev.00 Report No: T130219D02 Page 8 Rev.00 Antenna Report No: T130219D02 Page 9 Rev.00

Compliance Certification Services Inc. Report No.: T130219D02 Date of Issue: March 18, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT ZigBee Smoke Detector Frequency band (Operating) ZigBee: 2.405GHz ~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification PCB Antenna / Gain: 0.81 dBi, (Numeric gain: 1.21) Max. output power ZigBee: 17.59 dBm(57.41 mW) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 17.59dBm (57.41mW) at 2445MHz (with 1.21 numeric antenna gain.) Compliance Certification Services Inc. Report No.: T130219D02 Date of Issue: March 18, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TEST RESULTS No non-compliance noted. Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: T130219D02 Date of Issue: March 18, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: GPS000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 IEEE 802.15.4 mode: Ch.Frq.(MHz)P (mW)Gain (num.)D (cm) Power density in mW / cm 2 Limit (mW/cm2) 9244557.411.21200.01381

Compliance Certification Services Inc. Report No.: T130219D02-RP1 FCC ID: P27SZSMK01 Date of Issue: March 13, 2013 Page 1 / 39 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For ZigBee Smoke Detector Model: SZ-SMK01xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Trade Name: SerComm Issued to SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841, Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130219D02-RP1 FCC ID: P27SZSMK01 Date of Issue: March 13, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 March 13, 2013 Initial Issue ALL Landy Huang Compliance Certification Services Inc. Report No.: T130219D02-RP1 FCC ID: P27SZSMK01 Date of Issue: March 13, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION ......................................................................................................6 3.2 EUT EXERCISE ..................................................................................................................6 3.3 GENERAL TEST PROCEDURES .......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS............................................7 3.5 DESCRIPTION OF TEST MODES ......................................................................................7 4. INSTRUMENT CALIBRATION ...............................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................8 4.2 MEASUREMENT EQUIPMENT USED................................................................................8 4.3 MEASUREMENT UNCERTAINTY ......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...................................................................................9 5.1 FACILTIES ..........................................................................................................................9 5.2 EQUIPMENT .......................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................10 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................11 6.1 SETUP CONFIGURATION OF EUT..................................................................................11 6.2 SUPPORT EQUIPMENT ...................................................................................................11 7. FCC PART 15.247 REQUIREMENTS ..................................................................................12 7.1 6 DB BANDWIDTH .............................................................................................................12 7.2 PEAK POWER...................................................................................................................15 7.3 AVERAGE POWER...........................................................................................................16 7.4 BAND EDGES MEASUREMENT ......................................................................................17 7.5 PEAK POWER SPECTRAL DENSITY ..............................................................................22 7.6 SPURIOUS EMISSIONS ...................................................................................................25 7.7 POWERLINE CONDUCTED EMISSIONS ........................................................................36 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................37 Compliance Certification Services Inc. Report No.: T130219D02-RP1 FCC ID: P27SZSMK01 Date of Issue: March 13, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Applicant: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Manufacturer: SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Under Test: ZigBee Smoke Detector Trade Name: SerComm Model: SZ-SMK01xxxxxxxx(x= 0~9, A~Z, Blank or any Character) Date of Test: March 5 ~ March 7, 2013 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in A…
