P27TV00Wireless Printer Server

8 8 0 0 2 2 . . 1 1 1 1 g g W W i i r r e e l l e e s s s s P P r r i i n n t t S S e e r r v v e e r r U U s s e e r r G G u u i i d d e e Copyright ©2004. ALL RIGHTS RESERVED Document Version: 1.2 P/N: 9560NT0001 All trademark and trade names are the properties of their respective owners. Page i Table of Contents Chapter 1 Introduction 1 Features......................................................................................................................... 1 Safety Instructions ........................................................................................................ 2 Package Contents.......................................................................................................... 3 Physical Details............................................................................................................ 3 LED Indicators ............................................................................................................. 4 Diagnostic Push Button ................................................................................................ 5 Chapter 2 LAN Installation 6 Procedure ......................................................................................................................6 Chapter 3 Wireless Print Server Configuration 7 Overview ...................................................................................................................... 7 Using the Windows Wizard.......................................................................................... 7 Chapter 4 Client PC Configuration 10 Overview .................................................................................................................... 10 Windows Peer-to-peer Printing .................................................................................. 12 Windows SMB Printing.............................................................................................. 19 Windows with Server-based Print Queues ................................................................. 20 Macintosh (AppleTalk)............................................................................................... 21 Macintosh OS X ......................................................................................................... 22 Chapter 5 BiAdmin Management Utility 23 Requirements .............................................................................................................. 23 Installation .................................................................................................................. 23 Operation .................................................................................................................... 23 Chapter 6 Web-Based Management 38 Overview .................................................................................................................... 38 Preparation.................................................................................................................. 38 Connecting to the 802.11g Wireless Print Server ....................................................... 39 Configuration Screens ................................................................................................ 39 Chapter 7 Special Features 46 Overview .................................................................................................................... 46 Internet Printing Protocol (IPP) .................................................................................. 46 Internet Mail Printing ................................................................................................. 51 Printing through the Internet....................................................................................... 55 Page ii Chapter 8 Troubleshooting 56 Overview .................................................................................................................... 56 Hardware & Connection Problems ............................................................................. 56 AppleTalk (Macintosh)............................................................................................... 57 Windows Printing Problems ....................................................................................... 59 Unix Troubleshooting ................................................................................................. 64 Appendix A Specifications 65 General Specifications ................................................................................................ 65 Protocol Support ......................................................................................................... 65 Feature Support........................................................................................................... 65 Regulatory Approvals ................................................................................................. 66 Appendix B Windows Server Configuration 68 Windows NT4.0 Server .............................................................................................. 68 Windows 2000/2003 Server ....................................................................................... 69 Appendix C Unix Systems 70 Overview .................................................................................................................... 70 802.11g Wireless Print Server IP Address Configuration .......................................... 70 Other 802.11g Wireless Print Server Configuration ................................................... 70 LPD Configuration ..................................................................................................... 71 Appendix D NetWare 76 Overview .................................................................................................................... 76 Creating an NDPS Manager Object............................................................................ 76 Creating an NDPS Printer Agent ..…

Text truncated - open the document above for the full version.

Request for non-disclosure RF_501_02 <SerComm Corporation, 8F, No. 3-1, YuanQu St., NakKang, Taipei 115, Taiwan, R.O.C.> To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: P27TV00) Reference number: P27TV00 Date: 2005-11-21 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), <SerComm Corporation> hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( P27TV00) a. Schematic Diagram, b. Block Diagram, Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. <SerComm Corporation> understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Signature: ______________ Name: Johny Wang

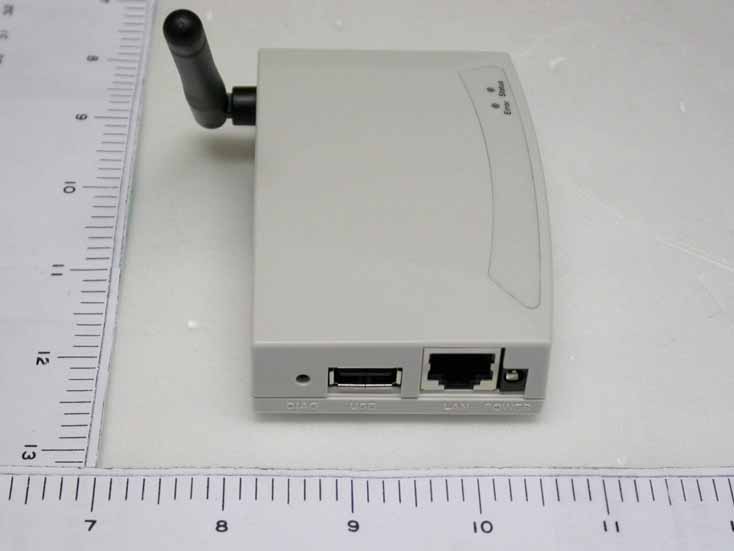

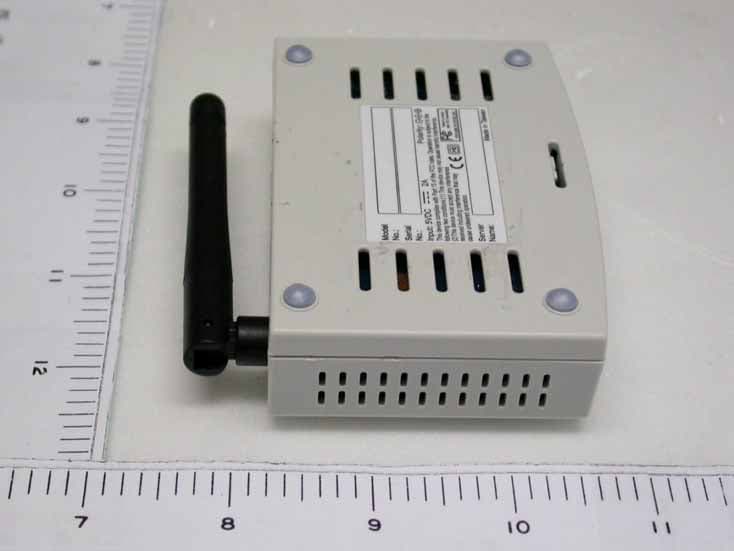

External Photos

7

Internal Photos

Part Number Date SubjectPS801H pages1 PS801H Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 40MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8010). 2. FLASH, U13, MX29LV800TTC-70G, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8010 which is integrated all RF-Baseband receive and Transmit function. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. 88W8510 support 802.3 PHY, automatic MDI/MDIX crossover for 100BASE-TX and 10 BASE-T ports. 5. Power part: there are several regulators are used on the board. U17, AZ1084S-3 is used to transfer DC5V to DC3V3; U1, U8 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V62. The core of CPU is operate at 1.625V. 6. UB2 NEC UPD720101 complies with the universal serial bus specification ver2.0 And open host controller interface specification for full/low speed signaling, the Part is integrated host controller with PCI interface and USB2.0 transceiver into a Single chip. 7. Band-Pass Filters, BP2, BF2520-B2R4CABT, Freq. Range: 2.4~2.5GHz; IL@BW: 2.5dB 8. GaAs IC SPDT Switch, U7, HWS314, features low insertion loss and positive voltage operation with very low DC power consumption.

1.1. Test Result of RF Exposure Evaluation . Product: Wireless Print Server . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.8 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Oct. 26, 2005 Temperature: 24 Humidity: 69 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 17.92 0.0190 06 2437 17.85 0.0180 11 2462 17.71 0.0180 Modulation Standard: IEEE 802.11g Test Date: May. 18, 2004 Temperature: 25 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 15.00 0.0100 06 2437 14.18 0.0080 11 2462 13.92 0.0070 The MPE is calculated as 0.0190 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 16, 2005 1 of 54 FCC Test Report: FI05101301-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant SerComm Corporation Address 8F, No. 3-1,YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment Wireless Print Server Model No. PS801H GP FCC ID P27TV00 Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Nov. 16, 2005 2 of 54 FCC Test Report: FI05101301-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software.....................................................................................................7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 History of this test report ............................................................................................................ 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit.................................................................................................................................. 11 4.2 Test Procedures....................................................................................................................... 11 4.3 Typical Test Setup ...................................................................................................................12 4.4 Measurement equipment ......................................................................................................... 12 4.5 Test Result and Data................................................................................................................13 5. Test of Radiated Emission ...............................................................................................................16 5.1 Test Limit.................................................................................................................................. 16 5.2 Test Procedures.......................................................................................................................17 5.3 Typical Test Setup ....................................................................................................................18 5.4 Measurement equipment ......................................................................................................... 18 5.5 Test Result and Data................................................................................................................19 6. 6dB Bandwidth Measurement Data .................................................................................................36 6.1 Test Limit .................................................................................................................................. 36 6.2 Test Procedures .......................................................................................................................36 6.3 Test Setup Layout ....................................................................................................................36 6.4 Measurement equipment ......................................................................................................... 36 6.5 Test Result and Data................................................................................................................36 7. Maximum Peak Output Power .........................................................................................................40 7.1 Test Limit .................................................................................................................................. 40 7.2 Test Procedures .......................................................................................................................40 7.3 Test Setup Layout ....................................................................................................................40 7.4 List of Measuring Equipment Used .......................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos
