P27UB801R802.11g wireless USB Adapter

802.11g PC Card/USB Wireless Adapter User Guide Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device has been tested and meets the FCC RF exposure guidelines. The maximum SAR value reported is 0.21w/kg. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. i Table of Contents CHAPTER 1 INTRODUCTION..............................................................................................................1 Package Contents.............................................................................................................................1 LEDs....................................................................................................................................................1 Operation............................................................................................................................................2 CHAPTER 2 INITIAL INSTALLATION...............................................................................................3 Requirements....................................................................................................................................3 Procedure...........................................................................................................................................3 CHAPTER 3 USING THE WINDOWS UTILITY.................................................................................5 Overview.............................................................................................................................................5 System Tray Icon..............................................................................................................................5 Site Survey Screen...........................................................................................................................6 Add Profile Screen...........................................................................................................................7 Profiles Screen...............................................................................................................................10 Link Status Screen........................................................................................................................11 Statistics Screen.............................................................................................................................11 Advanced Screen.............................................................................................................................12 About Screen...................................................................................................................................12 APPENDIX A SPECIFICATIONS........................................................................................................13 PC Card Adapter.............................................................................................................................13 USB Adapter....................................................................................................................................14 Wireless Interface..........................................................................................................................15 APPENDIX B ABOUT WIRELESS LANS.........................................................................................17 Modes................................................................................................................................................17 BSS/ESS...........................................................................................................................................17 Channels...........................................................................................................................................18 WEP....................…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding 802.11g Wireless USB Adaptor Module for the SerComm modal UB801R. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

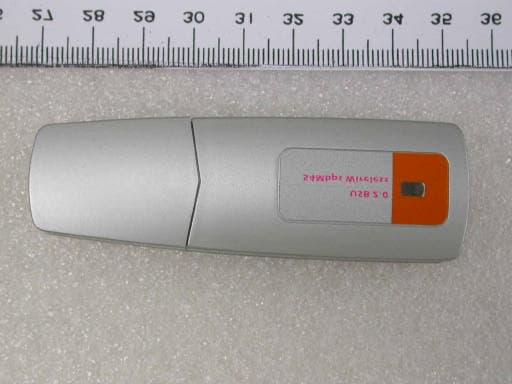

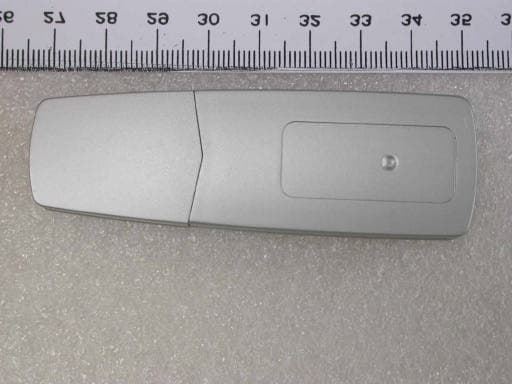

External Photos

31. 70 mm 1 3 . 7 0 m m FCC ID: P27UB801R

Internal Photos

Report No. : ES/2004/90002 Page : 1 of 49 TEST REPORT Equipment Under Test : 54Mbps Wireless Pc Card Model No. : UB801R FCC ID : P27UB801R Applicant : SerComm Corporation Address of Applicant : 8F, No. 3-1, YunaQu St., Nankang, Taipei 115, Taiwan, R.O.C Date of Receipt : 2004.09.14 Date of Test(s) : 2004.09.15-2004.09.16,2004.11.01,2004.12.02,2004.12.14 Date of Issue : 2004.12.14 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3, IEEE 1528-2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2004.12.14 Approved by : Robert Chang Date : 2004.12.14 Report No. : ES/2004/90002 Page : 2 of 49 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 4 1.5 Operation description 4 1.6 Evaluation procedures 5 1.7 The SAR Measurement System 6 1.8 System Components 7 1.9 SAR System Verification 8 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 9 1.11 Test Standards and Limits 10 2. Instruments List 13 3. Summary of Results 14 4. Measurements 15 802.11b Configuration 1 4.1.1 Vertical position, lowest channel 15 4.1.2 Vertical position, middle channel 16 4.1.3 Vertical position, highest channel 17 Configuration 2 4.1.4 Horizontal position, lowest channel 18 4.1.5 Horizontal position, middle channel 19 4.1.6 Horizontal position, highest channel 20 802.11g Configuration 1 4.2.1 Vertical position, lowest channel 21 4.2.2 Vertical position, middle channel 22 4.2.3 Vertical position, highest channel 23 Configuration 2 4.2.4 Horizontal position, lowest channel 24 4.2.5 Horizontal position, middle channel 25 4.2.6 Horizontal position, highest channel 26 4.3 S ystem Performance Validation 27 APPENDIX 1. Photographs of Test Setup 31 2. Photographs of EUT 35 3. Probe Calibration certificate 37 4. Uncertainty Analysis 41 5. Phantom description 42 6. System Validation from Original equipment supplier 43 7. Z-axis Plot 44 Report No. : ES/2004/90002 Page : 3 of 49 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : SerComm Corporation Address : 8F, No. 3-1, YunaQu St., Nankang, Taipei 115, Ta i w a n , R . O . C 1.3 Description of EUT(s) Equipment Type 54Mbps Wireless Pc Card Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID P27UB801R Model No. UB801R Number Of Channel 11 Modulation Direct Sequence Spread Spectrum (DSSS) 802.11b 802.11g Transfer Rate 11 Mbps 54 Mbps 802.11b 802.11g Max. SAR Measured (1 g) 0.21 W/kg 0.068 W/kg Antenna Gain 0 dBi Antenna Type The antenna is designed to be permanently On PCB , No Consideration of replacement Report No. : ES/2004/90002 Page : 4 of 49 Power Supply 3.3 V for notebook Host Laptop PC(s) Tested Toshiba Libretto L2 (Serial : 81021796) 1.4 Test Environment Ambient temperature : 22.3° C Tissue Simulating Liquid : 21.8° C Relative Humidity : 53 % 1.5 Operation Configuration 802.11b Mode 802.11g Mode Channel Frequency Under Test And Its Conducted Output Power (Peak) 17.83 dBm (2412MHz) 17.18 dBm (2437MHz) 16.65 dBm (2462MHz) 13.13 dBm (2412MHz) 12.20 dBm (2437MHz) 10.87 dBm (2462MHz) Antenna Configuration The antenna is designed to be permanently On PCB , No Consideration of replacement Antenna Position EUT Power Source 5 V from notebook The EUT is USB Adapter, which is installed inside a Notebook. Since the Notebook is placed on the top of the leg, when it operates, it is to be defined as a portable device. SAR measurement is mandatory. In order to measure SAR value, we used continuous transmission mode. The test set up mode was prepared by manufacturer. Value of Crest Factor = 1 was used for SAR testing according to the nature of the EUT. The test configuration tested at the low, middle and high frequency channels (2412MHz,2437MHz and 2462MHz).By using the program subordinated in the computer, and change into the written channel, and then set in highest power. Finally, we will test it by dividing into 2 ways. Conf iguration 1: Vertical of the PC at 90° and at a distance of 0.0 cm from the base of the phantom, and the antenna tip upward.(Fig.3 & Fig.4 & Fig.5) Configuration 2: Bottom of the PC is paralleled and at a distance of 0.0 cm from the base Report No. : ES/2004/90002 Page : 5 of 49 of the phantom, but 0.8 cm Spacing between EUT & Planar Phantom. (Fig.6 & Fig.7 & Fig.8) 1.6 EVALUATION PROCEDURES The evaluation was performed with the following procedure: (1). Measurement of the SAR value at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. (2). The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the head or EUT and the horizontal grid spacing was 15 mm x 15 mm. Based on these data, the area of the maximum absorption was determined by splint interpolation. (3). Around this point, a vo…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 1 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 802.11g wireless USB adapter Model No. UB801R FCC ID P27UB801R Trade Name SerComm Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 2 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................15 2.4. RF Module Specifications................................................................................................15 2.5. History of this test report.................................................................................................15 2.6. Feature of Equipment under Test.....................................................................................16 3. General Information of Test.......................................................................................................17 4. Test Result and Data.................................................................................................................18 4.1. Antenna Requirement.....................................................................................................18 4.2. Test Result of Conducted Emission..................................................................................19 4.3. RF Portion......................................................................................................................32 4.4. 6dB Bandwidth Measurement Data..................................................................................42 4.5. Peak Output Power Measurement Data...........................................................................46 4.6. Band Edges Measurement Data......................................................................................50 4.7. Power Spectral Density Measurement Data......................................................................61 5. List of Measuring Equipment Used.............................................................................................65 Appendix A. Photographs of EUT........................................................................ ...............A1 ~ A4 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 3 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant SerComm Corporation Address 8F, No. 3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. Equipment 802.11g wireless USB adapter Model No. UB801R FCC ID P27UB801R I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Sep. 05, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 4 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Test by: Exclusive Certification Corp. Tel:886-…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 25 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 26 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 27 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 28 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 29 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 30 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 31 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 32 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 33 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 34 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 35 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.3.2. Test Result of Radiated Emission Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 41.64 V 52.83 -15.24 37.59 40 -2.41 Q.P 197 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2033.50 V 49.87 -2.51 47.35 74 -26.65 Peak 180 1.0 4815.50 V 46.62 6.46 53.08 74 -20.92 Peak 176 1.0 2781.00 H 51.87 0.89 52.76 74 -21.24 Peak 175 1.0 3931.50 H 45.74 5.17 50.91 74 -23.09 Peak 166 1.0 4815.50 H 47.19 7.22 54.41 74 -19.59 Peak 176 1.0 4815.50 H 31.06 7.25 38.32 54 -15.68 Ave. 179 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 36 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel MID Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 41.64 V 51.90 -15.24 36.66 40 -3.34 Peak 240 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2807 H 50.58 0.99 51.58 74 -22.42 Peak 186 1.0 4876 H 46.83 7.40 54.23 74 -19.77 Peak 205 1.0 4876 H 33.25 7.43 40.68 74 -13.32 Ave. 200 1.0 4876 V 46.03 6.63 52.66 74 -21.34 Peak 195 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 37 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel HI Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 41.64 V 52.57 -15.24 37.33 40 -2.67 Q.P 200 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel HI Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2079.00 V 53.80 -2.36 51.44 74 -22.56 Peak 177 1.0 2079.00 H 51.63 -1.66 49.97 74 -24.03 Peak 180 1.0 4919.50 H 45.32 7.58 52.90 74 -21.10 Peak 170 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 38 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Modulation Standard: IEEE 802.11g a) Emission frequencies below 1 GHz Channel LO Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 41.64 V 53.17 -15.24 37.93 40 -2.07 Q.P 195 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2786 H 54.09 0.89 54.98 74 -19.02 Peak 176 1.0 2786 H 44.91 0.91 45.83 54 -8.17 Ave. 185 1.0 2786 V 47.14 0.14 47.28 74 -26.72 Peak 177 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 39 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Modulation Standard: IEEE 802.11g a) Emission frequencies below 1 GHz Channel MID Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% Frequenc…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 42 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.4. 6dB Bandwidth Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: Sep. 04, 2004 Temperature: 26 Humidity: 60% a) Channel 01: 6dB Emission Bandwidth is 12.2 MHz b) Channel 06: 6dB Emission Bandwidth is 12.2 MHz c) Channel 11: 6dB Emission Bandwidth is 12.2 MHz (2) Modulation Standard: IEEE 802.11g Test Date: Sep. 04, 2004 Temperature: 26 Humidity: 60% a) Channel 01: 6dB Emission Bandwidth is 16.5 MHz b) Channel 06: 6dB Emission Bandwidth is 16.4 MHz c) Channel 11: 6dB Emission Bandwidth is 16.5 MHz Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 43 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 44 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 45 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 46 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.5. Peak Output Power Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: Sep. 04, 2004 Temperature: 26 Humidity: 60% a) Channel 01: Output Peak Power is 17.83 dBm or 60.673 mW b) Channel 06: Output Peak Power is 17.18 dBm or 52.240 mW c) Channel 11: Output Peak Power is 16.65 dBm or 46.238 mW (2) Modulation Standard: IEEE 802.11g Test Date: Sep. 04, 2004 Temperature: 26 Humidity: 60% a) Channel 01: Output Peak Power is 13.13 dBm or 20.559 mW b) Channel 06: Output Peak Power is 12.20 dBm or 16.596 mW c) Channel 11: Output Peak Power is 10.87 dBm or 12.218 mW Note: Conducted Power = Reading Value + Cable Loss Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 47 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 48 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 49 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 50 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.6. Band Edges Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: Sep. 04, 2004 Temperature: 26 Humidity: 60% a) Lower Band Edge: maximum value is -38.39 dBm that is attenuated more than 20dB b) Upper Band Edge: maximum value is -46.29 dBm that is attenuated more than 20dB (2) Modulation Standard: IEEE 802.11g Test Date: Sep. 04, 2004 Temperature: 26 Humidity: 60% a) Lower Band Edge: maximum value is -41.98 dBm that is attenuated more than 20dB b) Upper Band Edge: maximum value is -50.87 dBm that is attenuated more than 20dB Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 51 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 52 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 53 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 54 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 55 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 56 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Sep. 07, 2004 57 of 65 FCC ID: P27UB801R FCC Test Report: FI04081303-A 4.6.1. Note on Band edge Emission Modulation Standard: IEEE 802.11b Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% a) Channel 1 Fundamental Frequency: 2412 MHz Limit@3m (dBuV/m) Frequency (MHz) Level (dBV) Polarization Remark Peak Ave. Margin (dB) Table Deg. (Deg.) Ant High (m) 2357.940 54.30 H Peak 74 54 -19.70 172 1.0 2357.940 40.41 H Ave. 74 54 -13.59 182 1.0 2358.348 52.11 V Peak 74 54 -21.89 175 1.0 2358.348 --- V Ave. 74 54 --- --- --- b) Channel 11 Fundamental Frequency: 2462 MHz Limit@3m (dBuV/m) Frequency (MHz) Level (dBuV) Polarization Remark Peak Ave. Margin (dB) Table Deg. (Deg.) Ant High (m) 2492.124 46.72 H Peak 74 54 -27.28 192 1.0 2492.124 --- H Ave. 74 54 --- --- --- 2485.484 46.72 V Peak 74 54 -27.54 185 1.0 2485.484 --- V Ave. 74 54 --- --- --- Modulation Standard: IEEE 802.11g Test Date: Sep. 05, 2004 Temperature: 24 Humidity: 63% a) Channel 1 Fundamental Frequ…
