P27UB811RN802.11n USB Wirless Adapter

Sercomm Corporation
802.11n USB Wirless Adapter - FCC ID P27UB811RN - Sercomm Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 14, 2008
Application Purpose
Original Equipment
Date of Application
Sep 14, 2008
Equipment Note
802.11n USB Wirless Adapter
Frequency Range
2422.00000000 - 2452.00000000
Company
Sercomm Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

802.11n USB Wireless Adapter User Guide i Table of Contents CHAPTER 1 INTRODUCTION ............................................................................................. 1 Package Contents .............................................................................................................. 1 LEDs ................................................................................................................................... 1 Operation ........................................................................................................................... 1 CHAPTER 2 INITIAL INSTALLATION .............................................................................. 2 Requirements ..................................................................................................................... 2 Procedure ........................................................................................................................... 2 CHAPTER 3 USING THE WINDOWS UTILITY ................................................................ 5 Overview ............................................................................................................................ 5 System Tray Icon...............................................................................................................5 Auto Profile Connect......................................................................................................... 6 Site Survey Screen .............................................................................................................6 Profile Manager Screen .................................................................................................. 10 Network Status Screen .................................................................................................... 14 About Screen....................................................................................................................15 APPENDIX A SPECIFICATIONS ....................................................................................... 16 USB Adapter ....................................................................................................................16 APPENDIX B ABOUT WIRELESS LANS .......................................................................... 18 Modes ............................................................................................................................... 18 BSS/ESS............................................................................................................................ 18 Channels ........................................................................................................................... 19 WEP & WPA-PSK .......................................................................................................... 19 Wireless LAN Configuration.......................................................................................... 19 P/N: 956YGT0001 Copyright © 2007. All Rights Reserved. Document Version: 1.0 (September, 2007) All trademarks and trade names are the properties of their respective owners. 1 Chapter 1 Introduction This Chapter provides an overview of the Wireless Adapter's features and ca- pabilities. Congratulations on the purchase of your new Wireless Adapter. The Wireless Adapter pro- vides a wireless network interface for your Notebook or PC. Package Contents The following items should be included: • The Wireless Adapter Unit • Quick Start Guide • CD-ROM containing the on-line manual. If any of the above items are damaged or missing, please contact your dealer immediately. LEDs USB Wireless Adapter The Wireless Adapter has a single Link/Activity LED. Link/Act LED • On – Associated with the network. • Off - Not associated with the network. • Blinking - Data being transferred. Operation You should install the supplied software on the CD-ROM before inserting the USB adapter. 1 2 Chapter 2 Initial Installation This Chapter covers the software installation of the Wireless Adapter. Requirements • Windows 2000 , XP and Vista. • Available USB port. • CD-ROM drive. • IEEE802.11b, IEEE802.11g or IEEE802.11n wireless LAN. Procedure You should install the supplied software BEFORE inserting the USB Adapter. 1. Insert the CD-ROM into the drive on your PC. 2. The installation program should start automatically. If it does not, run the SETUP.EXE program. 3. Select the desired installation language on the screen. Figure 1: Start Installation 4. On the screen above, click "Next" to start the installation. 5. Step though the procedure until you see the screen below. 2 Installation 3 Figure 2: Installation Screen 6. Click "Continue Anyway" on the screen above. Figure 3: Information 7. Insert the USB Adapter into your PC, then click "OK". 8. The Windows "New Hardware" wizard will then start. • Select Install the software automatically to allow it to complete the installation of the Windows driver • If using Windows XP, you may see a warning screen like the example below. If you do see this screen, just click "Continue Anyway" Figure 4: Windows XP Warning 9. When the Windows wizard is complete, you will now have a new icon in your system tray, as shown below. Wireless Adapter User Guide 4 Figure 5: System Tray Icon 10. You can double- click this icon to configure the Wireless interface. See the following chapter for details. 5 Chapter 3 Using the Windows Utility This Chapter provides Setup details for the AP mode of the Wireless Adapter. Overview If using Windows, you can use the supplied utility to configure the Wireless interface. To Use the supplied Windows utility for Configuration • Right-click the System Tray icon • From the pop-up menu, select "Restore". This Chapter assumes you are using the supplied WLan Application utility. System Tray Icon If the WLan Application program is running, you can double-click the icon in the System Tray to open the application. If the program is not running, …

Text truncated - open the document above for the full version.

Cover Letter(s)

RF_160, Issue 02 Declaration of Authorization We Name: SerComm Corporation Address: 8F, No.3-1, YuanQu Street, City: Nankang, Taipei City Country: Taiwan, R.O.C. Declare that: Name Representative of agent: Delia Feng. (1) Agent Company name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Nei-hu Taipei City 114 Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: 802.11n USB Wireless Adapter Type designation: UB811RN, WUA-0603, ALL0233 Trademark: SerComm on our behalf. Date: 2008/07/04 City: Taipei City Name: Ronnie Cheng (2) Function: Associate Manager/ R&D Division Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

Cover Letter(s)

Request for non-disclosure RF_501_02 SerComm Corporation 8F, No.3-1, YuanQu St., NanKang, Taipei City, 115 Taiwan, R.O.C. To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for non-disclosure (FCC ID: P27UB811RN) Reference number: UB811RN, WUA-0603, ALL0233 Date: 2008/07/04 Dear FCC TCB, Persuant to 47 CFR Section 0.459(a) & (b), SerComm Corporation hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ( P27UB811RN) a. Schematic diagrams b. Operational description c. Block Diagram Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. SerComm Corporation understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Name/ Title: Ronnie Cheng/ Associate Manager/ R&D Division Signature:

Cover Letter(s)

SerComm Corporation磊 Taipei Office: 8F, No.3-1, YuanQu St., NanKang, Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 FAX: 886-2-2655-3966 Chu Nan Office: 3F, No. 81, YuYi Rd., Chu-Nan, Miao-Li 350, Taiwan, R.O.C. TEL: 886-37-585-899 FAX: 886-37-585-000 Date: 2008-07-08 Declaration of Conformity We, SerComm Corporation Hereby, Certify and declare that as following equipment is under full responsibility: Product: 802.11n USB Wireless Adapter Model Number: UB811RN, WUA-0603, ALL0233 Brand: SerComm Is tested and comply with FCC standard Part 15 and Subpart B Tested in Exclusive Certification Corporation, located in 4F-2, No.28, Lane78, XingAi Road, Neihu District, Taipei City, Taiwan R.O.C. Ronnie Cheng Associate Manager / R&D Division SerComm Corporation 8F, No. 3-1, YuanQu St., NanKang Taipei 115, Taiwan, R.O.C. TEL: 886-2-2655-3988 #2547 FAX: 886-2-2655-3975 E-Mail: [email protected]

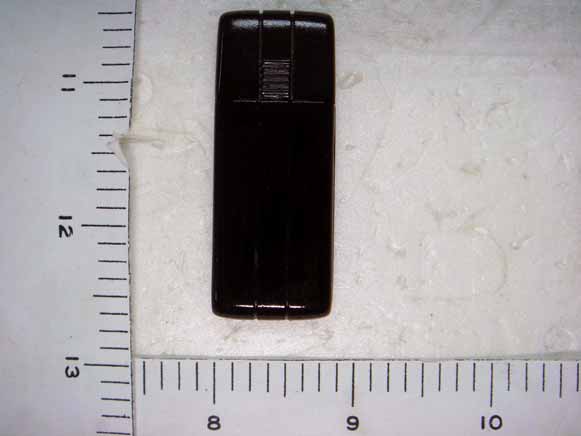

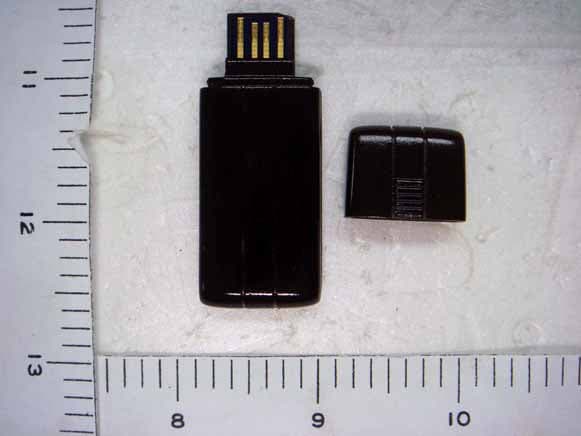

External Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 1 of 3 FCC Test Report: FI08070202-A Appendix A. Photographs of EUT 08070202-A 08070202-A

Internal Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 2 of 3 FCC Test Report: FI08070202-A 08070202-A 08070202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 3 of 3 FCC Test Report: FI08070202-A 08070202-A

RF Exposure Info

Report No:087211R-HPUSP09V01 Page: 1 of 23 SAR Test Report Product Name : 802.11n USB Wireless Adapter Model No. : UB811Rn, WUA-0603, ALL0233 Applicant : SerComm Corporation Address : 8F, No.3-1, YuanQu St., Nankang, Taipei 115, Taiwan, R.O.C. Date of Receipt:2008/07/10 Issued Date :2008/09/12 Report No. :087211R-HPUSP09V01 Version :V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No:087211R-HPUSP09V01 Page: 2 of 23 Test Report Certification Issued Date: 2008/09/12 Report No.:087211R-HPUSP09V01 Product Name : 802.11n USB Wireless Adapter Applicant : SerComm Corporation Address : 8F, No.3-1, YuanQu St., Nankang, Taipei 115, Taiwan, R.O.C. Manufacturer : Advantech CO., Ltd. Trade Name : SerComm Model No. : UB811Rn, WUA-0603, ALL0233 Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) 0.645 W/kg The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Engineering Adm. Assistant / Nicole Huang) Tested By : (Engineer / Jung Chang) Approved By : (Manager /Vincent Lin) Report No:087211R-HPUSP09V01 Page: 3 of 23 TABLE OF CONTENTS Description Page 1. General Information ................................................................................ 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................... 7 2.1 ALSAS-10U System Description .................................................................................. 7 2.1.1 Applications ................................................................................................................ 7 2.1.2 Area Scans................................................................................................................... 7 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 8 2.2 Isotropic E-Field Probe .................................................................................................. 8 2.2.1 Isotropic E-Field Probe Specification ....................................................................... 10 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 11 2.5 Axis Articulated Robot ................................................................................................ 11 2.6 ALSAS Universal Workstation.................................................................................... 12 2.7 Universal Device Positioner......................................................................................... 12 2.8 Phantom Types............................................................................................................. 12 2.8.1 APREL SAM Phantoms ........................................................................................... 13 2.8.2 APREL Laboratories Universal Phantom ................................................................. 13 3. Tissue Simulating Liquid ....................................................................... 14 3.1 The composition of the tissue simulating liquid .......................................................... 14 3.2 Tissue Calibration Result ............................................................................................. 14 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 16 4. SAR Measurement Procedure.............................................................. 17 4.1 SAR System Validation................................................................................................ 17 4.1.1 Validation Dipoles..................................................................................................... 17 4.1.2 Validation Result ....................................................................................................... 17 4.2 SAR Measurement Procedure ...................................................................................... 18 5. SAR Exposure Limits............................................................................ 19 6. Test Equipment List .............................................................................. 20 7. Measurement Uncertainty..................................................................... 21 8. Test Results .......................................................................................... 22 Report No:087211R-HPUSP09V01 Page: 4 of 23 8.1 SAR Test Results Summary ......................................................................................... 22 Appendix ............................................................................................................................ 23 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No:087211R-HPUSP09V01 Page: 5 of 23 1. General Information 1.1 EUT Description Product Name 802.11n USB Wireless Adapter Model No. UB811Rn, WUA-0603, ALL0233 FCC ID P27UB811RN TX Frequency 2412MHz~2462MHz RX Frequency 2412MHz~2462MHz Antenna Type Fixed Device Category Portable RF Exposure Environment Uncontrolled Max. Output Power (Conducted) 802.11b: 18.12dBm 802.11g: 14.80dBm 802.11…

Text truncated - open the document above for the full version.

Test Report

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 1 of 93 FCC Test Report: FI08070202-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Applicant : SerComm Corporation Address : 8F, No. 3-1, YuanQu St., Nankang, Taipei 115, Taiwan, R.O.C. Equipment : 802.11n USB Wireless Adapter Model No. : UB811RN Series No. : WUA-0603, ALL0233 FCC ID : P27UB811RN Trade Name : SerComm Laboratory Accreditation ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 2 of 93 FCC Test Report: FI08070202-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 Test Mode and Test Software.....................................................................................................7 2.3 Description of Test System......................................................................................................... 7 2.4 Connection Diagram of Test System.......................................................................................... 8 2.5 Carrier Frequency of Channels ..................................................................................................9 2.6 General Information of Test......................................................................................................10 2.7 Description of series no............................................................................................................10 2.8 Measurement Uncertainty ........................................................................................................10 2.9 History of this test report .......................................................................................................... 11 3. Antenna Requirements.....................................................................................................................12 3.1 Standard Applicable .................................................................................................................12 3.2 Antenna Construction and Directional Gain............................................................................. 12 4. Test of Conducted Emission............................................................................................................13 4.1 Test Limit ..................................................................................................................................13 4.2 Test Procedures .......................................................................................................................13 4.3 Typical Test Setup ....................................................................................................................14 4.4 Measurement equipment ......................................................................................................... 14 4.5 Test Result and Data................................................................................................................15 4.6 Test Photographs .....................................................................................................................21 5. Test of Radiated Emission ...............................................................................................................22 5.1 Test Limit ..................................................................................................................................22 5.2 Test Procedures .......................................................................................................................22 5.3 Typical Test Setup ....................................................................................................................23 5.4 Measurement equipment ......................................................................................................... 23 5.5 Test Result and Data................................................................................................................24 5.6 Test Photographs .....................................................................................................................60 6. 6dB Bandwidth Measurement Data .................................................................................................61 6.1 Test Limit ..................................................................................................................................61 6.2 Test Procedures .......................................................................................................................61 6.3 Test Setup Layout ....................................................................................................................61 6.4 Measurement equipment ......................................................................................................... 61 6.5 Test Result and Data................................................................................................................61 7. Maximum Peak Output Power ..........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 21 of 93 FCC Test Report: FI08070202-A 4.6 Test Photographs Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Jul. 08, 2008 60 of 93 FCC Test Report: FI08070202-A 5.6 Test Photographs Front View Rear View

Contact Information

Applicant

Nick Wu(Engineer)
[email protected]886-2-2655-3988Fax: 886-2-2655-3965

Technical Contact

SerComm CorporationRonnie Cheng
[email protected]886-2-2655-3988

8F, No.3-1, YuanQu St., NanKang · Taipei · Taiwan

Test Firm

Cerpass Technology CorporationEric Chen
[email protected]886-2-2656-1688Fax: 886-2-2656-1689

Technical Specifications

#Rule PartsFrequency RangePower Output
215C2.42 GHz - 2.45 GHz30.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. SAR compliance has been established in a notebook computer configuration with side slot configuration as tested in this filing, and can be used in notebook computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The antenna(s) of the device must not be co-located or operating in conjunction with any other antenna or transmitter within a host device.Maximum measured SAR value: 0.645 W/kg (Body)
