P2AGD0101Energy Saving Lamp

U SER ’ S M ANUAL Federal Communication Commission Interference Statement This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, pursuant to part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify-any changes could void the user’s authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock-do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product could interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

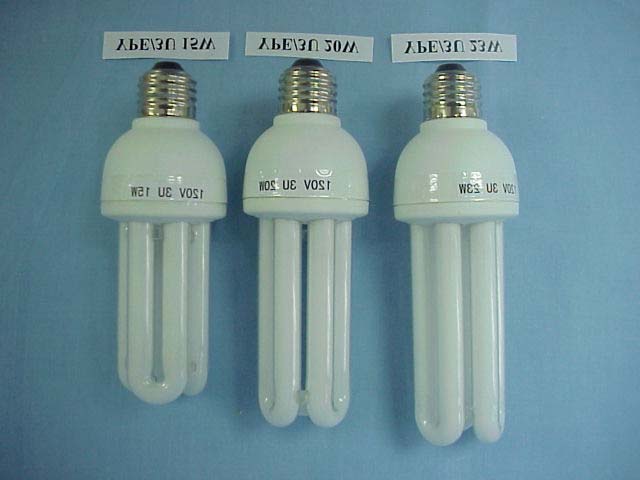

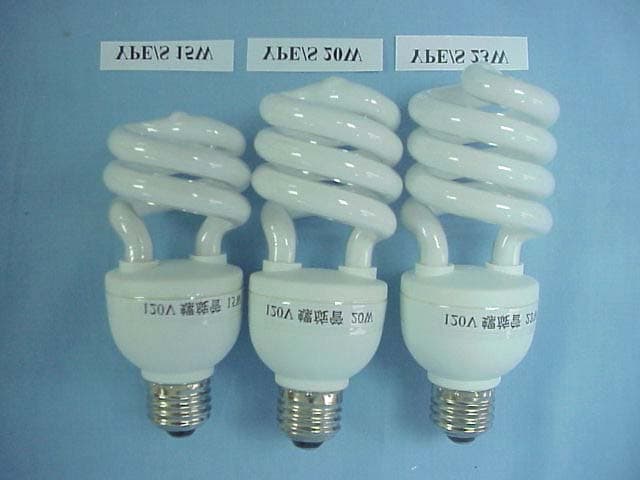

Figure 1 E NERGY S AVING L AMP (M/N: YPZ/3U 15W/20W/23W) G ENERAL A PPEARANCE FIGURE 2 ENERGY SAVING LAMP (M/N: YPZ/S 15W/20W/23W) GENERAL APPEARANCE Z Z Z Z Z Z

Label Drawing (Size of 2:1) FCC ID: P2AGD0101 FCC ID: P2AGD0101 FCC ID: P2AGD0101 FCC ID: P2AGD0101

Label Location Information Refer to the below red arrow: (for example) Z Z Z

F IGURE 1 E NERGY S AVING L AMP (M/N: YPZ/3U 15W/20W/23W) C OVER R EMOVED Z Z Z F IGURE 2 E NERGY S AVING L AMP (M/N: YPZ/3U 15W/20W/23W) M AIN B OARD (C OMPONENT S IDE ) FIGURE 3 ENERGY SAVING LAMP (M/N: YPZ/3U 15W/20W/23W) MAIN BOARD (SOLDERED SIDE) Z Z Z Z Z Z F IGURE 4 E NERGY S AVING L AMP (M/N: YPZ/S 15W/20W/23W) C OVER R EMOVED Z Z Z F IGURE 5 E NERGY S AVING L AMP (M/N: YPZ/S 15W/20W/23W) M AIN B OARD (C OMPONENT S IDE ) FIGURE 6 ENERGY SAVING LAMP (M/N: YPZ/S 15W/20W/23W) MAIN BOARD (SOLDERED SIDE) Z Z Z Z Z Z

Schematics

Shanghai Gold Lighting Co., Ltd. FCC ID:P2AGD0101 Page 1 of 33 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01086 Application for FCC Certificate On Behalf of Shanghai Gold Lighting Co., Ltd. Energy Saving Lamp Model No.: YPZ/3U 15W YPZ/3U 20W YPZ/3U 23W YPZ/S 15W YPZ/S 20W YPZ/S 23W FCC ID : P2AGD0101 Prepared For : Shanghai Gold Lighting Co., Ltd. No.218 Minhe Road, Shanghai, China 200070 Prepared By : Audix Technology (Shanghai) Co., Ltd. 3 F 34 Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel: +8621-64955500 Fax: +8621-64955491 Report No. : ACI-F01086 Date of Test : Sept 15-Oct 22 , 2001 Date of Report : Oct 29, 2001 Shanghai Gold Lighting Co., Ltd. FCC ID:P2AGD0101 Page 2 of 33 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01086 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST................................................................................. 4 1.2 DESCRIPTION OF TEST FACILITY.................................................................................................. 5 1.3 M EASUREMENT U NCERTAINTY .................................................................................................... 5 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 6 2.1 T EST E QUIPMENT ........................................................................................................................ 6 2.2 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................ 6 2.3 C ONDUCTED EMISSION LIMITS.................................................................................................... 6 2.4 TEST CONFIGURATION................................................................................................................. 7 2.5 OPERATING CONDITION OF EUT ................................................................................................. 7 2.6 T EST P ROCEDURES ...................................................................................................................... 7 2.7 T EST R ESULTS ............................................................................................................................. 8 3 FIELD STRENGTH TEST ........................................................................................................... 14 3.1 TEST EQUIPMENT...................................................................................................................... 14 3.2 B LOCK D IAGRAM OF T EST S ETUP .............................................................................................. 14 3.3 T EST C ONFIGURATION ............................................................................................................... 14 3.4 OPERATING CONDITION OF EUT ............................................................................................... 14 3.5 T EST P ROCEDURE ...................................................................................................................... 15 3.6 TEST RESULT............................................................................................................................. 15 Shanghai Gold Lighting Co., Ltd. FCC ID:P2AGD0101 Page 3 of 33 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01086 TEST REPORT FOR FCC CERTIFICATE Applicant : Shanghai Gold Lighting Co., Ltd. Manufacturer : Shanghai Gold Lighting Co., Ltd. EUT Description : Energy Saving Lamp (A) Model No.: YPZ/3U 15W YPZ/3U 20W YPZ/3U 23W YPZ/S 15W YPZ/S 20W YPZ/S 23W (B) Serial No.: GL20011101-1 GL20011101-2 GL20011101-3 GL20011102-1 GL20011102-2 GL20011102-3 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Sept 22-Oct 22, 2001 Prepared by : Test Engineer : KK YI (Assistant) NILL YEE (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) Shanghai Gold Lighting Co., Ltd. FCC ID:P2AGD0101 Page 4 of 33 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01086 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : YPZ/3U 15W, YPZ/3U 20W, YPZ/3U 23W YPZ/S 15W, YPZ/S 20W, YPZ/S 23W Applicant : Shanghai Gold Lighting Co., Ltd. No.218 Minhe Road, Shanghai China Manufacturer : Shanghai Gold Lighting Co., Ltd. No.218 Minhe Road, Shanghai China M/N Apparent Power (VA) Real Power (W) YPZ/3U 15W 29.1 14.8 YPZ/3U 20W 39.5 20.6 YPZ/3U 23W 45.2 22.7 YPZ/S 15W 29.8 15.7 YPZ/S 20W 40.2 19.3 YPZ/S 23W 45.9 23.6 Shanghai Gold Lighting Co., Ltd. FCC ID:P2AGD0101 Page 5 of 33 Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01086 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Tech…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test YPE/3U 15W/20W/23W YPE/S 15W/20W/23W 2. Field strength Test
