P2K-86345601RFID Reader

Swisslog Translogic
RFID Reader - FCC ID P2K-86345601 - Swisslog Translogic
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
Jan 07, 2002
Application Purpose
Original Equipment
Date of Application
Jan 07, 2002
Equipment Note
RFID Reader
Frequency Range
0.12500000 - 0.12500000
Company
Swisslog Translogic
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

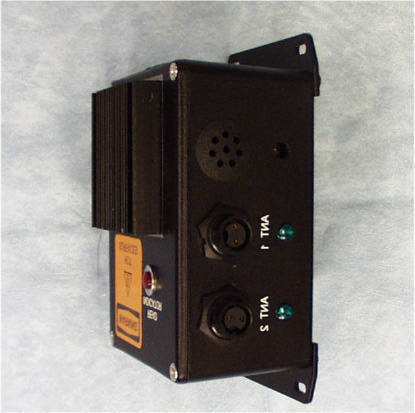

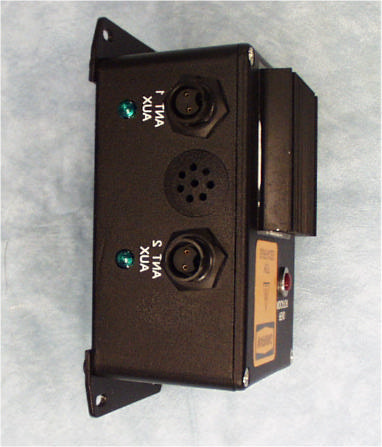

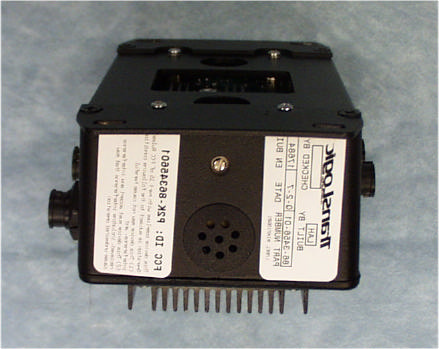

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Operational Description

IDT524 OPERATIONAL DESCRIPTION The IDT524 RFID controller is designed to read passive fixed code tags with a range of up to 1 meter. The controller is used with a 17cm round antenna per photo and attached spec sheet . The RFID method used "Magnetic Induction" where an antenna is driven from the controller at 125khz producing a magnetic field. The RFID tag has in integral antenna winding which, when placed within the excitation magnetic field will magnetically couple so producing power in the tag and a clocking signal from the excitation frequency. The tag on receipt of the excitation and clock starts to read out its integral number in a binary form and transmits this data back to the controller by modulating the excitation signal with the binary data at a clock rate of 125,000 divided by 64 giving a bit rate of 1935 bits per second. EXCITATION CIRCUITRY The IDT524 controller provides a 125khz drive frequency from a 16mhz clock (Kinseki EXO-C3) which has an integral 16mhz crystal driving a binary divider, which divides the 16mhz by 128. The output of this clock generator drives a power amplifier, which drives a square wave pulse into a series 30mh inductor. The output of this inductor produces a sine wave; the sine wave is shape and cleaned up by a 33nf capacitor to ground. The sine wave passes on to a series 4n7 capacitor, which both isolates the DC element of the drive and provides series tuning for the antenna. The antenna coil of 300uh (28 turns copper wire) is tuned to resonance by parallel capacitors C1, C2 and trimmer. The antenna when in resonance produces approximately 160pp which generates the magnetic excitation frequency for the tag. READ CIRCUITRY The read signal from the tag is received as a modulated signal carried in the excitation frequency. It is read off the antenna coil by two series diodes which demodulate the signal down to a dc signal, which is further filtered, cleaned up and AC isolated by a parallel and series capacitors and resistors. The modulated signal is fed into a two stage amplifier which amplifies the input signal from a few millivolts to a ttl/cmos signal level which is fed into an internal comparator on the microprocessor, The digital data string read by the comparator is decoded by software into binary data for further processing and transmission to an external control system. PROCESSOR CIRCUITRY The microprocessor is an 8 bit Atmel device, with integral flash program memory clocked by an external crystal at 11.059mhz, programmed to perform three functions: - 1. Read demodulated signal from the amps and decode the Manchester code. 2. Convert the decoded data into a data string 3. Transmit the decoded data to the host system. IDT524 CHARACTERISTICS These characteristics assume the antenna supplied by SWISSLOG in their configuration is as specified in Swisslog drawing 86345001 also the tuning capacitance on the antenna switch PCB is 0-500pf. Diameter ID - 6.54" Turns - approx. 28 Inductance - 300mH Conductor - 18 awg round copper Then the following parameters are valid: - 1. Excitation Frequency in antenna - 125khz single frequency 2. Excitation Modulation - None 3. Excitation duty cycle - Continuous 4. Fixed station - Duplex transceiver 5. Oscillator Frequency - 16mhz 6. Frequency stability (crystal) - 100ppm from -10 to 75C degree 7. Processor clock (crystal) - 11.059mhz 8. Antenna Inductance - 300mh * 9. Antenna current - 125ma * 10. Antenna power -` 20watts * 11. Antenna Bandwidth - 3600 c/s 12. Tag power type - Passive 13. Read Modulation type - ASK 14. Read data rate - 1935 bits/sec 15. Tag data encoding - Manchester 16. Reader - Software read of demodulated signal 17. Controller power requires - 12vdc maximum 1amp. (Translogic) 18. Power supply swing - 10 to 14 vdc 19. Operating temperature - -10 to 55 degrees C * Estimated values based on Translogic component values.

Test Report

File No. BC106875, Page 1 of 3 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 EMC EMISSIONS - TEST REPORT Test Report No. BC106875-1 Issue Date October 24, 2001 Model / Serial No. 86345601 / EMC1 Product Type RF ID Reader Client Translogic Manufacturer Translogic License holder Translogic Address 10825 East 47th Ave Denver, CO 80239 Test Criteria Applied FCC Part 15 Class B 47 CFR 15: Radio Frequency Devices Test Result PASS Test Project Number References BC106875 Total Pages Including Appendices: 34 Reviewed By : Todd Seeley Reviewed By : Robert Cresswell TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of TÜV Product Service. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI PRODUCT SERVICE File No. BC106875, Page 2 of 3 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 D I R E C T O R Y Page(s) Documentation Test report 1 - 3 Directory 2 Test Regulations 3 General Remarks 3 Test-setup Photographs – See Exhibit in FCC Filing Appendix A Test Data Sheets and Test Equipment Used A1 - A23 Appendix B Test Plan/Constructional Data Form B1 - B8 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. EUT Received Date: 18 October 2001 Testing Start Date: 18 October 2001 Testing End Date: 18 October 2001 PRODUCT SERVICE File No. BC106875, Page 3 of 3 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 The tests were performed according to following regulations : nn - FCC Part 15:2001 nnClass B Emission Test Results: Conducted emissions, Powerline 450 kHz- 30 MHz Test Result PASS Minimum limit margin 11.9 dB at 8.18 MHz Maximum limit exceeding dB at MHz Remarks: Radiated emissions (electric field) 30 MHz - 1000 MHz Test Result PASS Minimum limit margin 2.1 dB at 128.05 MHz Maximum limit exceeding dB at MHz Remarks: GENERAL REMARKS: None Modifications required to pass: None Test Specification Deviations: Additions to or Exclusions from: None PRODUCT SERVICE File No. BC106875, Page A1 of A23 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 Appendix A Test Data Sheets and Test Equipment Used PRODUCT SERVICE Non-Intentional Radiator Data PRODUCT SERVICE File No. BC106875, Page A2 of A23 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 Conducted Electromagnetic Emissions Test Report #: BC106875 Run 01 Test Area: Pinewood Site 1 Cond Test Method: FCC Test Date: 18-Oct-2001 EUT Model #: 86345601 EUT Power: 120 VAC / 60 Hz EUT Serial #: EMC1 Temperature: 22 °C Manufacturer: Translogic Relative Humidity: <26 % EUT Description: RF ID Reader Air Pressure: 80 kPa Notes: Page: 1 of 2 FREQ LEVEL CABLE / LISN / ATTEN FINAL TEST POINT DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dBuV) FCC B N/A Tested by: Dan Dillon Printed Signature Reviewed by: Robert Cresswell Printed Signature 0.491 19.4 Qp 0.1 / 0.0 / -10.0 29.5 Neutral -18.5 N/A 0.690 18.7 Qp 0.1 / 0.0 / -10.0 28.8 Neutral -19.2 N/A 1.38 18.8 Qp 0.2 / 0.0 / -10.0 29.0 Neutral -19.0 N/A 1.48 19.4 Qp 0.2 / 0.0 / -10.0 29.6 Neutral -18.4 N/A 3.25 19.8 Qp 0.3 / 0.0 / -10.0 30.1 Neutral -17.9 N/A 8.18 25.3 Qp 0.6 / 0.0 / -10.0 35.9 Neutral -12.1 N/A 0.493 18.6 Pk 0.1 / 0.0 / -10.0 28.7 Line 1 -19.3 N/A 0.690 16.9 Qp 0.1 / 0.0 / -10.0 27.0 Line 1 -21.0 N/A 1.38 17.0 Qp 0.2 / 0.0 / -10.0 27.2 Line 1 -20.8 N/A 1.48 17.3 Qp 0.2 / 0.0 / -10.0 27.5 Line 1 -20.5 N/A 3.25 18.1 Qp 0.3 / 0.0 / -10.0 28.4 Line 1 -19.6 N/A 8.18 25.5 Qp 0.6 / 0.0 / -10.0 36.1 Line 1 -11.9 N/A 9.16 23.9 Qp 0.7 / 0.0 / -10.0 34.6 Line 1 -13.4 N/A File No. BC106875, Page A3 of A23 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 Conducted Electromagnetic Emissions Test Report #: BC106875 Run 01 Test Area: Pinewood Site 1 Cond Test Method: FCC Test Date: 18-Oct-2001 EUT Model #: 86345601 EUT Power: 120 VAC / 60 Hz EUT Serial #: EMC1 Temperature: 22 °C Manufacturer: Translogic Relative Humidity: <26 % EUT Description: RF ID Reader Air Pressure: 80 kPa Notes: Page: 2 of 2 FREQ LEVEL CABLE / LISN / ATTEN FINAL TEST POINT DELTA1 (dB) DELTA2 (dB) (MHz) (dBuV) (dB) (dBuV) FCC B N/A Tested by: Dan Dillon Printed Signature Reviewed by: Robert Cresswell Printed Signature ********** MEASUREMENT SUMMARY ********** 8.18 25.5 Qp 0.6 / 0.0 / -10.0 36.1 Line 1 -11.9 N/A 9.16 23.9 Qp 0.7 / 0.0 / -10.0 34.6 Line 1 -13.4 N/A 3.25 19.8 Qp …

Text truncated - open the document above for the full version.

Test Setup Photos

File No. BC106875, Page 4 of 5 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 Test-setup photo(s): Conducted Emissions PRODUCT SERVICE File No. BC106875, Page 5 of 5 TÜV PRODUCT SERVICE INC 5541 Central Avenue Boulder, Colorado 80301 Tel: 303 786 7999 Fax: 303 449 3004 Rev.No 1.0 Test-setup photo(s): Radiated Emissions PRODUCT SERVICE PRODUCT SERVICE PRODUCT SERVICE PRODUCT SERVICE PRODUCT SERVICE PRODUCT SERVICE

Contact Information

Applicant

John C Vanderschaaf(Test Lab Tech)
[email protected]303-373-7972Fax: 303-373-7872

Test Firm

TUV Product ServiceJeffrey Doolittle
303-402-5241

Technical Specifications

#Rule PartsFrequency RangePower Output
115C0.125 MHz - 0.125 MHz-
