P2SR450M

Neptune Technology Group Inc.

TRANSMITTER MODULE

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 21, 2013
Application Purpose: Original Equipment
Date of Application: Feb 20, 2013
Equipment Note: TRANSMITTER MODULE
Frequency Range: 450.00000000 - 470.00000000
Company: Neptune Technology Group Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

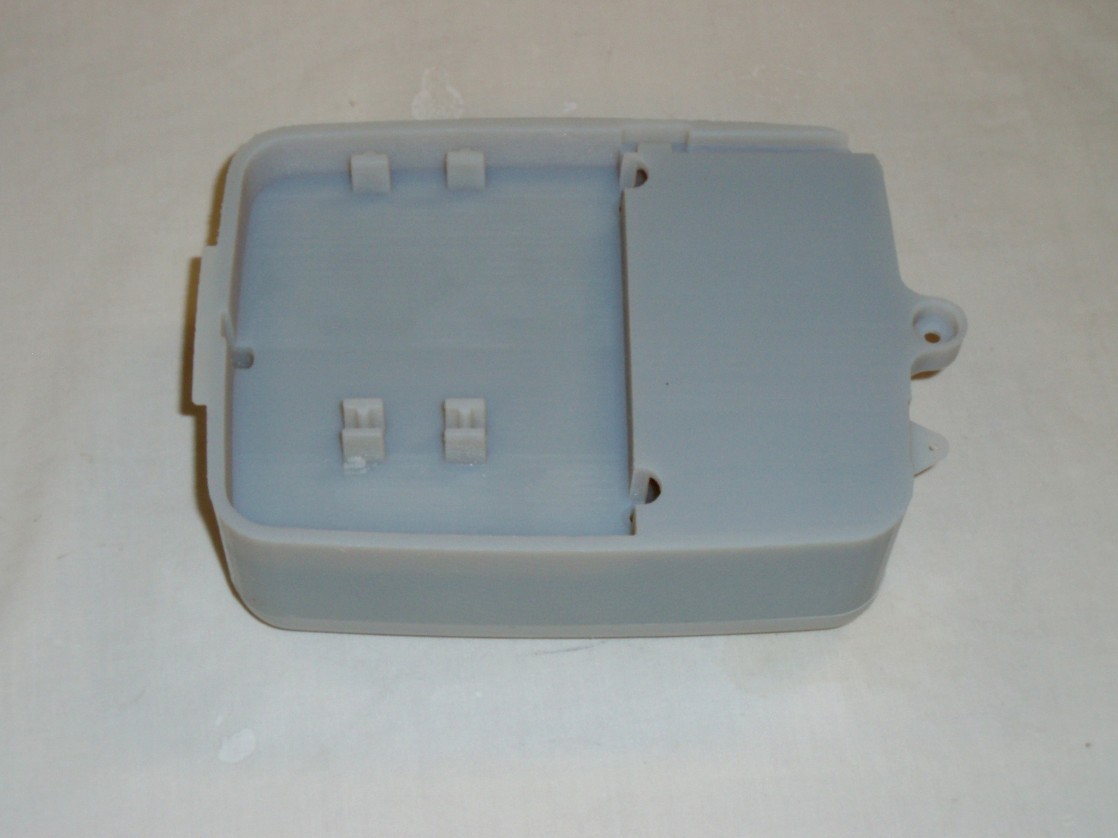

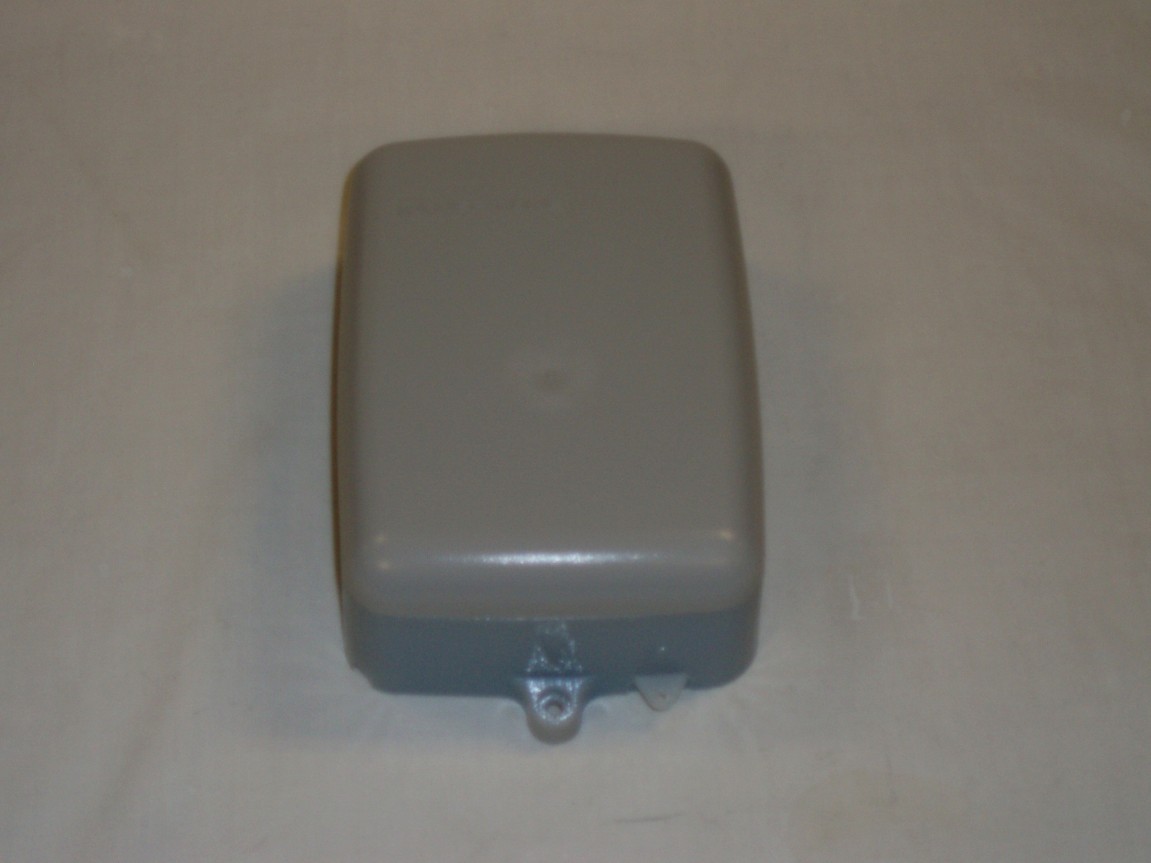

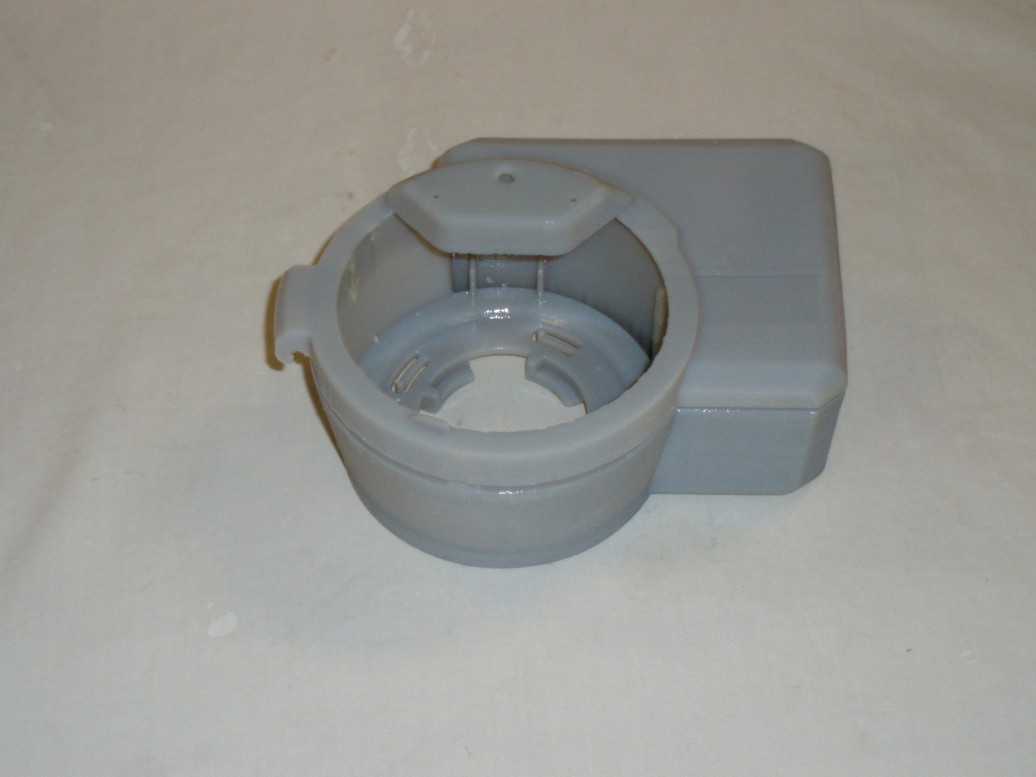

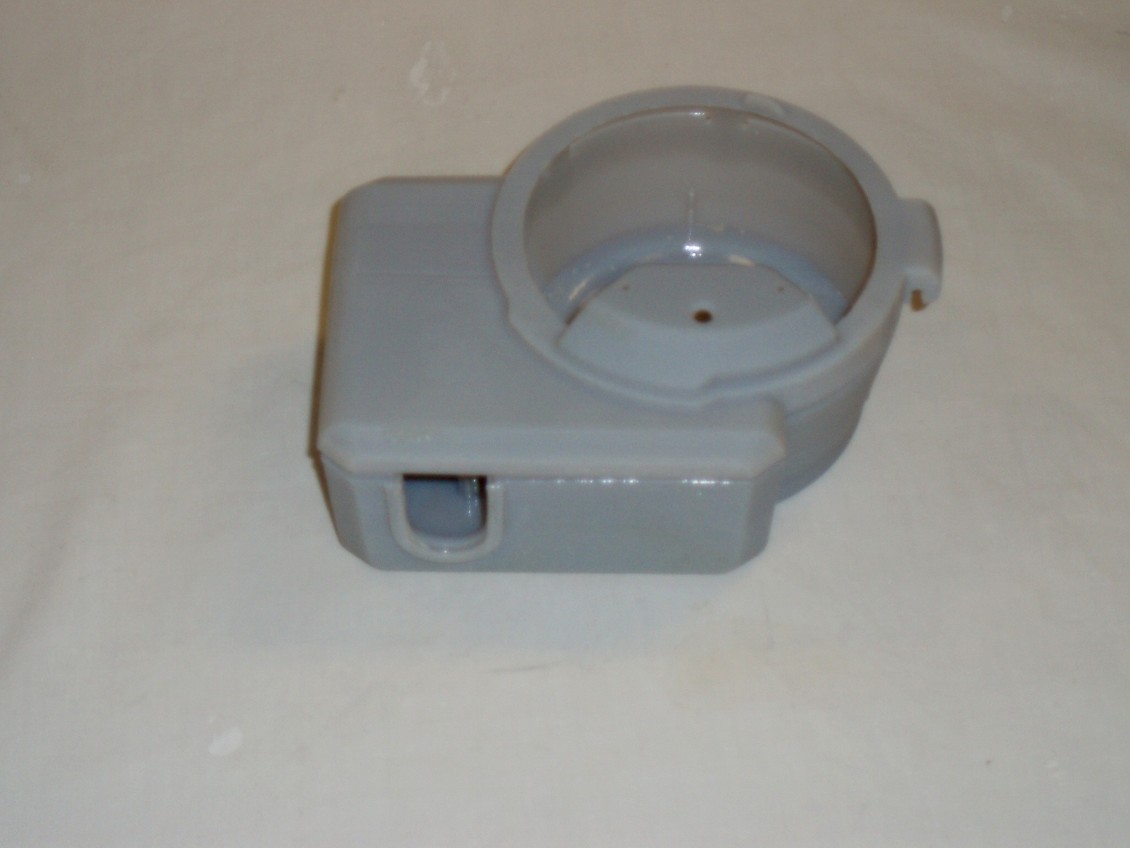

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Harry Sarkas(Senior Engineer -Standards & Regulatory Compliance)

[email protected]4702070783Fax: 3342837293

Test Firm

Timco Engineering, Inc.Bruno Clavier

[email protected]352-472-5500Fax: 352 472 2030

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	90	450 MHz - 470 MHz	1.2 W	11K2F1D	0.4900000000 ppm

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Single Modular Approval. Power listed is conducted. Maximum conducted power output according to 90.205(s) is 1.44 W. Approval of this transmitting device as shown in the filing is allowed for the Grantee�s integration into their host products. Compliance of this device in any final configuration is the responsibility of the Grantee. This module is to be used only for mobile and fixed applications. The antenna gain and any coax loss must not exceed 2.15 dBi. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
