P2VWIRELESSKITCell Phone FM Converter

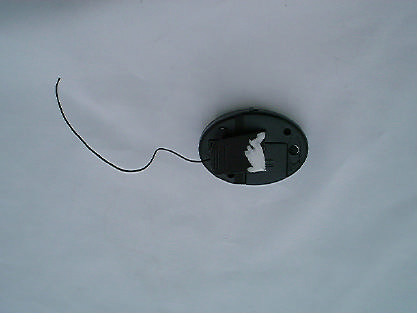

FCC ID: P2VWIRELESSKIT PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: P2VWIRELESSKIT PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: P2VWIRELESSKIT Circuit Description The 17.734476MHz (x 5 to 88.67MHz) crystal oscillator drives the base of Q3 the final/buffer amplifier. The modulation provided by Mic. The output of Q3 has the matching network consisting of L1 and C13 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 12cm long of wire. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt (“CR2032” button cell x 1) primary battery

Date: 2001-11-29 TEST REPORT Page 1 of 19 No.: HM106105 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM106105 Equipment Under Test [EUT]:Wireless Converter Model Number:EK-2000 Applicant:China Taly Aviation Technologies Corp. FCC ID :P2VWIRELESSKIT Date: 2001-11-29 TEST REPORT Page 2 of 19 No.: HM106105 CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 Conclusion Page 4 of 19 1.0General Details 1.1Test Laboratory Page 5 of 19 1.2Applicant Details Page 5 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 19 Description of EUT operation 1.4Date of Order Page 6 of 19 1.5Submitted Sample Page 6 of 19 1.6Test Duration Page 6 of 19 1.7Country of Origin Page 6 of 19 1.8 Additional Information of EUT Page 7 of 19 2.0Technical Details 2.1Investigations Requested Page 8 of 19 2.2Test Standards and Results Summary Page 8 of 19 3.0Test Results 3.1Emission Page 9-13 of 19 3.2Bandwidth Measurement Page 14-15 of 19 Date: 2001-11-29 TEST REPORT Page 3 of 19 No.: HM106105 Appendix A List of Measurement Equipment Page 16 of 19 Appendix B Photographs Page 17-18 of 19 Appendix C Modification Method Page 19 of 19 Date: 2001-11-29 TEST REPORT Page 4 of 19 No.: HM106105 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2001-11-29 TEST REPORT Page 5 of 19 No.: HM106105 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant CHINA TALY AVIATION TECHNOLOGIES CORP. P.O. Box: 16018, No. 45 Yongfu Road, Guangzhou, China 510500 Telephone:86 20 87636241 Fax:86 20 87636248 HKSTC Code Number for ApplicantCHT027 Manufacturer CHINA TALY AVIATION TECHNOLOGIES CORP. P.O. Box: 16018, No. 45 Yongfu Road, Guangzhou, China 510500 Telephone:86 20 87636241 Fax:86 20 87636248 Date: 2001-11-29 TEST REPORT Page 6 of 19 No.: HM106105 1.3Equipment Under Test [EUT] Description of Sample Product:Wireless Converter Manufacturer:China Taly Aviation Technologies Corp. Brand Name:EK Model Number:EK-2000 Input Voltage:3Vd.c (“CR2032” button cell x 1) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is an China Taly Aviation Technologies Corp., 88.67MHz Wireless Converter. The EUT continues to transmit while switch on. It is voice transmission, Modulation by Mic. and tape is frequency modulation. 1.4Date of Order 2001-10-16 1.5Submitted Sample(s): 1 Sample per model 1.6Test Duration 2001-11-09 1.7Country of Origin China Date: 2001-11-29 TEST REPORT Page 7 of 19 No.: HM106105 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Rating Label Block diagram FCC ID Label Date: 2001-11-29 TEST REPORT Page 8 of 19 No.: HM106105 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:2000 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239ANSI C63.4:2000N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:2000Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2000Class B Note: N/A - Not Applicable Date: 2001-11-29 TEST REPORT Page 9 of 19 No.: HM106105 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.239 & 15.209 Test Method:ANSI C63.4:2000 Test Date:2001-11-09 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: Date: 2001-11-29 TEST REPORT Page 10 of 19 No.: HM106105 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.239]: Frequency Range of Fundamental Peak LimitsAverage Limits [MHz] [μV/m][μV/m] 88-1082,500250 Results: Field Strength of Fundamental Emissions Peak Value FrequencyLevel @3m Correction Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHz dBμV dB/m dBμV/mμV/mμV/m 88.6732.412.845.2181.972,500.0Horizontal Field Strength of Fundamental Emissions Average Value * FrequencyLevel @3m Correction Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHz dBμV dB/m dBμV/mμV/mμV/m 88.6732.312.845.1179.89250.0Vertical Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty=30MHz to 300MHz±3.7dB 300MHz to 1GHz+3.0dB / -2.7dB According to FCC 47CFR15.35, the limit on the radio frequency emissions as measured using instrumentation with a peak detector function, corresponding to 20dB above the maximum permitted average limit for the frequency being investigated unless a different peak emission limit is otherwise specified in the rules. For effective averaging, the bandwidth of the video filter must be smaller than the resolution bandwidth. The hi…

Text truncated - open the document above for the full version.

Marianne Bosley To:[email protected] Cc:Chris Harvey Subject:MET#11627 FCC ID:P2VWIRELESSKIT Hi Alice, Below is the question that surfaced due to the technical review: RT questions: 1. Section 3.2 of the test report states that a "typical modulating signal used as input". Was the maximum volume available on the output of the cellphone used as input? 2. The statement regarding the 200 kHz bandwidth does not describe how the modulation is limited, such that the bandwidth of the output signal never exceeds 200 kHz, regardless of the amplitude (volume) of the input signal. How is this done? If the output from a cellphone does not have an adjustable volume control, and the EUT may only be used in this manner, then this will be sufficient. Please state if this is the case. It shouldn't be long after we get this response. Have a good day. Regards, Marianne Marianne T. Bosley EMC Admi nistrator 410-354-3300, ext. 412

Marianne Bosley From:Alice Wong [[email protected]] Sent:Tuesday, December 11, 2001 4:01 AM To:[email protected] Cc:EED - Choy, Kitty Subject:Fw: MET#11627 FCC ID:P2VWIRELESSKIT ----- Original Message ----- From: "Alice Wong" <[email protected]> To: "Marianne Bosley" <[email protected]> Cc: "EED - Choy, Kitty" <[email protected]> Sent: Tuesday, December 11, 2001 4:45 PM Subject: MET#11627 FCC ID:P2VWIRELESSKIT > Hi Marianne, > > 1) During the test, used small speaker clip onto the EUT with 1KHz tone, > beside, adjustment volume in order to get worst result. > 2) about the 200KHz bandwith, please see attached file for 200KHz. > Thanks. > > Best Regards > Alice > > ----- Original Message ----- > From: "Marianne Bosley" <[email protected]> > To: <[email protected]> > Cc: "Chris Harvey" <[email protected]> > Sent: Friday, December 07, 2001 12:20 AM > Subject: MET#11627 FCC ID:P2VWIRELESSKIT > > > > Hi Alice, > > > > Below is the question that surfaced due to the technical review: > > > > RT questions: > > > > 1. Section 3.2 of the test report states that a "typical modulating > signal > > used as input". Was the maximum volume available on the output of the > > cellp ho ne used as i np ut? > > > > 2. The statement regarding the 200 kHz bandwidth does not describe how > the > > modulation is limited, such that the bandwidth of the output signal ne ver > > exceeds 200 kHz, regardless of the amplitude (volume) of the input signal. > > How is this done? If the output from a cellphone does not have an > > adjustable volume control, and the EUT may only be used in this manner, > then > > this will be sufficient. Please state if this is the case. > > > > It shouldn't be long after we get this response. Have a good day. > > > > Regards, > > > > Marianne > > > > > > Marianne T. Bosley > > EMC Administrator > > 410-354-3300, ext. 412 > > > 200kHz.PDF

FCC ID: P2VWIRELESSKIT TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
