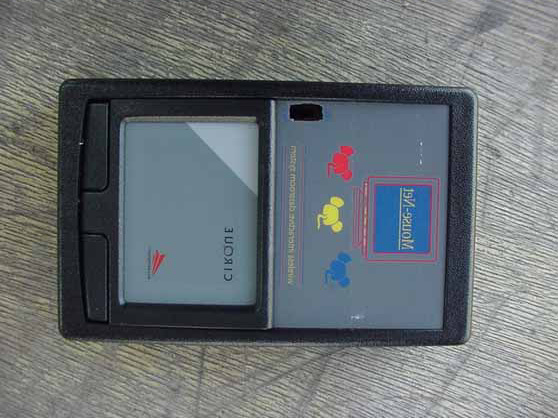

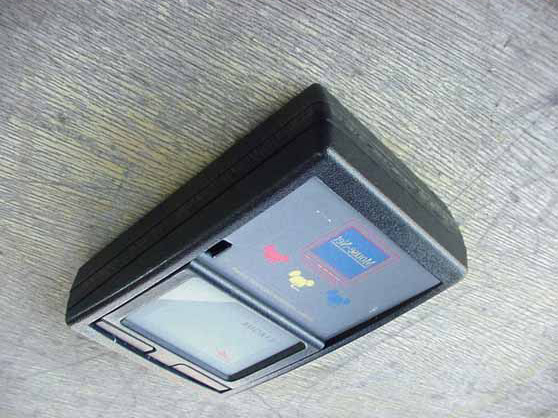

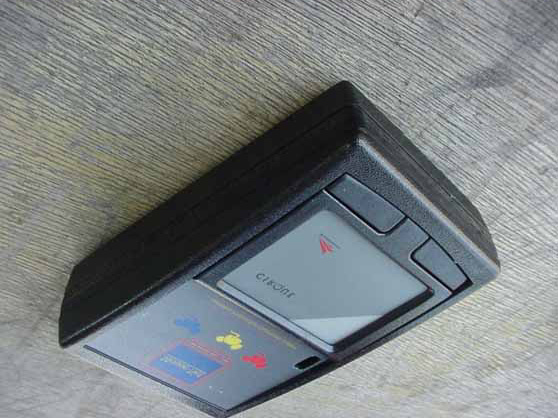

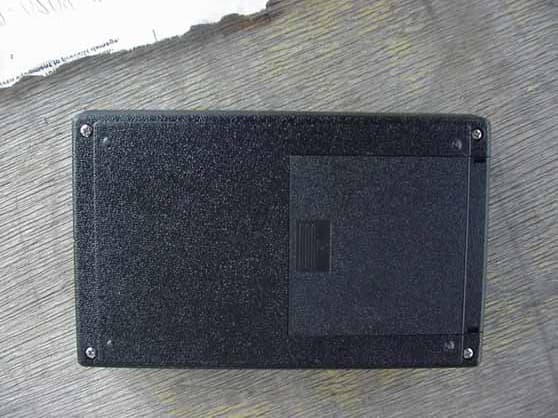

P3NMOUSENET101TPMouse-Net Companion 101 Touchpad System

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 1 February 11, 2002 Compatible Electronics TCB 114 Olinda Drive Brea, CA 92823 Subject: Request for Certification of the Nu-Devices, Inc. Mouse-Net Companion 101 Touchpad System - Tx Model: Mouse-Net 101 Touchpad FCC ID: P3NMOUSENET101TP Gentlemen: We have enclosed a package for the certification of the Nu-Devices, Inc. Mouse-Net Companion 101 Touchpad System – Tx Model: Mouse-Net 101 Touchpad. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

1 Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Wednesday, February 27, 2002 12:33 PM To: [email protected] Subject: FCC ID: P3NMOUSENET101TP Scott McCutchan.vcf Kyle, In order for processing of this application (FCC ID: P3NMOUSENET101TP) to continue, the following issue(s) will have to be addressed: 1) According to the data sheets in the test report, the level of the fundamental emission was averaged. The FCC limits for this frequency range are specified as Quasi-Peak limits. Please submit new data showing the Quasi-Peak levels of the fundamental emissions. 2) Also according to the data sheets, the spurious emissions test was only performed in the frequency range of 10 kHz to 1 GHz. Please submit data showing the levels of the spurious emissions (if any) in the frequency range of 1 GHz to 9.213 GHz. Do not reply to this message. Please upload your response and any attachments onto our web server. Your correspondence number will be the P3NMOUSENET101TP-1. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to [email protected]. If you have any questions, feel free to contact me. Best regards, Scott McCutchan Lab Manager Compatible Electronics, Brea Division (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com If you have any questions, feel free to contact me. Best regards, Scott McCutchan Lab Manager Compatible Electronics, Brea Division (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com

Correspondence by Project Project Number: 1537385383 Correspondence Number Memo P3NMOUSENET101TP-1bla bla bla Correspondence Number Memo P3NMOUSENET101TP 1. The data sheet for the fundamental emissions should of "Quasi-Peak" instead of "Average" A revised data sheet will be uploaded for the fundamental emissions to show this change. 2. The spurious emissions were checked to 9.2 GHz. A data sheet has been uploaded to show that the spurious (non- harmonic emissions) were also checked to 9.2 GHz

FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART C TEST REPORT for MOUSE-NET COMPANION 101 TOUCHPAD SYSTEM - Tx Model: MOUSE-NET 101 TOUCHPAD Prepared for NU-DEVICES, INC. 6200 COMMERCE LOOP POST FALLS, IDAHO 83854 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 6, 2002 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 11 15 2 48 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Band Edge Plots of the Low and High Channels 15 8. CONCLUSIONS 16 FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets E Laboratory Recognitions LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Mouse-Net Companion 101 Touchpad System - Tx Model: Mouse-Net 101 Touchpad S/N: 003 Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Nu-Devices, Inc. 6200 Commerce Loop Post Falls, Idaho 83854 Test Date: February 6, 2002 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205 and 15.249 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz The EUT operates on four 1.5 volt batteries only and cannot be plugged into the AC public mains. Therefore, this test was not performed. 2 Radiated RF Emissions, 10 kHz - 9300 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249 FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Mouse-Net Companion 101 Touchpad System - Tx Model: Mouse- Net 101 Touchpad. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249. FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Nu-Devices, Inc. Al Holmes Engineer Compatible Electronics Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on February 5, 2002. 2.5 Disposition of the Test Sample The test sample has not been returned to Nu-Devices, Inc. as of February 7, 2002. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: P3NMOUSENET101TP Report No.: B20206D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-…

Text truncated - open the document above for the full version.

RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.249) COMPANY DATE 2/6/02 EUT DUTY CYCLE N/A MODEL PEAK TO AVG N/A S/N TEST DIST. 3 METERS TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 903.3000 65.9 65.8 QP H 1.0 0 X LOW 22.8 5.1 0.0 93.7 -0.3 94.0 903.3000 64.9 64.8 QP H 1.0 0 Y LOW 22.8 5.1 0.0 92.7 -1.3 94.0 903.3000 54.4 54.3 QP H 1.0 90 Z LOW 22.8 5.1 0.0 82.2 -11.8 94.0 903.3000 56.8 56.7 QP V 2.0 270 X LOW 22.8 5.1 0.0 84.6 -9.4 94.0 903.3000 52.6 52.5 QP V 1.0 90 Y LOW 22.8 5.1 0.0 80.4 -13.6 94.0 903.3000 65.5 65.4 QP V 1.0 0 Z LOW 22.8 5.1 0.0 93.3 -0.7 94.0 912.3000 65.0 64.9 QP H 1.0 0 X HIGH 23.2 5.2 0.0 93.3 -0.7 94.0 912.3000 64.4 64.3 QP H 1.0 0 Y HIGH 23.2 5.2 0.0 92.7 -1.3 94.0 912.3000 54.4 54.3 QP H 2.0 0 Z HIGH 23.2 5.2 0.0 82.7 -11.3 94.0 912.3000 56.4 56.3 QP V 1.0 0 X HIGH 23.2 5.2 0.0 84.7 -9.3 94.0 912.3000 57.2 57.1 QP V 2.0 0 Y HIGH 23.2 5.2 0.0 85.5 -8.5 94.0 912.3000 64.3 64.2 QP V 2.0 0 Z HIGH 23.2 5.2 0.0 92.6 -1.4 94.0 921.3000 63.7 63.6 QP H 1.0 0 X HIGH 23.5 5.4 0.0 92.5 -1.5 94.0 921.3000 63.5 63.4 QP H 1.0 0 Y HIGH 23.5 5.4 0.0 92.3 -1.7 94.0 921.3000 52.2 52.1 QP H 1.0 45 Z HIGH 23.5 5.4 0.0 81.0 -13.0 94.0 921.3000 51.9 51.8 QP V 1.0 225 X HIGH 23.5 5.4 0.0 80.7 -13.3 94.0 921.3000 52.2 52.1 QP V 1.0 0 Y HIGH 23.5 5.4 0.0 81.0 -13.0 94.0 921.3000 63.3 63.2 QP V 1.0 0 Z HIGH 23.5 5.4 0.0 92.1 -1.9 94.0 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 1 Average (A) or Quasi- Peak (QP) 3NU-DEVICES, INC.MOUSE-NET COMPANION 101 TOUCHPAD SYSTEM - TXMOUSE-NET COMPANION 101 KYLE FUJIMOTO Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00
