P3TDH7S-8B

Fiplex Communications Inc

BDA All In One Digital Signal Booster

Click to zoom

Application Details

Equipment Class: B9B - Part 90 Class B Industrial Booster (non-SMR)
Date of Grant: Mar 26, 2023
Application Purpose: Original Equipment
Date of Application: Mar 26, 2023
Equipment Note: BDA All In One Digital Signal Booster
Frequency Range: 806.00000000 - 824.00000000
Company: Fiplex Communications Inc
Country: United States

Documents & Files

Select a file to view

Attestation Statements

Cover Letter(s)

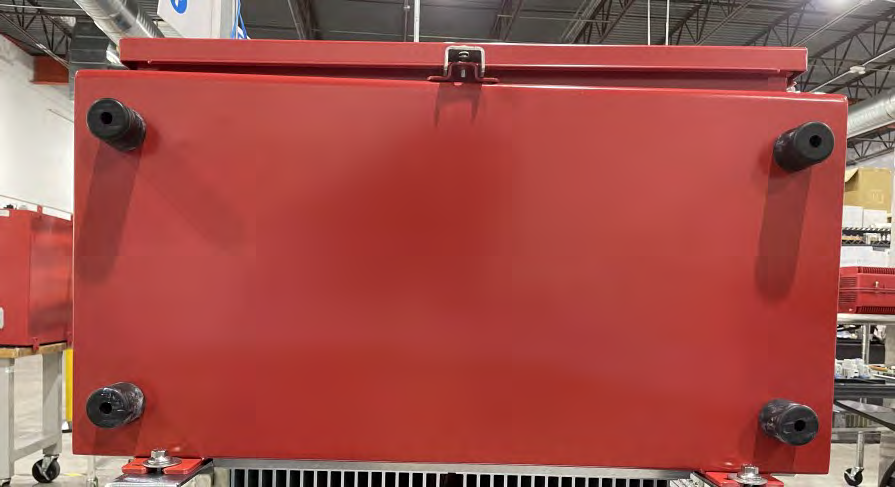

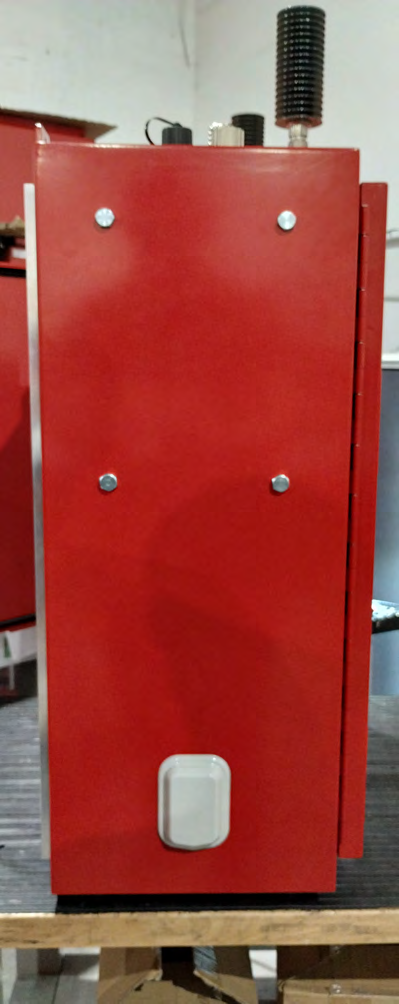

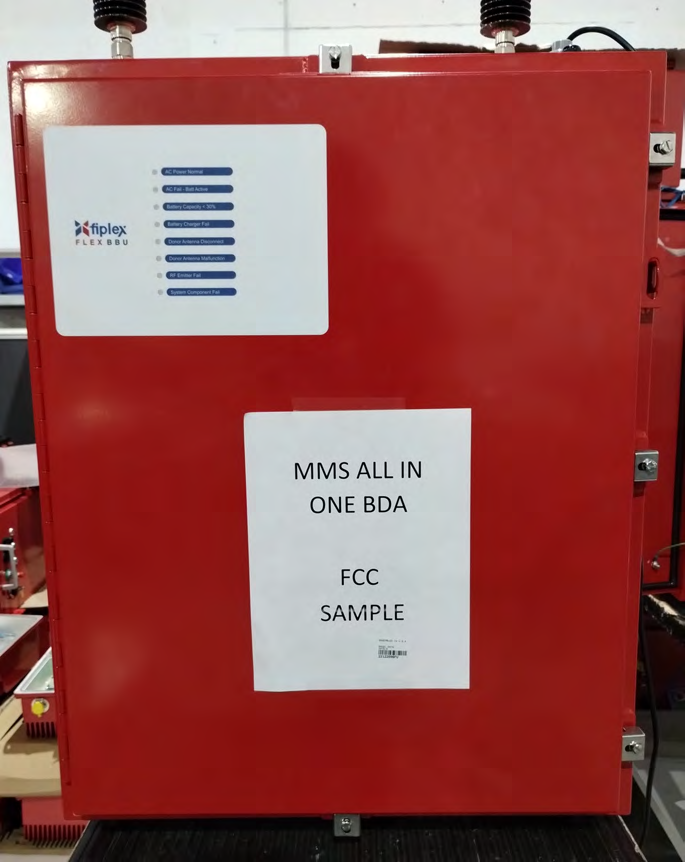

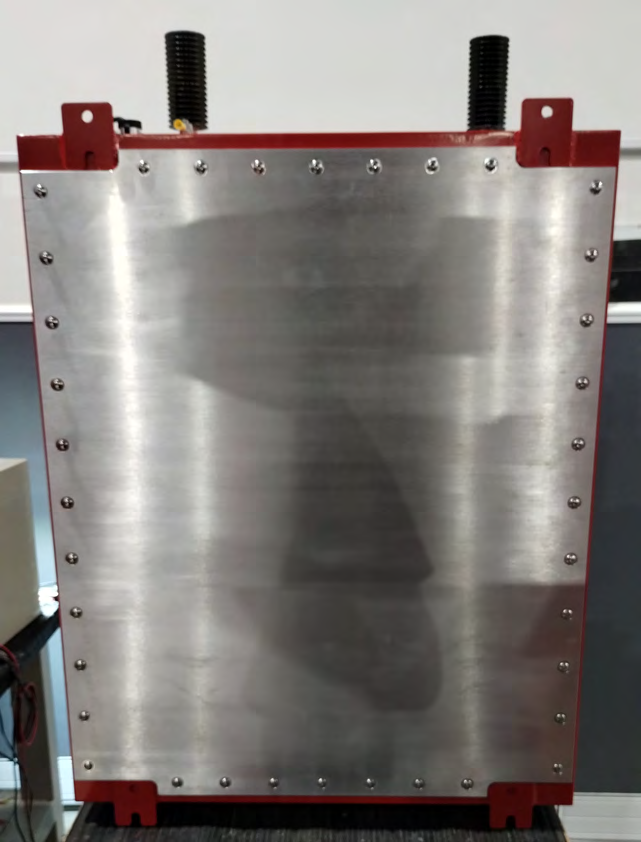

External Photos

ID Label/Location Info

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	9	806 MHz - 824 MHz	250.00 mW	D7W	Amp

Confidentiality

Long Term

Grant Notes

Class B signal booster. Power output listed is conducted power at the antenna terminals. Device�s intended use is for industrial/commercial use and will not be sold to the general public. Professional installation is required. The antennas used with this device must be fixed-mounted on permanent structures, provide a minimum 22 cm separation distance from all persons as described in this filling, have maximum permissive gain of external antenna 0 dBi, and must not transmit simultaneously with any other antennas or transmitters. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC bureau(s), including antenna co-location requirement of 1.1307(b)(3).
