SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 March 16, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD & Industry Canada 3701 Carling Ave. (Building 94) P.O. Box 11490, Station H Ottawa, Ontario K2H 8S2 Confidentiality Request regarding application for certification of FCC ID: P4Q-N376 , IC: 2420C-N376 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block diagram - Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Ruey-Yuan Chen/ Assistant Manager Contact information / address Building B, No. 209, Sec. 1, Nan Gang Rd., Nan Gan , Taipei, Taiwan, R.O.C.

FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 2 External Photographs of EUT FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A2-2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546

2011-03-30 Amigo Huang R00 V 242N37600001 TF-LABEL;RATING,RM 5175,Traveler         Model No.: Magellan RoadMate ® 5175 Input 5V 2A Caution: Only use the specified power supply (see user's manual) XX K Made in China 28x8 mm (white) ●Magellan P/N ●WWY(work week and year) ●Bar Code ●Serial No. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. 48.6 mm 15 mm 2.8R 0.3R x3 FCC ID: P4Q-N376 IC: 2420C-N376

Label Location

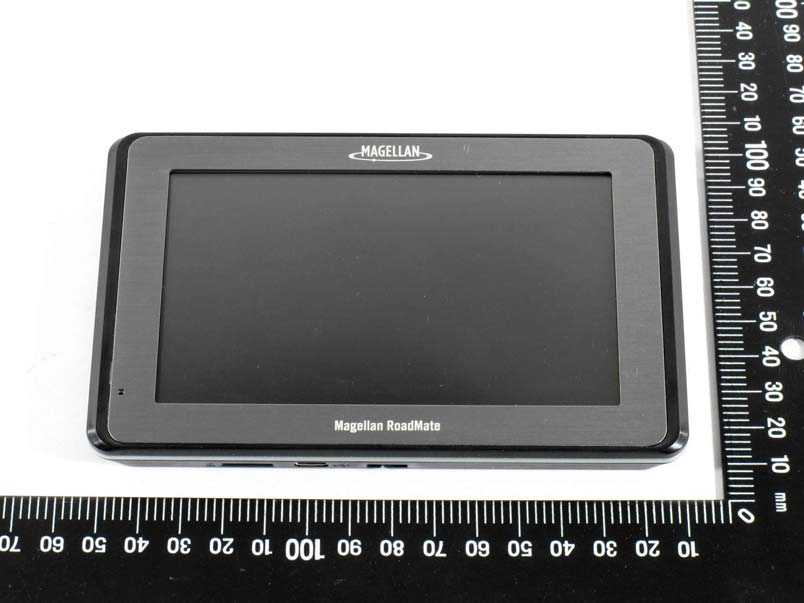

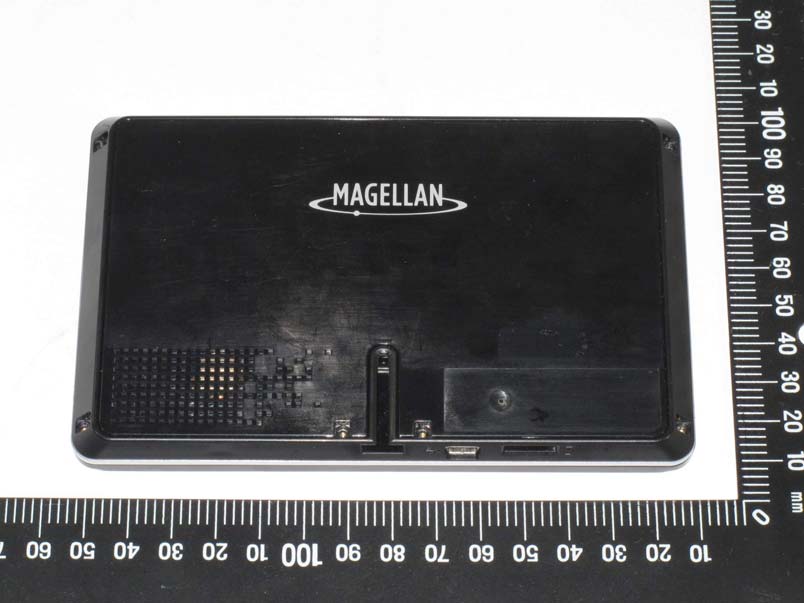

FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 0 Attachment 3 Internal Photographs of EUT FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 3 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 4 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 5 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 6 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 7 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 8 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 9 FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 10 Adaptor FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 11 Car Charger FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. Page : A3- TEL. : 886-2-25984542 FAX. : 886-2-25984546 12

FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A4 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 1 RF Exposure Evaluation FCC Test Report Report No.: RF-U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A4 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 2 RF Exposure Evaluation According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions f this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusion list, no SAR required if power is lower than the flowing threshold: Frequency Range Low Frequency (MHz) Low Frequency (MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2412 2462 2437 24.62 Maximum measured transmitter power: Conducted Average Power (dBm) Max Antenna Gain (dBi) EIRP (dBm/mW) 14.03 -1.5 12.53/ 17.91 The averaging power was measured using average channel power 14.03dBm. Threshold at which no SAR required is 24.62 mw Conclusion: No SAR is required.

FCC Test Report Report No.:RF- U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : 1/81 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 FCC Test Report for Portable Navigator Trade Name : MAGELLAN Model Number : Magellan RoadMate 5175, Magellan RoadMate 5175T, Magellan RoadMate 5175T-LM FCC ID : P4Q-N376 Report Number : RF-U070-1103-015 Date of Receipt : March 7, 2011 Date of Report : April 1, 2011 Prepared for Mitac International Corporation Building B, No. 209, Sec. 1, Nan Gang Rd., Nan Gan , Taipei, Taiwan, R.O.C. Prepared by Central Research Technology Co. EMC Test Laboratory No.11, Lane41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. NVLAP LAB CODE 200575-0 This report shall not be reproduced, except in full, without the written approval of Central Research Technology Co.. It may be duplicated completely in its entirely for legal use with the permission of the applicant. It should not be used to claim product endorsement by NVLAP, NIST or any U.S. government agency. The test result in the report applies only to the sample tested. FCC Test Report Report No.:RF- U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : 2/81 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Verification of Compliance Equipment under Test : Portable Navigator Trade Name : Magellan Model No. : Magellan RoadMate 5175 Magellan RoadMate 5175T Magellan RoadMate 5175T-LM FCC ID : P4Q-N376 Manufacturer : Mitac International Corporation Applicant : Mitac International Corporation Address : Building B, No. 209, Sec. 1, Nan Gang Rd., Nan Gan , Taipei, Taiwan, R.O.C. Applicable Standards : 47 CFR part 15, Subpart C Date of Testing : March 8~ 17, 2011 Deviation : N/A Condition of Test Sample : Engineering Sample We, Central Research Technology Co., hereby certify that one sample of the designated product was tested in our facility during the period mentioned above. The test records, data evaluation and Equipment Under Test (EUT) configurations shown in the present report are true and accurate representation of the measurements of the sample’s RF characteristics under the conditions herein specified. The test results show that the EUT as described in the present report is in compliance with the requirements set forth in the standards mentioned above and apply to the tested sample identified in the present report only. The test report shall not be reproduced, except in its entirety, without the written approval of Central Research Technology Co. FCC Test Report Report No.:RF- U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : 3/81 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Contents 1 General Description ..............................................................................................5 1.1 General Description of EUT..................................................................................5 1.2 Test Methodology..................................................................................................6 1.3 Applied standards.................................................................................................6 1.4 The Support Units.................................................................................................9 1.5 Layout of Setup.....................................................................................................9 1.6 Test Capability.....................................................................................................10 1.7 Measurement Uncertainty..................................................................................12 2 Maximum Peak Output Power ............................................................................13 2.1 Applied standard.................................................................................................13 2.2 Test Instruments.................................................................................................13 2.3 Measurement Procedure....................................................................................13 2.4 Test configuration...............................................................................................14 2.5 Test Data..............................................................................................................15 3 Band Edge ...........................................................................................................19 3.1 Applied standard.................................................................................................19 3.2 Test Instruments.................................................................................................19 3.3 Measurement Procedure....................................................................................19 3.4 Test configuration...............................................................................................19 3.5 Test Data..............................................................................................................20 4 6dB Bandwidth ....................................................................................................23 4.1 Applied standard.................................................................................................23 4.2 Test Instruments.................................................................................................23 4.3 Measurement Procedure....................................................................................24 4.4 Test configuration...............................................................................................24 4.5 Test Data..............................................................................................................25 5 Power Spectral Density ..................................................................…

Text truncated - open the document above for the full version.

FCC Test Report Report No.: RF- U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Attachment 1 Photographs of the Test Configurations FCC Test Report Report No.: RF- U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-1 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Radiated Emission Measurement FCC Test Report Report No.: RF- U070-1103-015 CENTRAL RESEARCH TECHNOLOGY CO. Page : A1-2 No. 11, Lane 41, Fushuen St., Jungshan Chiu, Taipei, Taiwan, 104, R.O.C. TEL. : 886-2-25984542 FAX. : 886-2-25984546 Conducted Emission Measurement
