P4QEZFETCH1Wireless HD Digital Media Player

Congratulations! With EZfetch ™ , you’ll be able to enjoy all your favorite digital pictures, music and movies like never before as they stream over your home network, right to your home entertainment system. Welcome to EZfetch EZfetch lets you access all your digital pictures, music and movies and play them right where you want them—on your home entertainment system. EZfetch can fetch pictures, music and movies that are stored on your PC, a Wi-Fi enabled Nokia Nseries device and any USB mass storage device. Then EZfetch plays your selection on your TV’s bigger screen and your audio system’s better sound. And best of all, EZfetch can play more picture, music and movie formats than any other digital media player in the world. So get in front of your favorite TV, get family and friends, and get comfortable. Select the pictures you want to see, the music you want to hear or the movie you want to watch. Then relax and be entertained as EZfetch streams your selection to your home entertainment system. This is the way your media was meant to be experienced, and now you can have it all, right where you want it. Let your media come out and play, with EZfetch. How It Works EZfetch is the bridge that connects your digital media les to your home entertain- ment system. An easy software download to your PC builds that bridge and gets your digital devices “talking” to EZ Fetch over your home’s network. Pictures, music and movies stream over your digital home network wirelessly, or with an Ethernet cable. EZfetch receives the media le and transcodes it, so you can view it on your TV and hear it through your stereo speakers. User Guide ™ ™ 23 Table of Contents Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Install SimpleCenter Software onto your PC . . . . . . . . . . . . . . . . 4 Add your Media to SimpleCenter . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Understanding Your Home Network . . . . . . . . . . . . . . . . . . . . . 6-8 Connect EZfetch to your Home Entertainment System . . . 9-11 Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13 Initial Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Configure EZfetch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15 Play your Pictures, Music Movies and Podcasts on your Home Entertainment System . . . . . . . . . . . . . . . . . .16-19 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-21 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Supported Media Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 For more technical support information, the latest user documentation and EZfetch software updates, go to www .ez4media .com System Requirements PC with: • Microsoft® Windows® XP or Vista • 1 GHz processor (Intel® Pentium® 4 or equivalent is most recommended) • 50 MB of available hard disk space • 512 MB memory (640 MB or higher is most recommended) • 8 MB video memory (most recommended) You must have one of these Home Network Options: • Wireless Router or Wired Router with Wireless Access Point • Wired Router • Ethernet Switch or Hub • Wi-Fi enabled PC or laptop Other Requirements: • TV or monitor with either Composite Video, S-Video or DVI-D/HDMI input • TV or AV system with analog audio or optical digital audio input Package Contents Please check the package contents . If any of the items listed below are not in the package, visit www .ez4media .com and go to SUPPORT . 1 EZfetch Wireless HD Digital Media Player and Antenna 2 Remote Control 3 Batteries for remote control 4 CD with SimpleCenter software 5 USB Flash Drive 6 Ethernet Cable (LAN RJ45) 7 Power supply cord with EU/USA/EK changeable plug 8 DVI-D to DVI-D cable 9 RCA Composite Video and Left and Right Analog Audio Cable 1 0 RCA/SCART adapter 11 DVI-D/HDMI adapter HOME SERVERSDEVICESSETTINGS MOVIEPHOTO 12 OK 3 4 56 7 89 0 MUSIC ZOOMPAGE MEDIA BAR VOL RESET@ABCDEF GHIJKLMNO PQRSTUVWXYZ PAGE 7 < 8 VIDEO OUT 123 5 7 6 8 9 1011 4 ™ ! 45 Add your Media to SimpleCenter When you use SimpleCenter for the first time, it will ask you to configure Watch Folders that contain media . As a default, SimpleCenter will set standard media directories for music, pictures, and videos: You can remove any of those directories or add additional ones . SimpleCenter will automatically scan these Watch Folders and add the content to its database . Please note that you can specify which media type (music, photo, and movie) should be used for each directory . This specification avoids having cover art in a music folder showing up as a picture in the database view . You can always get back to this menu by selecting the Music, Pictures or Movies tab located on the top menu bar and by selecting the Add Music, Add Pictures or Add Movies . You then can choose Configure Watch Folders. Plus, you can add individual media files or folders to the database . Choose your language and click OK . Choose your country and click Next. Accept the License Agreement by clicking Next . Additional dialog screens will follow until SimpleCenter setup is complete . Start SimpleCenter by clicking Finished or by clicking the SimpleCenter icon located on the desktop . The first time you run SimpleCenter, you will be asked to register in order to have a free 30-day trial of SimpleCenter Premium . Some of the great features of SimpleCenter Premium include: CD Ripping with automatic assignment of artist name, album name, track titles, cover art and more; Remote Access that lets you access your digital media from anywhere; and Smartsync that allows you to transfer digital media content from your PC to your network devices and your portable MP3 players (like PlayStation Po…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of WN4401C 1-ZZ 01 Block diagram C 15 Monday, March 07, 2005 TitleSize Document Number Rev Date: Sheet of WN4401C 1-ZZ 01 Block diagram C 15 Monday, March 07, 2005 TitleSize Document Number Rev Date: Sheet of WN4401C 1-ZZ 01 Block diagram C 15 Monday, March 07, 2005 Arcadyan Technology Corporation WN4401C 1-ZZ Mini PCI Type IIIB Card 802.11b/g Block Diagram AR2413A-00 CONNECTOR EEPROM 40MHZ XTAL BPF OPB COUPLER PDET HostInterfaceHigh Speed UART Transmitter FrequencySynthesizerBias/Control Receiver SWITCH LPFLPF ADCDAC MACConfiguration Control and Memory Baseband (PHY) ExternaInterface ANTAANTB XLNA BPF OPB : OUTPUT POWER BOOSTERBPF : BAND PASS FILTERPDET : POWER DETECTORLPF : LOW PASS FILTERANTA : ANTENNA AANTB : ANTENNA BXLNA : EXTERNAL LOW NOISE AMPLIFIER PCIMiniPCICardBus WN4401C-ZZ Power consumption table Operating mode TransmitReceive 3.3V supply 1.8V supply Total Unit 150180 320 300 450 500 mWmW

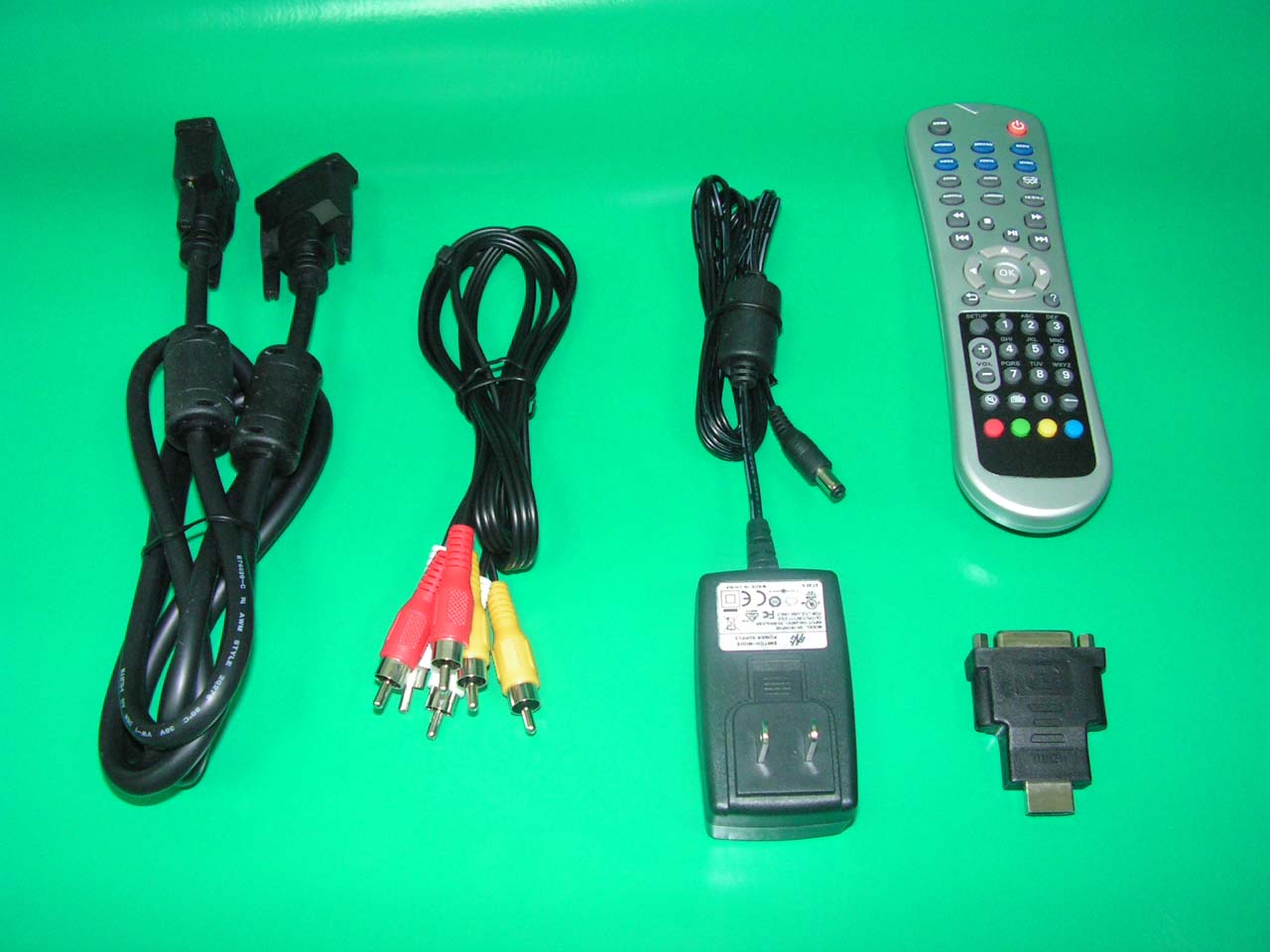

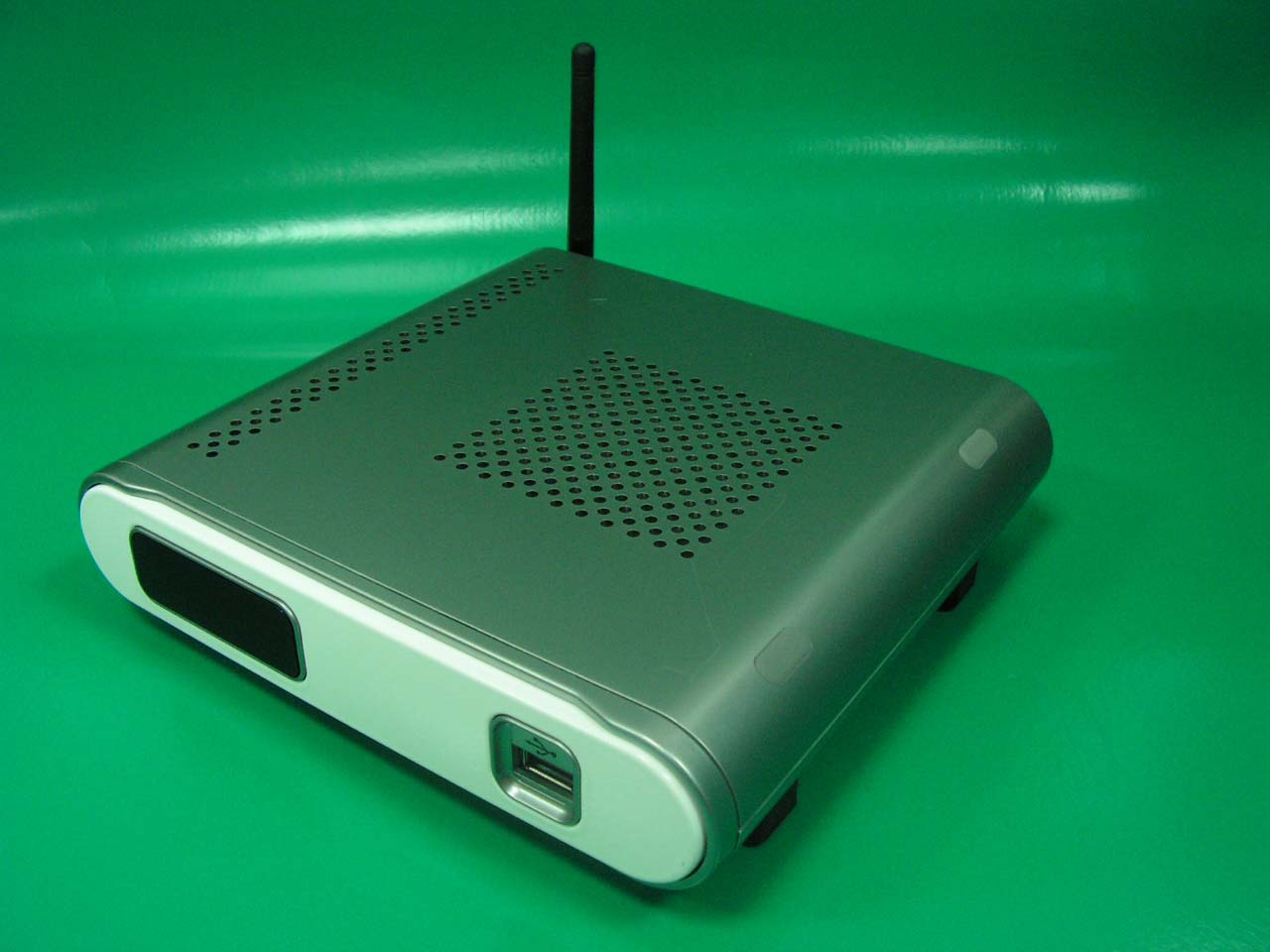

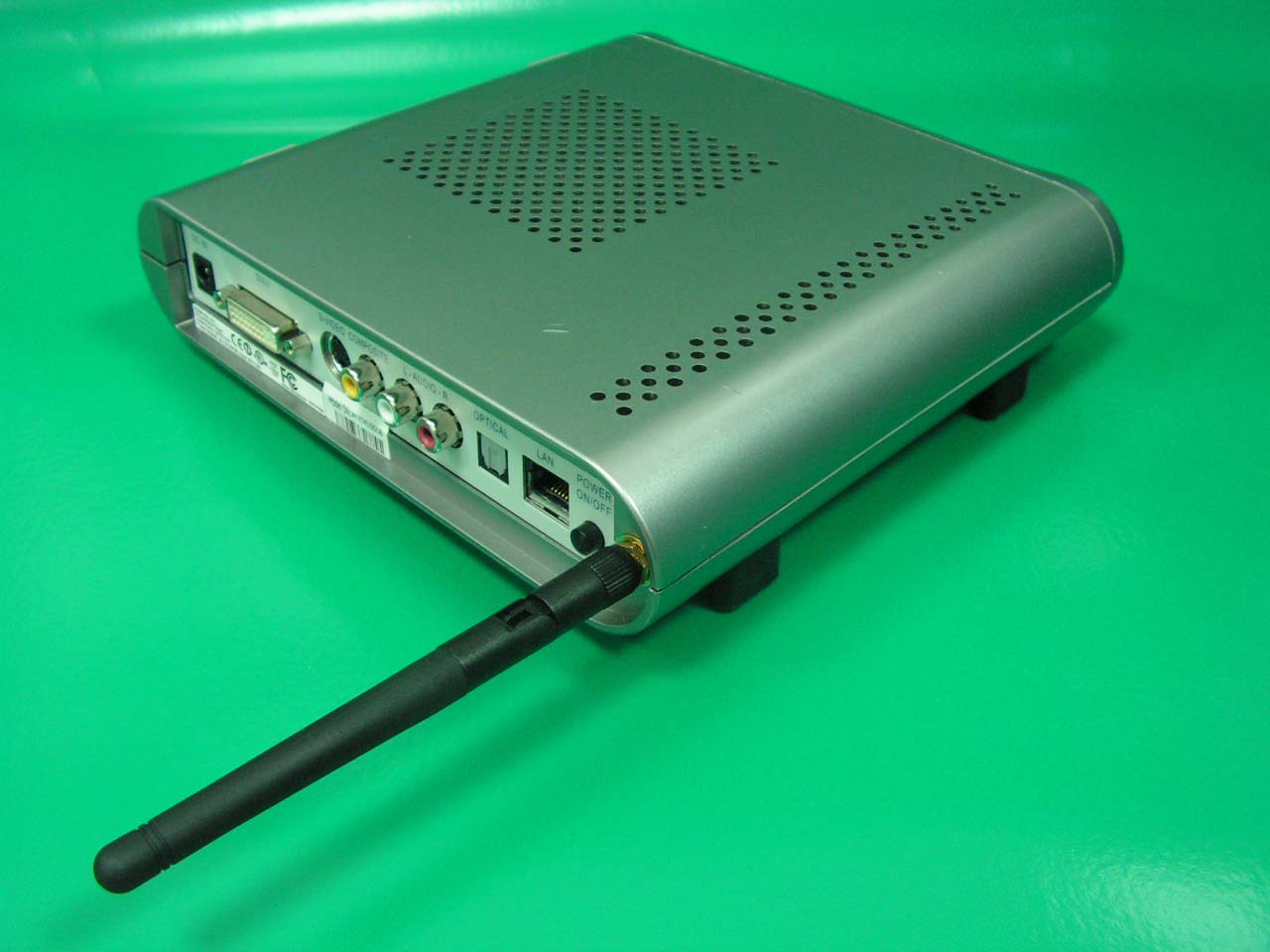

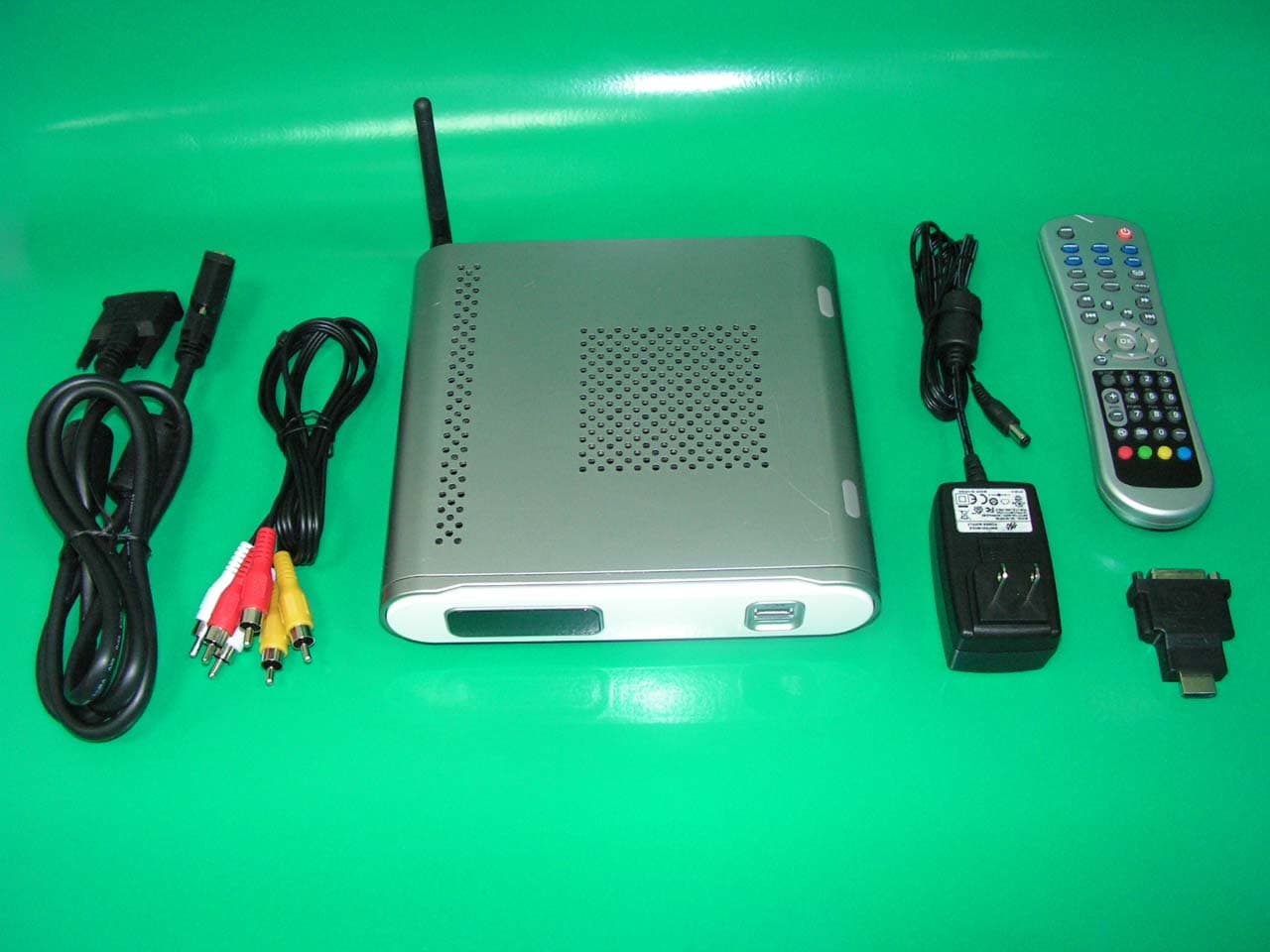

GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 68 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. 2. Accessories GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 69 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. 4.

GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 77 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 19. RF Module Inner 20. Label Here GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 80 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 25. Power Main Board 26. Label Here

EZ4Media, Inc. Digital Media Player Model Name: EZFETCH1 Power Adapter: 3A-181WP09; Input: 9V 2A Made in China LISTED I.T.E. E139765 4K79 FCC ID ： P4Q-EZFETCH1

GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 70 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 5. 6. Debug Solution-1 GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 71 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 7. 8. GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 72 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. 10. Debug Solution-1 GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 73 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 11. 12. GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 74 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 13. 14. Main Board+ GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 75 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 15. Main Board- 16. RF Module+ GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 76 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 17. RF Module- 18. RF Module and Cover GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 77 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 19. RF Module Inner 20. Label Here GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 78 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 21. AC adapter 22. GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 79 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 23. 24. Power Main Board GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 80 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 25. Power Main Board 26. Label Here

GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 5 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.2 OPERATIONAL DESCRIPTION The Transmitter of EUT is a Digital Media Player and powered by AC adapter. This equipment have one antenna and use the IEEE 802.11b & 802.11g protocol. The equipment can transform AV signal form PC and play on TV The other information please refer to users manual. 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION 2.4 SUMMARY OF TEST PROCEDURE AND TEST RESULTS Test Item Applied Standard Section Test Resut Conduction Emission 15.207, ANSI C63.4 Section 7 Pass (refer to section 3.7) Radistion Emission 15.209, ANSI C63.4 Section 8 Pass (refer to section 4.7) Peak Power Output 15.247(b), ANSI C63.4 Section 13 & Annex I Pass (refer to section 5.4) Band Edge 15.247(c) , ANSI C63.4 Section 13 & Annex I Pass (refer to section 6.6) Occupied Bandwidth 15.247(a) , ANSI C63.4 Section 13 & Annex I Pass (refer to section 7.4) Power Density 15.247(d) , ANSI C63.4 Section 13 & Annex I Pass (refer to section 8.4) EUT: Digital Media Player, M/N: EZFETCH1 The EUT tested with Notebook PC. Continue Transmit Mode 1 Mode 2 Test Mode 802.11b 802.11g

GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 1 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration MITAC INTERNATIONAL CORP. EUT: Digital Media Player Model Number: EZFETCH1 FCC ID: P4Q-EZFETCH1 Prepared for: MITAC INTERNATIONAL CORP. 6th Floor, No. 187, Tiding Blvd., Sec. 2, Nei-Hu, Taipei, Taiwan, R.O.C. Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0706060 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 2 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0706060 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 3 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test September 26, 2007 Temperature 25.5 deg/C EUT Digital Media Player Humidity 55 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 68.3912 0.0153 6 2437.00 66.8344 0.0149 11 2462.00 67.4528 0.0151 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0706060 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 4 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test September 26, 2007 Temperature 25.5 deg/C EUT Digital Media Player Humidity 55 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 109.3956 0.0244 6 2437.00 101.6249 0.0227 11 2462.00 97.4990 0.0218 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

55 44 33 22 11 D D C C B B A A VCC3_3 VCC3_3 VCC3_3 VCC3_3 BRD_RST2_L 6BRD_RST1_L 11,12USB_RST2_L 10FLASH_RST_L 9 CK_33M_USB 10 EM_27_CLK 6 CK_33M_MINI 12PCI_CLK0 3CK_33M_LAN_8100 11 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. 02-RESET & CLOCK LOGIC R0F Advanced DMA (D117) C 221 Friday, November 04, 2005 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. 02-RESET & CLOCK LOGIC R0F Advanced DMA (D117) C 221 Friday, November 04, 2005 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. 02-RESET & CLOCK LOGIC R0F Advanced DMA (D117) C 221 Friday, November 04, 2005 MINI PCI 9102AF 8100C EM8620LVT6212 RESET SW FALSH 10/21change R2,R3,R4,R5,R330 from 100 ohm to 22 ohm 10/21change 74CHT14 to 74HC14 for 3.3V powersupply R5 22 R5 22 U2B 74LCX04MTC U2B 74LCX04MTC 3 4 7 14 R3 22 R3 22 R6 1K R6 1K 12 L130ZL130Z 1 2 U1D 74HC04 U1D 74HC04 9 8 14 C29010P_NAC29010P_NA 1 2 U1C 74HC04 U1C 74HC04 5 6 14 C28910P_NAC28910P_NA 1 2 R810KR810K 1 2 U1B 74HC04 U1B 74HC04 3 4 14 U2D 74LCX04MTC U2D 74LCX04MTC 9 8 7 14 R7 1K R0603D_N R7 1K R0603D_N 1 2 R1 22 R1 22 U1A 74HC04 U1A 74HC04 1 2 14 C29110P_NAC29110P_NA 1 2 U2F 74LCX04MTC U2F 74LCX04MTC 13 12 7 14 R9220KR0603D_NR9220KR0603D_N 12 U2A 74LCX04MTC U2A 74LCX04MTC 1 2 7 14 R2 22 R2 22 C28810P_NAC28810P_NA 1 2 C2 .1U C2 .1U 1 2 SW1 SW PUSH4 SW1 SW PUSH4 1 2 3 4 R4 22 R4 22 U1F 74HC04 U1F 74HC04 13 12 14 C34.7U0805C34.7U0805 D1 1N4148WMLL34B D1 1N4148WMLL34B U1E 74HC04 U1E 74HC04 11 10 14 C41U060316VC41U060316V C1.1UC1.1U 12 U2C 74LCX04MTC U2C 74LCX04MTC 5 6 7 14 X133.33MX133.33M 1 23 4 U2E 74LCX04MTC U2E 74LCX04MTC 11 10 7 14 55 44 33 22 11 D D C C B B A A PCI_AD[31:0] PCI_AD0PCI_AD31PCI_AD30PCI_AD29PCI_AD28PCI_AD27PCI_AD26PCI_AD25PCI_AD24PCI_AD23PCI_AD22PCI_AD21PCI_AD20PCI_AD19PCI_AD18PCI_AD17PCI_AD16PCI_AD15PCI_AD14PCI_AD13PCI_AD12PCI_AD11PCI_AD10PCI_AD9PCI_AD8PCI_AD7PCI_AD6PCI_AD5PCI_AD4PCI_AD3PCI_AD2PCI_AD1PCI_IDSEL0_L LAN_PCI_IDSEL PCI_IDSEL1_LPCI_IDSEL2_L USB_PCI_IDSELMINI_PCI_IDSEL VCC3_3 VCC3_3 VCC3_3 PCI_AD[31:0] 10,11,12 PCI_CBE3_L 10,11,12PCI_CBE2_L 10,11,12PCI_CBE0_L 10,11,12PCI_CBE1_L 10,11,12PCI_FRAME_L 10,11,12PCI_DEVSEL_L 10,11,12PCI_IRDY_L 10,11,12 PCI_TRDY_L 10,11,12 PCI_STOP_L 10,11,12PCI_PAR 10,11,12 PCI_CLK0 2 LAN_PCI_GNT_L 11 LAN_PCI_REQ_L 11 USB_PCI_GNT_L 10MINI_PCI_GNT_L 12 USB_PCI_REQ_L 10 MINI_PCI_REQ_L 12 USB_PCI_IDSEL 10 MINI_PCI_IDSEL 12 LAN_PCI_IDSEL 11 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. 03-EM8623L_PCI I/F R0F Advanced DMA (D117) C 321 Tuesday, March 20, 2007 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. 03-EM8623L_PCI I/F R0F Advanced DMA (D117) C 321 Tuesday, March 20, 2007 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. 03-EM8623L_PCI I/F R0F Advanced DMA (D117) C 321 Tuesday, March 20, 2007 VCC3 R0E-->R0F RP1 10K*4 RP1 10K*4 1 2 3 45 6 7 8 R1510KR1510K 12 PCI ADDR/DATA BUS (BGA-469) PCI CONTROL LOGICPCI ARBITRATION LOGIC U3A Value = EM8623LPCI ADDR/DATA BUS (BGA-469) PCI CONTROL LOGICPCI ARBITRATION LOGIC U3A Value = EM8623L PCI_AD31 AC5 PCI_AD30 AB5 PCI_AD29 AA5 PCI_AD28 Y5 PCI_AD27 AC6 PCI_AD26 AB6 PCI_AD25 AA6 PCI_AD24 Y6 PCI_AD23 W7 PCI_AD22 AC8 PCI_AD21 AB8 PCI_AD20 AA8 PCI_AD19 Y8 PCI_AD18 W8 PCI_AD17 AC9 PCI_AD16 AB9 PCI_AD15 AB11 PCI_AD14 AA11 PCI_AD13 Y11 PCI_AD12 W11 PCI_AD11 AC12 PCI_AD10 AB12 PCI_AD9 AA12 PCI_AD8 Y12 PCI_AD7 AB13 PCI_AD6 AA13 PCI_AD5 Y13 PCI_AD4 W13 PCI_AD3 AC14 PCI_AD2 AB14 PCI_AD1 AA14 PCI_AD0 Y14 PCI_CBE3 AC7 PCI_CBE2 AA9 PCI_CBE1 AC11 PCI_CBE0 AC13 PCI_IDSEL2 Y7 PCI_IDSEL1 AA7 PCI_IDSEL0 AB7 PCI_FRAME Y9 PCI_DEVSEL AB10 PCI_IRDY W9 PCI_TRDY AC10 PCI_STOP AA10 PCI_PAR Y10 PCI_INTA AB3 PCI_GNT2 AA4 PCI_GNT1 AB4 PCI_GNT0 AC4 PCI_CLK AC3 PCI_REQ2 W5 PCI_REQ1 W4 PCI_REQ0 Y4 R2610KR2610K 12 RP3 10K*4 RP3 10K*4 1 2 3 45 6 7 8 R191KR191K 12 R1610KR1610K 12 RP2 10K*4 RP2 10K*4 1 2 3 45 6 7 8 R1710KR1710K 12 R1810KR1810K 12 55 44 33 22 11 D D C C B B A A DRAM_BA1DRAM_BA0DRAM_DM3DRAM_DM2DRAM_DM1DRAM_DM0DRAM_DQS3DRAM_DQS2DRAM_DQS1DRAM_DQS0DRAM_CLKDRAM_CLK_LDRAM_CKEDRAM_CS_LDRAM_WE_LDRAM_CAS_LDRAM_RAS_L DRAM_CLKDRAM_CS_LDRAM_RAS_LDRAM_CAS_LDRAM_WE_L DRAM_DQ[31:0] DRAM_DQS1DRAM_DQS0 DRAM_D31DRAM_D30DRAM_D29DRAM_D28DRAM_D27DRAM_D26DRAM_D25DRAM_D24DRAM_D23DRAM_D22DRAM_D21DRAM_D20DRAM_D19DRAM_D18DRAM_D17DRAM_D16 DRAM1_BA1DRAM1_BA0 DRAM_BA1DRAM_BA0DRAM_DM3DRAM_DM2 DRAM1_DM1DRAM1_DM0 DRAM_CKEDRAM_CLK_L DRAM_DQ2DRAM_DQ13DRAM_DQ30 DRAM_DQ24DRAM_DQ2DRAM_DQ0DRAM_DQ23DRAM_DQ31DRAM_DQ8 DRAM_DQ16 DRAM_DQ18DRAM_DQ30 DRAM_DQ29DRAM_DQ11DRAM_DQ22 DRAM_DQ12 DRAM_DQ26DRAM_DQ25 DRAM_DQ27DRAM_DQ15 DRAM_DQ7 DRAM_DQ3DRAM_DQ9DRAM_DQ20 DRAM_DQ18DRAM_DQ3DRAM_DQ17 DRAM_DQ25DRAM_DQ16DRAM_DQ4 DRAM_DQ31DRAM_DQ27 DRAM_DQ19 DRAM_DQ8 DRAM_DQ10DRAM_DQ13 DRAM_DQ4 DRAM_DQ28DRAM_DQ21 DRAM_DQ19 DRAM_DQ1DRAM_DQ5 DRAM_DQ28DRAM_DQ14DRAM_DQ9DRAM_DQ23DRAM_DQ20 DRAM_DQ11DRAM_DQ6 DRAM_DQ5 DRAM_DQ14DRAM_DQ17DRAM_DQ29 DRAM_DQ1 DRAM_DQ22 DRAM_DQ12DRAM_DQ0DRAM_DQ15DRAM_DQ10 DRAM_DQ7DRAM_DQ26 DRAM_DQ6DRAM_DQ21DRAM_DQ24 DRAM1_LDQSDRAM1_UDQS DRAM_DQS2DRAM_DQS3 DRAM_A5DRAM_A0DRAM_A1 DRAM_A4 DRAM_A2DRAM_A5DRAM_A11 DRAM_D9DRAM_D13 DRAM0_DM1 DRAM_RAS_L DRAM_D5 DRAM_A12 DRAM_A[12:0] DRAM_CLK DRAM_D3DRAM_D11 DRAM_A4DRAM_A11 DRAM_A6DRAM_A0 DRAM0_DM0 DRAM_D4DRAM_D7 DRAM_A2DRAM_A5DRAM_A9 DRAM_A1 DRAM_D2 DRAM_A7DRAM_A4DRAM_A7DRAM_A9DRAM_A3DRAM_A10 DRAM_A11 DRAM_A8 DRAM_D12 DRAM_A9 DRAM0_LDQS DRAM_D8 DRAM_CS_L DRAM_D14 DRAM_A12 DRAM0_UDQS DRAM_A12 DRAM_D6DRAM_D10DRAM_D15 DRAM_A6 DRAM_CLK DRAM_A0DRAM_A3 DRAM_D0 DRAM_A8DRAM_A2 DRAM_A7DRAM_A1 DRAM_CLK_L DRAM_WE_L DRAM0_BA0 DRAM_A6 DRAM_D1 DRAM_A10 DRAM_A10DRAM_A8DRAM_A3 DRAM_BA1 DRAM_CLK_LDRAM_CKEDRAM_CAS_L DRAM_DM1DRAM_BA0DRAM_DM0 DRAM0_BA1 VCC2_6 VREF_VDD2 VCC2_6 VCC2_6 VREF_VDD1 VCC2_6 VCC2_6 VREF_125_1 VREF_125 VREF_125_1VREF_125_2 VREF_125 VCC2_6 VREF_125_2 VREF_VDD1 VCC2_6 VREF_VDD2 VCC2_6 VCC2_6 VREF_125 VCC2_6 VCC2_6 VCC2_6 Title Size Document Number Rev Date: Sheet of MiTAC International Corp. Advanced DMA (D117) R0F SDRAM DDR I/F C 421 Tuesday, March 20, 2007 Tit…

Text truncated - open the document above for the full version.

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK October 2007 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 MITAC INTERNATIONAL CORP. Product Type : Digital Media Player Model Number : EZFETCH1 Brand Name : EZ4Media, Inc. Test Report Number : 0709031R-01 Date of Test : September 19, 2007- October 01, 2007 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2003 Sharon Chang, President Date: October 15, 2007 http : //www.gestek.com.tw NVLAP LAB CODE 200085-0 GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 1 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Certification On Behalf Of MITAC INTERNATIONAL CORP. EUT: Digital Media Player Model Number: EZFETCH1 FCC ID: P4Q-EZFETCH1 Prepared for: MITAC INTERNATIONAL CORP. 6th Floor, No. 187, Tiding Blvd., Sec. 2, Nei-Hu, Taipei, Taiwan, R.O.C. Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 2 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ...................................................................................................................3 2. GENERAL INFORMATION ...................................................................................................4 2.1 PRODUCTION DESCRIPTION ............................................................................................................4 2.2 OPERATIONAL DESCRIPTION...........................................................................................................5 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION.......................................................................5 2.4 SUMMARY OF TEST PROCEDURE AND TEST RESULTS ...............................................................5 2.5 CONFIGURATION OF THE TESTED SYSTEM ..................................................................................6 2.6 TEST FACILITY....................................................................................................................................8 2.7 TEST SETUP .......................................................................................................................................9 2.8 EUT OPERATING CONDITIONS.........................................................................................................9 3. CONDUCTION EMISSION DATA .......................................................................................10 3.1 TEST EQUIPMENTS..........................................................................................................................10 3.2 BLOCK DIAGRAM OF TEST SETUP.................................................................................................10 3.3 CONDUCTED EMISSION LIMIT ........................................................................................................11 3.4 OPERATING CONDITION OF EUT ...................................................................................................11 3.5 EUT CONFIGURATION ON MEASUREMENT..................................................................................11 3.6 CONDUCTED EMISSION DATA........................................................................................................11 3.7 CONDUCTED EMISSIONS MEASUREMENT RESULTS.................................................................12 4. RADIATION EMISSION DATA ...........................................................................................14 4.1 TEST EQUIPMENT ............................................................................................................................14 4.2 OPEN TEST SITE SETUP DIAGRAM................................................................................................14 4.3 RADIATED EMISSION LIMIT.............................................................................................................15 4.4 EUT CONFIGURATION .....................................................................................................................15 4.5 OPERATING CONDITION OF EUT ...................................................................................................16 4.6 RADIATED EMISSION DATA ............................................................................................................16 4.7 RADIATED EMISSIONS MEASUREMENT RESULTS......................................................................17 5. PEAK POWER OUTPUT.....................................................................................................35 5.1 TEST EQUIPMENT ............................................................................................................................35 5.…

Text truncated - open the document above for the full version.

GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 65 of 83 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. PHOTOGRAPHS FOR TEST 9.1 TEST PHOTOGRAPHS FOR CONDUCTION GESTEK Lab Report No: 0709031R-01 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, N…
