P4QLBU02Wireless USB Adapter

LBU02 User’s Manual Revision: R00 (December 2001) TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE Information in this manual is subject to change without notice. 1 0 Table of Contents Regulations Information .........................................................iii Safety Precautions................................................................. 3 1 Introduction .......................................................................... 5 1.1 Product Description ................................................................. 1 1.2 Product View ........................................................................... 3 2 Setting Up ............................................................................. 5 2.1 System Requirements ............................................................. 5 2.2 Installing the Driver and Utility ................................................. 5 For Windows 98/2000/Me/XP ................................................ 5 For Linux................................................................................ 8 2.3 Connecting the WLAN USB Dongle ........................................ 8 2.4 Site Selection .......................................................................... 9 3Using Configuration & Monitor Application Utility.......... 11 3.1 Getting Started ...................................................................... 11 3.2 Monitor .................................................................................. 12 3.3 Statistics................................................................................ 14 3.4 Site Survey............................................................................ 15 3.5 Encryption ............................................................................. 16 3.6 Advanced .............................................................................. 17 4 Troubleshooting ................................................................. 19 4.1 Preliminary Checklist............................................................. 19 4.2 Installation Problem............................................................... 19 4.3 Configuration Problem........................................................... 20 4.4 Access Point Problem (Infrastructure Mode) ......................... 20 4.5 Communication Problem ....................................................... 20 4.6 LAN Problem......................................................................... 21 4.7 Software Problem .................................................................. 21 A Appendix ............................................................................. 23 A.1 Specifications ........................................................................ 23 A.2 Uninstalling the Utility and Driver ........................................... 24 Configuration & Monitor Application Utility............................ 24 WLAN USB Dongle .............................................................. 24 Glossary.................................................................................... 25 3 Regulations Information Federal Communications Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To ensure continued compliance, use only shielded interface cables when connecting to the computer or peripheral devices. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Safety Precautions
Be sure to read and follow all warning notices and instructions.
In order to extend the life of the device it is advised to store it in a protective casing whenever carrying the computing device on travel and not operating the device.
Never use abrasive materials or rinse the device with liquids.
At all times, it will be the responsibility of the end-user to ensure that an outdoor antenna installation complies with local radio regulations.
Do not service the product by yourself. Refer all servicing to qualified service personnel. Exposure to Radio Frequency Signal Your wireless device is a low power radio transmitter and receiver. When it is ON, it receives and also sends out Radio Frequency (RF) signa…

Text truncated - open the document above for the full version.

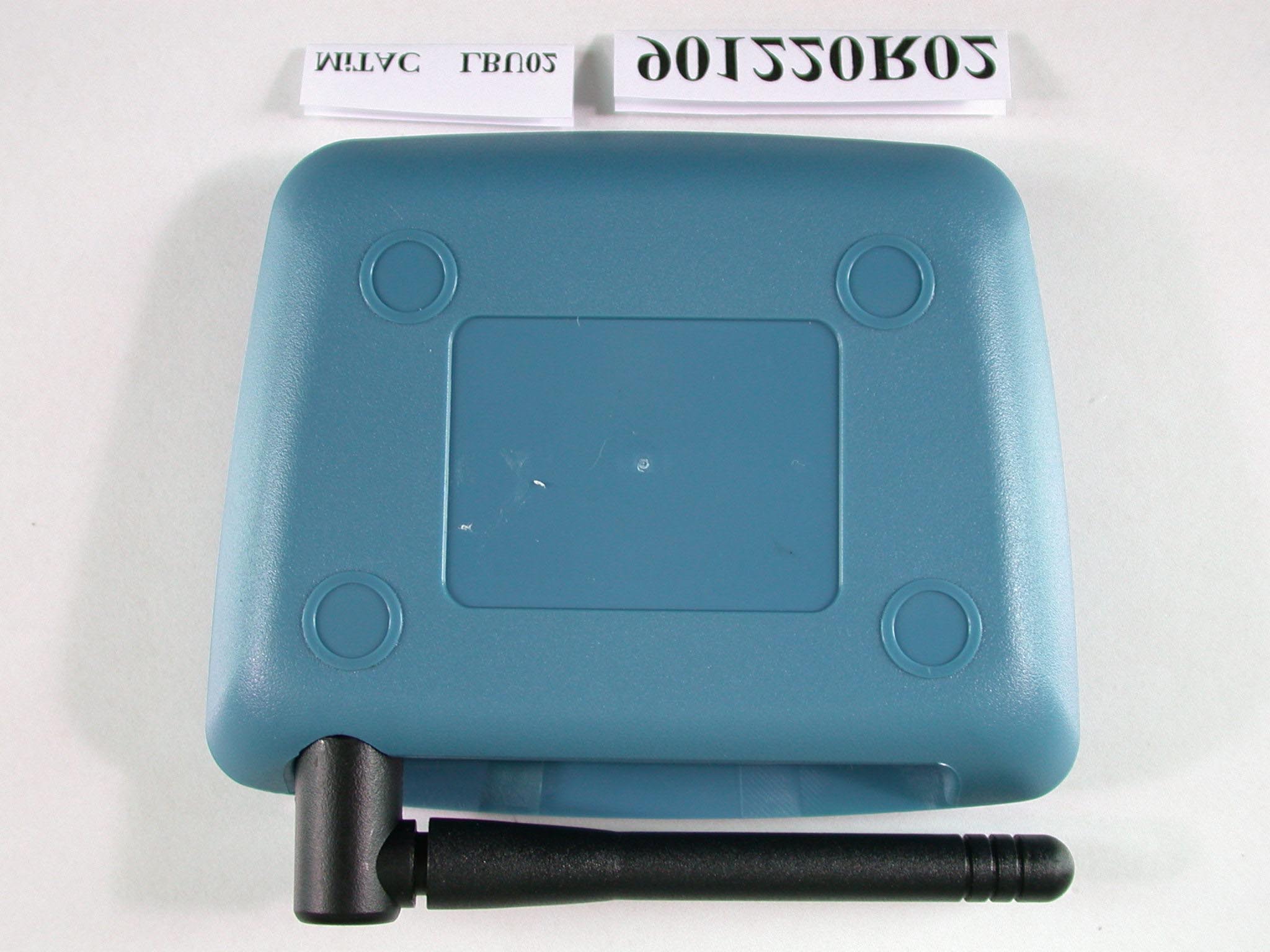

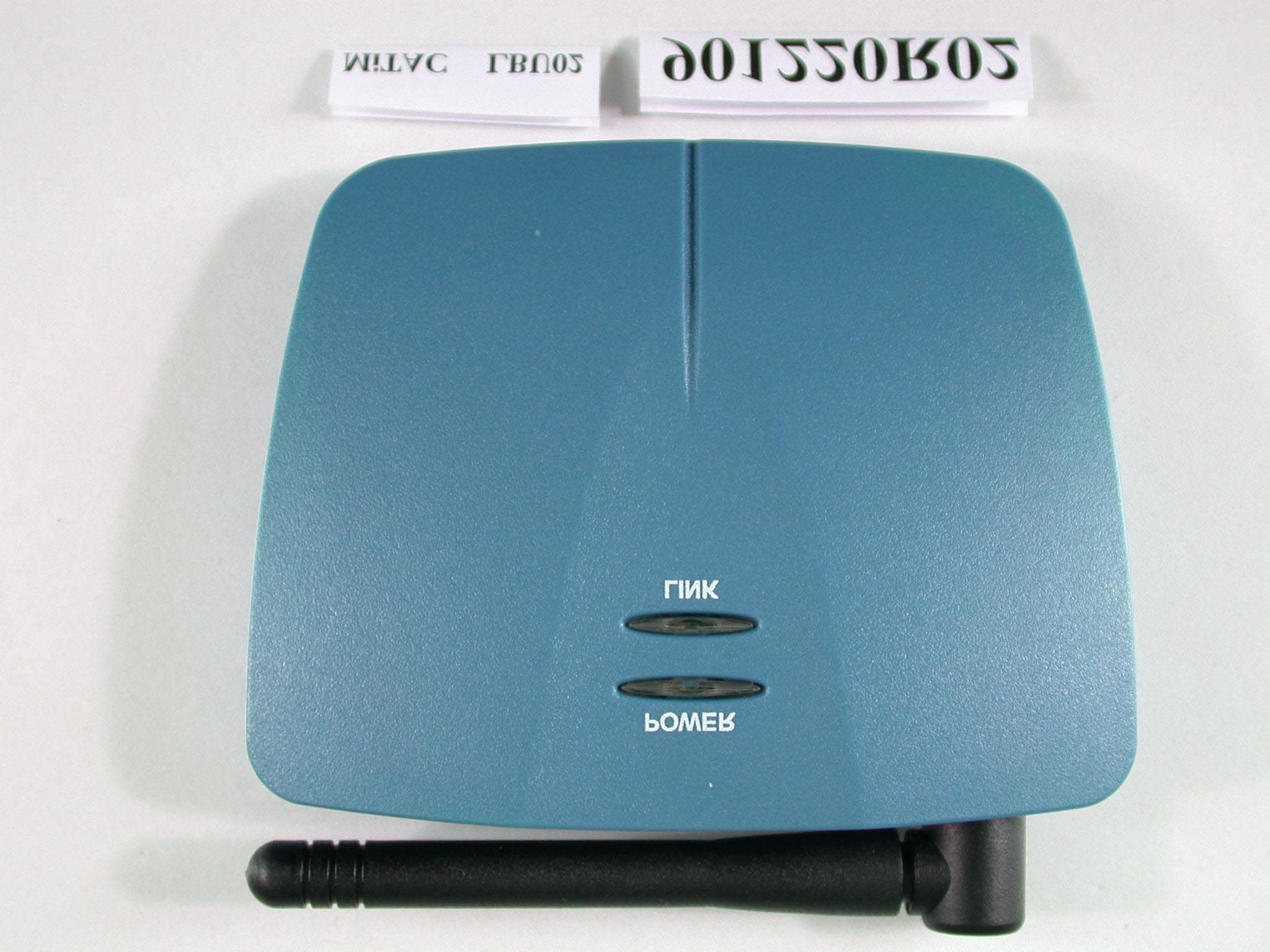

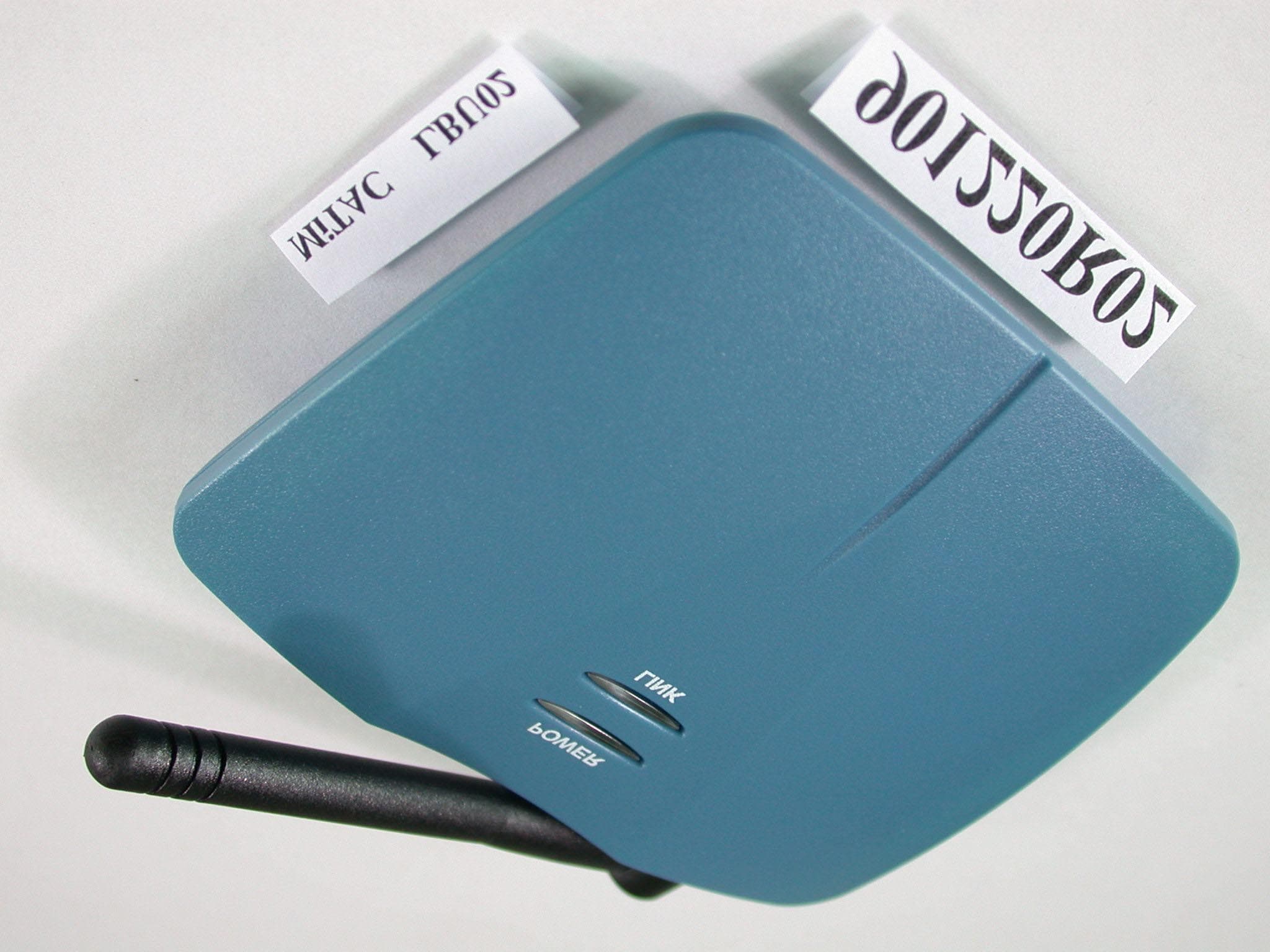

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

Page 4 Page 5

FCC ID: P4QLBU02 ADT No.901220R02 Operational Description The transmitter of the EUT is powered by host equipment from USB port. The antenna is dipole antenna, and used MCX antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: P4QLBU02 ADT No.: 901220R02 FCC TEST REPORT REPORT NO.: RF901220R02 MODEL NO.: LBU02 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:MITAC INTERNATIONAL CORP. ADDRESS: 6 TH FL., NO. 187, TIDING BLVD., SEC. 2, NEI-HU, TAIPEI 114, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: P4QLBU02 ADT No.: 901220R02 RF Exposure Measurement (Mobile Device) 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20 cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. 3. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: P4QLBU02 ADT No.: 901220R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 4. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 5. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: P4QLBU02 ADT No.: 901220R02 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1 dBi or 1.26 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241291.203.02 62437106.663.27 112462109.393.31 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: P4QLBU02 Report No.: RF901220R02 1 Issued: January 22, 2002 FCC TEST REPORT REPORT NO.: RF901220R02 MODEL NO.: LBU02 RECEIVED: December 20, 2001 TESTED: Jan. 14 ~ Jan. 21, 2002 APPLICANT:MITAC INTERNATIONAL CORP. ADDRESS: 6 th Fl., No. 187, Tiding Blvd., Sec. 2, Nei-Hu, Taipei 114, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: P4QLBU02 Report No.: RF901220R02 2 Issued: January 22, 2002 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ............................................................. 6 3.2DESCRIPTION OF TEST MODES ............................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS ...................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 18 4.2.2TEST INSTRUMENTS ................................................................................ 19 4.2.3TEST PROCEDURES................................................................................. 20 4.2.4TEST SETUP .............................................................................................. 21 4.2.5EUT OPERATING CONDITIONS................................................................ 21 4.2.6TEST RESULTS.......................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 33 4.4.2TEST INSTRUMENTS ................................................................................ 33 4.4.3TEST PROCEDURES................................................................................. 34 4.4.4TEST SETUP .............................................................................................. 34 4.4.5EUT OPERATING CONDITIONS................................................................ 34 FCC ID: P4QLBU02 Report No.: RF901220R02 3 Issued: January 22, 2002 4.4.6TEST RESULTS.......................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT ..................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURE ................................................................................... 37 4.5.4TEST SETUP .............................................................................................. 37 4.5.5EUT OPERATING CONDITIONS................................................................ 37 4.5.6TEST RESULTS.......................................................................................... 38 4.6BAND EDGES MEASUREMENT ................................................................ 42 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 42 4.6.2TEST INSTRUMENTS ................................................................................ 42 4.6.3TEST PROCEDURE ................................................................................... 42 4.6.4EUT OPERATING CONDITION .................................................................. 43 4.6.5TEST RESULTS.......................................................................................... 43 4.7ANTENNA REQUIREMENT........................................................................ 46 4.7.1STANDARD APPLICABLE.................................…

Text truncated - open the document above for the full version.

Processing Gain Testing The jamming level will be controlled on-8.4dB. The PER should be lower than 8% for a processing gain higher than 10dB. Maximums, only 20% of the total frequency points, is allowed to have a processing gain lower than 10dB. Jamming Margin test results.Jammer level: -8.4dBrelative to On channel 11Mbps modulated signal Tested on RD0314 S/N 0229022F2002/1/4Chris Iwin Channel 12412 MHzChannel 72442 MHzChannel 112462 MHz Number of jammer frequencies exceeding 8%:141519 Percentage of frequencies exceeding 8%:4.0%4.3%5.4% Max allowed:20%20%20% Result:PASSPASSPASS Jammer freqBERJammer freqBERJammer freqBER 24035000000.0%24335000000.0%24535000000.0% 24035500000.0%24335500000.0%24535500000.0% 24036000000.0%24336000000.0%24536000000.0% 24036500000.0%24336500000.0%24536500000.0% 24037000000.0%24337000000.0%24537000000.0% 24037500000.0%24337500000.0%24537500000.0% 24038000000.0%24338000000.0%24538000000.0% 24038500000.0%24338500000.0%24538500000.0% 24039000000.0%24339000000.0%24539000000.0% 24039500000.0%24339500000.0%24539500000.0% 24040000000.0%24340000000.0%24540000000.0% 24040500000.0%24340500000.0%24540500000.0% 24041000000.0%24341000000.0%24541000000.0% 24041500000.0%24341500000.0%24541500000.0% 24042000000.0%24342000000.0%24542000000.0% 24042500000.0%24342500000.0%24542500000.0% 24043000000.0%24343000000.0%24543000000.0% 24043500000.0%24343500000.0%24543500000.0% 24044000000.0%24344000000.0%24544000000.0% 24044500000.0%24344500000.0%24544500000.0% 24045000000.0%24345000000.0%24545000000.0% 24045500000.0%24345500000.0%24545500000.0% 24046000000.0%24346000000.0%24546000000.0% 24046500000.0%24346500000.0%24546500000.0% 24047000000.0%24347000000.0%24547000000.0% 24047500000.0%24347500000.0%24547500000.0% 24048000000.0%24348000000.0%24548000000.0% 24048500000.0%24348500000.0%24548500000.0% 24049000000.0%24349000000.0%24549000000.0% 24049500000.0%24349500000.0%24549500000.0% 24050000000.0%24350000000.0%24550000000.0% 24050500000.0%24350500000.0%24550500000.0% 24051000000.0%24351000000.0%24551000000.0% 24051500000.0%24351500000.0%24551500000.0% 24052000000.0%24352000000.0%24552000000.0% 24052500000.0%24352500000.0%24552500000.0% 24053000000.0%24353000000.0%24553000000.0% 24053500000.0%24353500000.0%24553500000.0% 24054000000.0%24354000000.0%24554000000.0% 24054500000.0%24354500000.0%24554500000.0% 24055000000.0%24355000000.0%24555000000.0% 24055500000.0%24355500000.0%24555500000.0% 24056000000.0%24356000000.0%24556000000.0% 24056500000.0%24356500000.0%24556500000.0% 24057000000.0%24357000000.0%24557000000.0% 24057500000.0%24357500000.0%24557500000.0% 24058000000.0%24358000000.0%24558000000.0% 24058500000.0%24358500000.0%24558500000.0% 24059000000.0%24359000000.0%24559000000.0% 24059500000.0%24359500000.0%24559500000.0% 24060000000.0%24360000000.0%24560000000.0% 24060500000.0%24360500000.0%24560500000.0% 24061000000.0%24361000000.0%24561000000.0% 24061500000.0%24361500000.0%24561500000.0% 24062000000.0%24362000000.0%24562000000.0% 24062500000.0%24362500000.0%24562500000.0% 24063000000.0%24363000000.0%24563000000.0% 24063500000.0%24363500000.0%24563500000.0% 24064000000.0%24364000000.0%24564000000.0% 24064500000.0%24364500000.0%24564500000.0% 24065000000.0%24365000000.0%24565000000.0% 24065500000.0%24365500000.0%24565500000.0% 24066000000.0%24366000000.0%24566000000.0% 24066500000.0%24366500000.0%24566500000.0% 24067000000.0%24367000000.0%24567000000.0% 24067500000.0%24367500000.0%24567500000.0% 24068000000.0%24368000000.0%24568000000.0% 24068500000.0%24368500000.0%24568500000.0% 24069000000.0%24369000000.0%24569000000.0% 24069500000.0%24369500000.0%24569500000.0% 24070000000.0%24370000000.0%24570000000.0% 24070500000.0%24370500000.0%24570500000.0% 24071000000.0%24371000000.0%24571000000.0% 24071500000.0%24371500000.0%24571500000.0% 24072000000.0%24372000000.0%24572000000.0% 24072500000.0%24372500000.0%24572500000.0% 24073000000.0%24373000000.0%24573000000.0% 24073500000.0%24373500000.0%24573500000.0% 24074000000.0%24374000000.0%24574000000.0% 24074500000.0%24374500000.0%24574500001.0% 24075000000.0%24375000000.0%24575000001.0% 24075500000.0%24375500000.0%24575500000.0% 24076000000.0%24376000000.0%24576000001.0% 24076500000.0%24376500000.0%24576500000.0% 24077000000.0%24377000000.0%24577000001.0% 24077500000.0%24377500000.0%24577500000.0% 24078000000.0%24378000000.5%24578000000.0% 24078500000.0%24378500000.5%24578500000.0% 24079000000.0%24379000000.0%24579000000.0% 24079500000.0%24379500000.0%24579500000.0% 24080000000.0%24380000000.0%24580000000.0% 24080500000.0%24380500000.0%24580500000.0% 24081000000.0%24381000000.0%24581000000.0% 24081500000.0%24381500000.0%24581500000.0% 24082000000.0%24382000000.0%24582000000.0% 24082500000.0%24382500000.0%24582500000.0% 24083000000.0%24383000000.0%24583000000.0% 24083500000.0%24383500000.0%24583500000.0% 24084000000.0%24384000000.0%24584000000.0% 24084500000.0%24384500001.0%24584500001.0% 24085000000.0%24385000000.0%24585000001.0% 24085500001.0%24385500000.0%24585500001.0% 24086000000.0%24386000000.0%24586000000.5% 24086500000.0%24386500000.0%24586500000.0% 24087000000.0%24387000000.0%24587000000.0% 24087500000.0%24387500000.0%24587500001.0% 24088000000.0%24388000000.0%24588000001.0% 24088500000.0%24388500000.0%24588500000.0% 24089000000.5%24389000000.0%24589000000.0% 24089500001.0%24389500000.0%24589500001.0% 24090000001.0%24390000000.0%24590000000.0% 24090500001.0%24390500000.0%24590500002.0% 24091000000.5%24391000000.5%24591000001.0% 24091500001.0%24391500000.5%24591500001.0% 24092000000.0%24392000000.5%24592000000.0% 24092500001.0%24392500001.0%24592500000.0% 24093000000.5%24393000001.0%24593000001.0% 24093500000.0%24393500000.0%24593500001.0% 24094000000.0%24394000000.0%24594000000.0% 24094500000.5%24394500000.0%24594500000.0% 24095000001.0%24395000001.5%24595000001.0% 24095500000.5%24395500000.5%24595500000.0% 24096000001.0%24396000000.5%24596000002.0% 24096500003.0%24396500001.0%24596500003.0% 24097000000.5%24397000002.0%24597000002…

Text truncated - open the document above for the full version.

FCC ID: P4QLBU02 Report No.: RF901220R02 47 Issued: January 22, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: P4QLBU02 Report No.: RF901220R02 48 Issued: January 22, 2002 RADIATED EMISSION TEST
