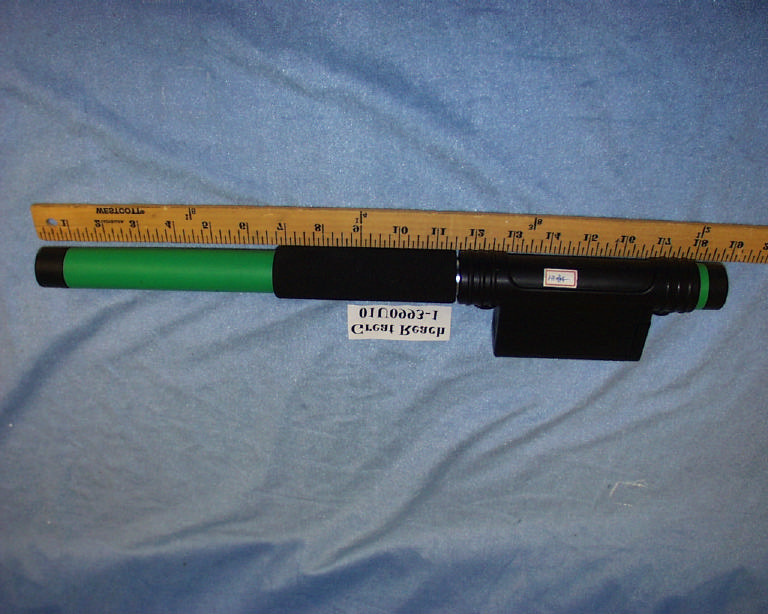

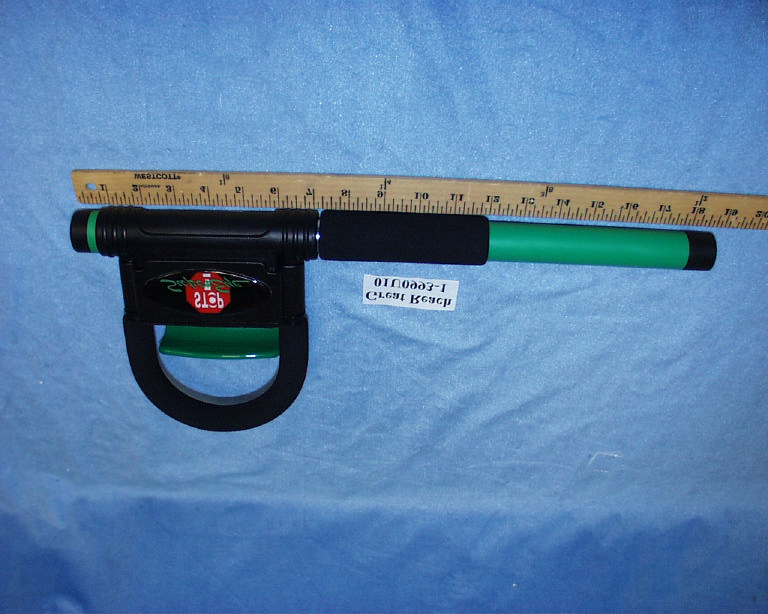

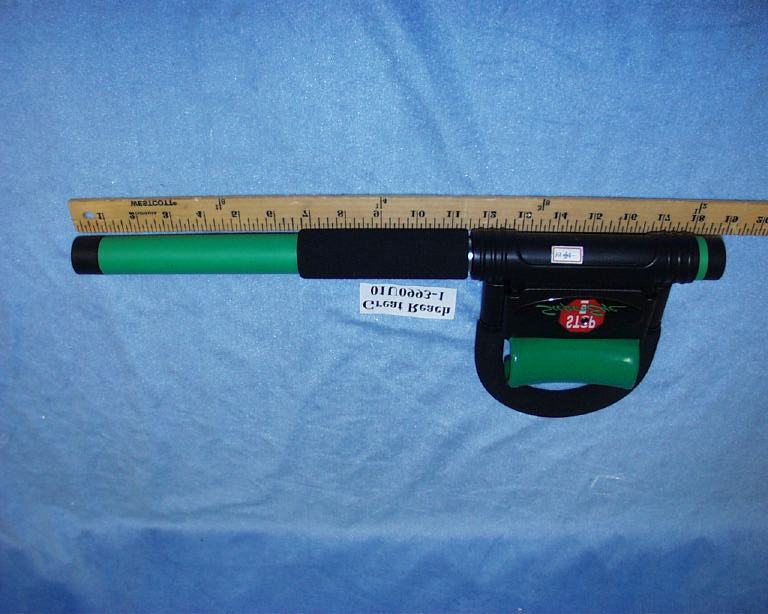

P4RS-2100Security Transmitter ( Steering Wheel Lock)

From: Steve Cheng Sent: Tuesday, April 09, 2002 6:44 PM To: Mike Kuo; Michael Heckrotte; Thu Tran Cc: Anne Liang; Denise Teng Subject: RE: GREAT REACH INTERNATIONAL INC., FCC ID:P4RS-2100, AN01T1804 Dear Mike, The emission designator calculated as below: Bn= 2M+2DK B=1000 M=B/2=500 D=7580 K=1.2 Bn=2*500+2*1.2*7580/2=10096 emission designator: 10K0F1D Attached please find the MPE calculation for the porject. Regards, Steve -----Original Message----- From: Mike Kuo Sent: Monday, April 08, 2002 3:47 PM To: Michael Heckrotte; Steve Cheng; Thu Tran Cc: Anne Liang; Denise Teng Subject: FW: GREAT REACH INTERNATIONAL INC., FCC ID:P4RS-2100, AN01T1804 -----Original Message----- From: CERTADM Sent: Monday, April 08, 2002 3:46 PM To: '[email protected]' Subject: GREAT REACH INTERNATIONAL INC., FCC ID:P4RS-2100, AN01T1804 Notice_content ------------- Question #1: Please provide emission designator with necessary bandwidth. Please make sure justify the necessary bandwidth by using Carson rules. Question #2: Please provide MPE data. Question #3: User manual does not contian RF Exposure information. Please provide revised user manual to comply this requirement. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION GREAT REACH INTERNATIONAL INC. This device complies with Part 90 of the FCC Rules. FCC ID: P4RS-2100 FCC ID LABEL IS ON THE BACK ON THE UNIT. FCC ID Label FCC ID

Power Su pply Test Apparatus Power Meter Load RF Distributor Frequency Counter Frequency monitoring Modulation Meter Frequency monitoring 6GHz Spectrum Analyzer 1GHz Spectrum Analyzer Harmonic monitoring Modulation/Bandwidth monitoring Frequency Counter Modulation Meter 6GHz Spectrum Analyzer 1GHz Spectrum Analyzer PCB Inspection Diagram Antenna Product 1 to 4 select switch Product inspection diagram

:FCC TX70 :1~80 CpuEM78P156 SMDU1Capacitors47P NPOC1 Code ICPT2240P SMDU247P NPOC2 Voltagr Detector9750A SMDU3103P X7RC3 Voltage Regulator9825AA SMDU447P NPOC4 47P NPOC5 Transistor2SC3838 SMDQ1103P X7RC6 2SC3838 SMDQ222P NPOC7 2SC3838 SMDQ33P NPOC8 2SC3838 SMDQ422P NPOC9 2SC3357 SMDQ56P NPOC10 2SD1898 SMDQ6103P X7RC11 2SK3018 SMDQ7103P X7RC12 2SC2712 SMDQ86P NPOC13 2SA1162 SMDQ91P NPOC14 2SC2712 SMDQ106P NPOC15 1RLML6302 SMDQ111P NPOC16 2P NPOC17 DiodeBB833 SMDD16P NPOC18 1N4148 SMDD210P NPOC19 1SS355 SMDD3103P X7RC20 Zener Diode5.1V SMDD5103P X7RC21 12P NPOC22 Quartz50.1319MHZ DIPY15P NPOC23 Resonators1MHZ DIPY3103P X7RC24 102P X7RC25 TransformerS-2100 DIPT110P NPOC26 12P NPOC27 Variable Inductance15uH+-2uH DIPL1100uF/6.3V DIPC28 Inductance5.5T DIPL2104P Y5ZC29 R47 1210L3103P X7RC30 5.5T DIPL4104P Y5ZC31 6.5T DIPL5102P X7RC32 2.5T DIPL6100P NPOC33 2.5T DIPL7104P Y5ZC34 2.5T DIPL810uF/10V DIPC35 15nH 0805L9100P NPOC36 33nH 0805L1022P NPOC37 22nH 0805L113P NPOC38 6.5T DIPL1212P NPOC39 22nH 0805L13

GREAT REACH INTERNATIONAL INC., FCC ID:P4RS-2100 MPE CALCULATION for -4 dBi ANTENNA Formula used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) =0.30from 1.1310 Table 1 P (dBm) =22.95 EUT output power G (dBi) =-4.00 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 4.6 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

FCC CFR47 PART 90 CERTIFICATION TEST REPORT FOR SECURITY TRANSMITTER ( STEERING WHEEL LOCK ) MODEL: S-2100 FCC ID: P4RS-2100 REPORT NUMBER: 01U0993-1 ISSUE DATE: MARCH 21, 2002 Prepared for GREAT REACH INTERNATIONAL INC. 425 BLUFFROAD FORT LEE, NJ 07024, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 01U0993-1 DATE: MARCH 21, 2002 FCC ID: P4RS-2100 EUT: 451.350 MHZ SECURITY TRANSMITTER (STEERING WHEEL LOCK) Page 2 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION---------------------------------------------------------------------------3 2. EUT DESCRIPTION---------------------------------------------------------------------------------------------4 3. TEST METHODOLOGY----------------------------------------------------------------------------------------4 4. TEST FACILITY--------------------------------------------------------------------------------------------------4 5. ACCREDITATION AND LISTING--------------------------------------------------------------------------4 6. MEASURING INSTRUMENT---------------------------------------------------------------------------------5 7. APPLICABLE RULES-------------------------------------------------------------------------------------------6 8. TEST SETUP, PROCEDURE AND RESULT------------------------------------------------------------12 8.1. CONDUCTED OUTPUT POWER-----------------------------------------------------------------------12 8.2. RADIATED OUTPUT POWER (ERP)-------------------------------------------------------------------14 8.3. TYPE OF EMISSION---------------------------------------------------------------------------------------18 8.4. EMISSION BANDWIDTH---------------------------------------------------------------------------------18 8.5. EMISSIONS MASKS----------------------------------------------------------------------------------------20 8.6. FREQUENCY STABILITY---------------------------------------------------------------------------------23 8.7. TRANSIENT FREQUENCY BEHAVIOR----------------------------------------------------------------26 9. SETUP PHOTOS------------------------------------------------------------------------------------------------30 REPORT NO: 01U0993-1 DATE: MARCH 21, 2002 FCC ID: P4RS-2100 EUT: 451.350 MHZ SECURITY TRANSMITTER (STEERING WHEEL LOCK) Page 3 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: GREAT REACH INTERNATIONAL INC. 425 BLUFFROAD FORT LEE, NJ 07024 , USA CONTACT PERSON: GRACE YING/GM TELPHONE NO: (201) 969 – 0852 EUT DESCRIPTION: 451.350 MHZ SECURITY TRANSMITTER (STEERING WHEEL LOCK) MODEL NAME: S-2100 DATE TESTED: DECEMBER 3, 2001 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 451.350 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 90 Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 90-Private Land Mobile Radio Service. This said equipment in the configuration described in this report, shows the maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Released For CCS By: Tested By: MIKE HECKROTTE THU TRAN CHIEF EMC ENGINEER SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0993-1 DATE: MARCH 21, 2002 FCC ID: P4RS-2100 EUT: 451.350 MHZ SECURITY TRANSMITTER (STEERING WHEEL LOCK) Page 4 of 30 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an auto alarm – paging system. Once it is mounted on the steering wheel, any vibrations of the EUT will trigger the alarm. The EUT will send out a signal to the pager. The pager will then beep telling you that the steering wheel has been tempered with. The alarm will emit a loud noise. The pager can opereate up to 1000m from the alarm. 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures documented on chapter 13 of ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 4. TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 5. ACCREDITATION AND LISTING The test facilities used to perfor…

Text truncated - open the document above for the full version.

REPORT NO: 0IU0993-1 DATE: JANUARY 2, 2002 FCC ID: P4RS-2100 EUT: 451.1875 SECURITY TRANSMITTER (STEERING WHEEL LOCK) Page 35 of 35 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SETUP PHOTOS Radiated Emission
