P5C29010864HFRS Radio Transceiver -TX

The wireless hand-held portable transceiver contains a low power transmitter. When the Push-to-Talk button is pushed it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996 the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. CAUTION : To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter and antenna at least 1 inch (2.5 centimeters) from your face and speak in normal voice, with the antenna pointed up and away from your face. If you wear the handset on your body while using the headset accessory, use only the manufacturers supplied belt clip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Safety Information

FCC ID : P5C29010864H THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. WELLTOUCH ELECTRONIC LTD FCC ID : P5C29010864H JOB : 610AVH01 EXHIBIT # : 1

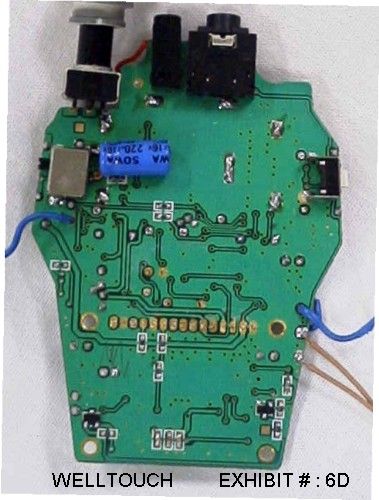

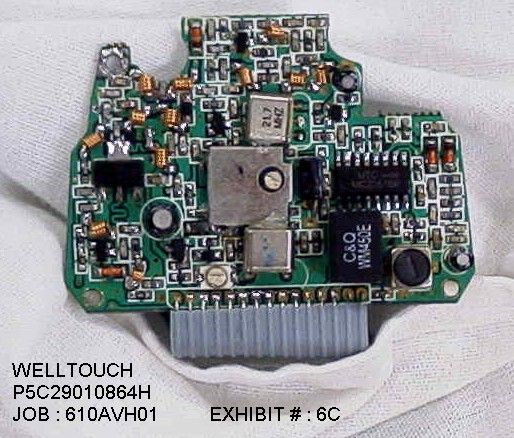

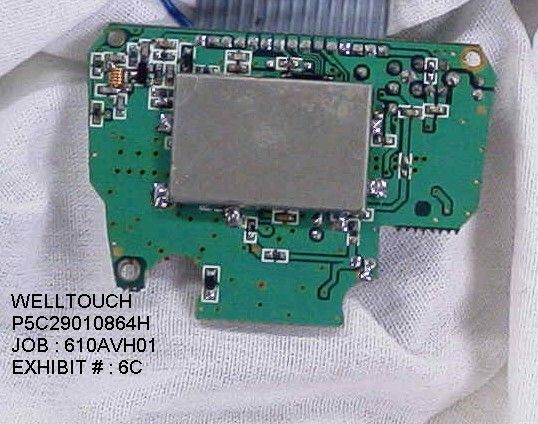

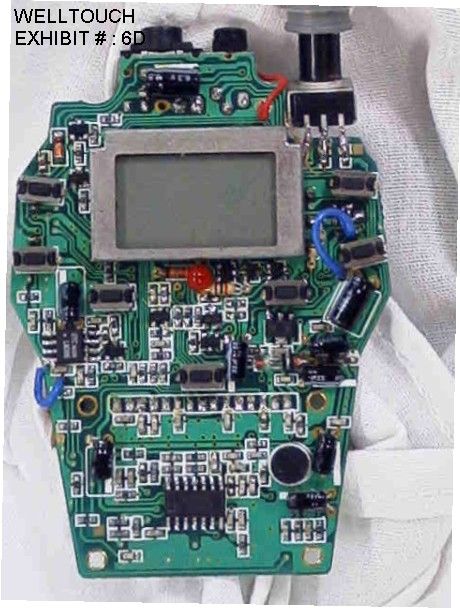

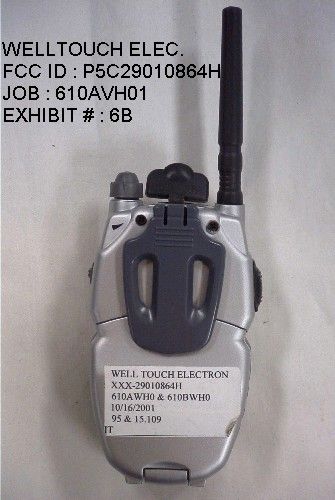

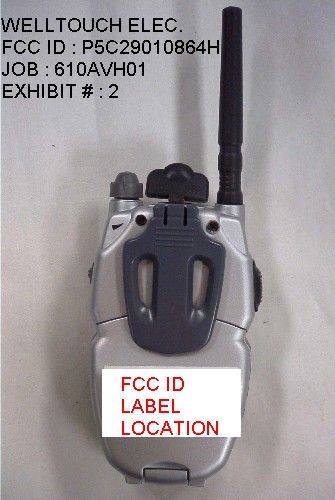

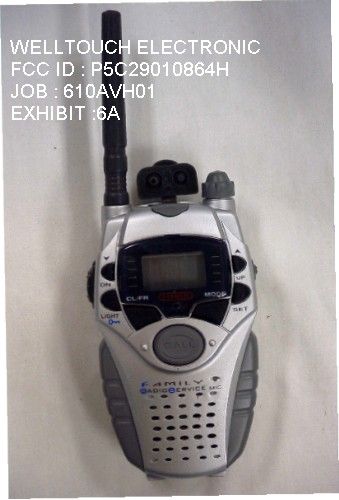

TABLE OF CONTENTS LIST APPLICANT: WELL TOUCH ELECTRONIC LTD. FCC ID: P5C29010864H TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......AUDIO FREQUENCY RESPONSE GRAPH PAGE 5......MODULATION LIMITING GRAPH – 300Hz PAGE 6......MODULATION LIMITING GRAPH – 1000Hz PAGE 7......MODULATION LIMITING GRAPH – 3000Hz PAGE 8......AUDIO LOW PASS FILTER GRAPH PAGE 9......METHOD OF MEASURING OCCUPIED BANDWIDTH PAGE 10.....OCCUPIED BANDWIDTH PLOT PAGE 11.....OCCUPIED BANDWIDTH PLOT - CW PAGE 12.....FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 13.....METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 14.....FREQUENCY STABILITY PAGE 15.....LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3.........BLOCK DIAGRAM EXHIBIT 4.........SCHEMATIC EXHIBIT 5.........USERS MANUAL EXHIBIT 6A........EXTERNAL PHOTO – FRONT VIEW EXHIBIT 6B........EXTERNAL PHOTO – REAR VIEW EXHIBIT 6C........INTERNAL PHOTO – COMPONENT & COPPER VIEW - 1 EXHIBIT 6D........INTERNAL PHOTO – COMPONENT & COPPER VIEW – 2 EXHIBIT 6E........EXTERNAL PHOTO – TOP VIEW EXHIBIT 7.........TUNING PROCEDURE EXHIBIT 8.........CIRCUIT DESCRIPTION EXHIBIT 9.........TEST SET UP PHOTO APPLICANT: WELL TOUCH ELECTRONIC LTD. FCC ID: P5C29010864H REPORT #: W\WTOUCH\610AVH01\610AVH01RPT.doc PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2)WELL TOUCH ELECTRONIC LTD.will manufacture the FCCID: P5C29010864H FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. The UUT is a PTT Radio with a maximum duty cycle of 50%. WELL TOUCH ELECTRONIC LTD. BLOCK I, 13/F., HING WIN FACTORY BUILDING 110 HOW MING ST., KWUN TONG KOWLOON HONG KONG 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 5 . 2.1033(c) (4) Type of Emission: 10K6F3E 95.631 Bn = 2M + 2DK M = 3000 D = 2.0K Bn = 2(3.0)+2(3.0) = 12.0K Authorized Bandwidth 12.5kHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.500 watts effective 95.639 radiated power. There can be no provisions for 95.649 increasing the power or varing the power. 95.647 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 6.0 Volts DC Ice = 0.190A. Pin = 1.14 Watts REPORT #: W\WTOUCH\610AVH01\610AVH01RPT.doc PAGE #: 1 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as Exhibit # 7. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 4 of this report. The block diagram is included as EXHIBIT 3. 2.1033(c)(11) A photograph or a drawing of the equipment identification label is included as EXHIBIT 1. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 6A-6D. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF_power_output. 95.639 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 36 milliwatts ERP R.F. POWER OUTPUT TEST SET UP HP Spectrum Analyzer TRANSMITTER UNDER TEST WITH INTERNAL ANTENNA <-- 3.0 meters--> SIGNAL DIPOLE Tuned, Calibrated GENERATOR ANTENNA Antenna which may be raised from 1 to 4 meters above ground and changed in polarization Equipment placed 80cm above ground on a rotatable platform. REPORT #: W\WTOUCH\610AVH01\610AVH01RPT.doc PAGE #: 2 2.1047(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown as page 4 of the report The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. 2.1047(b) Audio_input_versus_modulation The audio input level needed for a particular percentage of modulation was measured in accordance with TIA/EIA Specification 603. The audio input curves versus modulation are shown as pages 5-7 of the report. Curves are provided for audio input frequencies of 300, 1000, and 3000 Hz. 95.637(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1KHz. See the plot as page 8 of the report. 2.989(c) EMISSION BANDWIDTH: 95.633(c) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the unmodulated carrier at the top of the screen. The test procedure diagram follows. See the occupied bandwidth plots as page 10-11 of the report. APPLICANT: WELL TOUCH ELECTRONIC LTD. FCC ID: P5C29010864H REPORT #: W\WTOUCH\610AVH01\610AVH01RPT.doc PAGE #: 3 Well Touch Electronic LTD. …
