P5VKTR-18OCEAN BUOY

White Water Marine, LLC FCC ID: P5VKTR-18 Page 1 KTR-18 Ocean Buoy User Manual White Water Marine, LLC FCC ID: P5VKTR-18 Page 2 Table of Contents Overview................................................................................................................ 3 Getting Started – What’s in the box .................................................................... 3 Set Up Instructions ............................................................................................. 3 Switches and Buttons ......................................................................................... 4 Operation ........................................................................................................... 4 White Water Marine, LLC FCC ID: P5VKTR-18 Page 3 Overview Getting Started – What’s in the box 1. Buoy shell with floatation ring 2. Electronic head unit 3. Four (4) cover bolts and a wrench 4. Battery canister, with 32 D cell batteries (included) 5. Two piece antenna a. Antenna base with specific buoy frequency loading coil b. Antenna tip Set Up Instructions 1. Connect the internal battery- loosen the 4 cover bolts on the electronic head unit, with the supplied wrench, remove the electronic head unit and connect the power cord from the top of the battery canister to the bottom of the electronic head unit. (note: check to ensure that the battery canister has 32 D cell batteries) 2. Reassemble the battery canister and the electronic head unit to the buoy shell and tighten the 4 cover bolts. 3. Confirm that the frequency on the electronic head unit is the same as the frequency on the antenna base. 4. Connect the antenna base to the top of the electronic head unit. 5. Connect the antenna tip to the top of the antenna base. White Water Marine, LLC FCC ID: P5VKTR-18 Page 4 Switches and Buttons There is only one switch with 3 positions, Off-test-On, located on the top of the control head: 1. Off Position: The unit is powered off. 2. Test Position: The unit transmits immediately. 3. On Position: The unit transmits every 3 minutes for a period of 15 seconds. Operation 1. Turn the switch on the buoy to the “Test” position, tune your receiver to the buoy frequency and confirm that the buoy is transmitting. 2. Turn the switch on the buoy to the “On” position and deploy the buoy. 3. Tune the receiver to the buoy frequency to get a compass heading to the buoy. 4. After retrieval of the buoy, turn the switch to the “Off” position to stop the buoy from transmitting. FCC WARNING STATEMENTS: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

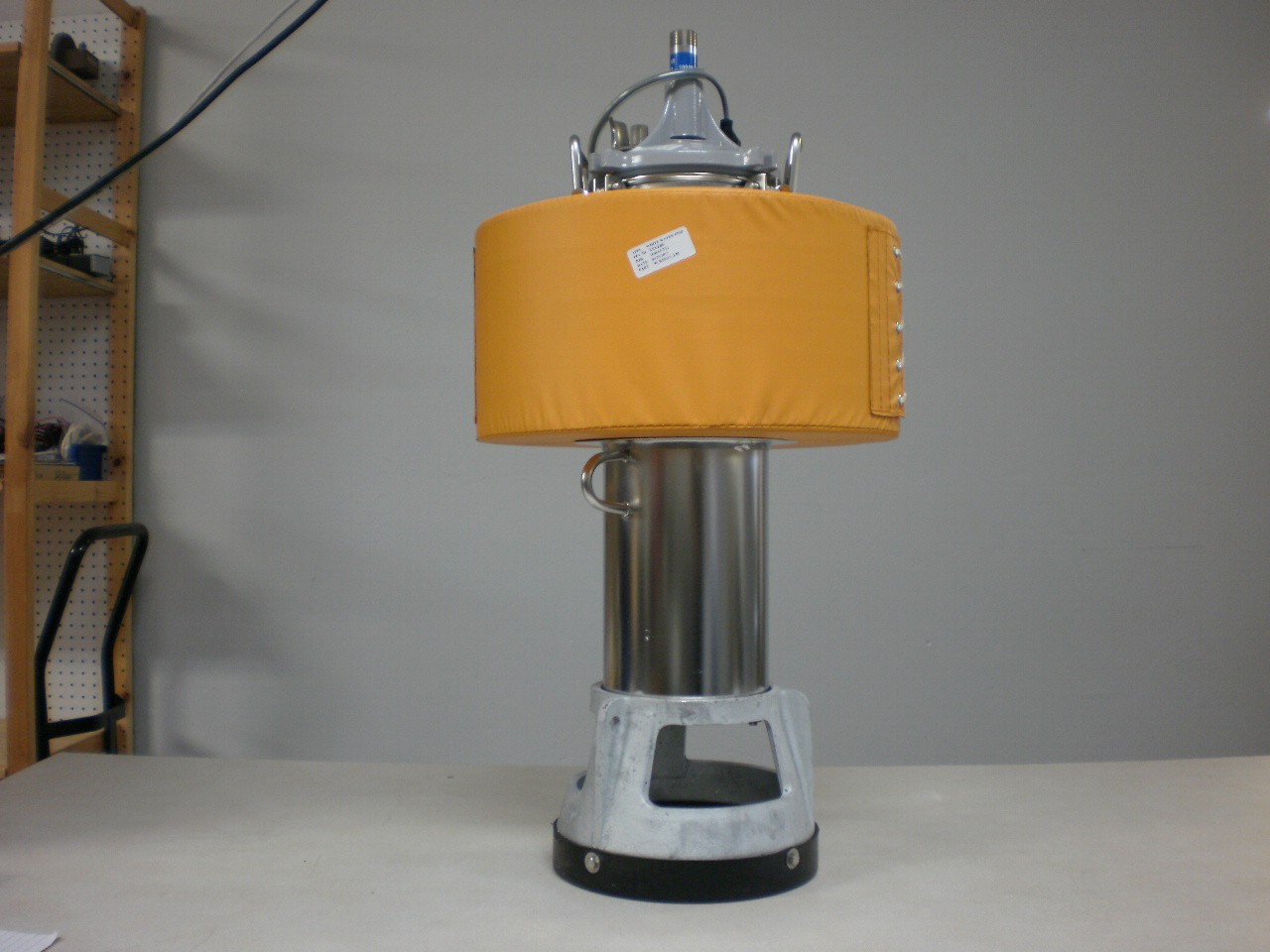

APPLICANT: WHITE WATER MARINE, LLC. FCC ID: P5VKTR-18 EXTERNAL PHOTOS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The label would be viewable through this hole in the top of the device FCC ID: P5VKTR-18

FCC PT 90 TEST REPORT APPLICANT WHITE WATER FISHING SUPPLY, INC. ADDRESS 349 5th Ave New York NEW YORK 10016 FCC ID: P5VKTR-18 TESTED MODEL KTR-18 FAMILY MODEL(S) N/A PRODUCT DESCRIPTION RADIO BUOY DATE SAMPLE RECEIVED 9/7/2012 DATE TESTED 9/11/2012 TESTED BY John A. Day APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 1648AUT12TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Certificate #0955-01 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM APPLICANT: WHITE WATER MARINE, LLC. FCC ID: P5VKTR-18 Report: O:\W\WHITE WATER MARINE\1648ZUT12\1648ZUT12TestReport.doc Page 2 of 15 TABLE OF CONTENTS ATTESTATION .......................................................................................................................... 3 REPORT SUMMARY ................................................................................................................. 4 TEST ENVIRONMENT AND TEST SETUP ................................................................................. 4 TECHNICAL SUMMARY ........................................................................................................... 5 DUT SPECIFICATION ............................................................................................................... 5 TEST EQUIPMENT ................................................................................................................... 6 TEST PROCEDURE .................................................................................................................. 7 TEST RESULT .......................................................................................................................... 9 RF POWER OUTPUT ............................................................................................................. 9 MODULATION CHARACTERISTICS ..................................................................................... 10 OCCUPIED BANDWIDTH .................................................................................................... 11 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) ..................................... 12 FREQUENCY STABILITY ..................................................................................................... 14 POWER LINE CONDUCTED INTERFERENCE ..................................................................... 15 APPLICANT: WHITE WATER MARINE, LLC. FCC ID: P5VKTR-18 Report: O:\W\WHITE WATER MARINE\1648ZUT12\1648ZUT12TestReport.doc Page 3 of 15 ATTESTATION This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. The test results relate only to the items tested. Test Certificate #0955-01 All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025:2005 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario de Aranzeta Signature: Function: Test Lab Supervisor / Engineer Date: August/2/2012 APPLICANT: WHITE WATER MARINE, LLC. FCC ID: P5VKTR-18 Report: O:\W\WHITE WATER MARINE\1648ZUT12\1648ZUT12TestReport.doc Page 4 of 15 REPORT SUMMARY Purpose of Test To show the product meets the requirements of FCC CFR 47 Part 90. Test Procedures ANSI/TIA 603-C: 2004, FCC CFR 47 Part 90, ANSI C63.4: 2003 Related Approval(s)/ Report(s) N/A TEST ENVIRONMENT AND TEST SETUP Test Facility All tests were conducted by Timco Engineering Inc. located at 849 NW State Road 45, Newberry, FL 32669 USA Deviation from the standards No deviation Modification to the DUT No modification was made. Test Exercise (software etc.) The DUT was placed in continuous transmitting mode of operation. System Setup No testing accessories. The DUT is a stand alone device. APPLICANT: WHITE WATER MARINE, LLC. FCC ID: P5VKTR-18 Report: O:\W\WHITE WATER MARINE\1648ZUT12\1648ZUT12TestReport.doc Page 5 of 15 TECHNICAL SUMMARY DUT SPECIFICATION DUT Description Radio Buoy Model Number KTR-18 DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Laboratory Test Conditions Temperature: 26ºC Humidity: 55% Modifications to DUT: No Yes (explanation below) Notes: Added test cable to antenna port APPLICANT: WHITE WATER MARINE, LLC. FCC ID: P5VKTR-18 Report: O:\W\WHITE WATER MARINE\1648ZUT12\1648ZUT12TestReport.doc Page 6 of 15 TEST EQUIPMENT Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/11 12/31/13 Analyzer Open- Frame Tower Preamplifier HP 8449B 3008A01075 07/22/09 09/15/13 Analyzer Open- Frame Tower Quasi- Peak Adapter HP 85650A 2043A00305 10/26/09 09/15/13 Analyzer Open- Frame Tower RF Preselector HP 85685A 3107A01282 07/22/09 09/15/13 Analyzer Open- Frame Tower Spectrum Analyzer HP 8566B/ 85662A 2627A03154/ 2648A14276 07/22/09 09/15/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 11/21/09 10/28/13 Analyzer Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 11/22/09 10/28/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 11/21/09 10/28/13 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 11/24/09 10/28/13 Antenna: Biconnical Eaton 94455-1 1057 05/31/11 05/31/13 Antenna: Biconnical Eaton 94455-1 1096 05/04/11 05/04/13 Antenna: Double- Ridged Horn ETS Lindgren 3117 35923 12/7/2011 12/07/2013 Antenna: Log- Periodic Electro- Metrics LPA-25 1122 05/04/…
