P6QCIP-4500Video Phone

Appendix 6. User Manual CIP-4500 User manual1 NOTICES TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. One or more of the following statements may be applicable FCC WARNING CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment C&S Technology Inc. Video Phone CIP-4500 CIP-4500 User Manual 2 Contents – CIP-4500 User Manual 3 CIP-4500 User Manual 4 CIP-4500 User Manual 5 Safety Instructions Please read the following instructions carefully to ensure correct use and to prevent unexpected accident and damage caused by incorrect use. Do not disassemble or modify the IP videophone or power adapter by anyone other than the authorized personnel. The warranty will not cover any defect that occurs due to such mishandling. Install the unit on a stable and flat surface to ensure safe operation. Do not install the unit in such a location where the unit can be affected by dust or gas. Do not install the unit in a place subject to direct sunlight, or near heat sources such as radiators. Do not install the unit near humid location to avoid any defect, heat and electric shock. Do not touch the electric adapter when it is thundering and lightning to avoid electric shock. Keep the unit safe from sudden shock to prevent defect. And do not apply excessive force especially to the LCD screen and the camera. Clean the camera and the LCD screen with soft and clean clothes. Do not use coarse material to avoid damage. Make sure to turn off the power switch before disconnecting the mains lead. Disconnecting the mains with the power switch on will cause defect of the unit. Do not apply sudden change of temperature. Installing in a place with severe temperature change may cause defect of the unit. CIP-4500 User Manual 6 Make sure to use the exclusive power adapter. Disconnect the power cable when the unit is not in use for a long time. CIP-4500 User Manual 7 1. Installing IP Videophone Components The following parts are included in the product package. Be sure that you received all the parts. • Main body of IP Videophone • Handset • Power adaptor • Power cable • User manual • Network cable • Telephone cable Name of parts and functions 1 Handset : Handset of IP Videophone 2 Speaker : rings bell or sounds off the voice of the other party in the speakerphone mode. 3 Camera : captures your image to send to the other party. 4 LCD screen : displays images of yours and the other party during the call. 5 Microphone : receives voice in the speakerphone mode. h Keypad : the buttons operate the functions of the IP Videophone 123 4 5 h CIP-4500 User Manual 8 Numeric keys Enters phone number in the dialing mode or the letters in the User Configuration menu. * Enters ‘*’. SMS Sends a short message during a call. Enters ‘.’ or ‘#’. # Rejects the incoming call. FLASH Forwards the call to others during the Internet mode. 1aA Selects the type of letters in the input mode. (Numeric/Lowercase/Capital) DISPLAY Changes the display mode during a call. Shifts between the URL links and the URL input windows displayed on the browser. Moves to the submenus when retrieving the mail. TAB Moves to the submenus when the auto answer list is displayed. PRIVACY Stops transmitting the video data during a call. TEL Changes the call mode to public phone mode. REDIAL Makes a call to the last dialed number. MUTE Cuts off the voice transmission and sends the melody. EXIT Moves to the previous menu from the User Configuration menu or the Setup menu during a call. SPEAKER Activates or deactivates the speakerphone mode. POWER Indicates if the IP Videophone is switched on. 123 456 789 *SMS 0# . T WX S ENT ABCDEF GHIJKLMNO PQRSTUVWXYZ -. _ TEL FLASH/1aA EXIT DISPLAY/TAB POWER REGISTER PRIVACY MUTE :@/ SPEAKER REDIAL CIP-4500 User Manual 9 REGISTER Green LED is on when the IP Videophone registered to the Internet phone service. Greed LED blinks fast in auto answer mode. Green LED blinks slowly when the IP Video phone is registered to the Internet phone service and is in auto answer mode. Makes a call to the dialed number. Moves to the User Configuration menu. ENT Saves the setting in User Configuration menu. Moves between the User Configuration menus. Arrow Key ( ST XW ) Moves between the items in the edit mode of PhoneBook or CallLog in User Configuration menu. X ON/OFF : Turns on/off the power Y POWER : Connects the power adapter Z LINE : Connects to the telephone line [ VIDEO IN : Receives external video data \ AUDIO IN : Receives external audio data ] VIDEO OUT : Sends out video data ^ AUDIO OUT : Sends out audio data _ PC : Connects to the computer with LAN cable v WAN : Connects to Internet NOTE. A/V cable for audio/video input/output is not included in the package. NOTE. When connecting TV to VIDEO OUT, the LCD screen of IP Videophone may not be fully displayed depending on the model of TV. CIP-4500 User Manual 10 Installing IP Videophone Please check the components before installing the IP Videophone. For the best result, please follow the installation procedures. 1) Plug in the handset line to the body. 2) Connect the power cable to the power adapter. 3) Connect the power adapter to the body of IP Videophone. 4) Connect the ADSL modem cable, cable modem or LAN cable to the IP Videophone. 5) Connect the phone line. 6) Turn on the power. The network configuration wizard is displayed. Set up the appropriate network configuration. CIP-4500 User Manual 11 Network Configuration – Using Wizard What is Wizard? You must set up IP to use video call through the IP Videophone. The unit provides the wizard menu so that you can easily set up Internet. The menu provides you with the step- by-step…

Text truncated - open the document above for the full version.

C&S Technology Inc. Video Phone CIP-4500 Appendix 5. Block Diagram

C&S Technology Inc. Video Phone CIP-4500 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT C&S Technology Inc. Video Phone CIP-4500 Appendix 4. Internal Photographs of EUT C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 Appendix 5. Block Diagram C&S Technology Inc. Video Phone CIP-4500 Appendix 6. User Manual NOTICES TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. One or more of the following statements may be applicable : FCC WARNING CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

C&S Technology Inc. Video Phone CIP-4500 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC Label This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : CIP-4500 FCC ID : P6QCIP-4500 C&S Technology Inc.. Made in Korea

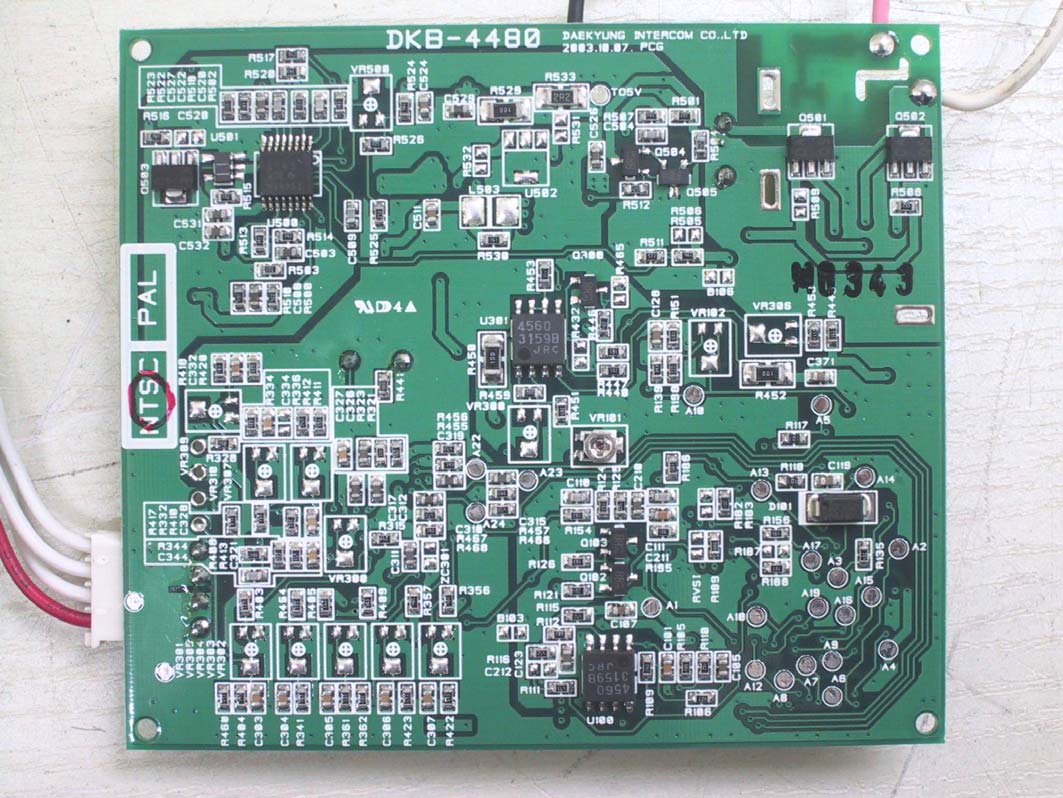

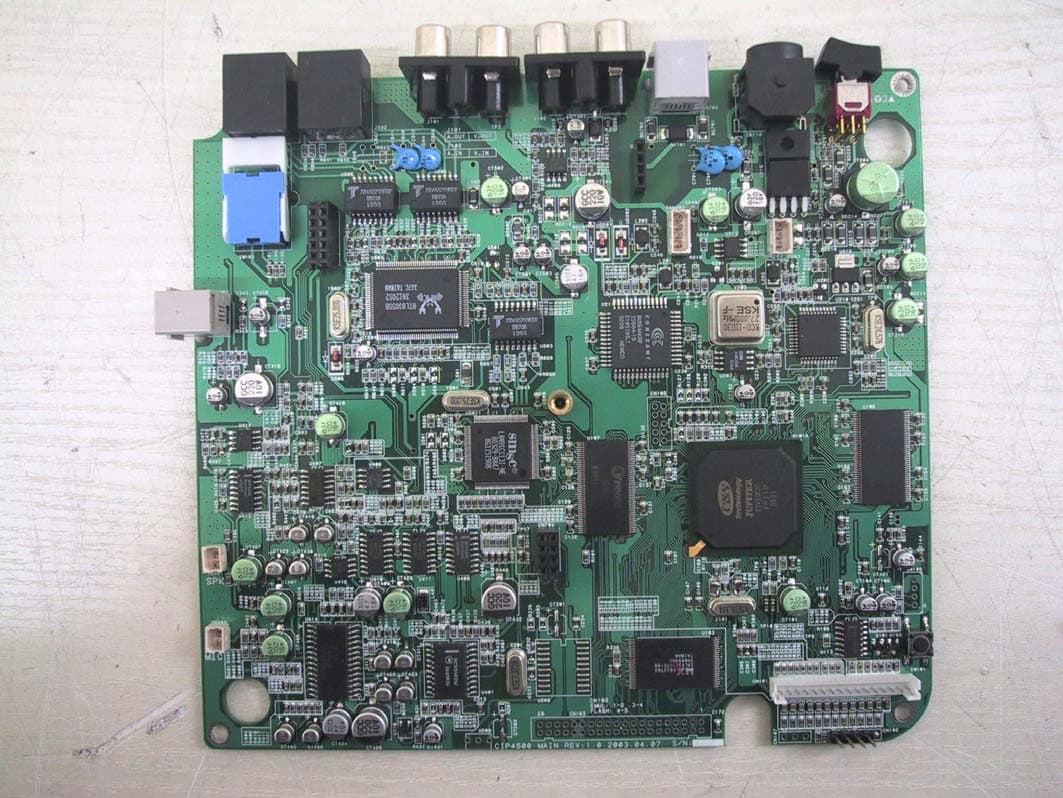

C&S Technology Inc. Video Phone CIP-4500 Appendix 4. Internal Photographs of EUT C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 C&S Technology Inc. Video Phone CIP-4500 Appendix 5. Block Diagram C&S Technology Inc. Video Phone CIP-4500 Appendix 6. User Manual NOTICES TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. One or more of the following statements may be applicable : FCC WARNING CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

BWS TECH Inc. 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-0057 FCC ID : P6QCIP-4500 Date of Test : December 15, 2003 C&S Technology Inc. Video Phone CIP-4500 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the C&S Technology Inc. Video Phone. model : CIP-4500(FCC ID : P6QCIP-4500). This Video Phone is powered by external AC/DC Adapter. 3.2 General Specification - Chassis Type : Plastic - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : X1:27.0 MHz, 25.0 MHz, 24.576 MHz, 16.384 MHz, 7.3728 MHz, 3.579545 MHz - Power Source : AC ADAPTER – Input : 100-240 Vac. 50/60 Hz 0.5 A - Output : 3.3 Vdc. 1.2 A, 5.0 Vdc. 0.6 A, 12.0 Vdc. 0.6 A - Power Consumption : 17 W - System : ITU-T Recommendation – H.323v2 IETF Recommendation - SIP(RFC 2543,3261) : Optionally Selectable - Video : ITU-T Recommendation - H.263 CIF Resolution : 352 X 288 pixels QCIF Resolution : 176 X 144 pixels Maximum Frame Rate (QCIF) : 30 fps - Audio : ITU-T Recommendation - G.723.1, G.711 Frequency response : 50Hz~3.4KHz Full Duplex Line Echo Cancellation - Camera : Illumination (min) - 1.0 lux (20 IRE), F.2.0 Horizontal field of view (max) : 50 ̊ Vertical field of view (max) : 39 ̊ - Display : Active Matrix TFT LCD Size - 4 inches Dot pitch (mm) : 0.171 (W) X 0.264 (H) Resolution : 480 X 234 pixels - Network : LAN - 10/100 Based-T (2 RJ-45 jack) ADSL, Cable Interface PSTN - RJ-11 jack - Internet Protocol : TCP/IP, UDP, ICMP, DHCP, NTP, TELNET - Supplementary Service : ITU-T Recommendation - H-450 - Call Transfer, Forwarding, Hold, etc. - Voice Encryption : ITU-T Recommendation - H-235 : Security framework used to provide authentication, encryption and intefrity to H.323 system - Remote Upgrade and Configuration : Remote Upgrade - The latest version of S/W will be downloaded from remote server using TFTP. Automatic and manual download are supported Remote Configuration - System information can be configured from remote site through embedded web server - Dimension : 250(W) x 212(D) x 82(H) mm, 1.25 kg 3.3 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.4 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS Tech inc.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC PART15 CERTIFICATION PRODUCT : Video Phone MODEL/TYPE NO : CIP-4500 FCC ID : P6QCIP-4500 TRADE NAME : Vizufon APPLICANT : C&S Technology Inc. C&S Venture Bldg. 221-2, Nonhyun-Dong, Kangnam-Gu, Seoul, 135-829, Korea Attn. : Young-Man Kim / General Manager FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : December 15, 2003 DATES OF ISSUE : December 15, 2003 TEST REPORT No. : BWS-03-EF-0057 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This Video Phone has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Taehyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. 2 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-0057 FCC ID : P6QCIP-4500 Date of Test : December 15, 2003 C&S Technology Inc. Video Phone CIP-4500 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual BWS TECH Inc. 3 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-0057 FCC ID : P6QCIP-4500 Date of Test : December 15, 2003 C&S Technology Inc. Video Phone CIP-4500 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Information Manufacturer Information Company Name : C&S Technology Inc. Company Address : C&S Venture Bldg. 221-2, Nonhyun-Dong, Kangnam-Gu, Seoul, 135-829, Korea Phone/Fax : Phone : +82 2 3015 1351 Fax : +82 2 515 4469 Company Name : C&S Telecom Corp. Company Address : C&S Bldg. 54-5, Moonjung-Dong, Songpa-Gu, Seoul, 138-826 Korea Phone/Fax : Phone : +82 2 448 7171 Fax : +82 2 448 7172 z EUT Type : Video Phone z Model Number : CIP-4500 z FCC Identifier : P6QCIP-4500 z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2000 z Date of Tests : December 15, 2003 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-03-EF-0057 BWS TECH Inc. 4 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-0057 FCC ID : P6QCIP-4500 Date of Test : December 15, 2003 C&S Technology Inc. Video Phone CIP-4500 2. Description of Test Facility The measurement test for radiated and conducted emission test were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the C&S Technology Inc. . Video Phone Model : CIP-4500. BWS TECH Inc. 5 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Report No: BWS-03-EF-0057 FCC ID : P6QCIP-4500 Date of Test : December 15, 2003 C&S Technology Inc. Video Phone CIP-4500 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the C&S Technology Inc. Video Phone. model : CIP-4500(FCC ID : P6QCIP-4500). This Video Phone is powered by external AC/DC Adapter. 3.2 General Specification - Chassis Type : Plastic - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : X1:27.0 MHz, 25.0 MHz, 24.576 MHz, 16.384 MHz, 7.3728 MHz, 3.579545 MHz - Power Source : AC ADAPTER – Input : 100-240 Vac. 50/60 Hz 0.5 A - Output : 3.3 Vdc. 1.2 A, 5.0 Vdc. 0.6 A, 12.0 Vdc. 0.6 A - Power Consumption : 17 W - System : ITU-T Recommendation – H.323v2 IETF Recommendation - SIP(RFC 2543,3261) : Optionally Selectable - Video : ITU-T Recommendation - H.263 CIF Resolution : 352 X 288 pixels QCIF Resolution : 176 X 144 pixels Maximum Frame Rate (QCIF) : 30 fps - Audio : ITU-T Recommendation - G…
