P73SPIDERMEN9RSPIDERMEN MONSTER TRUCK

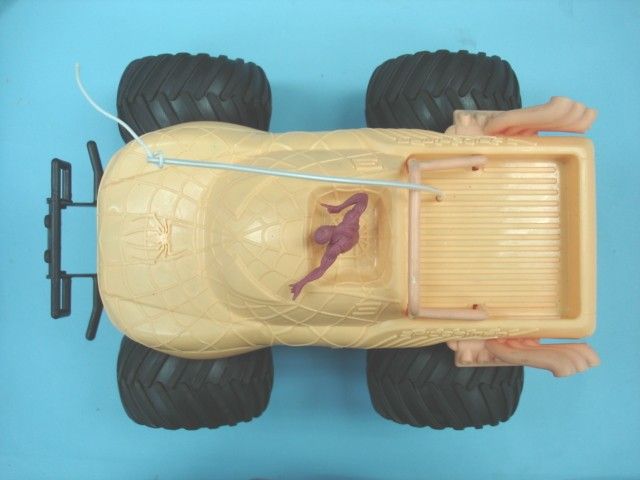

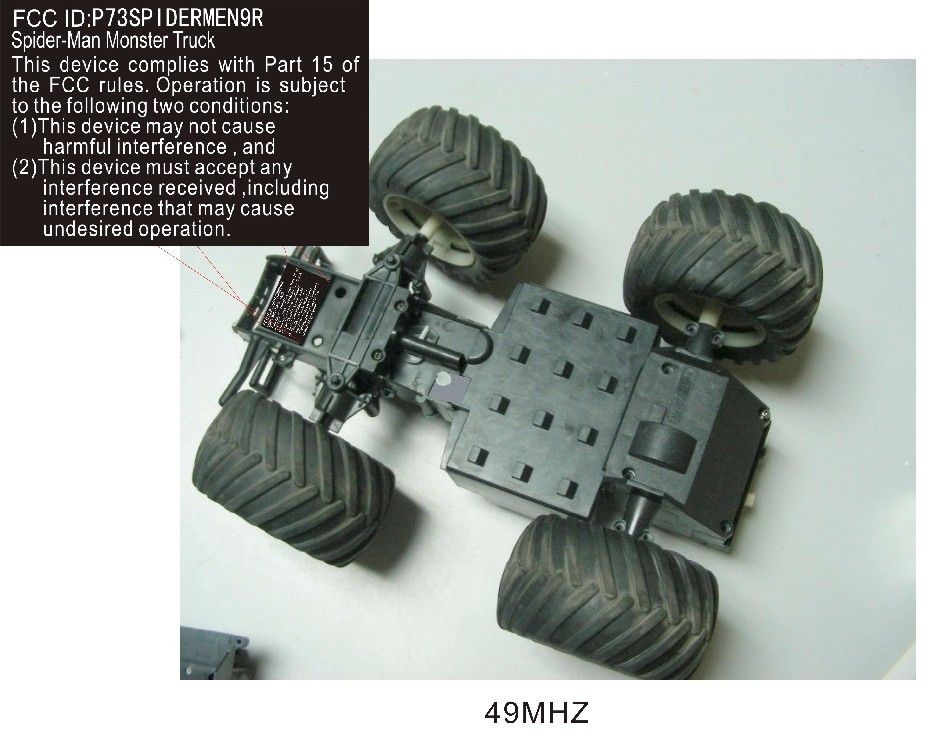

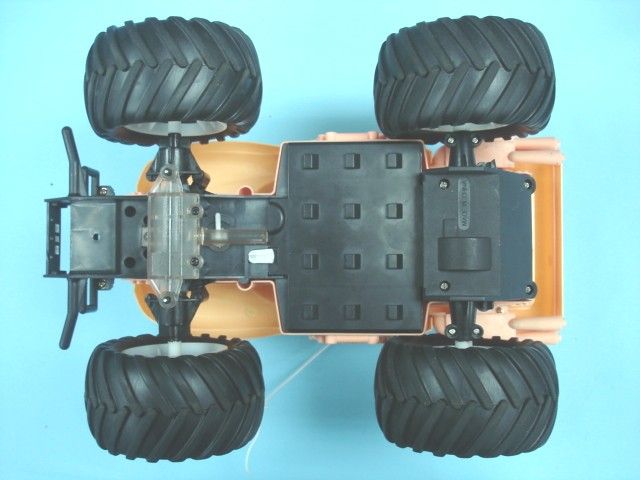

Spider-Man Monster Truck OWNER'S MANUAL Please read before using this equipment Radioshack Spider-Man truck is built to handle the road in style and dazzle your friends with sonic speeds! Built to 1114 scale. Your truck is available in two frequencies (27 and 49 MHz) and 3 selectable bands to let you race against other 5 radio-controlled racers. Check the truck's box to see which frequency your Spider-Man truck uses. Set the band A, B or C on the chassis inside the battery compartment to match with the band (Preset is A] setting on the transmitter. If you need to change the band setting, make sure to match both the truck and the transmitter band settings. NOTE: Make sure you're not pressing a transmitter control when you adjust the Selector switch. "H" & "1" Gear Select "H" or "L" Gear by adjusting the Gear switch on the back of Truck. "H" Gear is suitable for running on flat and wide places and your Truck runs faster on "H" Gear. "L" Gear is suitable for running on rough and narrow places. If the Gear switch does not change smoothly, turn the rear wheels slightly by hand to facilitate the gear change. FCC DECLARTION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (I) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. THE FCC WANTS YOU TO KNOW This equipment has tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation; this equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

PDF created with pdfFactory Pro trial version www.pdffactory.com

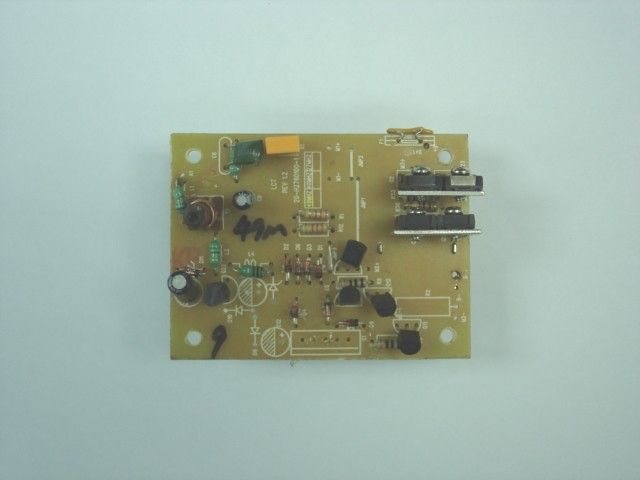

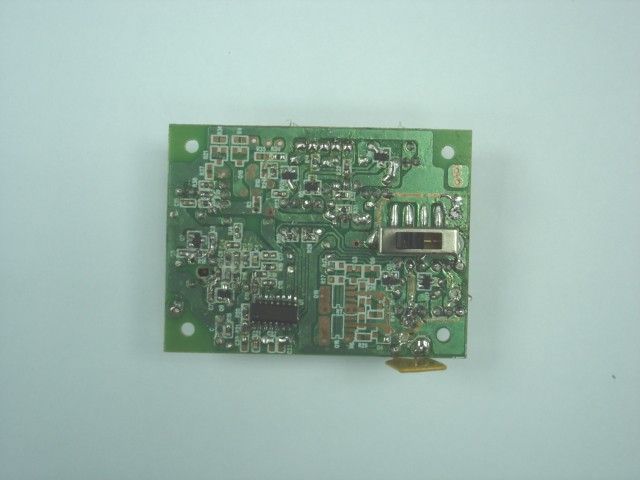

49.860MHz receiver operational description of Spidermen Monster Truck The Monster Truck car is a full function radio controlled toy car .There is two types of supple voltage form for car ,one is 9.6 volts rechargeable Ni-MH pack battery .This car is designed to operate on a signal fixed frequency in 49.82~49.90MHz. Please consult with added block diagram and schematic. The modulated RF signal from the transmitter induces an electrical signal into the carís permanently attached metal antenna. The electrical signal is selectively amplified by a super regenerative input circuit (L1,Q7,C15,Q9 ,T1,C10). The signal is then input into an integrated circuit (U1), where the signal is amplified and decoded two pairs of digital outputs Q17,Q24,Q2,Q23,Q19,Q20 control to the driving motor M3.Steering motor M2 driving circuit comprised of Q15,Q6,Q5,Q13,Q14,Q11,Q12. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

PDF created with pdfFactory Pro trial version www.pdffactory.com

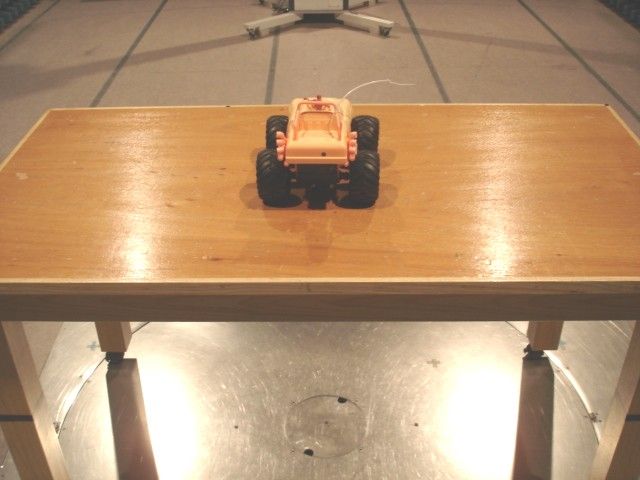

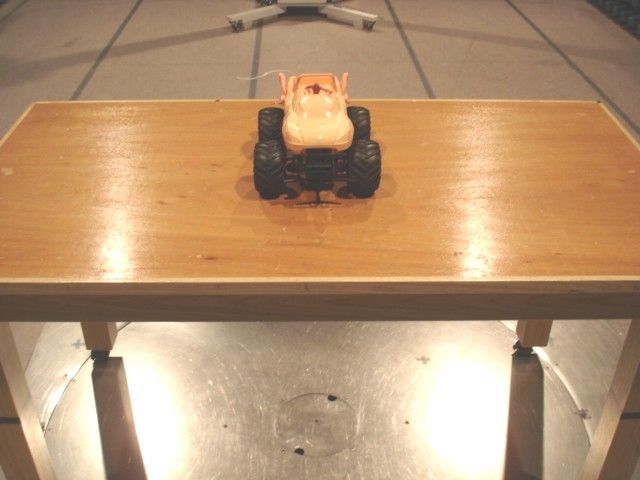

TEST REPORT Report No. : AJ021980-001 Date : 2007 August 14 Page 1 of 13 FCC ID: P73SPIDERMEN9R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ217764(5) Applicant : Lung Cheong Toys Ltd. Lung Cheong Building, 1 Lok Yip Road, Fanling, Hong Kong Sample Description : One(1) submitted sample(s) stated to be Spidermen Monster Truck of Model No. 60-260 Radio Frequency : 49.860MHz Receiver Rating : 1 x 9.6V rechargeable battery No. of submitted sample : Two (2) piece(s) *** Date Received : 2007 July 16 Test Period : 2007 July 20 ñ 2007 July 23 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 13. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : The receiver contains three control bands and all bands were measured. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ021980-001 Date : 2007 August 14 Page 2 of 13 FCC ID: P73SPIDERMEN9R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data (Conít)............................................................................8 2.3 Radiated Emission Measurement Data (Conít)............................................................................9 3 Description of the Line-conducted Test.............................................................................................10 3.1 Test Procedure............................................................................................................................10 3.2 Test Result..................................................................................................................................10 3.3 Graph and Table of Conducted Emission Measurement Data ...................................................10 4 Photograph .........................................................................................................................................11 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ....................11 4.2 Photographs of the External and Internal Configurations of the EUT.......................................11 5 Supplementary document ...................................................................................................................12 5.1 Bandwidth ..................................................................................................................................12 5.2 Duty cycle ..................................................................................................................................12 5.3 Transmission time ......................................................................................................................12 5.4 Power Spectral Density ..............................................................................................................12 6 Appendices .........................................................................................................................................13 TEST REPORT Report No. : AJ021980-001 Date : 2007 August 14 Page 3 of 13 FCC ID: P73SPIDERMEN9R This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for Spidermen Monster Truck. It operates at 49.860MHz and the oscillation of radio control is generated by a LRC circuit. The EUT is powered by 1 x 9.6V rechargeable battery. When it received a forward, backward, turn right or turn left signal, it will move to the corresponding direction. The brief circuit description is listed as follows: - Q7, Q9 and associated circuit act as a RF amplifier. - U1, X1 and associated circuit act as a decoder. - Q22, Z1 and associated circuit act as a voltage regulator. - Q2, Q17, Q19, Q20, Q23, Q24 and associated circuit act as a motor driver for M3. - Q5, Q6, Q11 ~ Q15 and associated circuit act as a motor d…
