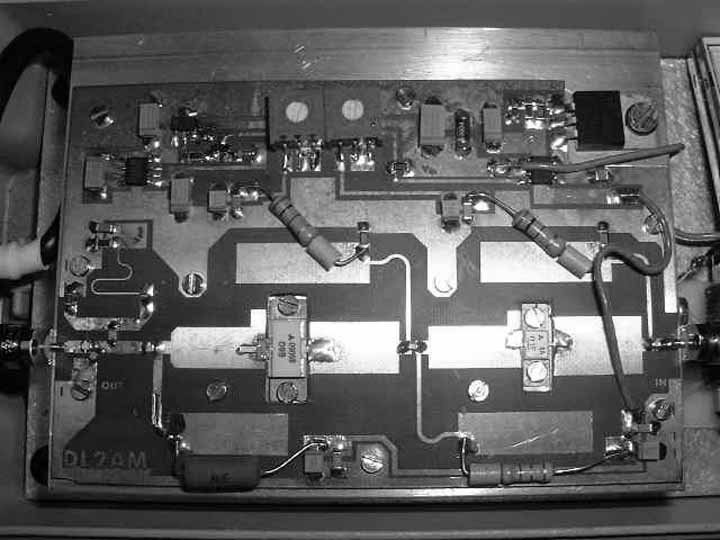

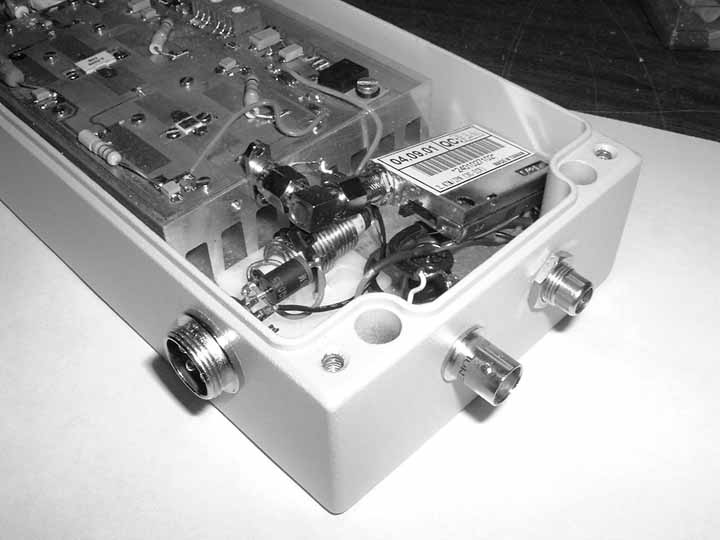

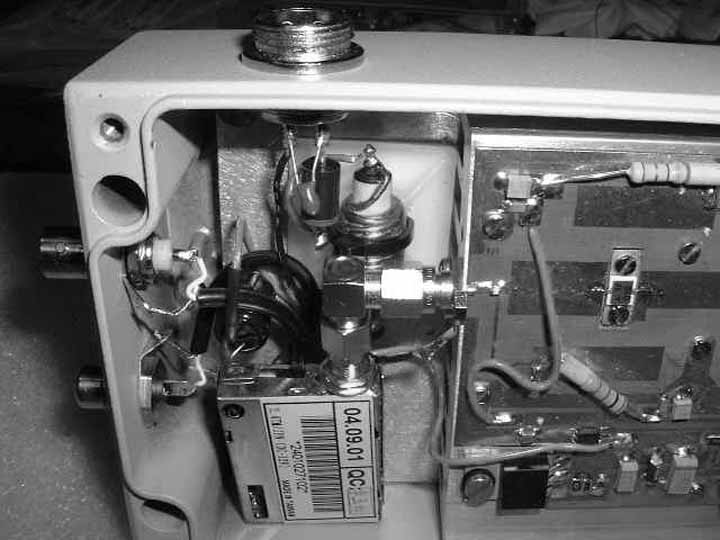

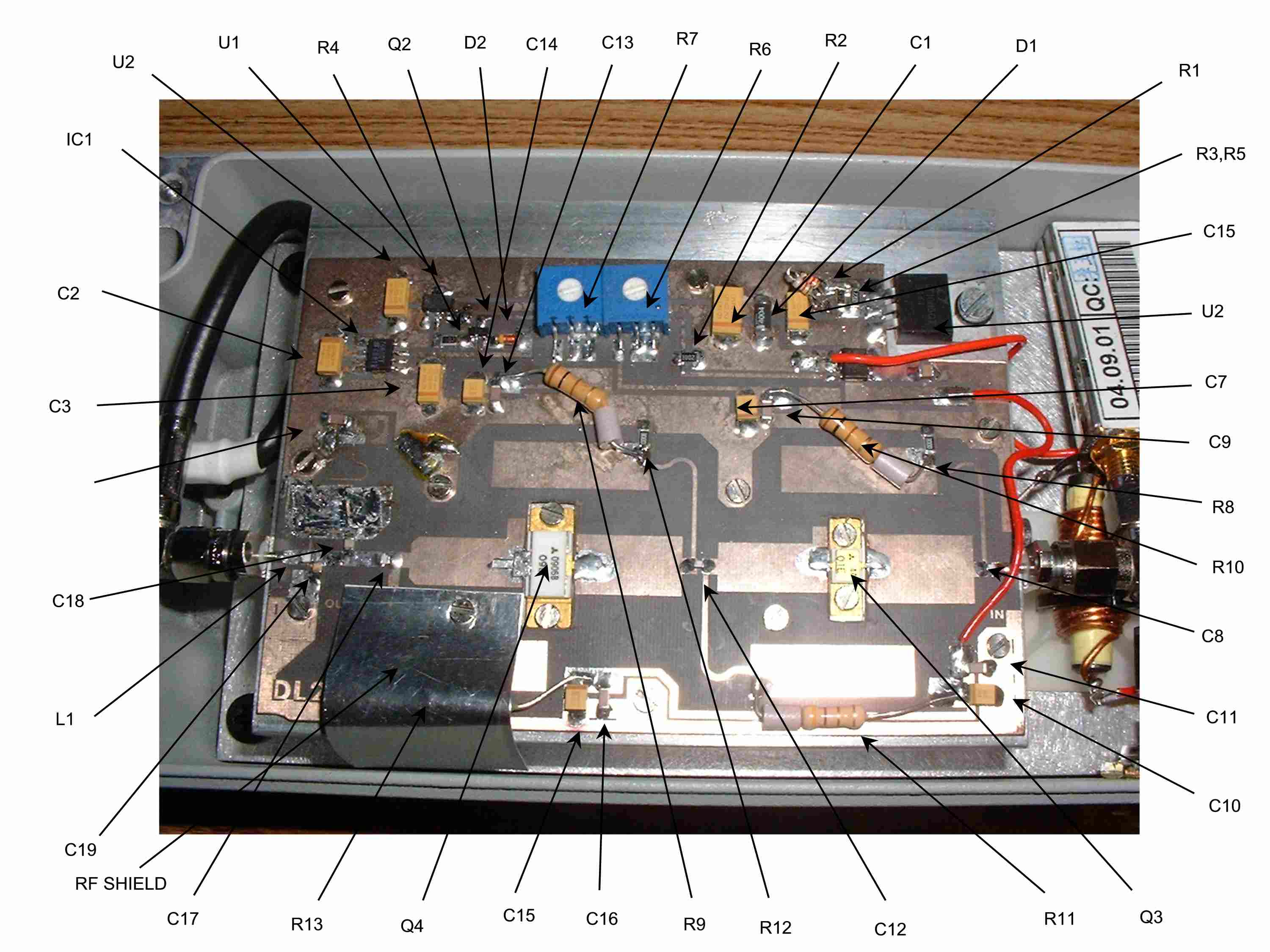

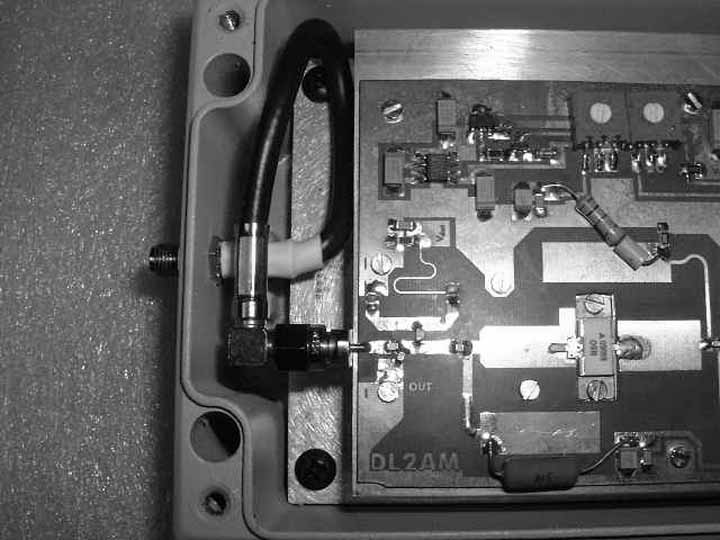

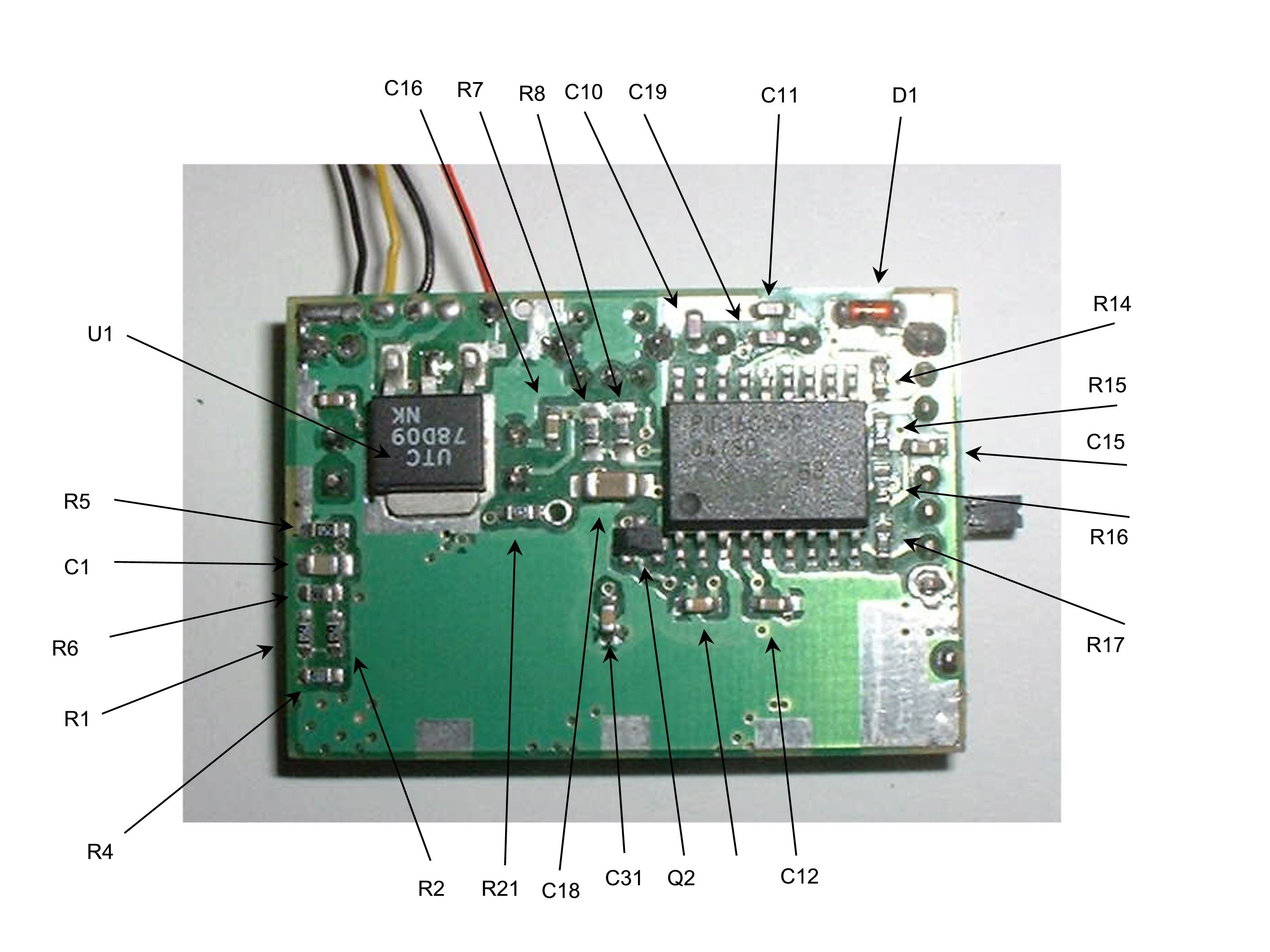

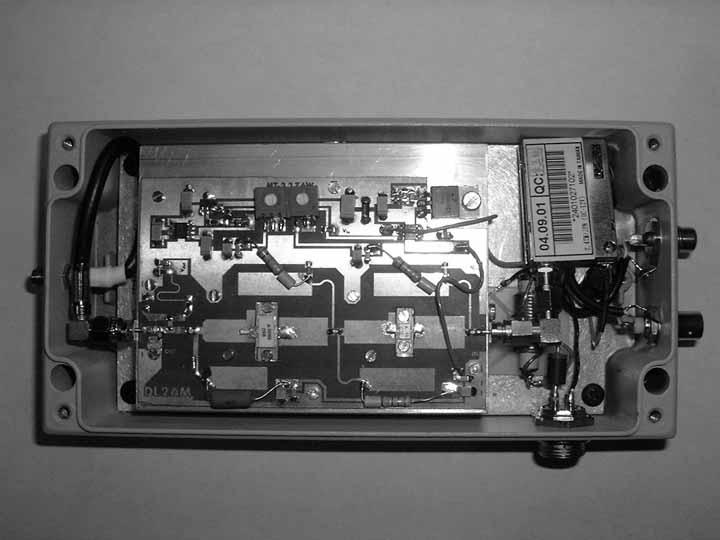

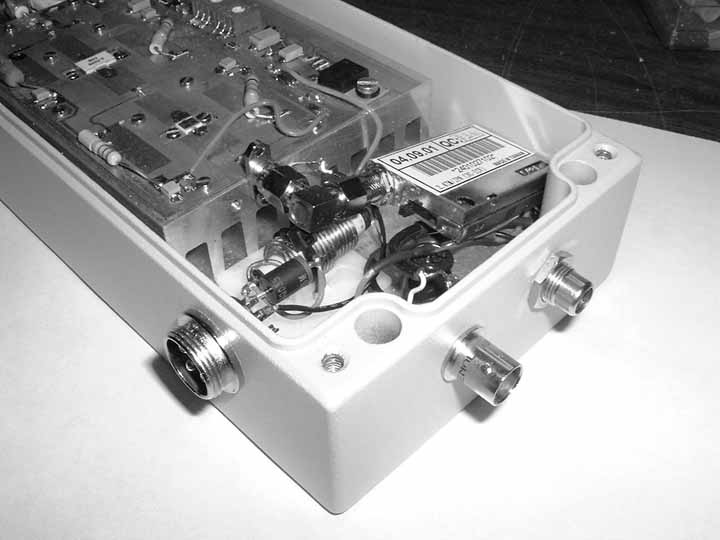

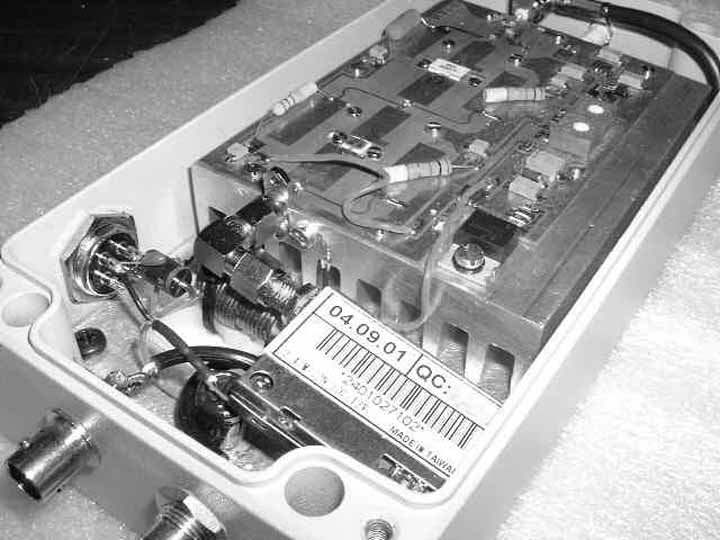

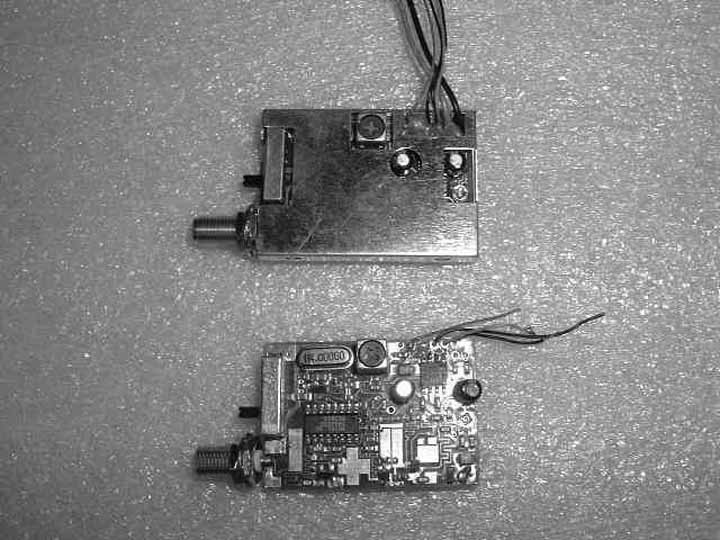

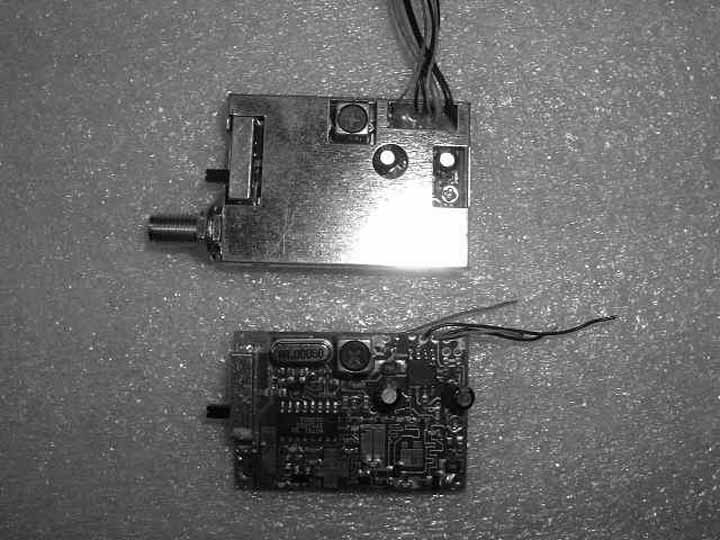

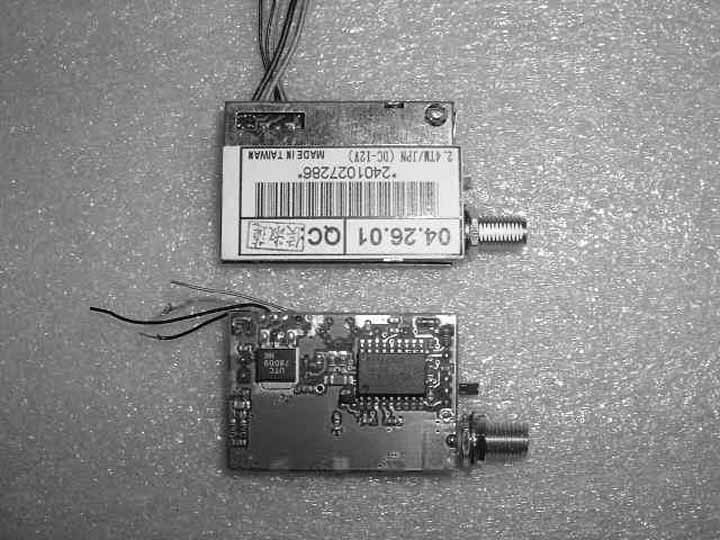

P7F-FCCPART90-3W3-Watt 2470MHz Transmitter

FCC Part 90 FCC Part 90FCC Part 90 FCC Part 90 3-Watt Video/Audio 3-Watt Video/Audio3-Watt Video/Audio 3-Watt Video/Audio Transmitter TransmitterTransmitter Transmitter FCC ID: P7F-FCCPART90-3W Model: LEA-3-WATT Users Manual Users ManualUsers Manual Users Manual Users Manual Users ManualUsers Manual Users Manual 2 Gamut Electronics LLC 10601 Tierrasanta Blvd. • Suite 126 San Diego, CA Telephone/FAX (858) 974-3657 Users Manual Users ManualUsers Manual Users Manual 3 Table of Contents Introduction............................................................................................................................ 4 Application............................................................................................................................. 4 Cautions................................................................................................................................4 Installation............................................................................................................................. 4 Operation.............................................................................................................................. 4 FCC Information..................................................................................................................... 5 RF Exposure Information........................................................................................................ 5 Service & Maintenance........................................................................................................... 6 Warranty...............................................................................................................................6 Contact................................................................................................................................. 6 Specifications......................................................................................................................... 7 Radio Section.......................................................................................................... 7 Input Power............................................................................................................. 7 Video Section.......................................................................................................... 7 Audio Section.......................................................................................................... 7 Environmental......................................................................................................... 7 Mechanical.............................................................................................................. 7 Connectors.............................................................................................................. 8 Users Manual Users ManualUsers Manual Users Manual 4 Introduction Congratulations on choosing Gamut Electronics LLC for providing your FCC Part 90 video transmitter needs. The Model LEA-3-WATT transmitter is a high performance video transmitter designed specifically for Law Enforcement Agencies. Application The Model LEA-3-WATT video transmitter is specifically designed for the broadcast of standard NTSC signals to be received and processed by a broadcast video receiver, providing a wireless link for closed circuit television systems. The output power of the transmitter is almost 3 Watts. This transmitter has been designated for mobile applications. This transmitter is type accepted for licensed use under FCC rules Part 90 for use in the 2450 to 2483.5 MHz frequency band. This transmitter has a fixed transmit frequency of 2470 MHz. Intended users include state and local agencies of law enforcement, fire departments or other public safety organizations or agencies. This equipment is EMI/RFI sealed and is intended to be dust, water and weather resistant under normal environmental and operating conditions. Any attempt to open the unit or to expose the internal components, by other than a manufact ures aut horized technician, will violate the integrity of the sealing system and will invalidate the warranty. Cautions A suitable 50-Ohm antenna or load should be connected to the RF output of the transmitter before applying DC input power. Do not apply more than 14 VDC on the input power. Installation Ideally, the transmitter should be located such that the space between the transmit and receive antennas is unobstructed. Physical, man-made and environmental structures or topographical features between the antenna will absorb or reflect transmitted signals; reducing or limiting t he transmit range. Metal or metalized material in the antenna wave pattern will cause signals to be reflected. Other structural and physical obstructions, i.e., concrete, glass, trees, etc. will cause the transmitted signals to be attenuated by absorption to some degree. Even though the transmitter is sealed and is water resistant it is not intended to be installed outdoors. This transmitter has been designated for mobile applications. Do not place the transmitter antenna in close proximity to another transmitting antenna. Operation The transmitter is provided with a 0 dBi dipole antenna connected to the external antenna connector. For other antenna options please contact Gamut Electronics LLC. Users Manual Users ManualUsers Manual Users Manual 5 Apply DC power to the transmitter using a battery or power supply. The transmitter has been deigned to operate from +12 VDC ± 15%. When operated at +12 VDC, input current is about 1.5 Amp. Power sources should be stable, regulated and be capable of supplying slightly more than the required current. When connecting to a battery, the red alligator clip is positive (+) and the black alligator clip is negative (-). The NTSC 1 V p-p video output of the camera is connected to the BNC (female) video input of the transmitter via standard 75-Ohm coaxial cable such as RG-59. Long lengths (>50 fee…

Text truncated - open the document above for the full version.

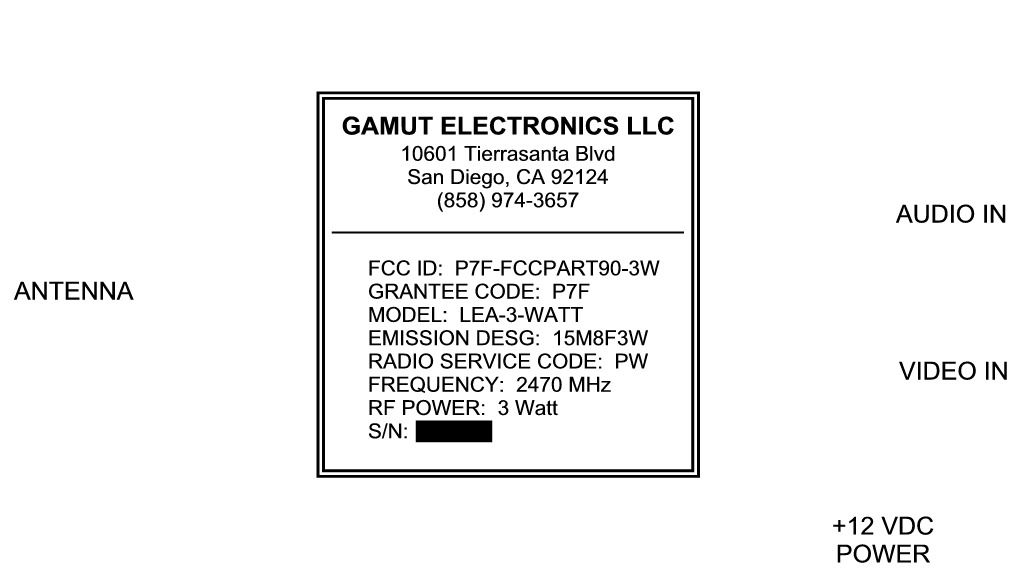

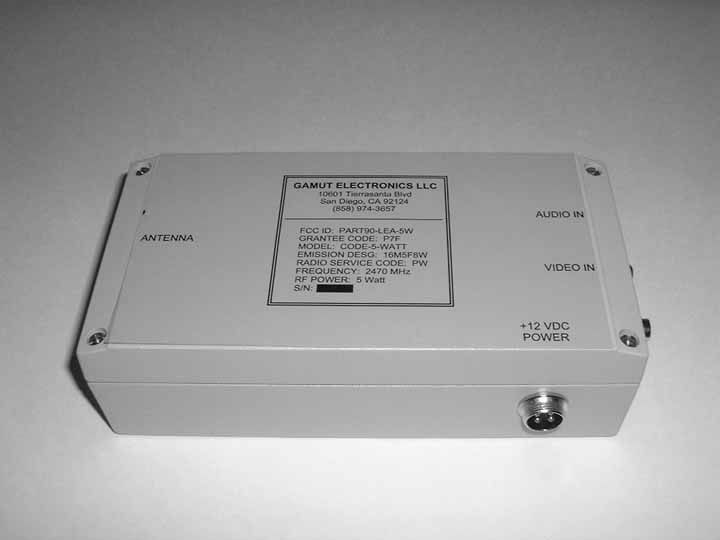

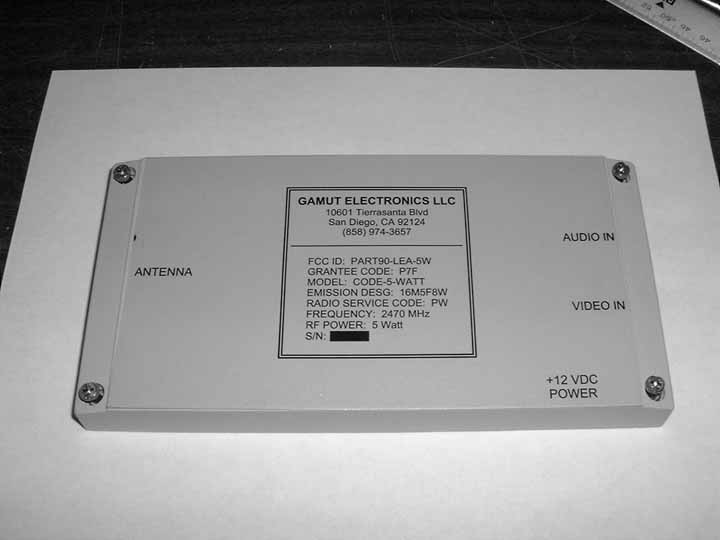

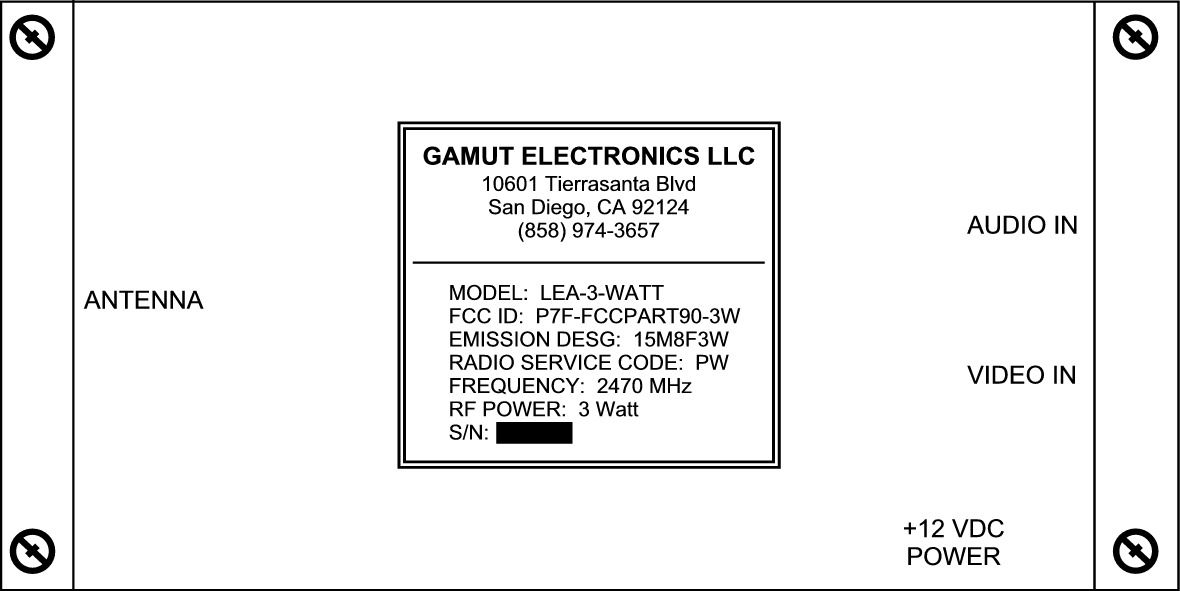

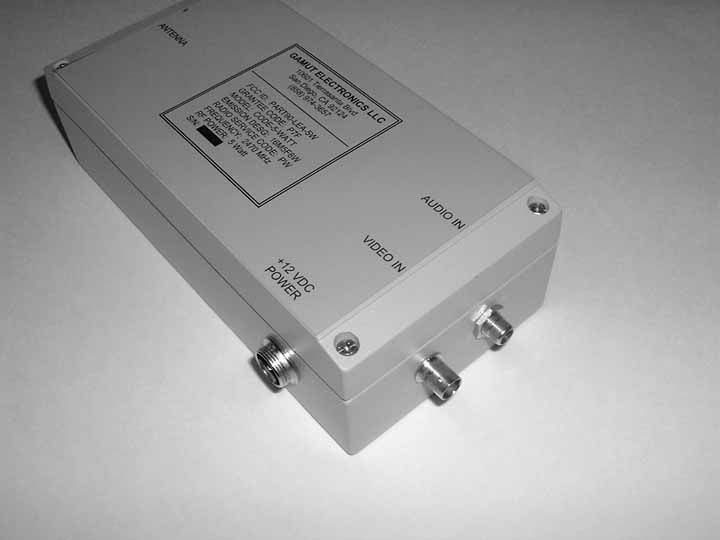

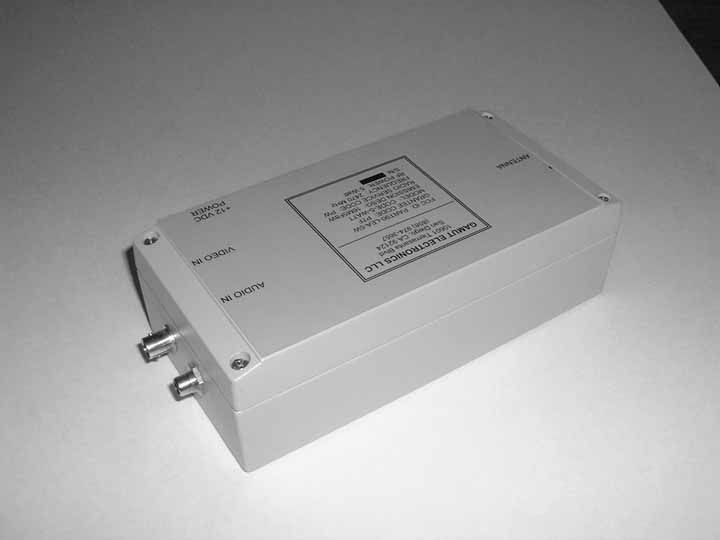

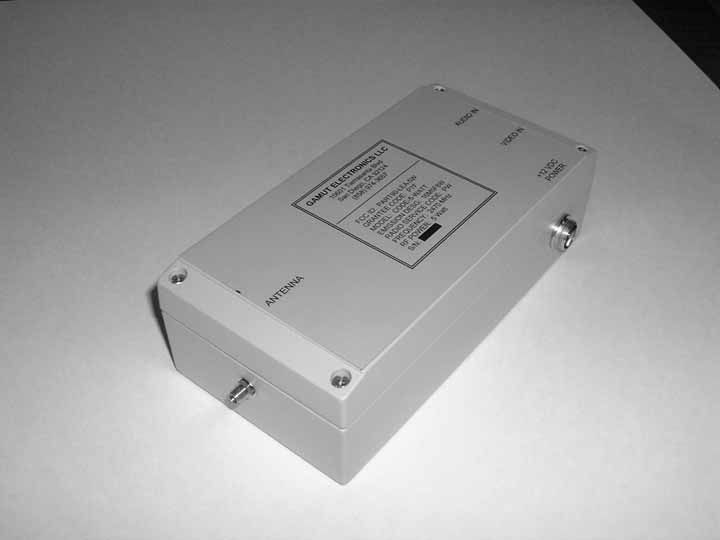

FCC Labeling Requirements and Information 6 May 2002 Federal Communications Commission 445 12 th St reet , N. W. Washington, DC 20554 RE: FCC Labeling Requirements FCC ID:P7F-FCCPART90-3W The FCC Rules and Regulations require the following label information for certified devices. The attached labeling information is silk-screened on the lid of the transmitter. Thank you for your attention to these matters. Sincerely, John Hibbs President Gamut Electronics LLC

Page 1 of 47 Report No.: FC02-036A ADDENDUM TO FC02-036 FOR THE VIDEO/AUDIO TRANSMITTER, LEA-3-WATT FCC PART 90 AND PART 15 SUBPART B SECTIONS 15.109 CLASS B COMPLIANCE DATE OF ISSUE: MAY 2, 2002 PREPARED FOR: Gamut Electronics LLC 10601 Tierrasanta Blvd., Suite 126 San Diego, CA 92124 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 W.O. No.: 78490Date of test: April 11-15, 2002 Report No.: FC02-036A This report contains a total of 47 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 47 Report No.: FC02-036A TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Conditions for Compliance.............................................................................................. 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Temperature and Humidity During Testing .................................................................... 5 2.1033(c)(3) User’s Manual ............................................................................................ 6 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 6 2.1033(c)(9) Tune-Up Procedure .................................................................................... 6 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 6 2.1033(c)(11) Label and Placement................................................................................. 6 2.1033(c)(12) Submittal Photos....................................................................................... 6 2.1033(c)(13) Modulation Information ........................................................................... 6 2.1033(c)(14)/2.1046/90.205(l) - RF Power Output........................................................ 7 2.1033(c)(14)/2.1047(b) - Audio Frequency Response................................................... 10 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response ............................................. 10 2.1033(c)(14)/2.1049(i)/90.210 - Occupied Bandwidth .................................................. 11 2.1033(c)(14)/2.1051/90.210 - Spurious Emissions at Antenna Terminal...................... 20 2.1033(c)(14)/2.1053/90.210- Field Strength of Spurious Radiation.............................. 23 2.1033(c)(14)/2.1055/90.213 - Frequency Stability ........................................................ 38 2.1093 - Maximum Permissible Exposure Calculations ................................................. 40 15.109 – Radiated Emissions – Receiver/Digital ............................................................ 41 Page 3 of 47 Report No.: FC02-036A CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: April 11-15, 2002 DATE OF RECEIPT: April 11, 2002 PURPOSE OF TEST: To demonstrate the compliance of the Video/Audio Transmitter, LEA-3-Watt with the requirements for FCC Part 90 and Part 15 Subpart B Sections 15.109 Class B devices. The purpose of this addendum is to revise the RF Power Output data. TEST METHOD: ANSI C63.4 (1992) and FCC Part 90 FREQUENCY RANGE TESTED: 9 kHz - 25 GHz MANUFACTURER: Gamut Electronics LLC 10601 Tierrasanta Blvd., Suite 126 San Diego, CA 92124 REPRESENTATIVE: John Hibbs TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92621 Page 4 of 47 Report No.: FC02-036A SUMMARY OF RESULTS As received, the Gamut Electronics LLC Video/Audio Transmitter, LEA-3-Watt was found to be fully compliant with the following standards and specifications: United States ! FCC Part 90 and Part 15 Subpart B Section 15.109 Class B ! ANSI C63.4 (1992) method and FCC Part 90 CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. Conducted emissions not required for this device. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Steve Behm, Manager of Engineering ServicesEddie Wong, EMC Engineer Joyce Walker, Quality Assurance Administrative Manager Septimiu Apahidean, EMC/Lab Manager Page 5 of 47 Report No.: FC02-036A EQUIPMENT UNDER TEST (EUT) DESCRIPTION The EUT teste…

Text truncated - open the document above for the full version.

Rubber Duck/Portable Antenna Series (Pat.Pend.) For 2.4 GHz Applications Frequency:2.4 - 2.485 GHz Gain:2.5 dBi max for 1/2 wave, 0 dBi max for 1/4 wave Bandwidth@2:1 VSWR:85 MHz or better Impedance:50 Ohm nominal Maximum Power:10 Watts Whip Length: 1/2 wave straight4 inches 1/2 wave right angle5.75 inches 1/4 wave stub1.25 inches Specifications PSTN series shown in PVC radome PSTG Stubby Series PSWN Series The halfwave antennas require no ground plane for operation. This makes the antenna ideal for use with hand held products or products with no substantial metal groundplane. They can even be used with products containing all plastic chassis or case. The 2.5 dB gain antenna also compensates for typical system losses that occur at these frequencies. Connector styles available include male TNC or SMA. Right angle connector models are available for side mounting applications. The PSTN series uses a flexible PVC cover, and the HSTN series uses a stylized hard ABS radome. Special connectors are available, please consult factory. The quarterwave antenna for 2.4 GHz provides en- hanced performance with the minimum of size. It uses a hard ABS radome and is colored in black with a textured finish. The antenna is fitted with a 6-32 thread, but can be outfitted with other thread sizes (minimum quantities apply). The ferrule provides the maximum economy for the antenna as well as the interface needed on the wireless product. A one time factory matching is recom- mended for wireless devices with little ground plane.
Halfwave 2.5 dB gain styles with flexible radome
Quarterwave stubby style with hard ABS radome
Wireless LAN (2.4 GHz), Wireless Data Capture & Surveillance applications
Sleek profile, with a variety of connector styles Model Numbers - 1/2 Wave Straight Antennas ModelFrequencyRadomeConnector PSTN3-2400S2.4-2.49 GHz FlexibleMale SMA PSTN3-2400T2.4-2.49 GHz FlexibleMale TNC PSTN3-2400N2.4-2.49 GHz FlexibleMale N HSTN3-2400T2.4-2.49 GHz Hard ABS Male TNC HSTN3-2400S2.4-2.49 GHz Hard ABS Male SMA Model Numbers - 1/4 Wave Stub Antennas PSTG0-2400HH 2.4-2.49 GHz Hard ABS 6/32 thread PSTG0-2400HS 2.4-2.49 GHz Hard ABS SMA Model Numbers - 1/2 Wave Right Angle Antennas ModelFrequencyStyleConnector PSWN3-2400S 2.4-2.49 GHz FlexibleSMA PSWN3-2400T2.4-2.49 GHz FlexibleTNC Other frequency models available upon request. Please consult factory for details, minimum quantities will apply. Please reconfirm desired frequency when ordering. Whip Material: PSTN3 SeriesPVC jacket over dipole HSTN3 SeriesABS radome over dipole 1/4 wave StubABS radome over radiator Connector:See above Special configurations available upon request, please consult factory for details. Product Specifications US Office & Headquarters: 3900-B River Road, Schiller Park, IL 60176 Tel: 800-648-2800 or 847-671-6690 Fax: 847-671-6715 UK Office: 106 Anglesey Business Park, Hednesford, Staffs. WS12 5NR UK Tel: (+44) 1543-878343 Fax: (+44) 1543-871714 Visit our web page at www.mobilemark.com. Specifications subject to change without notice (12/2001). HSTN series shown in ABS radome

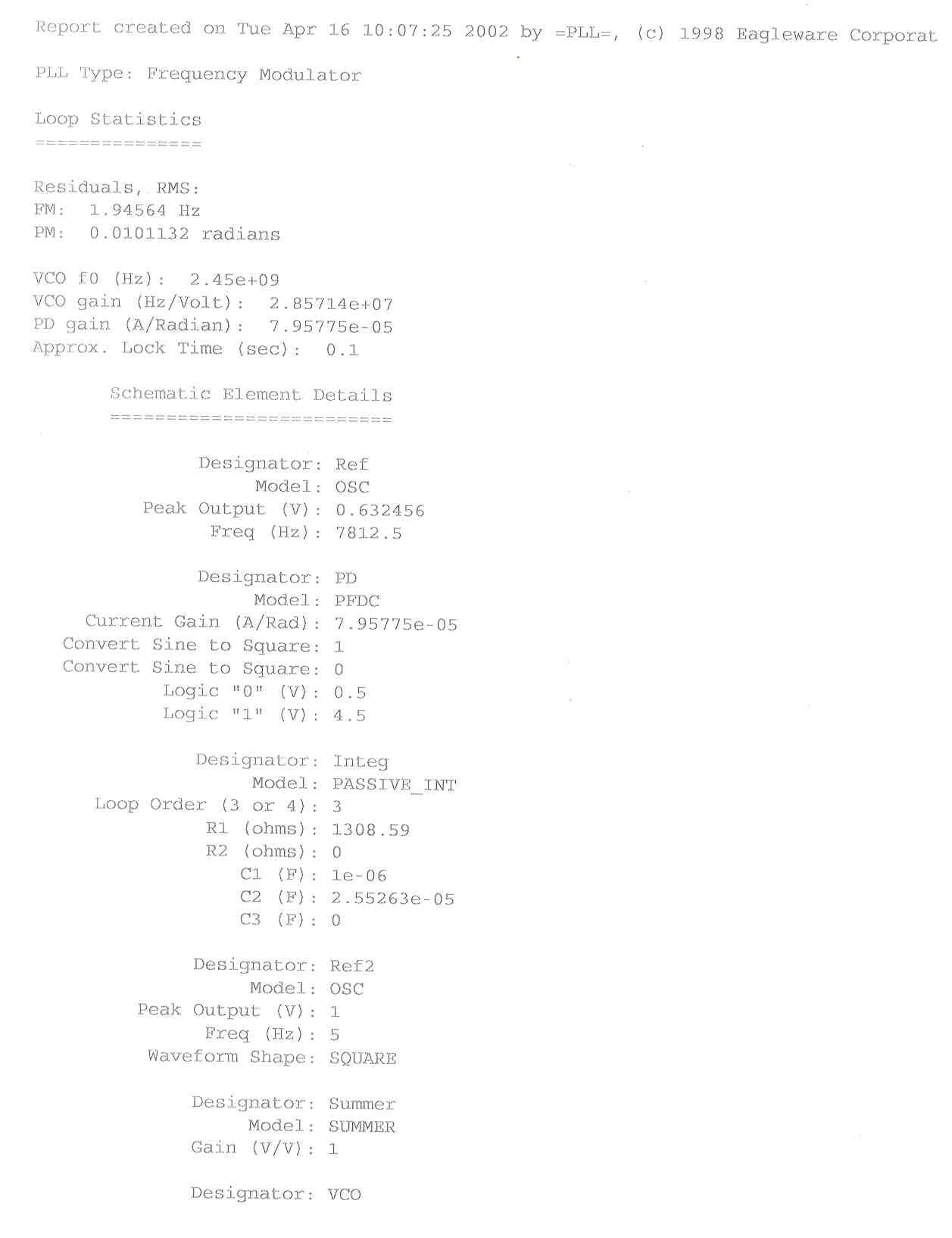

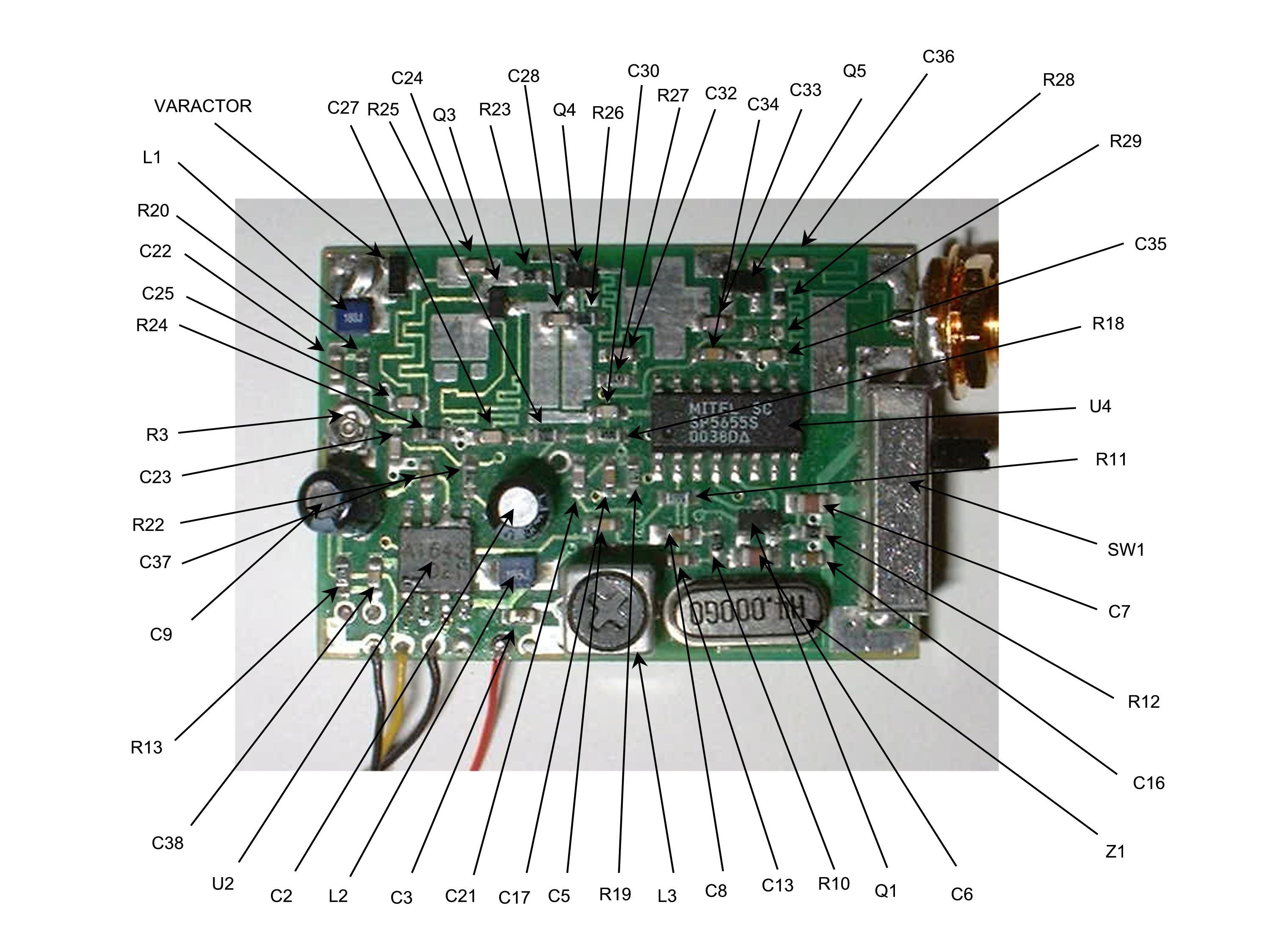

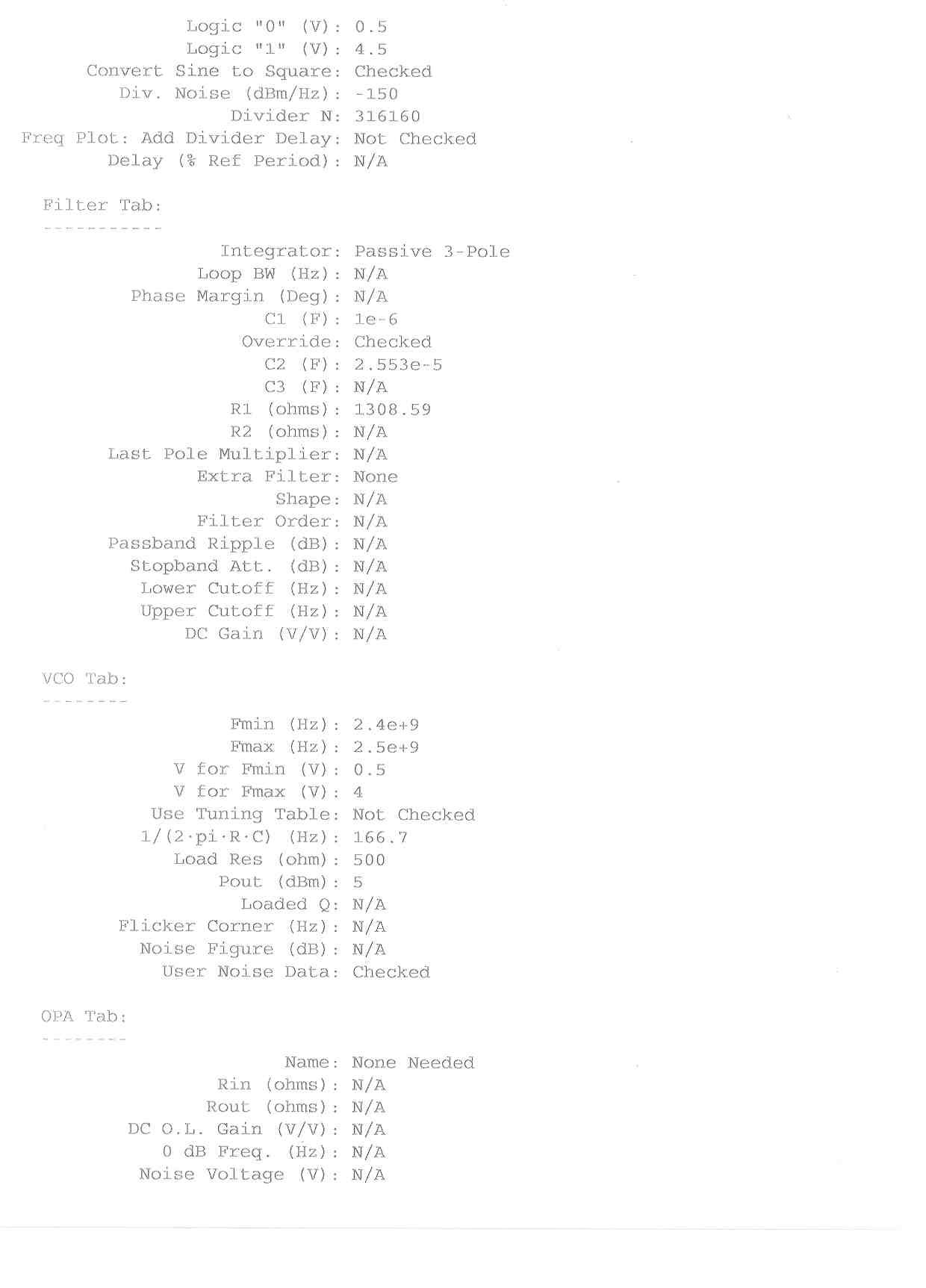

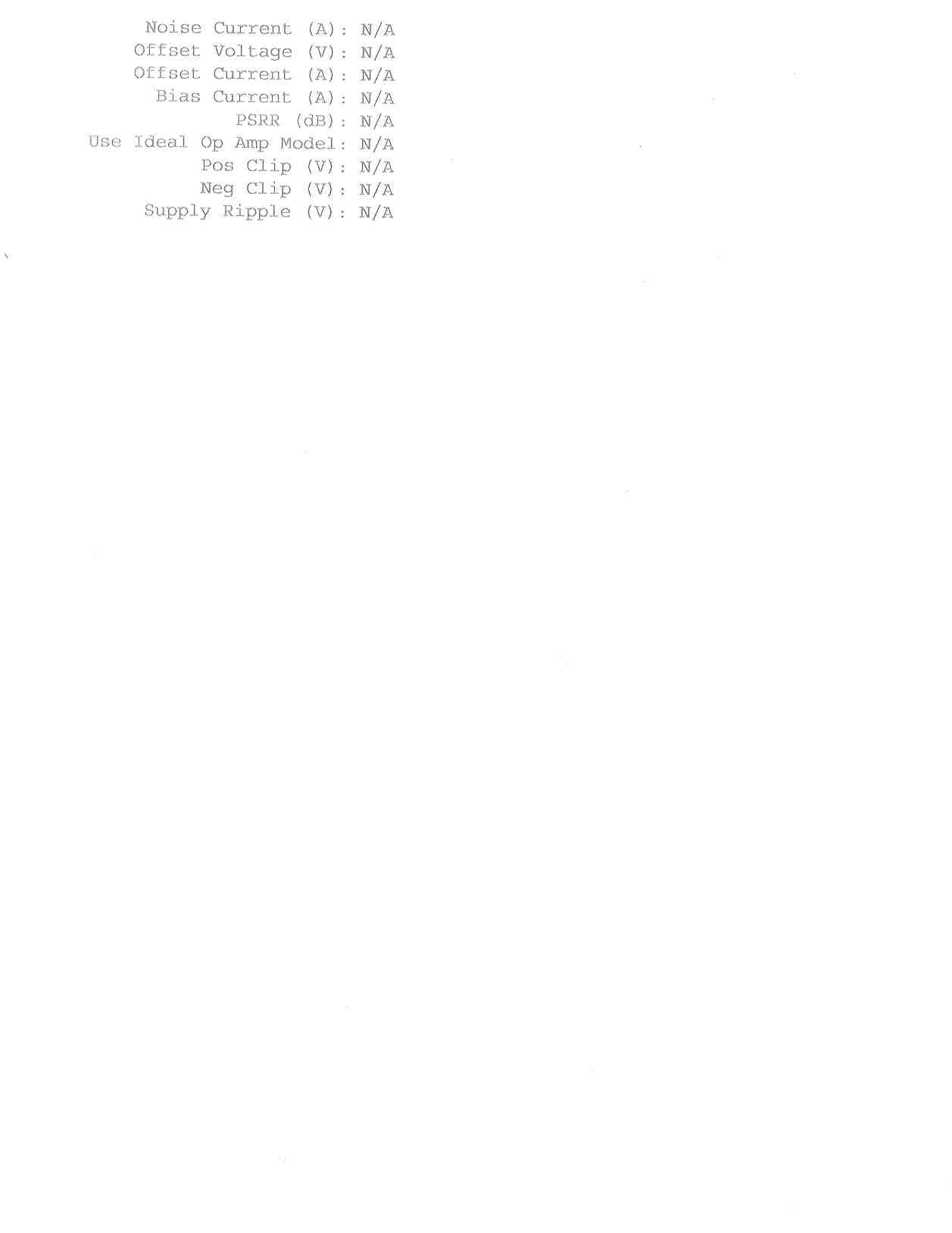

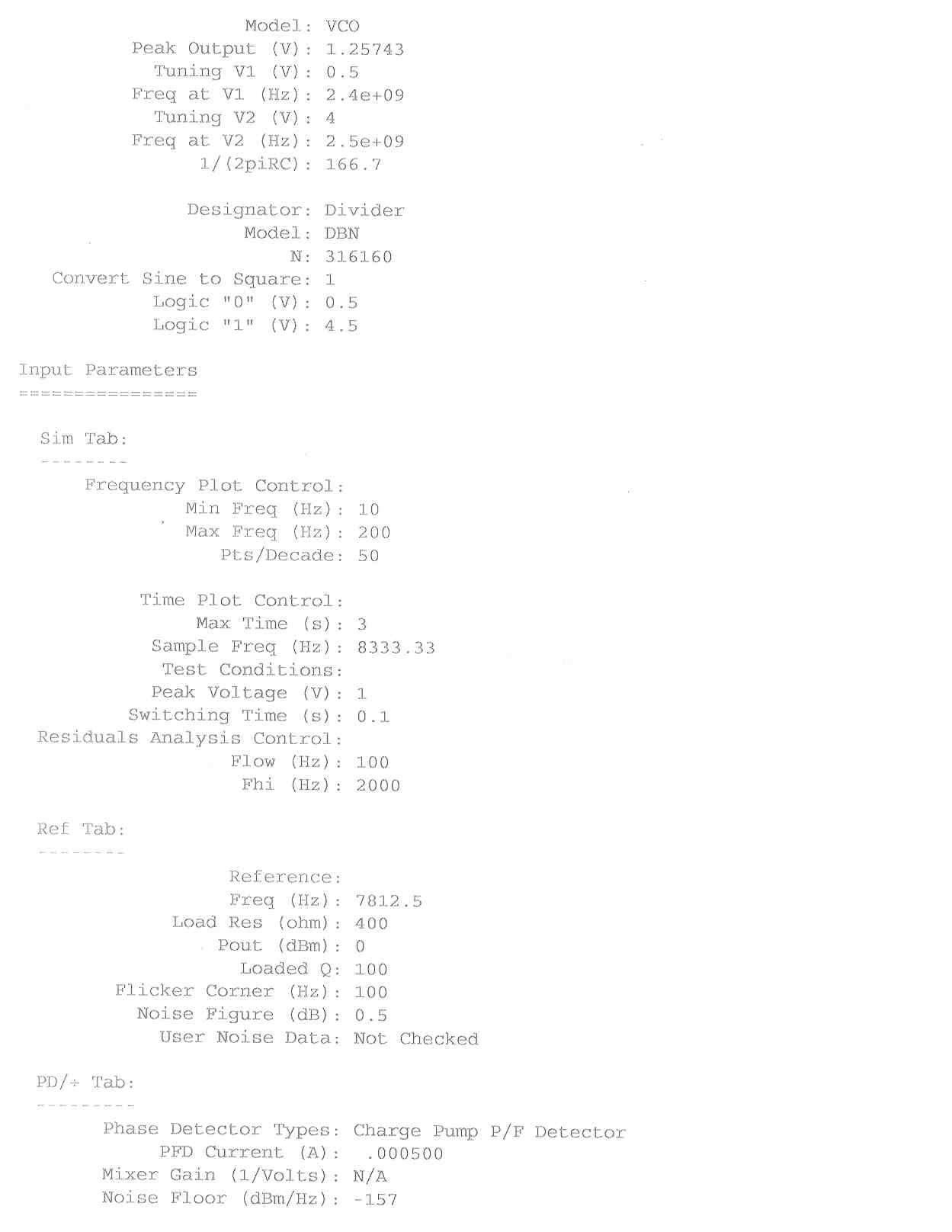

Frequency Stability Calculation A digital phase-lock loop (PLL) provides the frequency stability of the transmitter. The PLL consists of a high-stability crystal reference oscillator, a digital synt hesizer, a voltage controlled oscillator and a passive loop filter. The frequency synthesizer used for this transmitter is a Zarlink 2.7 GHz SP5655S synthesizer. The frequency synthesizer includes a phase detector, current mode charge pump, and programmable frequency dividers. The reference oscillator for the synthesizer is a 4.0000 MHz crystal oscillator. The frequency tolerance is ± 30 ppm. The frequency temperature characteristic is ± 50 ppm over a temperature range of -40° C to +85° C. The reference oscillator provides the main error factor in the frequency stability of the transmitter over temperature. The transmitter is specified for a maximum drift of ±0.010% over temperature. This calculates to a maximum of ±0.247 MHz deviation of the carrier. Using a worst case of ± 80 ppm frequency drift in the reference oscillator, this calculates to an error of only ±0.197 MHz in offset. An analysis of the PLL design is provided using the GENESYS PLL ver. 6.0 simulation program by Eagleware Corporation. The synthesizer divides the 4.00 MHz reference frequency by 512 for an internal reference frequency of 7812.5 Hz. The synthesizer first divides the VCO frequency by 16 then by 19,760 for a total division of 316,160. Dividing 2470 MHz by 316,160 equals 7812.5 Hz. The phase detector in the synthesizer generates a phase error signal that the charge pump uses to correct the VCO for any errors in frequency. The analysis by the GENESYS PLL software calculates an error of only 1.94564 Hz RMS in frequency. This calculation does not take into account the stability of the reference oscillator. This demonstrates that the reference oscillator will generate the most significant error since the synthesizer generates less than a 2.0 Hz error. Based on these calculations the transmitter will provide excellent frequency stability over temperature.

RF Power Test Setup Direct Connect Test Setup - Front View Direct Connect Test Setup - Front View Close-up OATS Test Setup - Front View OATS Test Setup - Back View OATS Test Setup - Horn Antenna Voltage Variations Test Setup
