P7NCBP105Beamplus

Test report Our reference : KEL02-F02031 Page : D1 of Appendix Issued date : 2002-02-25 Korea EMC Laboratory Appendix-D : FCC label location information and Sample - FCC label location information & label sample The label included following statement will be attached on the bottom side of product.

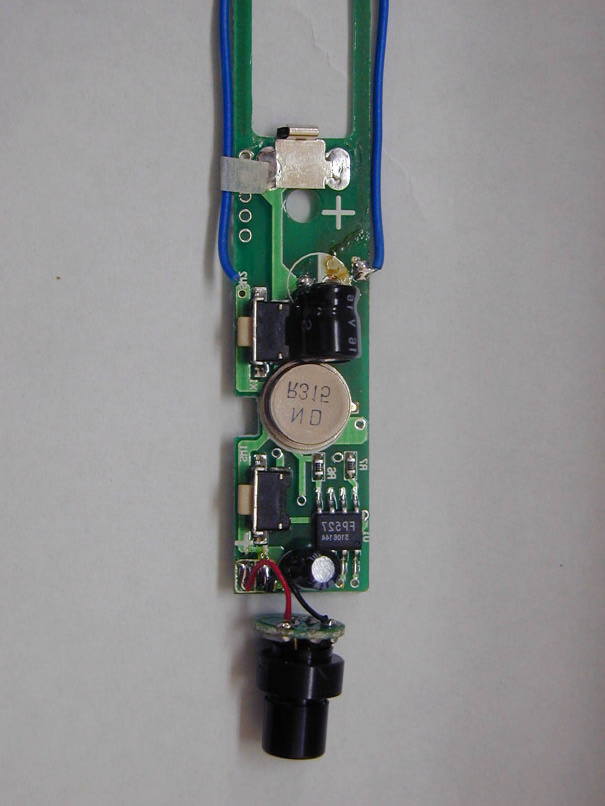

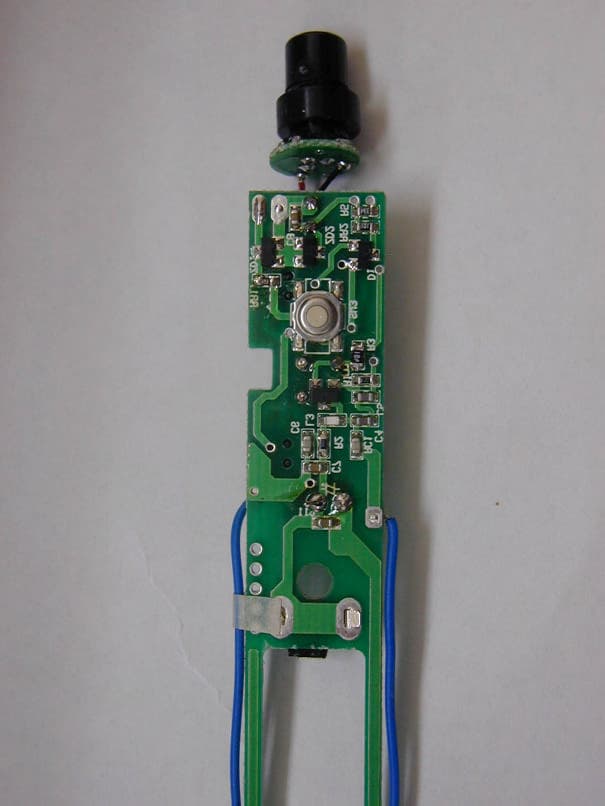

Test report Our reference : KEL02-F02031 Page : C1 of Appendix Issued date : 2002-02-25 Korea EMC Laboratory Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL02-F02031 Page : C2 of Appendix Issued date : 2002-02-25 Korea EMC Laboratory <FRONT VIEW OF MAIN BOARD> Test report Our reference : KEL02-F02031 Page : C3 of Appendix Issued date : 2002-02-25 Korea EMC Laboratory <REAR VIEW OF MAIN BOARD>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : Feb. 25. 2002 Applicant’s Name : CHANGRIME TELECOM CO., LTD. Applicant’s Address : SEWON BLDG. 4F, 714-3, PUNGDUKCHEON SUJI-EUP YONIN-CITY, KYUNGKI-DO, KOREA Manufacturer’s Name : CHANGRIME TELECOM CO., LTD. Manufacturer’s Add. : SEWON BLDG. 4F, 714-3, PUNGDUKCHEON SUJI-EUP ,YONGIN-CITY, KYUNGKI-DO, KOREA Declares that the product Product Description : Beamplus Brand Name : Model Number : CBP105 FCC ID : P7NCBP105 Conforms to FCC Rules and Regulations Part 15 Subpart C requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, 449-908, KOREA Date : Feb. 25. 2002 Report No : KEL02-F02031 Authorized Signature : M. S. CHO / President Test report Our reference : KEL02-F02031 Page : 2 of 12 Issued date : 2002-02-25 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Radiated Emission Data 9 3.2 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL02-F02031 Page : 3 of 12 Issued date : 2002-02-25 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : beamplus Model Number : CBP105 Serial Number : Prototype Manufacturer : CHANGRIME TELECOM CO., LTD. SEWON BLDG, 4F, 714-3, PUNGDUKCHEON SUJI-EUP YONIN -CITY, KTUNGKI-DO, KOREA Type of Test : FCC Rules Part 15, Subpart C Report Number : KEL02-F02031 Date Tested : Feb. 25. 2002 Tested By : S. J. KIM The results show that the sample equipment tested as described in this reports is in compliance with the radiated emission limits of FCC Rules Part 15, Subpart C. Test report Our reference : KEL02-F02031 Page : 4 of 12 Issued date : 2002-02-25 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The CBP105 is a beamplus made by CHANGRIME TELECOM CO., LTD. in Korea. Refer to the user's manual for more information. 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer Beamplus CBP105 P7NCBP105 Prototype CHANGRIME TELECOM CO., LTD. 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark MAIN B/D NONE CHANGRIME TELECOM CO., LTD. KOREA Test report Our reference : KEL02-F02031 Page : 5 of 12 Issued date : 2002-02-25 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 1992. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5 (m). The EUT was placed on a non conductive table which is 1.0*1.5 (m), 80 cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40cm from a vertical conducting plane. Power to the EUT was provided through the LISN(3725/2,EMCO) which has the Impedance VS Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9 cm high, approximately 2.0 cm in diameter and that are spaced 6 cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3 m Open Fielded Radiated The Open Field Radiated sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 1992. Korea EMC Lab. was refiled in FCC in Feb. 2002. INSTRUMENTATION Description Model Manufacturer Serial No Due Cal. TEST RECEIVER SPECTRUM ANALYZER ESPC 8566B Rohde & Schwarz Hewlett-Packard 844006/038 2421A00473 '2002.05.29 '2003.03.19 BICONICAL LOG-PERIODIC VHA9103 USLP9143 SCHWARZBECK SCHWARZBECK 1271 134 '2002.05.26 '2003.06.07 AMPLIFIER 87405A Hewlett-Packard 2944A06481 '2003.07.17 Test report Our reference : KEL02-F02031 Page : 6 of 12 Issued date : 2002-02-25 Korea EMC Laboratory beamplus(E.U.T) The calibration of the measuring instruments, including any accessories that may effect such calibration, are checked frequently to assure their accuracy. Adjustments are made and correction factors are applied in accordance with instruments contained in the manual for the measuring instrument. 2. MEASUREMENT PROCEDURES 2.1 System Test Configuration 2.1.1 Video mode Justification N/A 2.1.2 EUT Exercise Sof…

Text truncated - open the document above for the full version.

Test report Our reference : KEL02-F02031 Page : 2 of 12 Issued date : 2002-02-25 Korea EMC Laboratory Appendix-A : Test Setup Photographs - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL02-F02031 Page : A2 of Appendix Issued date : 2002-02-25 Korea EMC Laboratory RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
