P7PPROTEGERF ID Scanner

POWER AMPLIFIER WITH DIRECT AMPLITUDE MODULATION LOW PASS FILTER ANTENNA TUNING RF PRE- AMPLIFIER AND WAVE SHAPING 13.56MHz OSCILLATOR TRANSMITTING RF BLOCK DIAGRAM

Curtis-Straus LLC 527 Great Road Littleton, Massachusetts 01460 Tel: 978.486.8880 Fax: 978.486.8828 Web: www.curtis-straus.com e-mail: [email protected] Worldwide Regulatory Approvals Experts ® Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with 47 CFR 0.457(d)(2)(I) pertaining to confidential material. TEK Industries requests that the following documents regarding this submission for FCC ID P7PPROTEGE be kept confidential: 1. Schematic 2. Bill of Materials The material above contains technical data, which would customarily be guarded from competitors. We at Curtis-Straus LLC are acting as an Agent on behalf of TEK Industries in requesting confidentiality with regards to the preceding documents. Sincerely, Michael Buchholz Senior EMC Manager Curtis-Straus LLC 527 Great Road Littleton, MA 01460

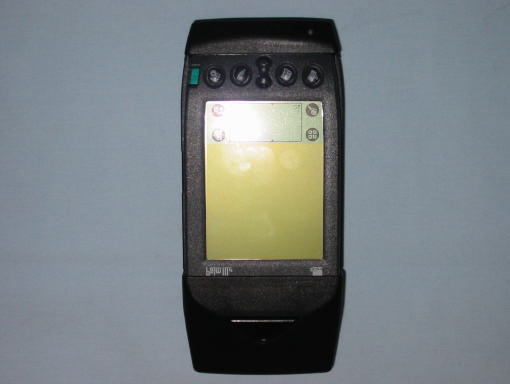

External Photos FCC ID: P7PPROTEGE Model #: RF100 FCC ID: P7PPROTEGE Model #: RF100 FCC ID: P7PPROTEGE Model #: RF100

Internal Photos FCC ID: P7PPROTEGE Model #: RF100 FCC ID: P7PPROTEGE Model #: RF100 FCC ID: P7PPROTEGE Model #: RF100

TRANSMITTER DESCRIPTION The 13.56Mhz crystal (Y1) generates the main oscillator signal used in the transmitter circuit. This signal is applied to the gate (U1A) which controls the carrier on/off sequence. The carrier is then passed through gate (U1D) which inverts the “off” dc level which prevents power consumption of the level shifter (Q6).The level shifted carrier is coupled to (Q6) through RC circuit C12 and R14. This places the power amplifier (Q6) in class C mode which minimizes overall power consumption. Impedance matching and low pass filtering are provided by the Pi filter (C13, L3, and C14). The antenna Q and resonance are provided by R11 and C9. MODULATION Direct amplitude modulation is applied to the circuit through Q2 and R3. Q2 fully saturated provides full carrier amplitude with R3 reducing the carrier by 30% with Q2 being cut off.

MEASUREMENT/TECHNICAL REPORT Company: TEK Industries, Inc. FRN: 0006-4269-28 Model: RF100 FCC ID: P7PPROTEGE Description: This is a report to support a request for an original grant of equipment authorization. Equipment Type: Low Power Communications Device Transmitter (DXX) Report prepared for: TEK Industries, Inc. 71 Utopia Road Manchester, CT 06040 Phone: (860) 647-8738 Fax: (860) 649-7735 Report prepared by: Evan D. Gould Curtis-Straus LLC 527 Great Road Littleton, MA 01460 USA Phone: 978-486-8880 FAX: 978-486-8828 FCC Application for TEK Industries, Inc.••FCC ID: P7PPROTEGE •• Report No. EC0014-1 25-Apr-02 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 2 of 14 Introduction This report is an application for Certification of a Transmitter operating pursuant to Part 15.225 of the FCC Rules, Code of Federal Regulations 47. The model number covered by this report is RF100. This report is designed to demonstrate the compliance of this device with the requirements outlined in Part 15 of CFR 47 using the methods outlined in Part 2 of CFR 47. FCC Application for TEK Industries, Inc.••FCC ID: P7PPROTEGE •• Report No. EC0014-1 25-Apr-02 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 3 of 14 Statement of Conformity The TEK Protege RF100 has been found to conform with the following parts of the 47 CFR as detailed below: Part 2 Part 15 Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 The antenna is soldered to the transmitter board, which is not user accessible, and there is no external antenna connection. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 The unit is battery powered without the capability of being recharged or operated from the AC mains. 15.225(a) The unit complies with the field strength limits of 15.225(a) 15.225(b) The unit complies with the field strength limits of the 15.209(a) table. 15.225(c) The unit’s operating frequency is stable within ±0.01% in the temperature range: -10°C thru 50°C. (PDA does not operate correctly below –11°C) FCC Application for TEK Industries, Inc.••FCC ID: P7PPROTEGE •• Report No. EC0014-1 25-Apr-02 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 4 of 14 Test Methodology Radiated emission testing was performed according to the procedures in ANSI C63.4 (1992). The testing was performed at an antenna to EUT distance of 3 or 1 meters below 30MHz, and 3 meters above 30MHz. The actual test distance used is noted in the test data sheets. The device’s performance was investigated to 1GHz. The EUT was powered by four rechargeable batteries. Freshly charged batteries were used for all testing. Since the device is a hand-held unit, the emissions were maximized around the three orthogonal axes and the maximum reading was recorded. The integrated antenna cannot be maximized separately. The frequency stability test consisted of varying the temperature of the product in a temperature chamber while monitoring the peak of the fundamental frequency, and taking measurements when the product’s temperature stabilizes. All other performance tests were made in accordance with the procedures outlined in Part 15 of CFR 47. The applicable sections provided under Part 15 are provided in the measurement section of this report. FCC Application for TEK Industries, Inc.••FCC ID: P7PPROTEGE •• Report No. EC0014-1 25-Apr-02 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 5 of 14 Test Facility Curtis-Straus LLC All testing for the range 9kHz–1000MHz was performed at Curtis-Straus (A2LA Certificate Number 1627-01). The open area test site used to collect the radiated data is located at 527 Great Road, Littleton, MA 01460. Sites ”F” and “T” were used. FCC Application for TEK Industries, Inc.••FCC ID: P7PPROTEGE •• Report No. EC0014-1 25-Apr-02 ______________________________________________________________________ _____________________________ ________________________________ Curtis-Straus LLC •• 527 Great Road •• Littleton, MA •• TEL (978) 486-8880 •• FAX (978) 486-8828 page 6 of 14 Test Equipment SPECTRUM ANALYZERS x Analyzer Model No. Company Serial No. Calibration Due X RED 9kHz-1.8GHz 8591E HP 3441A03559 15-MAY-2002 X GREEN 9kHz-26.5GHz 8593E HP 3829A03618 04-OCT-2002 X BLACK 9kHz-12.8GHz 8596E HP 3710A00944 29-JUN-2002 OPEN AREA TEST SITES (OATS) x Site FCC Code IC Code VCCI Code Calibration Due X “F” Florida 93448 IC 2762-F R-468/ C-480 23-JUN-2002 X “T” Texas 93448 IC 2762-T R-905/ C-480 09-SEP-2002 ANTENNAS x Antenna Model No. Company Serial No. Calibration Due X GREEN-WHITE Bilog: 30MHz-2GHz CBL6112B Chase 2574 28-JUN-2002 X RED Bilog: 30MHz-1GHz 3143 EMCO 1270 28-JUN-2002 X SMALL LOOP Passive Loop: 9kHz-30MHz PLA-130/A ARA 1024 27-JAN-2003 PREAMPLIFIERS x Preamplifier Model No. Company Serial No. Calibration Due X BLUE-BLACK 0.01-2000MHz ZFL-1000-LN MiniCircuits/ C-S n/a 24-SEP-2002 X ORANGE 0.01-2000MHz ZFL-1000-LN MiniCircuits/ C-S n/a 18-DE…

Text truncated - open the document above for the full version.

Page 1 of 1 file://E:\Tek Industries\C0014\C0014 setup.jpg2/25/02
