P7S-UPR11AUCuController

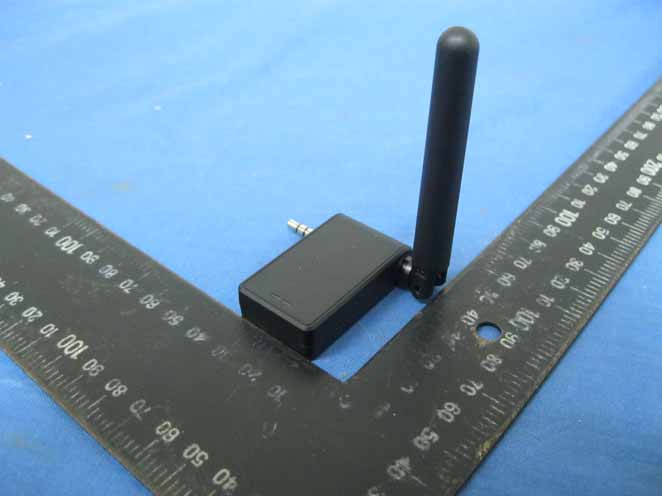

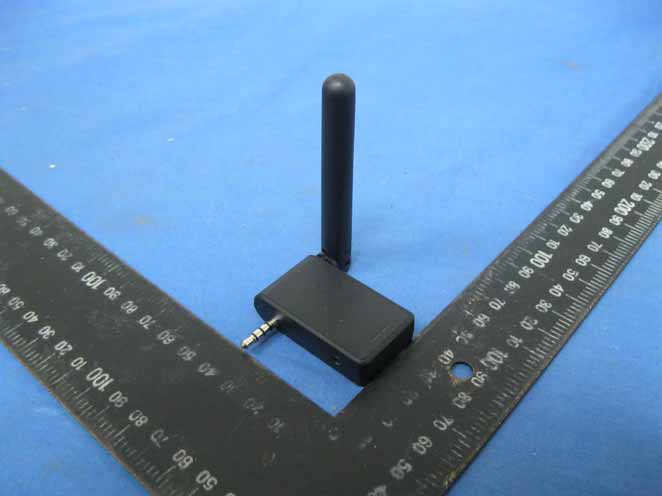

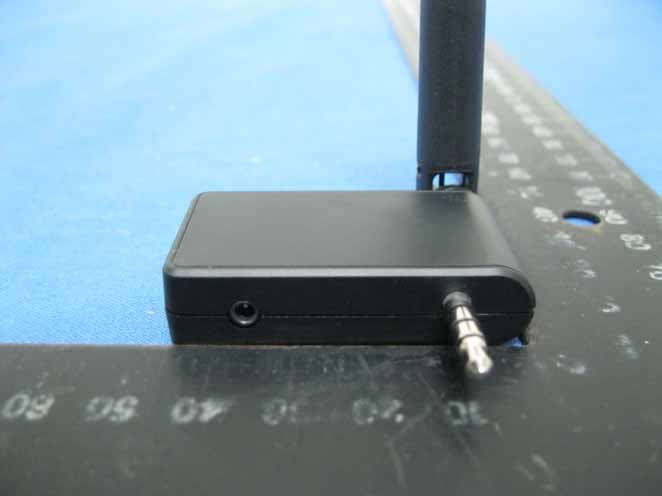

Report No.T120703S02 Page 1 of 2 External Photo ( Model : UC011A) Report No.T120703S02 Page 2 of 2 External Photo ( Model : UC011A )

FCC Label (P7SUC011A) FCC Label Location

Report No.T120703S02 Page 1 of 5 Internal Photo ( Model : UC011A) Report No.T120703S02 Page 2 of 5 Internal Photo ( Model : UC011A ) Report No.T120703S02 Page 3 of 5 Internal Photo ( Model : UC011A ) Report No.T120703S02 Page 4 of 5 Internal Photo ( Model : UC011A ) Report No.T120703S02 Page 5 of 5 Internal Photo ( Model : UC011A )

FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 1 / 23 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For uController Model : UC011A Trade Name : Issued for United Power Research Technology Corp. No.66, You-Yi Road, Jhunan Township,Miao-Li County 350,Taiwan,R.O.C Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: August 06, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 2 / 23 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 08/06/2012 Initial Issue All Page 23 Ruby Zhang FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 3 / 23 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 7. FCC PART 15.227 REQUIREMENTS.......................................................................... 10 7.1 20dB BANDWIDTH ................................................................................................ 10-12 7.2 RADIATED EMISSION........................................................................................... 13-18 7.3 CONDUCTED EMISSION ...................................................................................... 19-21 APPENDIX I SETUP PHOTOS ........................................................................................ 22-23 FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 4 / 23 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant United Power Research Technology Corp Address No.66, You-Yi Road, Jhunan Township,Miao-Li County 350,Taiwan,R.O.C Equipment Under Test uController Model UC011A Trade Name Tested Date July 05 ~ 25, 2012 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 5 / 23 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name uController Model Number UC011A Identify Number T120703S02 Received Date July 05, 2012 Frequency Range 27.145MHz Transmit Power 59.97 dBμV/m Channel Number 1 Channels Type of Modulation OOK Antenna Type Dipole Antenna, Antenna Gain : 0dBi Power Rating Battery : 3.7Vdc Charge : 5.0Vdc Test Voltage 120Vac, 60Hz I/O Port Power Port× 1 Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intended for FCC ID: P7S-UPR11AUC filing to comply with Section 15.207, 15.209 and 15.227 of the FCC Part 15, Subpart C Rules. FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 6 / 23 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 3. DESCRIPTION OF TEST MODES The EUT(UC011A) had been tested under operating condition. There are one channel have been tested as following : Channel Frequency (MHz) 1 27.145 RemarkThe field strength of spurious emission was measured in the following position: EUT stand-up position(Z axis), lie-down position(X, Y axis). The worst emission was found in stand-up position(Z axis) and the worst case was recorded. 4. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4: 2003 and FCC 47 CFR Part 15.207, 15.209 and 15.227. FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 7 / 23 This report s…

Text truncated - open the document above for the full version.

FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 1 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I SETUP PHOTOS RADIATED EMISSION SETUP FCC IDP7S-UPR11AUC Report No.T120703S02-RP1 Page 2 / 2 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.
