PAEDKL-20Electric Ballast

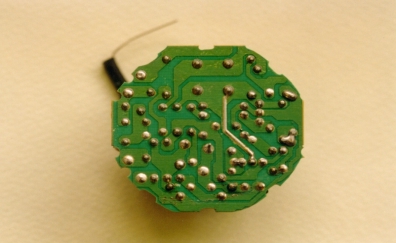

Internal Photos <upper side of PCB> <bottom side of PCB>

Schematics COMPARISON SHEET • MODEL: DKL-15, DKL-20 MODEL COMPONENT DKL-15 DKL-20 REMARKS CHOKE TRANS L1 1.4mH 1.2mH 1EA PP CONDENSER C4, C5 0.0022 μ μ μ μ F/630V 0.0033 μ μ μ μ F/630V 2EA WATT 15W 20W LAMP LENGTH 7.2cm 8.7cm EACH

KTL Korea Testing Laboratory Page 1 of 11 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Seok-Jin Kim , EMC Team Leader KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 00-341-046 Name and address of the applicant DongKwang Electronic 351-2, Simgok 3-Dong, Wonmi-Ku, Puchon-Shi, Kyungki-Do, Korea 420-013 Standard / Test regulation FCC Part 18 Test result Pass Incoming date : September 21, 2000 Test item( s) ; RF Lighting Devices – Consumer Equipme nt (Electronic Ballast) Model/type ref. ; DKL-20, DKL-15 Manufacturer ; DongKwang Electronic Additional information ; -Re quire d Aut ho riz atio n : Ce rtificatio n - FCC ID. : PAEDKL-20 Test date : October 05, 2000Issue date : October 06, 2000 Ref. Report No. 00 - 341 – 046 2 Page of 11 TABLE O F CONTENTS I. GENERAL INFORMATION ............................................................................................................ 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement α. CONDUCTED EMISSION MEASUREMENT (Section 18.307) .......................................................4-7 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data β. RADIATED EMISSION MEASUREMENT (Section 18.305) .......................................................8-10 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data χ. TEST EQUIPMENTS USED FOR MEASUREMENT..................................................................11 Ref. Report No. 00 - 341 – 046 3 Page of 11 . GENERAL INFORMATION 1. Grantee’s Name and : DongKwang Electronic Mailing Address 351-2, Simgok 3-Dong, Wonmi-Ku, Puchon-Shi, Kyungki-Do, Korea, 420-013 2. Manufacturer's Name and: DongKwang Electronic Mailing Address 351-2, Simgok 3-Dong, Wonmi-Ku, Puchon-Shi, Kyungki-Do, Korea, 420-013 3. Equipment Descriptions 3.1 Model Name : DKL-20, DKL-15 (*) 3.2 Input Voltage : AC 120 V, 60 Hz 3.3 Oscillation Frequency : 40 ~ 65 kHz 3.4 Lamp Wattage : 20 W (Model : DKL-20), 15 W (Model : DKL-15) 3.5 Tested Model : DKL-20 (*) Note : The test data of DKL-20 are also apply to DKL-15 because the results of two models are in compliance with the limit. The differences of DKL-20 and DKL-15 are power consumption and circuit elements value. Two models will use same FCC ID. Refer to attached schematics of device. 4. Rules and Regulations: FCC Part 18 5. Measuring Procedure: FCC / OET MP-5 (1986) 6. Date of Measurement 6.1 Conducted Emission: October 5, 2000 6.2 Radiated Emission : October 5, 2000 Ref. Report No. 00 - 341 – 046 4 Page of 11 . CONDUCTED EMISSION MEASUREMENT (Section 18.307) 1. Test Procedure The EUT was installed with fluorescent lamp in accordance with the manufacturer’s instruction and operated in a manner that is the representative of the typical usage for equipment. Conducted emission measurements on the EUT were performed by "Conducted Powerline Measurement" procedure as per MP-5. The EUT w as set up on a w ooden table 0.4 meters height, 1.0 by 1.5 meters in size, placed in the shielded enclosed with a side of wall of which constituted a vertical conducting surface of 2.2 m x 3.1 m in size to maintain 0.8 meters from the rear of EUT LISN's(Line Impedance Stabilization Network, EMCO, 3825/2, 50 ohm / 50 ∝H) were installed and electrically boned to the conducting ground plane. The EUT was connected to the LISN. One of two 50 ohm output terminals of the LISN was connected to the Spectrum Analyzer(HP, 8566B, 10 kHz to 22 GHz) with the Quasi-Peak Adapter (HP, 85650A, 10 kHz to 1.0 GHz) and the other was terminated in 50 ohms. Measurements w ere again performed after interchanging such a connection oppositely. The frequency range from 450 kHz to 30 MHz was examined and the peak values that are within 6 dB of the limit would be compared to quasi-peak values using the Quasi-Peak instrument (ROHDE & SCHWARZ, ESH3, 9 kHz to 30 MHz : Detector Function CISPR Quasi-Peak) or HP Quasi-Peak adapter(85650A, 10 kHz to 1.0 GHz) The voltage developed across the 50 ohms port in LISN was measured by the Spectrum Analyzer and graphed by the Plotter(HP, 7470A). The 6 dB bandwidth of the Spectrum Analyzer and Quasi-Peak Adapter was set to 9 kHz with no post detector video filter. The position of connecting cables of the EUT was changed to find the w orst case configuration during measurements. The maximum emission level from the EUT occurred in such configuration as shown in the following photograph. Ref. Report No. 00 - 341 – 046 5 Page of 11 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB∂) was converted into microvolt (∂) as show n in following sample calculation. For example : Measured Value at 0.55 MHz 41.5 dB∂ + Cable Losses * 0.0 dB −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− = Conducted Emission 41.5 dB∂ ( = 118.9 ∂ ) * In case of RG214/ RF cable 15 Ft, the loss is about 0.17 dB at the frequency of 30 MHz which is negligible. Ref. Report No. 00 - 341 – 046 6 Page of 11 4. Measurement Data - Resolution Bandwidth : x Peak (6dB Bandwidth : 9kHz) x CISPR Quasi-Peak (6dB Bandwidth : 9kHz) Measured Value Emission Level Power Lead Tested Frequency (MHz) Peak (dB∂) Q-Peak (dB∂) (dB∂) (∂) Limit (∂) (*) Margin (dB) 0.60 42.7 37.9 37.9 78.5 250 -10.1 0.66 43.0 37.1 37.1 71.6 250 -10.9 2.04 42.6 39.2 39.2 91.2 250 - 8.8 3.01 45.6 39.7 39.7 96.6 250 - 8.3 3.22 45.2 37.2 37.2 72.4 250 -10.8 - - - - - - - Live to Ground 0.50 43.9 39.0 39.0 89.1 250 - 9.0 0.55 44.7 41.7 41.7 121.6 250 - 6.3 3.06 46.5 39.9 39.9 98.9 250 - 8.1 3.41 45.6 39.5 39.5 …
