PAPVC-1Dual-Mode Cellular Phone (AMPS/CDMA)

1 OPERATING MANUAL (VC-1) Revision : 1.0 VACOM WIRELESS, INC FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 0.4 inches (1.0 cm) must be maintained between the user’s body and the handset, including the antenna whether extended or retracted. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset 2 CONTENTS IMPORTANT SAFETY INFORMATION GETTING TO KNOW YOUR PHONE DISPLAY INDICATOR BATTERY INFORMATION BASIC FUNCTIONS Making a Call Ending a Call Answering a Call Correcting dialing Mistakes Storing Phone Numbers Adjusting Microphone Volume During a Call Adjusting Voice Volume Last Number Redial Speed Dialing Using Caller ID MENUS I. SEARCH MENU Last Call Numbers Last Call Numbers You Received Group Menu ABC Sequence Menu Name Search Menu Location Search Menu Search by Phone Number II. PHONE SETTING MENU Greeting Type Text Edit (Banner) Icon Changes 3 Menu Type Languages Back Light Auto Answer Auto Redial Current Time III. SOUND MENU Incoming Ring Ring Type Volume Alert Setting IV. SECURITY FUNCTION Auto Lock Changing Password Call Limiting Options Phone Initialize NAM Select Memory Clear Network Change System Change V. PHONE BOOK Schedule Manager Alarm Storing a Number, e-Mail Address and Name Calculator Memo View World Time VI. MY PHONE NUMBER MESSAGE SERVICES I. TEXT MESSAGE SERVICES (SMS) Read Text Messages Sending Text Messages Deleting Messages II. VOICE MAIL SERVICE Listening Voice Mails Deleting Messages 4 III. MESSAGE ALERTS USING MENU During a Call Sending My Phone Number Writing a Memo Storing a Phone Number Muting the Microphone To See My Phone Number Microphone Volume Control ENTERING LETTERS & NUMBERS 5 IMPORTANT SAFETY INFORMATON Some of the following information may not apply to your particular product. However, as with any electronic product, you should observe safety precautions when you use this product.  Save this manual : it contains important safety information and operating instructions.  Before using this product, please follow and adhere to all warnings, safety and operating instructions located on the product and in this User’s Manual.  Do Not expose the product to water or moisture.  Do Not expose the product to extreme hot or cold temperatures.  Do Not expose the product to open flames.  Do Not allow objects to fall on, or liquids to spill on the product.  Use only Original Accessories. Damage from use of non-approved accessories will void your phone warranty.  Connect the approved charger only to designed power sources as marked on the product.  To reduce the risk of damage, remove the electrical cord from an outlet by pulling the charger rather than the cord.  Make sure the electric cord is located so that it will not be subjected to damage.  To reduce the risk of electric shock, unplug the product from the power source before attempting any cleaning. Once unplugged, use a soft cloth dampened with water.  DANGER : Never alter the cord or plug. If the plug will not fit into the outlet, have a proper outlet installed by a qualified electrician. Improper connection can result in electric shock.  Do Not attempt to disassemble the product – doing so will void the warranty. This product does not contain consumer-serviceable components. Service should be performed only by Authorized Service Centers.  Do Not remove the antenna. A detached antenna may be a choking hazard for children.  Do Not allow battery to be placed in the mouth. Electrolytes could release and may be toxic if swallowed. 6 GETTING TO KNOW YOUR PHONE 7 Active Flip : Just open the flip to answer an incoming call, and close the flip to hang up. You can also set the flip to turn the backlight on and off. LED Indicator : Flashes to indicate an incoming call or message. Also lights up (flashes) when you turn on the phone. Volume/Scroll Keys : This keys are used to set volume levels, a etiquette mode and help you navigate through Menus and the phone book. Press the volume keys to : - Go to Etiquette mode to press “” key while flip closed. - Adjust voice volume during conversation. - Adjust key tone volume in Standby mode. - Answer the incoming call. - Scroll through menu options. - Scroll through your Internal Phone Book. Backlit LCD Screen : The LCD screen contains two areas; - The bottom line displays indications about your phone’s operating mode. - The upper area displays in-use information such as the other party’s number of the other party (if available), Mute, Call Waiting, etc. Your menus also display in the upper area. Nemu Key : This key performs several useful functions. - During incoming calls, press it to answer the incoming call. - From Standby mode, press it briefly to access Main Menu and Se…

Text truncated - open the document above for the full version.

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the handheld portable cellular phone ( FCC ID: PAPVC-1 ) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software can not be altered. The ESN is plated from fraudulant contact and tampering. The ESN is encoded using multiplication by a polynomial and ESN data programmed in the memory with other information. c) The ESN is factory-set and can not be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the transmitter inoperative. Sincerely, Peter Na Principal Engineer of H/W Team VACOM WIRELESS, Inc. Yungchang Bldg. SF, 250, Cheolsan3-Dong, Gwangmyung City, Gyunggi-Do, Korea Phone :+822 2610 5835Fax:+8222611 6675 SEP.1 3, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: VACOM WIRELESS, Inc. FCC ID: PAPVC-1 FCC E911 Requirements Per 322.921 Gentlemen: VACOM WIRELESS, Inc. hereby certifies that the analog cellular telephone (FCC ID: PAPVC-1 1, using the Automatic A/B Roaming -Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-l-l” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-91 1 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Peter Na Principal Engineer of H/W Team VACOM WIRELESS, Inc. Yungchang Bldg. SF, 250, Cheolsan3-Dong, Gwangmyung City, Gyunggi-Do, Korea Phone:+822 2610 5835Fax: +8222611 6675

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. V1Y 9L3 Canada Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm October 10, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: VACOM WIRELESS INC. FCC ID: PAPVC-1 Part 22 Certification Gentlemen: On behalf of Vacom Wireless Inc. we hereby submit an application for Part 22 Certification of the Vacom Dual-Mode AMPS/CDMA Cellular Phone as follows: FCC ID: PAPVC-1 Model(s): VC-1 Equipment Class: Licensed Non-Broadcast Transmitter Held to Ear (TNE) Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone Tx Freq. Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Freq. Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.210 Watts ERP (AMPS) 0.120 Watts ERP (CDMA) Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Attestation, measurement report data and test plots, RF exposure measurement report data & photographs, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams and description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual with RF exposure warning statement. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Vacom Wireless Inc. SEP. 25,200O Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 2 1046 U.S.A. In re : VACOM WIRELESS, Inc. FCC ID: PAPVC-1 Dual-Mode Cellular Phone FCC Part 22 Certification Request for Confidentiality Gentlemen, In accordance with 0.459 of CFR47, VACOM WIRELESS, Inc.. hereby requests confidentiality of the Block Diagrams, Schematic Diagrams, Circuit Description, Parts List, Tune-up Procedure, Operational Description attachments for the attached application. These documents contains detailed system and equipment description and related information about the product which VACOM WIRELESS, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, VACOM WIRELESS, Inc. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Peter Na Principal Engineer of II/W Team VACOM WIRELESS, Inc. Yungchang Bldg. 5F, 250, Cheolsan3-Dong, Gwangmyung City, Gyunggi-Do, Korea Phone:+82226105835 Fax : +82 2 2611 6675

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm November 21, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang SUBJECT: VACOM WIRELESS INC. FCC ID: PAPVC-1 731 Confirmation No.: EA99003 Correspondence Ref. No.: 17115 Dear Errol: On behalf of Vacom Wireless Inc. is an amendment in response to your e-mail dated November 16, 2000 requesting additional information for the subject application. 1. The transmit frequency band is divided into 16 sectors (see attached file). For this particular device, once the conducted power is established for SAR compliance the AMPS mode power level 0 AGC algorithm is set in such a way that the lowest transmit channel corresponding to the first sector is set to the maximum conducted power of 26.1dBm. In order to ensure SAR compliance for all other transmit frequencies, the remaining sectors are set to a maximum conducted power of 25.2dBm. The AGC levels are then written into non-volatile memory for power level 0 setting. 2. Vacom Wireless acknowledges that the maximum ERP for AMPS mode will be reduced by 0.3dB. If you have any further questions regarding the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Vacom Wireless Inc.

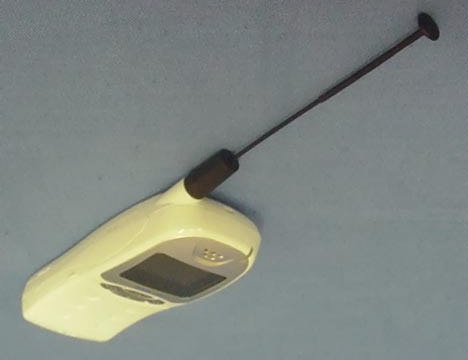

CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone EXTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone FCC ID LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE FOR SAMPLE LABEL) FCC ID LABEL LOCATION SAMPLE FCC ID LABEL MODEL: VC-1 FCC ID: PAPVC-1

CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 © 2000 Celltech Research Inc. VACOM WIRELESS FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone INTERNAL EUT PHOTOGRAPHS

CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna, Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. (See test report). I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant: VACOM WIRELESS INC. Yungchang Bldg. 5F, 250, Cheolsan3-Dong Gwangmyung City, Gyunggi-Do, Korea Attn: Peter Na - Principal Engineer of H/W Team FCC ID: PAPVC-1 Model(s): VC-1 Equipment Type: Dual-Mode AMPS/CDMA Cellular Phone FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): 2.1093; ET Docket 96.326 Tx Frequency Range: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (CDMA) Rx Frequency Range: 869.04 - 893.97 MHz (AMPS) 869.70 - 893.31 MHz (CDMA) Max. RF Output Power: 0.210 Watts ERP (AMPS) 0.120 Watts ERP (CDMA) CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna, Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 SAR MEASUREMENT SUMMARY......................................... 3-6 5.0 SAR LIMITS........................................................................ 7 6.0 DETAILS OF SAR EVALUATION........................................... 7 7.0 EVALUATION PROCEDURES................................................. 8 8.0 SYSTEM VALIDATION.......................................................... 8 9.0 SIMULATED EQUIVALENT TISSUES...................................... 9 10.0 TISSUE PARAMETERS......................................................... 9 11.0 SYSTEM SPECIFICATIONS.................................................... 10 12.0 TEST EQUIPMENT LIST........................................................ 11 13.0 MEASUREMENT UNCERTAINTIES........................................ 12 14.0 REFERENCES...................................................................... 13 APPENDIX A - SAR MEASUREMENT DATA..................................... 14 APPENDIX B - DIPOLE VALIDATION 15 APPENDIX C - PROBE CALIBRATION 16 APPENDIX D - TEST SETUP PHOTOGRAPHS 17 CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna, Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. VACOM WIRELESS INC. FCC ID: PAPVC-1 1 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 1.0 INTRODUCTION This measurement report shows compliance of the VACOM WIRELESS INC. Model: VC-1 Dual-Mode AMPS/CDMA Cellular Phone FCC ID: PAPVC-1 with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1 - 1992 (1), FCC OET Bulletin 65–1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type Dual-Mode Cellular Phone (AMPS/CDMA) FCC ID PAPVC-1 Equipment Class Licensed Non-Broadcast Transmitter Held to Ear (TNE) Model No.(s) VC-1 FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Part 22 Certification Tx Frequency Range (MHz) 824.04 – 848.97 (AMPS) 824.70 - 848.31 (CDMA) S/N No. Pre-production Rx Frequency Range (MHz) 869.04 - 893.97 (AMPS) 869.70 - 893.31 (CDMA) Max. RF Output Power 0.210W ERP (AMPS) 0.120W ERP (CDMA) Modulation(s) AMPS / CDMA Battery Type(s) 3.6V Li-ion Standard Antenna Type Retractable Whip Antenna Length 110 mm CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna, Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. VACOM WIRELESS INC. FCC ID: PAPVC-1 2 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent material (see Figure 6). The robot is a six-axis industrial robot performing precise movements to position the probe to the …

Text truncated - open the document above for the full version.

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations. To comply with FCC RF exposure requirements, a minimum separation distance of 0.4 inches (1.0 cm) must be maintained between the user’s body and the handset, including the antenna whether extended or retracted. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov Read this information before using your handset

Celltech Research Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-860-3130 • Fax. 250-860-3110 • [email protected] www.globuswireless.com/celltech/celltech.htm November 9, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang SUBJECT: VACOM WIRELESS INC. FCC ID: PAPVC-1 731 Confirmation No.: EA99003 Correspondence Ref. No.: 16986 Dear Errol: On behalf of Vacom Wireless Inc. is an amendment in response to your e-mail dated November 07, 2000 requesting additional information for the above-referenced application. 1. Attached is the re-measured head SAR test data, test plots, and setup photographs for AMPS mode Antenna In mode using 0.9S/m conductivity and expanded field scanning region. The worst-case SAR levels were found on the left side of the phantom and we have also submitted the worst-case channel SAR data for the right side of phantom. The conducted power was reduced by 0.4 dB for Channel 991, and 0.3 dB for Channels 383 and 799 in order to pass SAR with sufficient degree of margin. Considering the minimal change in conducted power we are requesting the previously submitted Part 22 test data remain valid. 2. Please see attached a letter from the applicant regarding optional accessories for this device. 3. For future filings we will ensure that the SAR exhibits are reduced to 1-2 MB file size. If you have any further questions regarding the above, please do not hesitate to contact me. Sincerely, Shawn McMillen General Manager Celltech Research Inc. Testing & Engineering Lab cc: Vacom Wireless Inc. VACOM Wireless. Inc 5,6 F, Yungchang B/D, 250, Chulsan-Dong Kwangmyung-Si, Kyounggi-Do, Korea Tel: +82-2-2610-5800 Fax: +82-2-2611-6675 November 8, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang Re: VACOM WIRELESS INC. FCC ID: PAPVC-1 731 Confirmation No.: EA99003 Correspondence Reference No.: 16986 Dear Errol, We hereby confirm that the only accessory available at this time for our handset model VC-1 is AC Charger. If additional accessories become available in the future which require further FCC testing and approval then we will proceed accordingly. If you have any questions regarding this matter, please do not hesitate to contact me. Sincerely, Peter Na Principal Engineer H/W Team Vacom Wireless, Inc. Vacom Wireless Inc FCC ID: PAPVC-1 Generic Twin Phantom; Left Hand Section; Position: (80°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.50 mW/g, SAR (10g): 1.01 mW/g Head SAR Vacom Dual Mode Model VC-1 Unmodulated Carrier Channel 991 [824.04MHz] Conducted Power 26.1dBm Test Date: Nov 8, 2000 SAR Tot [mW/g] 1.54E-1 6.18E-1 1.08E+0 1.54E+0 Celltech Research Inc. Celltech Research Inc. Vacom Wireless Inc FCC ID: PAPVC-1 Generic Twin Phantom; Left Hand Section; Position: (80°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.52 mW/g, SAR (10g): 1.02 mW/g Head SAR Vacom Dual Mode Model VC-1 Unmodulated Carrier Channel 383 [836.49MHz] Conducted Power 25.2dBm Test Date: Nov 8, 2000 SAR Tot [mW/g] 1.49E-1 5.95E-1 1.04E+0 1.49E+0 Celltech Research Inc. Celltech Research Inc. Vacom Wireless Inc FCC ID: PAPVC-1 Generic Twin Phantom; Left Hand Section; Position: (80°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.48 mW/g, SAR (10g): 1.02 mW/g Head SAR Vacom Dual Mode Model VC-1 Unmodulated Carrier Channel 799 [848.97MHz] Conducted Power 25.2dBm Test Date: Nov 8, 2000 SAR Tot [mW/g] 1.44E-1 5.76E-1 1.01E+0 1.44E+0 Celltech Research Inc. Celltech Research Inc. Vacom Wireless Inc FCC ID: PAPVC-1 Generic Twin Phantom; Right Hand Section; Position: (75°,65°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; 835MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 1.34 mW/g, SAR (10g): 0.891 mW/g Head SAR Vacom Dual Mode Model VC-1 Unmodulated Carrier Channel 383 [836.49MHz] Conducted Power 25.2dBm Test Date: Nov 8, 2000 SAR Tot [mW/g] 1.31E-1 5.24E-1 9.17E-1 1.31E+0 Celltech Research Inc. Celltech Research Inc. Dipole 835 MHz Generic Twin Phantom; Flat Section; Position: (90°,90°); Probe: ET3DV6 - SN1387; ConvF(6.43,6.43,6.43); Crest factor: 1.0; Brain 835 MHz: σ = 0.80 mho/m ε r = 44.2 ρ = 1.00 g/cm 3 Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Cube 5x5x7 SAR (1g): 2.04 mW/g, SAR (10g): 1.34 mW/g Validation Date: Nov. 08, 2000 SAR Tot [mW/g] 2.16E-1 6.48E-1 1.08E+0 1.51E+0 1.94E+0 Celltech Research Inc. Celltech Research Inc. CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna, Date of Tests: November 08, 2000 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2000 Celltech Research Inc. VACOM WIRELESS INC. FCC ID: PAPVC-1 Dual-Mode AMPS/CDMA Cellular Phone (824-849MHz) MEASUREMENT SUMMARY The measurement results were obtained with the EUT tested in the conditions described in this report. Detailed measurement data and plots showing the maximum SAR location of the EUT are reported. HEAD SAR TEST RESULTS – AMPS MODE Notes: 1. All modes of operation were investigated and the worst-case SAR levels are reported. 2. The SAR values found are below the maximum limit of 1.6 w/kg. 3. The worst-case head SAR value found was 1.52 w/kg. 4. The EUT was tested using the standard battery, which is the only battery option for this handset. Head SAR Test Setup - Left Side Head SAR Test Setup - Right Side Frequency (MHz) Channel Modulation Conducted Pow…

Text truncated - open the document above for the full version.

CELLTECH RESEARCH INC. Test Report S/N: 091800-20PAP 1955 Moss Court, Kelowna Dates of Tests: October 04-11, 2000 B.C. CANADA V1Y 9L3 ____________________________________________________________________________________________________________________ © 2000 Celltech Research Inc. CERTIFICATE OF COMPLIANCE FCC PART 22 CERTIFICATION This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.co…
