PAUAT300Smart Card Reader

© 2000 PCTEST Lab ATTACHMENT J – USER’S MANUAL

© 2000 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S)

© 2000 PCTEST Lab ATTACHMENT F1 – BLOCK DIAGRAM(S)

© 2000 PCTEST Lab ATTACHMENT A – COVER LETTER(S) November 9, 2000 Federal Communications Commission Authorization & Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Motorola Smartcard Solutions Korea Ltd. FCC ID: PAUAT300 Gentlemen: Submitted herewith, on behalf of MOTOROLA Smartcard Solutions Korea Ltd., is an application for Part 15 certification of the following Card Reader w/ Modem: FCC ID: PAUAT300 MODEL: AT300 EQUIP CLASS: DT (Data Terminal with unique one-of-a-kind modem) EUT Type: Card Reader w/ Modem FREQ. Range: 13.553MHz-13.567MHz Attached is the authorization letter, measurement report (measurement data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematic diagrams, and user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: MOTOROLA Smartcard Solutions Korea Inc.

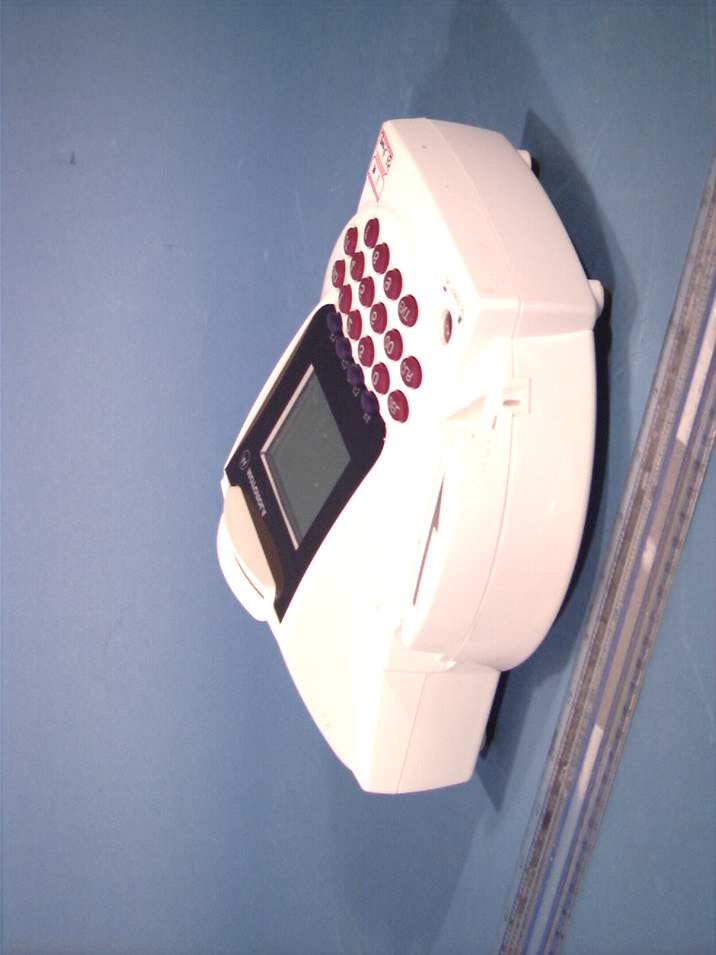

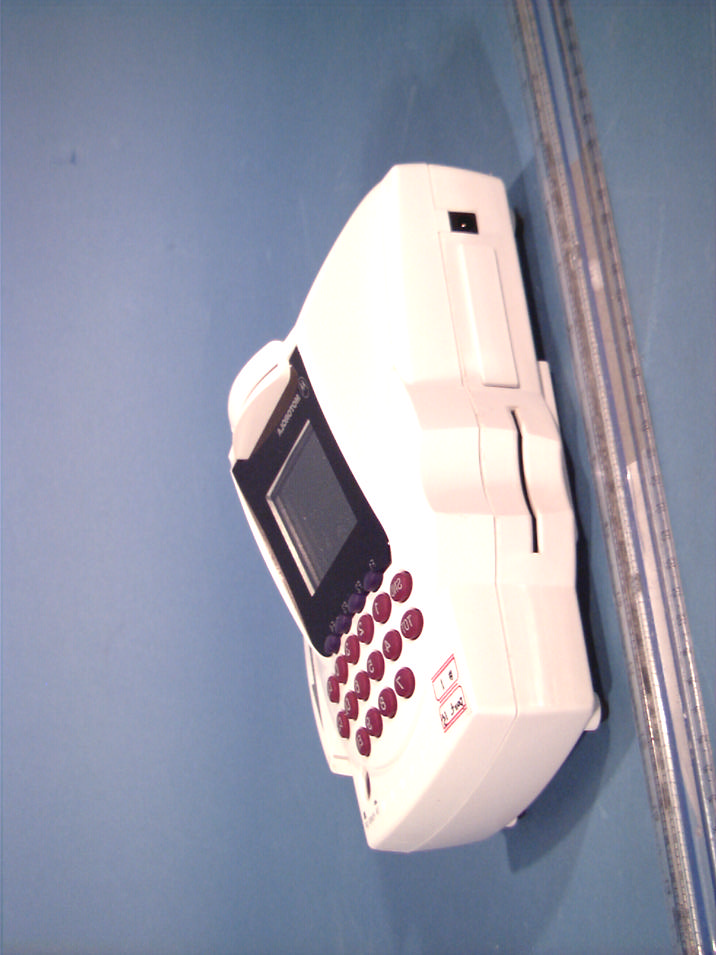

© 2000 PCTEST Lab ATTACHMENT H – EXTERNAL PHOTOGRAPHS © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300

© 2000 PCTEST Lab ATTACHMENT E – FCC ID LABEL & LOCATION © 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID: PAUAT300

© 2000 PCTEST Lab ATTACHMENT I – INTERNAL PHOTOGRAPHS © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300

© 2000 PCTEST Lab ATTACHMENT F2 – SCHEMATIC DIAGRAM(S)

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE Manufacturer: Motorola Smart Card Solutions Korea Ltd. Dates of tests: November 6-7, 00 7F, Rodamco Tower, 679-4 Test Report S/N: 15.201016510.PAU Yoksam-Dong, Kangnam-Gu Test Site: PCTEST Lab, Columbia, MD. U.S.A Seoul, 135-080, Korea Attn: Hyung-Mo Park, Manager of Quality Assurance FCC ID PAUAT300 APPLICANT Motorola Smartcard Solutions Korea Ltd. FCC Rule Part(s):Part 15 Subpart C – Intentional Radiator; § 15.225 Classification:Low Power Communication Device Transmitter (DXX) EUT Type:Card Reader w/ Modem Frequency Range:13.553Mhz – 13.567MHz Operating Frequency:13.563MHz Trade Name: Motorola Model(s):AT300 & DSSI-300L This device has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified is ANSI C63.4-1992. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Lab Code 100431-0 © 2000 PCTEST Engineering Laboratory, Inc. TX Certification TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 PRODUCTION INFORMATION 3 DESCRIPTION OF TESTS (CONDUCTED) 4 DESCRIPTION OF TESTS (RADIATED) 5 ANTENNA REQUIREMENT / BANDWIDTH MEASUREMENT 6 FREQUENCY MEASUREMENTS 7 FREQUENCY MEASUREMENTS (Radiated Spurious) 8 FREQUENCY STABILITY TEST DATA9-10 LIST OF SUPPORT EQUIPMENT11 PLOTS OF EMISSION 12 ACCURACY OF MEASUREMENT13 LIST OF TEST EQUIPMENT 14 CONCLUSION15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) / SCHEMATIC(S) ATTACHMENT G: TEST SETUP PHOTOGRAPHS ATTACHMENT H:EXTERNAL PHOTOGRAPHS ATTACHMENT I: INTERNAL PHOTOGRAPHS ATTACHMENT J: USER’S MANUAL © 2000 PCTEST Lab ATTACHMENT C – TEST REPORT Test Report S/N: 15.201016510.PAUFCC Part 15 Subpart C - §15.225 Dates of Tests: November 6-7, 2000Transmitter Certification © 2000 PCTEST Lab Card Reader w/ Modem1 Motorola FCC ID: PAUAT300 MEASUREMENT REPORT Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Manufacturer:Motorola Smartcard Solutions Korea Ltd. Address:7F, Rodamco Tower, 679-4,Yoksam-Dong Kangnam-Gu, Seoul 135-080, Korea Attention:Hyung-Mo Park, Manager Quality Assurance • FCC ID:PAUAT300 • Model:AT300 • Trade Name:MOTOROLA • EUT Type:Card Reader w/ Modem • Frequency Range:13.553Mhz – 13.567MHz • Operating Frequency:13.563MHz • Application Type:Transmitter Certification • FCC Rule Part(s):Part 15 Subpart C – Intentional Radiator; § 15.225 • Dates of Tests:November 6-7, 2000 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:15.201016510.PAU Test Report S/N: 15.201016510.PAUFCC Part 15 Subpart C - §15.225 Dates of Tests: November 6-7, 2000Transmitter Certification © 2000 PCTEST Lab Card Reader w/ Modem2 Motorola FCC ID: PAUAT300 1.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from MOTOROLA Smartcard Solutions Korea Ltd. (Model: AT300) Card Reader w/ Modem FCC ID: PAUAT300. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 15.201016510.PAUFCC Part 15 Subpart C - §15.225 Dates of Tests: November 6-7, 2000Transmitter Certification © 2000 PCTEST Lab Card Reader w/ Modem3 Motorola FCC ID: PAUAT300 2.1 Product Information 2.2 Equipment Description The Equipment Under Test (EUT) is the Motorola Smart Card Solutions Korea Ltd. Card Reader w/ Modem FCC ID: PAUAT300. Port(s)/Connector(s):(6) RJ-11 (1) AC power connector Power Supply:AC Adapter Model: AD-2030L Input: AC 110V/220V, 60Hz Power Cord(s):Unshielded AC Cable(s):Unshielded RJ-11 Test Report S/N: 15.201016510.PAUFCC Part 15 Subpart C - §15.225 Dates of Tests: November 6-7, 2000Transmitter Certification © 2000 PCTEST Lab Card Reader w/ Modem4 Moto…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab ATTACHMENT D – TEST PLOTS

© 2000 PCTEST Lab ATTACHMENT G – TEST SETUP PHOTOGRAPHS © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300 © 2000 PCTEST Lab Card Reader w/ Modem NVLAP Lab Code: 100431-0 Motorola FCC ID: PAUAT300
