PAXPMVE108TPMS (Tire Pressure Monitoring System Transmitter)

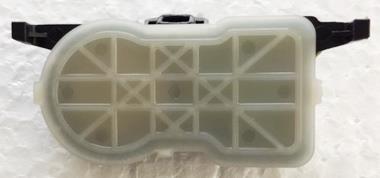

13/17 CONFIDENTIAL & PIC PROPRIETARY 10. Outline View Top view of Transmitter or Bottom view of Transmitter or Fig. 11 14/17 CONFIDENTIAL & PIC PROPRIETARY Front view of Transmitter or Rear view of Transmitter or Right side view of Transmitter or Left side view of Transmitter or Fig. 12 NOTE The only difference between the left and right transmitters is that they have a cover.

16/17 CONFIDENTIAL & PIC PROPRIETARY 12. Marking location and layout Marking Location NOTE Compliance statement of marking will not be changed. Marking layout and size may be changed. Mark with a laser. Fig. 14 18 58 25 MADE IN XXXXX(JAPAN, CHINA) or ASSEMBLED IN USA

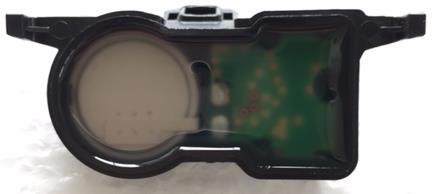

15/17 CONFIDENTIAL & PIC PROPRIETARY 11. Internal View Fig. 13 Antenna

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com September 20, 2023 FCC ID: PAXPMVE108 To whom it may concern, We, UL Japan, Inc, hereby declare that TPMS (Tire Pressure Monitoring System Transmitter), model: PMV-E108 (FCC ID: PAXPMVE108) of Pacific Industrial Company, LTD. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GH z •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test s eparation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 433.92 MHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum tune-up toleranc e was 6.31 mW. So for this device: 6.31 mW [maximum tune-up tolerance] / 5 mm [minimum separation distance]*√0.43392 = 0.83 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Shinichi Miyazono Engineer

Test Report No. 14949294H-A-R1 Page 1 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 14949294H-A-R1 Customer Pacific Industrial Company, LTD. Description of EUT TPMS (Tire Pressure Monitoring System Transmitter) Model Number of EUT PMV-E108 FCC ID PAXPMVE108 Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date October 4, 2023 Remarks - Representative test engineer Approved by Tetsuro Yoshida Engineer Shinichi Miyazono Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 22.0 Test Report No. 14949294H-A-R1 Page 2 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No. 14949294H-A This report is a revised version of 14949294H- A. 14949294H-A is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 14949294H-A September 20, 2023 - 1 14949294H-A-R1 October 4, 2023 Correction of the Test Date due to Duty Cycle re-test; From September 1 and 6, 2023 To September 1 to October 4, 2023 1 14949294H-A-R1 October 4, 2023 Correction of the Worst Margin in Clause 3.2; Electric Field Strength of Fundamental Emission From 12.5 dB / PK To 2.6 dB / AV Electric Field Strength of Spurious Emission From 15.3 dB / PK To 5.4 dB / AV 1 14949294H-A-R1 October 4, 2023 Addition of the following sentence under Average Output Power data; “* The test was performed with Gate function.” 1 14949294H-A-R1 October 4, 2023 Replace of the test data and graph due to Duty Factor correction for Radiated Emission. 1 14949294H-A-R1 October 4, 2023 The following changes to the Duty Cycle data page - Modification of Pulse length, Total value and calculation formula due to Duty Factor correction. - Addition of the following sentences. “The ON time (31.08 ms) appears 1 times in 100 ms. The actual measurement value was applied as Averaging factor (Duty factor).” 1 14949294H-A-R1 October 4, 2023 Updated to Last Calibration Date for MCC-51  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the customer for this report is identified in SECTION 1.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 14949294H-A-R1 Page 3 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectri ques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test …

Text truncated - open the document above for the full version.

Test Report No. 14949294H-A-R1 Page 22 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of Test Setup Radiated Spurious Emission (Below 1 GHz) Photo 1 Photo 2 Test Report No. 14949294H-A-R1 Page 23 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Spurious Emission (Above 1 GHz) Photo 1 Photo 2 Test Report No. 14949294H-A-R1 Page 24 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position Below 1 GHz Horizontal: Y-axis / Vertical: Z-axis Above 1 GHz Horizontal: Z-axis / Vertical: Y-axis X-axis Y-axis Z-axis Test Report No. 14949294H-A-R1 Page 25 of 25 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Average Output Power Photo 1 End of Report
