PAY-00006FIELD DISTURBANCE SENSOR

020-00001-00 Revision 6 1 Seeker Radar Sensor User's Manual Copyright 2012 GTS Engineering Technologies LLC www.gtsengtech.com All rights reserved This publication may not be reproduced without prior written permission of GTS Engineering Technologies LLC, #144 15954 Mur-Len Road Olathe, KS 66062 020-00001-00 Revision 6 2 Table of Contents Table of Contents ............................................................................................................ 2 1 Introduction ............................................................................................................. 3 2 System Information ................................................................................................. 4 3 Theory of Operation ................................................................................................ 5 4 Installation ............................................................................................................... 5 5 Configuration Setting .............................................................................................. 6 6 Calibration ............................................................................................................... 7 7 Care and Maintenance............................................................................................ 7 8 Troubleshooting ...................................................................................................... 7 9 Technical Specifications ......................................................................................... 8 10 Warranty ................................................................................................................. 9 020-00001-00 Revision 6 3 1 Introduction The Seeker radar sensor is a state-of-the-art motion detection system. It uses low power K-band radar signals to extract Doppler information from moving targets. Sophisticated software algorithms are combined with the latest in digital technologies to maximize target identification, motion detection performance, and minimize false activations. The sensor is able to detect speed, direction of motion, and set user configured criteria for target detection. The Seeker radar sensor is ideally suited for the detection of people, automobiles, and even low flying small aircraft. Detection distance is based on many factors including the strength of the radar signal reflected back from the object. This signal strength varies from different objects and the Seeker radar sensor has various controls to maximize the detection of various targets. Such controls include Motion Sensitivity, Range Sensitivity, Detection Direction, Minimum and Maximum Speed. The Seeker radar sensor features dual relays (normally open and normally closed) to indicate when motion is detected. The amount of time that the relays remain on, after target detection is lost, is configurable upon order of the unit or by using the optional Relay Activation Application. A unit can be ordered with a preset configuration or be ordered so that the configuration can be changed by the user with the optional Relay Activation Application. Included with the Relay Activation Application is the GTS Adapter which connects the sensor to a computer via a USB connection so changes can be made to the configuration. The Seeker radar sensor is designed for both indoor and outdoor and usage. The housing is designed to IP67 which protects it from dust and the effects of immersion in water 1 meter deep for 30 minutes. The unit is designed for continuous outdoor use and is not designed to be used underwater. 020-00001-00 Revision 6 4 2 System Information Figure 1 Serial Tag ¼-20 Mounting Insert #6-32 (4 X) Back Mounting Inserts RELAY OUTPUTS 020-00001-00 Revision 6 5 3 Theory of Operation The Seeker radar sensor transmits a radio frequency of 24.125 Gigahertz, in compliance with Federal Communications Commission Part 15 Regulations. The transmitted signal is focused by an antenna, like a flash light, and emits from the front of the Seeker radar sensor housing. When the transmitted signal interacts with a moving target, it returns at a different frequency because there is relative motion between the two objects (radar unit and target). This is a physics principle known as the Doppler effect. Targets approaching the radar will return an echo higher in frequency than the transmitted frequency. Targets moving away from the radar, receding, will return a lower frequency signal. The Seeker radar sensor is able to detect and measure the frequency difference of a moving target. It uses this information in combination with the user selected or order configured parameters to detect targets and activate the relay outputs. 4 Installation The Seeker radar sensor includes inserts located on the sides and back of the unit for flexible installation options (see Figure 1). Two sizes of inserts are supplied on the back which are (4) #6-32 and (1) ¼-20. Standard size screws can be used and it is recommended that stainless steel screws be used if the unit will be exposed to moisture. Depending upon the thickness of the mounting bracket used, be sure that the screws are long enough to clamp the bracket to the housing but not so long that if over tightened the screws will not push the insert out of the housing. Contact GTS Engineering Technologies if you require a special mounting bracket for your application. Once the unit is mounted, make all connections to the wiring harness before applying power to the unit. After testing the operation, seal all exposed connections from water. Aim the radar at the desired target area and ensure a clear and unobstructed view. Wiring Diagram Brown/White 10 - 28 VDC Brown Ground Blue/White N.O. Relay Blue N.O. Relay Green/White N.C. Relay Green N.C. Relay Orange/White D+ Orange D- 020-00001-00 Revision 6 6 5 Configuration Setting The Seeker radar sensor can be ordered with a preset configuration or an optional software application c…

Text truncated - open the document above for the full version.

Page 1 of 2 August 8, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: GTS Engineering Technologies, LLC 15954 Mur-Len #144 Olathe, KS 66062 Re: Confidentiality for submittal information regarding FCC ID number PAY-00006 PRODUCT: Low power Field Disturbance Sensor operated under paragraph 15.245. Dear Sirs: GTS Engineering Technologies, LLC requests that the material in the Parts List, Schematics, Block Diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. In support of this request, GTS Engineering Technologies, LLC submits the following information. CONFIDENTIAL FILES Conf BlkDia seeker.pdf Conf OpDes seeker.pdf Conf Schem seeker.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set forth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: PAY-00006 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 913 837-3214 Page 2 of 2 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of GTS Engineering Technologies, LLC engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to GTS Engineering Technologies, LLC. 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by GTS Engineering Technologies, LLC and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

August 8, 2012 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: GTS Engineering Technologies, LLC 15954 Mur-Len #144 Olathe, KS 66062 FCC ID: PAY-00006 CORES number: 0021 3355 91 FCC Rules: Parts 2 and 15.245 To Whom It May Concern: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site for use in obtaining a grant of certification. Confidentiality is requested as outlined below. Permanent GTS Engineering Technologies, LLC requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure pursuant to Sections 0.457 and 0.459 of the Commission’s Rules following grant of the application. A statement of confidentiality will be attached with the application at the time of submittal. Exhibit File Schematics Conf Schem seeker.pdf Block diagram Conf BlkDia seeker.pdf Operational Description Conf OpDes seeker.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

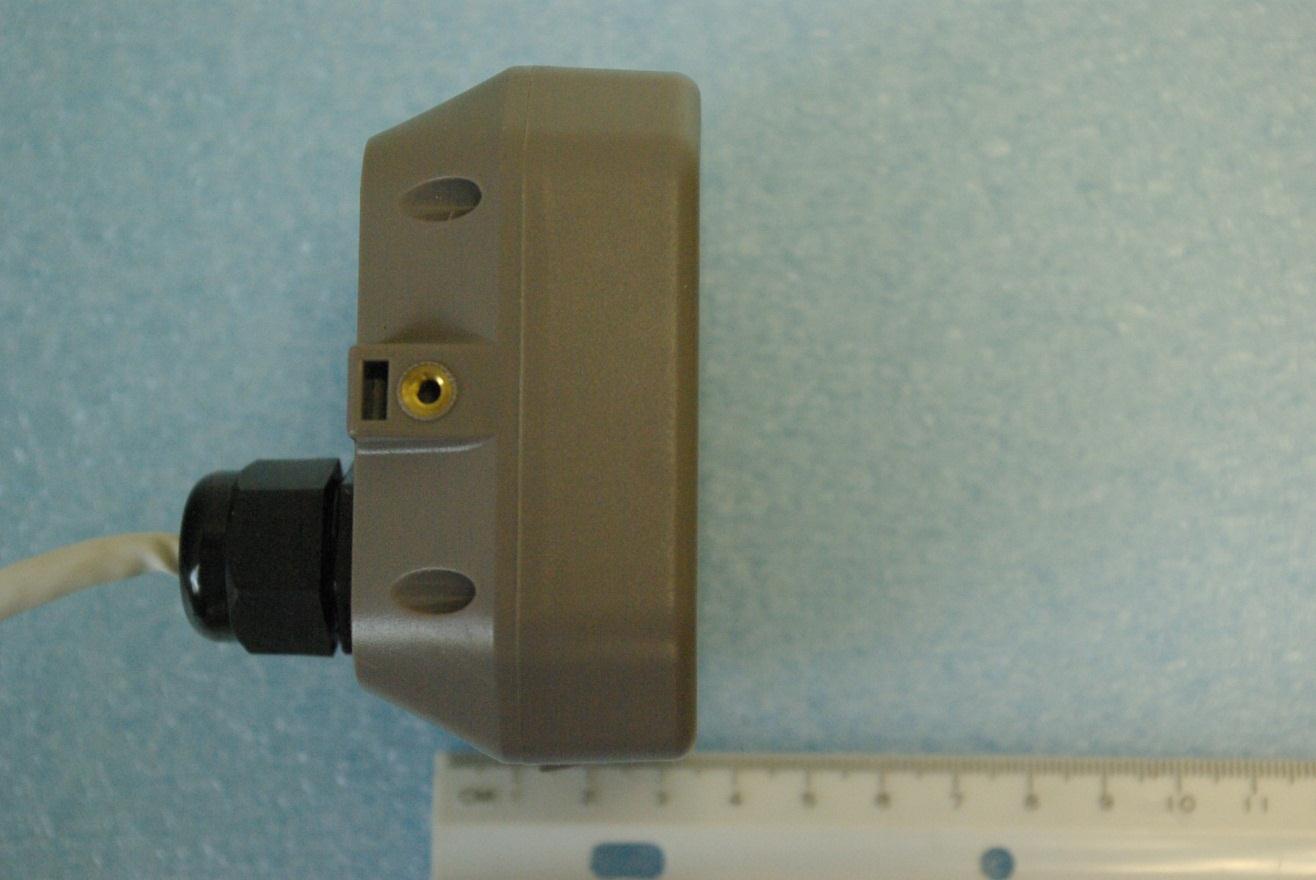

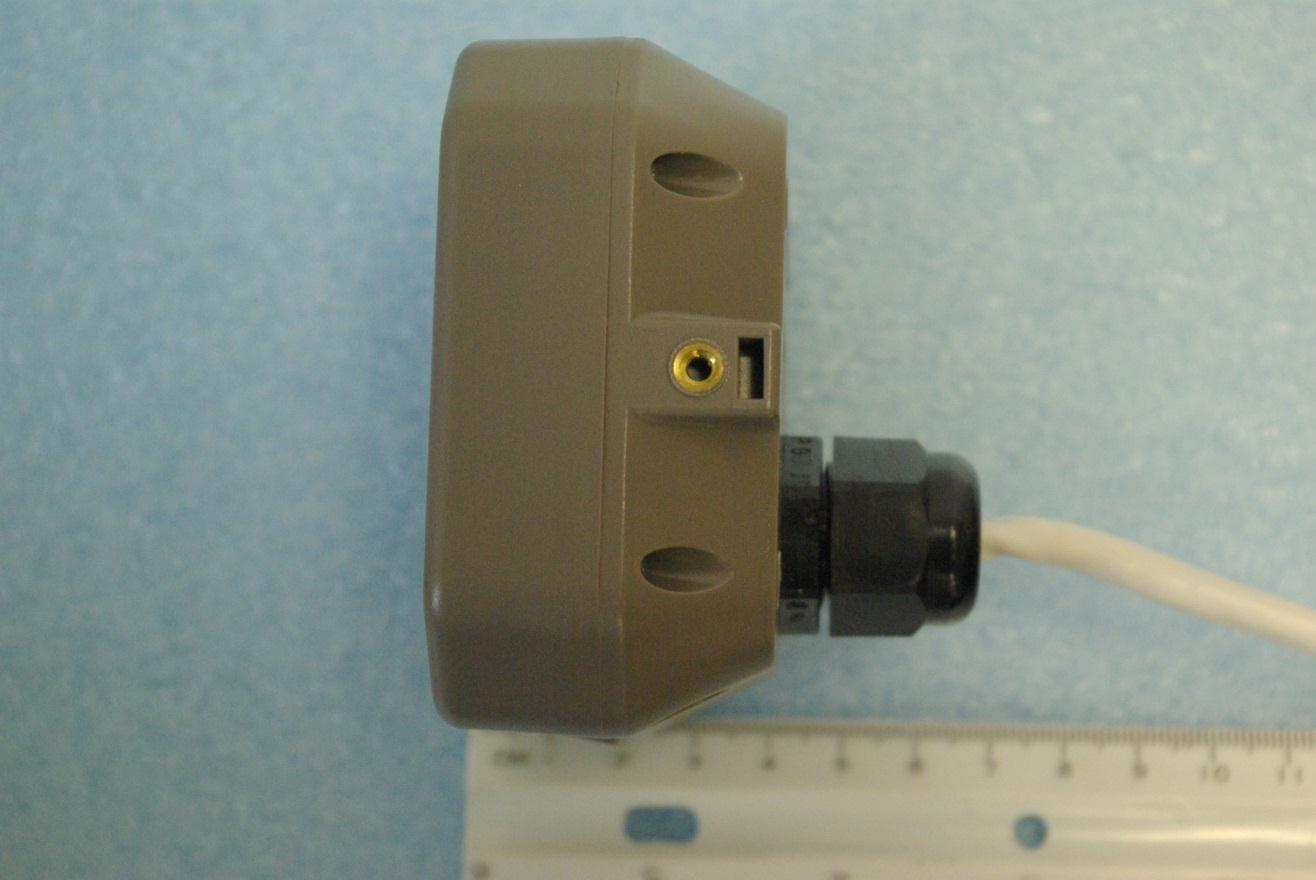

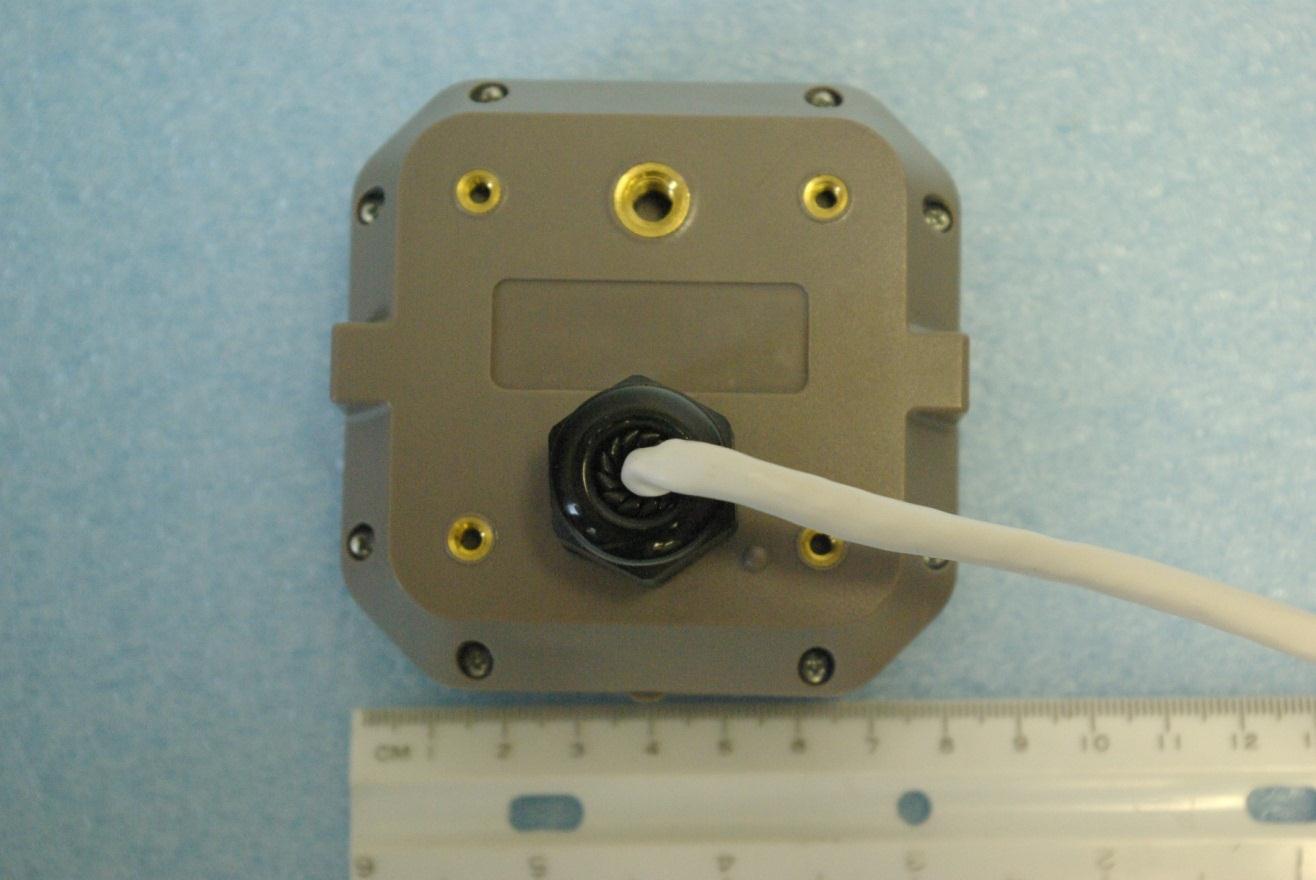

Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: ExtPho seeker Page 1 of 2 External photographs of equipment under test Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: ExtPho seeker Page 2 of 2

Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: LabelSmpl seeker Page 1 of 1 ID label and location Label Location Label

Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: IntPho seeker Page 1 of 1 Internal Photographs

Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: TunPro seeker Page 1 of 1 Tune-up Procedure No transmitter tune-up is required for the transceiver. Transceiver functional performance is measured both at the board level and at final test during production. Pass/Fail Criteria 1. Attach ground to Brown wire 2. Connect Blue/White wire to current limited LED < 150 mA 3. Connect Blue wire to other side of item 2 LED 4. Connect Green/White wire to current limited LED < 150 mA 5. Connect Green wire to other side of item 4 LED 6. Apply 10 to 28 VDC to the Brown/White wire. Current limit > 300 mA 7. With no movement in front of radar. Item 2 LED will be off. Item 4 LED will be on. 8. Wave test object in front of radar. Item 2 LED will turn on. Item 4 LED will turn off. 9. Stop moving test object and Item 2 LED will turn off after several seconds. Item 4 LED will turn on.

NVLAP Lab Code 200087-0 Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: GTS Seeker TstRpt 120615 Page 1 of 21 Application For Grant of Certification FOR Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 FOR GTS Engineering Technologies, LLC 15954 Mur-Len #144 Olathe, KS 66062 Test Report Number 120615 Authorized Signatory: Scot D. Rogers NVLAP Lab Code 200087-0 Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: GTS Seeker TstRpt 120615 Page 2 of 21 Test Report for Application of Certification For GTS Engineering Technologies, LLC 15954 Mur-Len #144 Olathe, KS 66062 Phone: 816 738-4768 Mr. Robert Godsy Compliance Manager Model: Seeker Field Disturbance Monitor Field Disturbance Sensor Frequency Range: 24,125 MHz FCC ID: PAY-00006 Test Report Number: 120615 Test Date: June 15, 2012 Authorized Signatory: Scot D. Rogers Rogers Labs, Inc. 4405 West 259th Terrace Louisburg, KS 66053 Telephone/Facsimile: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the Federal Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: GTS Seeker TstRpt 120615 Page 3 of 21 Table of Contents TABLE OF CONTENTS .................................................................................................... 3 FORWARD ....................................................................................................................... 5 APPLICABLE STANDARDS & TEST PROCEDURES .................................................... 5 OPINION / INTERPRETATION OF RESULTS ................................................................. 5 STATEMENT OF MODIFICATIONS AND DEVIATIONS ................................................. 6 ENVIRONMENTAL CONDITIONS.................................................................................... 6 UNITS OF MEASUREMENTS .......................................................................................... 6 TEST SITE LOCATIONS .................................................................................................. 6 LIST OF TEST EQUIPMENT ............................................................................................ 7 APPLICATION FOR CERTIFICATION ............................................................................. 8 EQUIPMENT TESTED SETUP, FUNCTION AND CONFIGURATIONS .......................... 9 Equipment Function and Test Setup ....................................................................................................................... 9 EUT Configuration Options .................................................................................................................................... 9 SUBPART C - INTENTIONAL RADIATORS .................................................................... 9 AC Line Conducted Emission Test Procedure ....................................................................................................... 10 Radiated Emission Test Procedure ......................................................................................................................... 10 ANTENNA REQUIREMENTS ........................................................................................... 10 RESTRICTED BANDS OF OPERATION ......................................................................... 10 Radiated Emissions in Restricted Bands Data ....................................................................................................... 11 Summary of Results for Radiated Emissions in Restricted Bands ....................................................................... 11 General Radiated EMI Testing Procedure ............................................................................................................. 11 General Radiated Emissions Data (worst-case) ..................................................................................................... 12 Summary of Results for General Radiated Emissions ........................................................................................... 13 NVLAP Lab Code 200087-0 Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: GTS Seeker TstRpt 120615 Page 4 of 21 OPERATION IN THE BAND 24,075-24,175 MHZ ............................................................ 13 Figure One radiated transmitter output across frequency band .............................................................................. 14 Transmitter Radiated Emissions Data .................................................................................................................... 14 Transmitter Radiated Emissions ............................................................................................................................. 14 Summary of Results for Transmitter Radiated Emissions.................................................................................... 15 ANNEX ................................…

Text truncated - open the document above for the full version.

Rogers Labs, Inc. GTS Engineering Technologies, LLC 4405 West 259 th Terrace Model: Seeker Field Disturbance Monitor FCC ID: PAY-00006 Louisburg, KS 66053 Test #:120615 SN: ENG1 Phone/Fax: (913) 837-3214 Test to: FCC CFR 47 15.245 Date: August 8, 2012 Revision 1 File: TSup Seeker Page 1 of 1 Test setup photographs
