PBVAMIR210Traffic Sensor

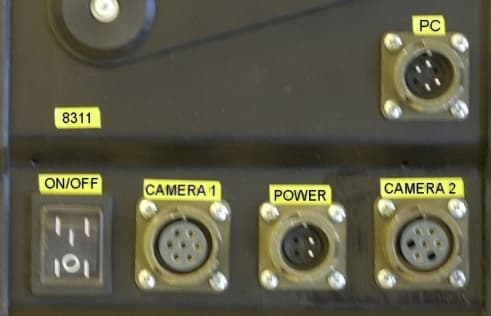

2001-03-27 SENSYS Traffic AB (Pub l) P.O Box 2174Besöksadress/Visiting address:e-mail: SE-550 02 JönköpingSlottsgatan [email protected] SE-553 22 Jönköping Phone: +46 (0) 36-34 29 80Org no: 556215-4459 Fax:+46 (0) 36-12 56 99, +46 (0) 36-34 29 79VAT.SE 556215445901 List of contents and manual for operation 1. Sensor 2. Com cable 3. Power cable 4. Floppy disc with software 2 (5) Connect the grey com cable to the connector market “PC” Connect the black power cable to the connector market “Power” Connect the red banana pin to DC +12V Connect the black banana pin to –0V Turn the power on. Turn the device on by switching the ON/OFF switch to on. (you should hear a faint “click” inside as you turn the device on and off) 3 (5) The PC software The program can be run on a computer with DOS or Windows, just make sure that the serial port (com 1) is available. The program doesn’t have to be installed on the computer, it runs from the floppy drive. • Connect the com cable to the serial port on a PC. • Insert the floppy disc in the floppy drive. • On the disc, there is folder called “ASTRO”. • Open the file called “ASTRO”, in the folder “ASTRO”. • The main menu looks like above. • Scroll up or down with the arrow keys. • Choose with “Return”. • To start the device – choose “Measure” 4 (5) • Choose what “site” you want to use (there is only one) • Choose by hit “Return” • Start the dive by hitting “Return” once more. 5 (5) • When the device is started, this screen appears. • The device makes a internal calibration every 15 min and will appear on screen as 54mph • To stop the measurement – use arrow keys and choose “stop”. • Exit the program from the main menu by choosing “Exit”. • If you get an error message when you start the measurement, turn the device off and then on again, and try again.

Dokumentnamn / Document name Cover Letter AMIR 110 Infoklass / Info class Internal (I) Godkänd / App roved byLagrin gsdata / FileDok nr / Doc No Sven Nilsson127085 240-00:081 Ut färdare / Issued byDat um / Dat eUt gåva / IssueSida / Pa ge Sven Nilsson2000-11-30A1 (1) FördelningFör kännedom Cover Letter FCC Counsel for SENSYS Traffic AB John Wilner will be the contact person for SENSYS TRAFFIC AB for non-technical questions for this application. John Wilner Phone: 202 508 6041 Fax: 202 508 6200 E-mail: [email protected] The following documents have been added: 1. Type testing of radar speed meter RC-110. (Performed by Swedish National Testing Institute.) 2. Type testing of radar speed meter AMIR210. (Performed by Swedish National Testing Institute.) This report is written in Swedish language. On request this document will be translated to English. 3. Type testing of radar speed meter AMIR110. 4. Declaration of conformity. Identification of 10GHz radar: AMIR110 Project Manager Sven Nilsson M.Sc.E.E Phone: +46 36 34 29 85 Fax: +46 36 12 56 99 E-mail: [email protected] SENSYS Traffic AB Box 3169 SE-55003 Jönköping Sweden

Dokumentnamn / Document name Description of changes for Form 731 Infoklass / Info class Internal (I) Godkänd / App roved byLagrin gsdata / FileDok nr / Doc No Sven Nilsson127216 240-00:082 Ut färdare / Issued byDat um / Dat eUt gåva / IssueSida / Pa ge Sven Nilsson2000-12-01A1 (1) FördelningFör kännedom Description of changes for Form 731 The following has been wrong written on the FCC Form 731: Item 11. Application is for: Change in identification of presently authorized JR8 FCC Form 731 will be changed to: Item 11. Application is for: Original Equipment Best Regards, Sven Nilsson Project Manager Sven Nilsson M.Sc.E.E Phone: +46 36 34 29 85 Fax: +46 36 12 56 99 E-mail: [email protected] SENSYS Traffic AB Box 3169 SE-55003 Jönköping Sweden

Dokumentnamn / Document name Confidentiality AMIR210 Infoklass / Info class Internal (I) Godkänd / App roved byLagrin gsdata / FileDok nr / Doc No Sven Nilsson148350 240-01:012 Ut färdare / Issued byDat um / Dat eUt gåva / IssueSida / Pa ge Sven Nilsson2001-05-08A1 (1) FördelningFör kännedom Confidentiality AMIR210 FCC ID: PBVAMIR210 Reference 0.459. Option 1: Only the transmitted schematic diagram is interested to be confidentially for PBVAMIR210. Reason: The design can be interested for other competition Companies. Sven Nilsson 2001-05-07 Sensys Traffic AB

RADAR AMIR 210 No: 8311 Rev: 03 03 00 02 Mfg. 1998 SENSYS Traffic AB Box 2174 550 02 JÖNKÖPING, SWEDEN AMIR 210

AMIR 210 AMIR 210

AMIR 210 AMIR 210

DSP 1013 COM 1015 AGC 1023 MK 1021 AD 1012 CFAR 1014 SP 1016

Sensys Traffic AB 2000-03-29 Technical report AMIR 210 1: Manufacturer: Sensys Traffic AB Slottsgatan 14 Box 2174 SE-55002 Jönköping Sweden Phone: +46 36 34 29 85 e-mail: [email protected] 2: FCC ID: AMIR210 3: Installations see document: List of contents and manual for operation. 4: Brief description: Microwave unit Withholding a transmitter and a receiver. Transmitting frequency is 10.525 GHz. The unit is comparing the difference between the frequency sent out and the received frequency. A received frequency that is lower than the transmitting frequency indicates a car moving away from the radar and a higher frequency for a car approaching. AGC – Automatic gain controller The microwave unit sends the signal to the AGC-board. The frequency of that signal is the difference of the signals in the microwave unit. The AGC consist of filters on three different channels, A, B and C. Channel A measures the speed of the car. The difference in frequency from the microwave unit correspond to a certain speed. 1.2 kHz is 60 km/h ~38 mph. The frequency will be between 300 – 5.5 kHz. By comparing the phase shift between the A and B channel we can determine the distance to the car. DSP-unitADCAGC Microwave- unit CFARKOM Decision KOM PC104Camera Red light signal Channel C is used to make sure that the car the radar sees is not further away than 250ft. ADC – Analog digital converter The ADC converts the signal to a digital signal through a 12 bit converter. DSP – Unit Digital signal processor The DSP has a FFT – Fast Fourier Transfer, that transfers the signal by looking at the frequency and the amplitude. Here is were the data is read. The result will appear like shown below. The result will be placed in a bin. Each bin in the diagram is 3,2 km/h, and the radar only sees one each bin. That means that the cars must have a 3 km/h difference in speed to be detected. If there is two cars in the same bin the car with the highest magnitude will be measured, that will say, the closest one. Magnitude 3,2km/h Speed CFAR – Constant False Alarm Rate Noise reduction. It’s basically a filter Decisions processor It decides if it’s going to send the data to the KOM-processor or not. The speed has to be in accordance with the change of distance of the target. The red light signal is also wired to the decisions processor. KOM Processor The KOM processor is sending data to PC and camera Report Following description is for approaching vehicles. To get a accurate report, out of 10 samples, 5 has to be correct, 4 before the limit line and 1 after. If a lot of the samples are not approved, the radar keeps on trying to get samples approved. That gives sometimes a report line that “floats”. The distance to the report line will sometimes be shorter than preset. The programming allows the radar to keep looking for the car up to five meter closer than the report line. For leaving vehicles the distance to the report line will be more distant. Radar loob The angle of the loob is 13 degrees. On 40m the loob will be approx. 8 m wide, at 50 it’s 10 and at 70 it’s 15. The width above is within the area where the power of the loob is more than 50%. The radar will still measure cars outside the loob, depending of distance angle and where it’s mounted.

Datum/Date Beteckning/Reference Sida/Page 2001-05-18 F108982 1 (1) Encl. 1 Sign:.... Performance test and requirements Test facility The used anechoic chamber (15:115) is compliant with the requirements of section 2.948 of the FCC rules and listed as a facility accepted for certification under parts 15 or 18. Operation mode emission measurements: The test object was powered by a power supply, mascot type 9226. A computer was connected to the test object. The test object was set to measuring mode. Functional test equipment Computer Toshiba Satellite Delivery of test object The test object was delivered by the client at the date of the test. Test witness Leif Bergqvist, SENSYS TRAFFIC AB. Reservation The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in the report. Uncertainties Measurement and test instrument uncertainties are described in the quality assurance documentation ”FEx-QD1 (annex 8)”. Datum/Date Beteckning/Reference Sida/Page 2001-05-18 F108982 1 (2) Encl. 2 Sign:.... Radiated emission measurements according to FCC CFR part 15.245 Date 2001-05-18 Temperature 20 °C ± 3 °C Humidity 40% ± 5 % Test set-up and Procedure The test of radiated emission was performed in a semi anechoic chamber. The EUT was scanned 360 degrees and the antenna height scanned from 1 to 4 m. The measurements were performed with both horizontal and vertical polarisation of the antenna. The antenna distance was 3 m. The measurement was first performed with average detector. The test set-up during the tests can be seen in the picture below. Measurement equipment Calibration Due SP number Anechoic chamber - 15:115 R&S ESI 2001-09 503 292 EMCO Horn Antenna 3115 2001-10 502 175 Testo 610, Temperature and humidity meter 2001-11 502 658 Datum/Date Beteckning/Reference Sida/Page 2001-05-18 F108982 2 (2) Encl. 2 Sign:.... Result The field strength of the fundamental with the Average-detector can be found in the table below: Frequency (MHz) Peak Amplitude (dB?V/m) Average Amplitude (dB?V/m) 3m Limit (dB?V/m) (Average) Turntable Angle (Note 1) Antenna height (m) Polarisation Compliant 10 525 125.7 122.7 128 357 1.0 Vertical Yes 10 525 116.7 107.8 128 357 1.0 Horizontal Yes Note 1: Clockwise rotation, the front of the test object (according to the picture above, front side) facing the antenna is 0 degree. Emissions below limit Yes Datum/Date Beteckning/Reference Sida/Page 2001-05-18 F108982 1 (1) Encl. 3 Sign:.... Conducted emission measurements according to FCC CFR part 15.207 Date 2001-05-04 Temperature 21 °C ± 3 °C Humidity 40% ± 5 % Test set-up and Procedure Measurements were performed 230 V AC mains, neutral and phase. Measurement equipment Calibration Due SP number Test Site - 15:115 R&S ESI 2001-09 503 292 Control computer, Fujitsu Siemens - - Software: R&S ES-K1, ver. 1.60 - - Schwartzbeck NNLK 8121 2001-05 502 112 Schwartzbeck NNLK 8126 2001-12 503 114 Testo 610, Temperature and humidity meter 2001-11 502 658 Result The emission spectra can be found in enclosure 3.1: Diagram 1: Conducted emission, 230 V AC mains, neutral, The computer connected to the test object. Diagram 2: Conducted emission, 230 V AC mains, phase, The computer connected to the test object. Note: The following measured conducted emissions with QP-adapter are equal to the measurement uncertainty for conducted emission: Diagram 1: 24.58 MHz = 48.4 dBμV (QP) 0.4 dB above limit Diagram 2: 24.58 MHz = 49.5 dBμV (QP) 1.5 dB above limit The measurement uncertainty for conducted emission is 2.6 dB. Due to the measurement uncertainty it can not be determined whit the full certainty that the test object is non compliant Emissions below limit — Datum/Date Beteckning/Reference Sida/Page 2001-05-18 F108982 1 (1) Encl. 4 Sign:.... Photo, Identity




               !      "#
