PCJJL201327RC Monster Spinning Car

Block Diagram Control key k2 k3 k4 k5 Encoder IC1 RF power amplifier and Modulator Q1 Q2 Oscillator Y1 27.145MHz Filter L1,C1 27.145MHz ANT

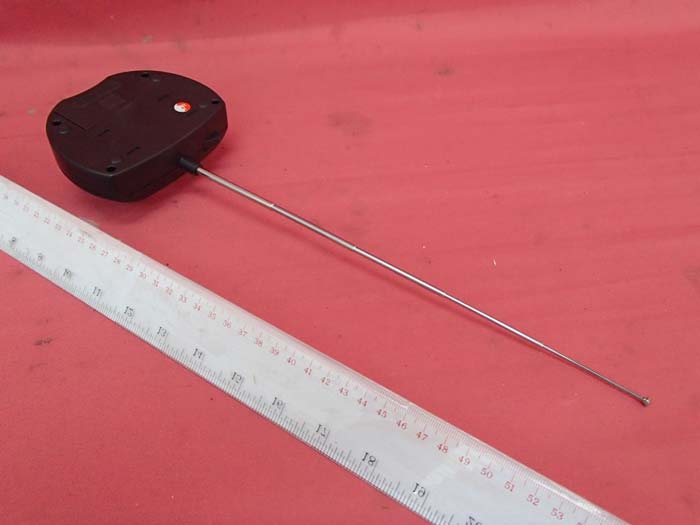

INTERTEK TESTING SERVICE Report No.: HK12120176-1 FCC ID: PCJJL201327 Equipment Photographs Model : JL2013 (External)

36mm 20mm

INTERTEK TESTING SERVICE Report No.: HK12120176-1 FCC ID: PCJJL201327 Equipment Photographs Model: JL2013 (Internal) INTERTEK TESTING SERVICE Report No.: HK12120176-1 FCC ID: PCJJL201327 Equipment Photographs Model: JL2013 (Internal) INTERTEK TESTING SERVICE Report No.: HK12120176-1 FCC ID: PCJJL201327 Equipment Photographs Model: JL2013 (Internal) INTERTEK TESTING SERVICE Report No.: HK12120176-1 FCC ID: PCJJL201327 Equipment Photographs Model: JL2013 (Internal)

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1,C1 RF IC Encode, logic control and sent out SD signal IC1 Crystal Generate 27.145 MHz carrier Y1, Q2 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q1 Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation Frequency Range: 27.145MHz single channel Antenna Gain: 0dBi Nominal rated field strength: 69.6dBuV/m at 3m Maximum allowed field strength error: +/- 3dB

Analysis Report Report No.: HK12120176-1 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a power ON/OFF switch and two forward / backward control lever for the left and right wheel of RC car respectively. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: Telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 69.6dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 72.6dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.0055mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.0055mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12120176-1(R1) JinLong Toys Company Limited Application For Certification (Original Grant) (FCC ID: PCJJL201327) Transmitter Supersedes Report No.: HK12120176-1 dated January 17, 2013. Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: January 25, 2013 INTERTEK TESTING SERVICES Report No.: HK12120176-1(R1) FCC ID: PCJJL201327 i GENERAL INFORMATION JinLong Toys Company Limited MODEL: JL2013 FCC ID: PCJJL201327 Grantee: JinLong Toys Company Limited Grantee Address: Dengfeng Road Longken Reside Appoint Guangyi Street Chenghai District Shantou City, China. Contact Person: Hong Bin Zhao Tel: 0754-85892168 Fax: 0754-85892198 e-mail: [email protected] Buyer: Merchsource, LLC Manufacturer: Jinlong Toys Company Limited Manufacturer ID No.: 29973 Brand Name: N/A Model: JL2013 Type of EUT: Transmitter Description of EUT: RC Monster Spinning Car Serial Number: N/A FCC ID: PCJJL201327 Date of Sample Submitted: December 07, 2012 Date of Test: December 07, 2012 to January 03, 2013 Report No.: HK12120176-1(R1) Report Date: January 25, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12120176-1(R1) FCC ID: PCJJL201327 ii SUMMARY OF TEST RESULT JinLong Toys Company Limited MODEL: JL2013 FCC ID: PCJJL201327 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12120176-1(R1) FCC ID: PCJJL201327 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ...............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK12120176-1 FCC ID: PCJJL201327 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: JL2013 INTERTEK TESTING SERVICE Report No: HK12120176-1 FCC ID: PCJJL201327 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: JL2013
