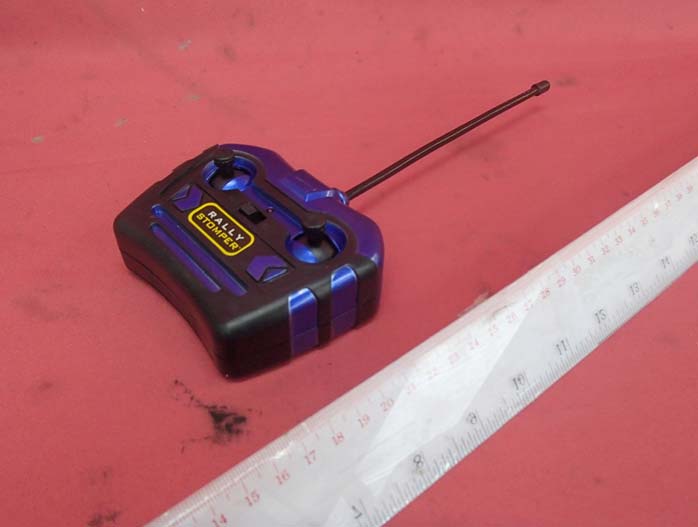

INTERTEK TESTING SERVICE Report No.: HK12120173-1 FCC ID: PCJJL2013A27 Equipment Photographs Model : JL2013A (External)

36mm 14mm

INTERTEK TESTING SERVICE Report No.: HK12120173-1 FCC ID: PCJJL2013A27 Equipment Photographs Model: JL2013A (Internal) INTERTEK TESTING SERVICE Report No.: HK12120173-1 FCC ID: PCJJL2013A27 Equipment Photographs Model: JL2013A (Internal) INTERTEK TESTING SERVICE Report No.: HK12120173-1 FCC ID: PCJJL2013A27 Equipment Photographs Model: JL2013A (Internal)

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L2, C5 RF IC Encode, logic control and sent out SD signal IC1 Crystal Generate 27.145 MHz carrier Y1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q1, Q2 Type of antenna: Integral, External antenna Type of modulation: Pulse modulation Frequency Range: 27.145MHz single channel Antenna Gain: 0dBi Nominal rated field strength: 60.1dBuV/m at 3m (-37.3dBm) Maximum allowed field strength error: +/- 3dB

Analysis Report Report No.: HK12120173-1 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 60.1dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 63.1dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00061mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00061mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.
