PCJJL2014A27Toy RC Boxing Robots

27.145MHz Transmitter Block Diagram IC 1 1

Deputy General Manager May 17, 2014

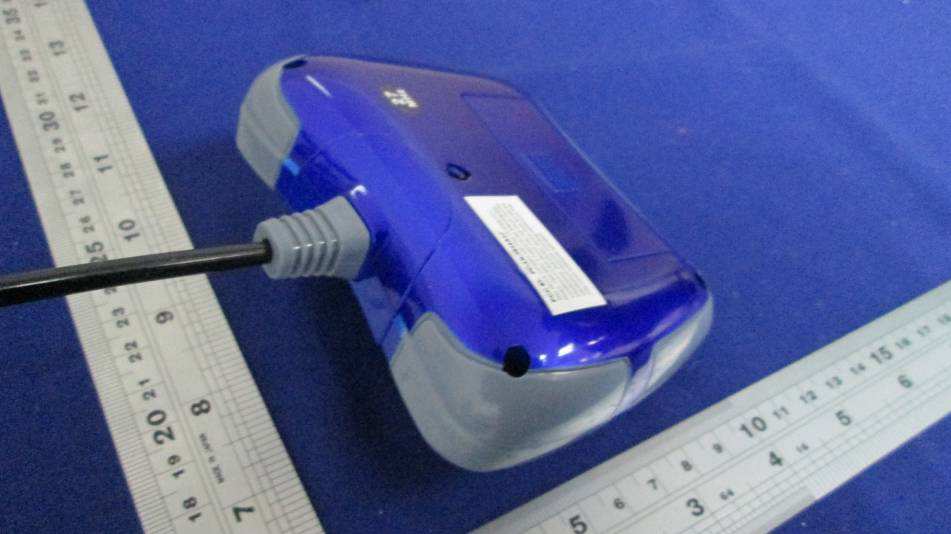

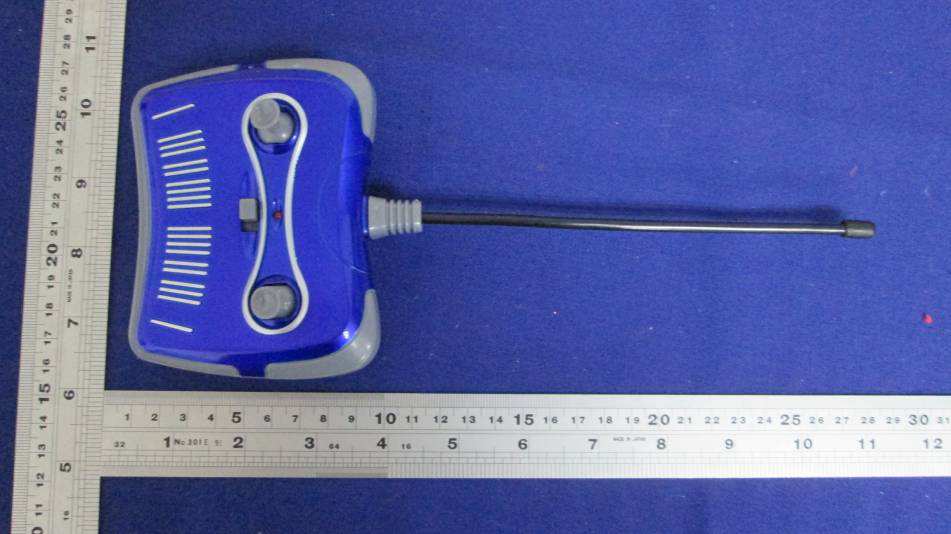

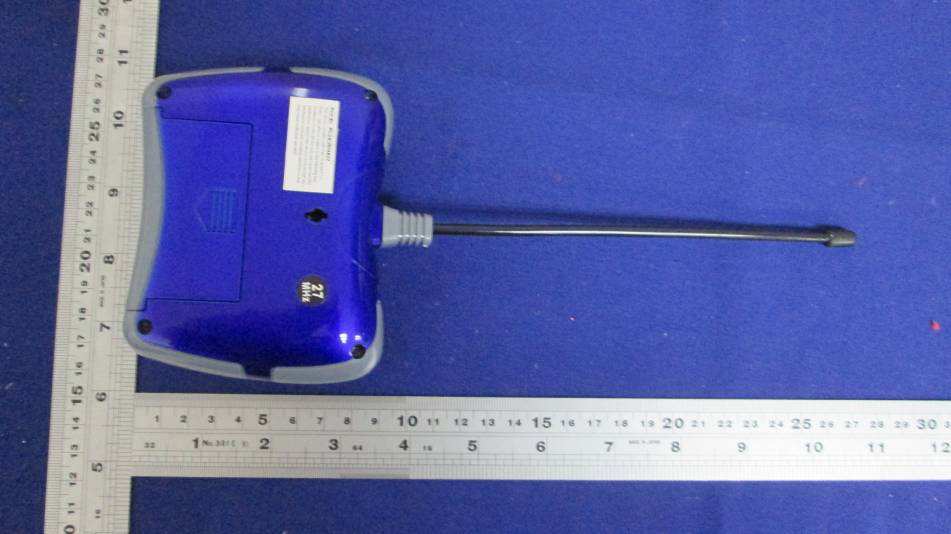

External Photos

Label Artwork and Location

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L3, C6 RF IC Generate code signal to modulator IC1 Oscillator Generate 27.145 MHz carrier Y1, Q1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -41.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -43.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Boxing Robots operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -41.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -43.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: Th e worst-case peak radiated emission for the EUT is 53.8dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -41.43dBm The ERP = EIRP – 2.15 = -43.58 dBm which is within the production variation. The maximun conducted output power specified is -38dBm =0.00016mW The source- based time-averaging conducted output power = 0.00016* Duty Cycle mW < 0.1 mW (Duty Cycle<100%) T he SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 19.8ms Effective period of the cycle = 600μs x 10 + 1.62ms x 4 = 12.48ms DC = 12.48ms / 19.8ms = 0.6303 or 63.03% FCC ID: PCJJL2014A27

Transmitter Circuit Diagram 27.145MHz R1 C6 R3 C7 Y1 27.145M R2 1K R7 510K C2 104 R5 D3 3.9V
