PCJJL2014B49Toy RC Retro Roller

49.86MHz Transmitter Block Diagram IC 1 49.86MHz

Deputy General Manager May 17, 2014

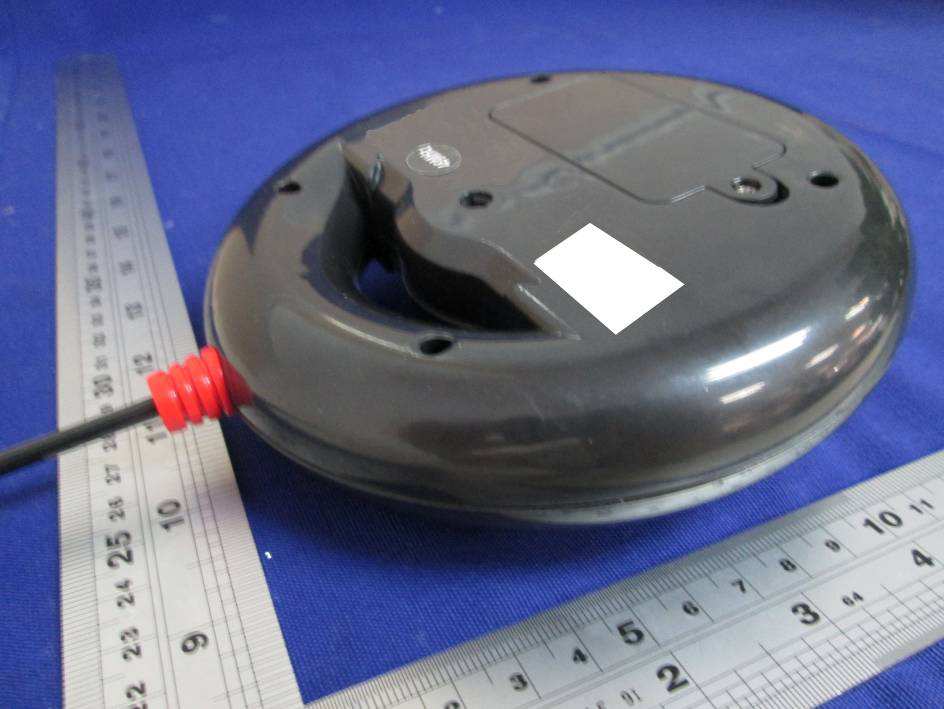

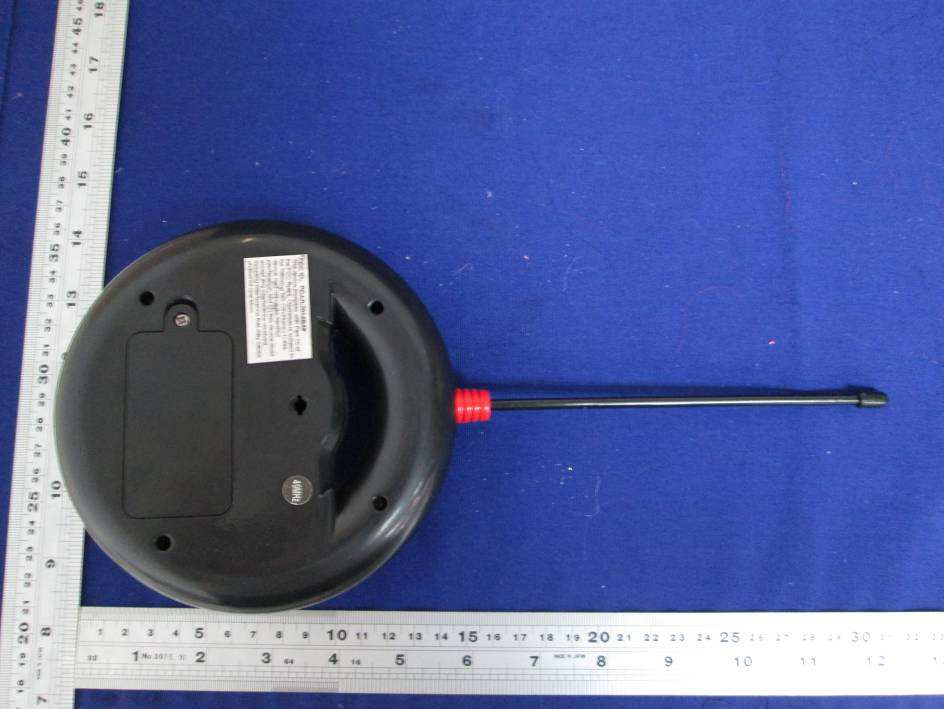

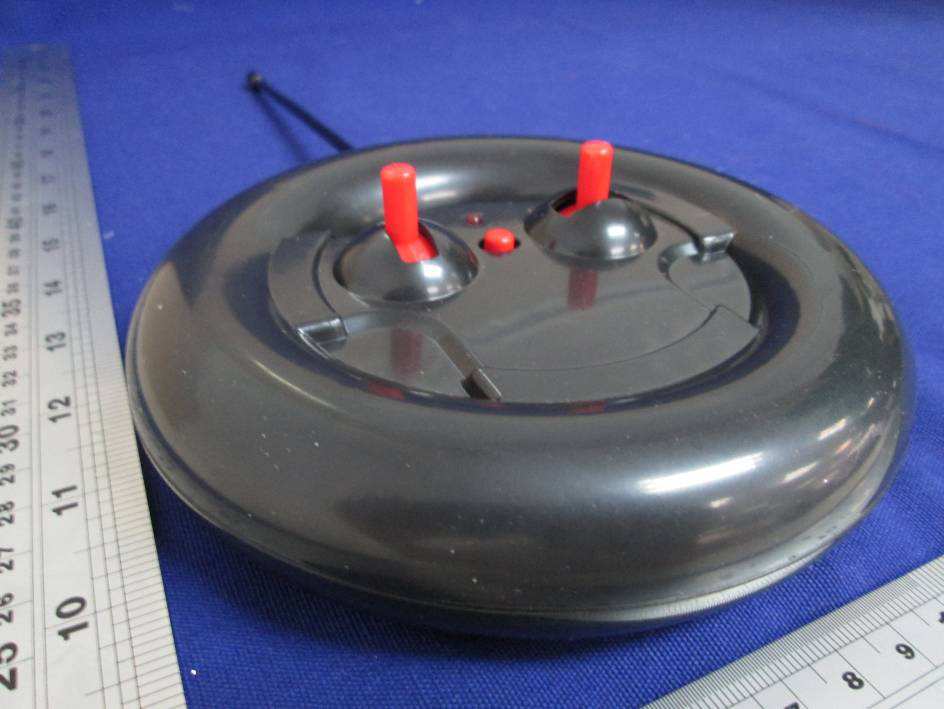

External Photos

Label Artwork and Location

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT1 Filter Suppression of spurious emissions L3, C3, C9 RF IC Generate code signal to modulator IC1 Oscillator Generate 49.86 MHz carrier Y1, Q1 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q2 Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi Modulation Type: Pulse modulation The nominal conducted output power specified: -26.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -28.15dBm (+/- 3dB)

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Retro Roller operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna with plastic enclosure Antenna Gain: 0dBi The nominal conducted output power specified: -26.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -28.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: T he worst-case peak radiated emission for the EUT is 69.1dBμV/m at 3m in the frequency 49.860MHz The EIRP = [(FS*D) ^2 / 30] mW= -26.13dBm The ERP = EIRP – 2.15 = -28.28 dBm which is within the production variation. The maximun conducted output power specified is -23dB m = 0.005mW The source- based time-averaging conducted output power = 0.005 * Duty Cycle mW < 0.1 mW (Duty Cycle<100%) The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 308.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 19.94ms Effective period of the cycle = 560μs x 10 + 1.64ms x 4 = 12.16ms DC = 12.16ms / 19.94ms = 0.6098 or 60.98% FCC ID: PCJJL2014B49

Transmitter Circuit Diagram 49.860MHz 4148 4148 C6 104 R1 C9 68P R5 C8 Y1 49.860M R9 2.2K R7 1M C2 104 R6 D3 3.9V C4 L2 3V
