PDPPREMIERPROXProximity Card Reader

M M M M M u u u u u l l l l l lion and lion and lion and lion and lion and W W W W W al al al al al l l l l l Mou Mou Mou Mou Mou nt nt nt nt nt Readers Readers Readers Readers Readers Installation Manual 3C4645-12/00 Distributed by Manufactured byReadx Global Ltd181 Kahikatea DrHamilton, New ZealandTel. +64 7 8389800 Fax. +64 7 838 9801 [email protected] Pr Pr Pr Pr Pr emierPr emierPr emierPr emierPr emierPr o o o o o x x x x x Approvals and Standards Approvals and Standards Approvals and Standards Approvals and Standards Approvals and Standards This device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesiredoperation. ACN: 002132943 General General General General General The PremierProx family of readers will readan assortment of proximity card formatswhich operate at 125 kHz.The readers are designed to be wall ormullion mounted, for either indoor oroutdoor applications. As both the wallmount and mullion readers are completelysealed there is never a need for anymodifications for outdoor installations.The mounting surface will affect the overallread range performance of the reader. Whenmounting on a metal surface, expect asignificant decrease in read range (10% to20% decrease from maximum rated range). Considerations Considerations Considerations Considerations Considerations 1. Reader installation should conform with all local codes, ordinances andregulations. 2. The controller must supply at least + 5 and not more than + 15 V DC ofoperating voltage to the reader. 3. The maximum recommended reader distance from the controller is asfollows: 200 feet with #22 AWG wire cable 500 feet with #18 AWG wire cableShielded cable is recommended for outdoorinstallations that are over 200 feet from thebuilding or if strong interference is present(EMI, AC). Mounting Mounting Mounting Mounting Mounting The readers are designed to be mountedvertically, but can be mounted horizontally.Mount the reader on a flat surface at aheight of about 152 cm (5’) . A lower mountmay be required for disabled persons or forreading from cars. Installation Installation Installation Installation Installation To prevent any damage to the reader, makesure that all connections are done whilepower from the controller is turned off.1. Remove the reader cover from the base.2. Connect the wires from the reader to the end of the cable coming from thecontroller. Function Wire Color Power (+ 5 to + 15 VDC) RedCommon Black Data “1” White Data “0” Green LED Brown Buzzer Yellow Hold Blue 3. Screw the reader to the wall.4. Secure the reader cover to the base.5. Verify that the cards to be read are encoded. Observe the reader LED, itshould flash when a recognised cardformat is presented. Di Di Di Di Di agno agno agno agno agno s s s s s tic tic tic tic tic T T T T T e e e e e s s s s s tin tin tin tin tin g g g g g The reader is factory calibrated and is notfield serviceable.A card with a recognized format presentedto a reader will cause the LED to “flash” andthe buzzer to sound while outputting datato the host.Direct substitution with a known goodreader is the best way to isolate a problem.If the reader is exchanged and there still isa problem, measure the voltage at thereader between the Red (+) and Black (-)wires. It should measure between + 5 and+ 15 VDC. Warranty Warranty Warranty Warranty WarrantyReadx Global Limited warranties the readerto be free from any material or workmanshipdefects for a period of two years from dateof manufacture. Readx assumes noresponsibilities for malfunctions ordamages due to improper installation of theproduct. Specifications Specifications Specifications Specifications SpecificationsInput125 kHz cardsRead DistanceMullion: 100 mm Wall: 100 mm Data OutputStandard Wiegand formatLED ControlBrown control lineWire Length200 feet with #22 AWG500 feet with #18 AWGOperating Temperature0 o to 70 o C (32 o to 150 o F) Power+ 5 to + 15 VDC at 75 mA.BuzzerActivates upon card acceptance or via yellowcontrol line. Disclaimer Disclaimer Disclaimer Disclaimer DisclaimerWhilst every effort has been made to ensureaccuracy, neither Readx Global Ltd nor anyemployee of the company, shall be liable onany ground whatsoever to any party inrespect of decisions or actions they maymake as a result of using this information.In accordance with the Readx policy ofcontinuing development, design andspecifications are subject to change withoutnotice.

Readx Global Ltd. Block Diagram Beeper V +5–18 VDC 5V V.R. OSC DRVR AMP / FILTER uP 485 Wie OS/DR Coil

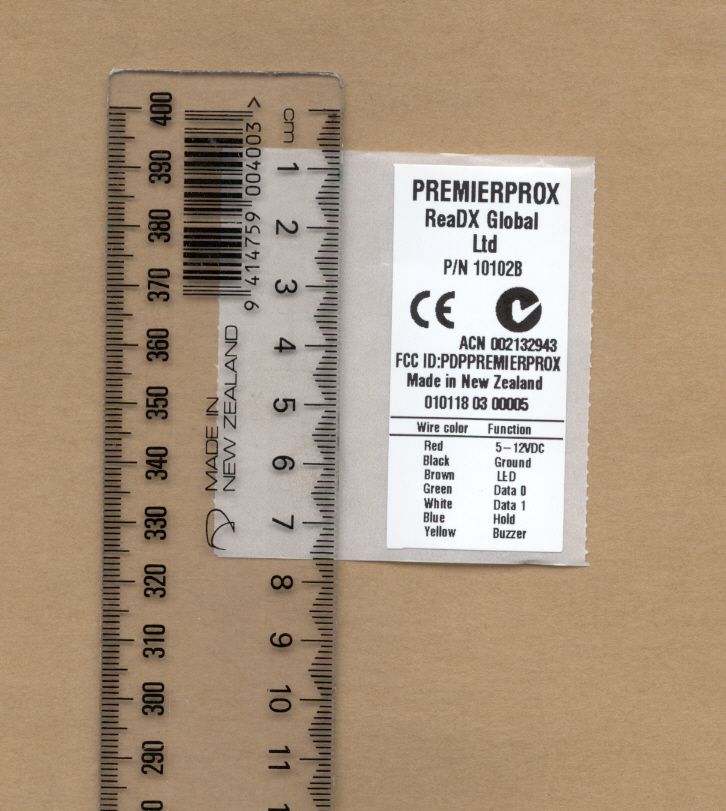

Wire colorFunction PREMIERPROX Red5-12VDCReaDX Global Ltd. BlackGround BrownLEDModel: GreenData 0S/N: WhiteData 1 Made in New Zealand BlueHold YellowBuzzer This device complies with part 15 of FCC rules. FCC ID number available on request.

27 November 2000 Ref: 01127.1 Attn: Mr Martyn Chandler Gallagher Group Ltd Private Bag 3026 Hamilton New Zealand Dear Mr Martyn Chandler, Attached are the results of measurements made upon the Premierprox 10102B Card Reader recently submitted to this Laboratory for testing. The results show that this device complies with 47 CFR Part 15 Subpart C. Yours faithfully, Andrew Cutler General Manager EMC Technologies (NZ) Ltd Test Report No 01127.1 Report date: 27 November 2000 __________________________________________________________________________________________________________________________________________________________________________________ EM C Te chnolog ie s (NZ) Lt d Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Gre y Lynn, Auck la nd, New Zea la ndE- ma il: a uck lab@ ihug.co. nz POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 1 of 12This report may not be reproduced except in full TEST REPORT Premierprox 10102B Card Reader tested to the Specification 47 Code of Federal Regulations Ch. 1 (1996) Part 15 - Radio Frequency Devices for Gallagher Group Ltd This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager Prepared By: ________________________________________ Casey McNamara - Office Administrator EMC Technologies (NZ) Ltd Test Report No 01127.1 Report date: 27 November 2000 __________________________________________________________________________________________________________________________________________________________________________________ EM C Te chnolog ie s (NZ) Lt d Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Gre y Lynn, Auck la nd, New Zea la ndE- ma il: a uck lab@ ihug.co. nz POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 2 of 12This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE3 2. RESULTS SUMMARY3 3.CLIENT INFORMATION3 4.DESCRIPTION O F TEST SAMPLE4 5.MEASUREMENT STANDARD, METHODS AND PROCEDURES4 6. TEST EQUIPMENT USED6 7.ACCREDITATIONS6 8.RESULTS7 9.PHOTOGRAPHS12 EMC Technologies (NZ) Ltd Test Report No 01127.1 Report date: 27 November 2000 __________________________________________________________________________________________________________________________________________________________________________________ EM C Te chnolog ie s (NZ) Lt d Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Gre y Lynn, Auck la nd, New Zea la ndE- ma il: a uck lab@ ihug.co. nz POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 3 of 12This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The Premierprox 10102B Card Reader complies with 47 CFR Part 15 Subpart C - 1996 when the methods, as described in ANSI C63.4 - 1992, are applied. 2. RESULTS SUMMARY The results from testing the sample Premierprox 10102B Card Reader are summarised in the following table : ClauseParameterResult 15.205Restricted bands of operationComplies 15.207ConductedNot applicable 15.209Radiated emissions - Fundamental Complies with a 20.9 dB margin. 15.209Radiated emissions – Spurious Emissions Complies with a 6.3 dB margin at 68.0325 MHz. 3.CLIENT INFORMATION Company NameGallagher Group Ltd AddressPrivate Bag 3026 CityHamilton CountryNew Zealand ContactMr Martyn Chandler EMC Technologies (NZ) Ltd Test Report No 01127.1 Report date: 27 November 2000 __________________________________________________________________________________________________________________________________________________________________________________ EM C Te chnolog ie s (NZ) Lt d Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Gre y Lynn, Auck la nd, New Zea la ndE- ma il: a uck lab@ ihug.co. nz POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 4 of 12This report may not be reproduced except in full 4.DESCRIPTION OF TEST SAMPLE Brand Name Premierprox Model Number 10102B Product Card Reader ManufacturerReaDX Global Ltd Country of Origin New Zealand Serial Number 0011154600455 5.MEASUREMENT STANDARD, METHODS AND PROCEDURES Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C - 1996. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 1992 were used. 5.1 Description Of Radiated Emissions Test Method Radiated emissions testing was carried out over the frequency range of 100 kHz to 1000 MHz. Testing of the Device Under Test (DUT) for radiated emissions was carried out at the laboratory’s open area test site - located at Dakota Lane, Ardmore Aerodrome, Auckland, New Zealand (Note: Site conforms to the requirements of CISPR 16, Part 1, Clause 16, and ANSI C63.4 - 1992.) EMC Technologies (NZ) Ltd Test Report No 01127.1 Report date: 27 November 2000 __________________________________________________________________________________________________________________________________________________________________________________ EM C Te chnolog ie s (NZ) Lt d Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Gre y Lynn, Auck la nd, New Zea la ndE- ma il: a uck lab@ ihug.co. nz POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 5 of 12This report may not be reproduced except in full Before testing is carried out, a check of all connecting cables and antennas is carried out. The device was placed on the test table top which is a total of 0.8 m above the test site ground plane. Measurements were made with the antenna located 10 m from the device. A Quasi-Peak detector was used between 30 and 1000 MHz. An Average detector was used between 100 kHz and 30 MHz. Testing is carried out in the various modes in which the device operates. Any external cables are …
