PDT-SK3741-7204Tablet

1 USER MANUAL 2 TABLE OF CONTENTS TABLE OF CONTENTS ................................................................................................................ 2 1 OUTLOOK DESCRIPTION ....................................................................................................... 4 2 POWER BUTTON USAGE ....................................................................................................... 5 3 TOUCH-SCREEN NAVIGATION ............................................................................................. 5 4 External Memory ....................................................................................................................... 6 5 USING MICRO-SD CARD ......................................................................................................... 6 6 GETTING STARTED .................................................................................................................. 6 Charge the device ................................................................................................................ 6 Turn the device on ............................................................................................................... 7 Wi-Fi Network Setup ............................................................................................................ 7 HDMI video play .................................................................................................................... 7 USB device mode options ................................................................................................. 7 7 DESKTOP .................................................................................................................................... 8 8 SCREEN LOCK .......................................................................................................................... 9 9 PRE-LOADED APPLICATIONS ............................................................................................ 10 10 STATUS AND NOTIFICATION AREA ............................................................................... 11 11 APPLICATION MANAGEMENT .......................................................................................... 12 Install Android Applications ............................................................................................ 12 Download Android Applications direct from a Website ........................................... 13 Uninstalling Android Applications ................................................................................. 13 12 WEATHER ............................................................................................................................... 13 13 CLOCK ..................................................................................................................................... 14 Alarm ..................................................................................................................................... 14 14 PLAY STORE ......................................................................................................................... 15 Download Applications ..................................................................................................... 15 Play Store Function Menu ................................................................................................ 15 15 BROWSER .............................................................................................................................. 16 16 CALENDAR ............................................................................................................................. 16 Add Event ............................................................................................................................. 16 17 CAMERA ................................................................................................................................. 17 Take Pictures ....................................................................................................................... 17 Take Videos .......................................................................................................................... 17 Single-motion Panorama .................................................................................................. 18 18 CALCULATOR ....................................................................................................................... 18 19 MY RECORDER ..................................................................................................................... 18 20 EMAIL....................................................................................................................................... 19 Add Email accounts .......................................................................................................... 19 Email Inbox .......................................................................................................................... 19 3 Edit Email Accounts .......................................................................................................... 20 Delete Email Accounts ...................................................................................................... 20 21 FILE BROWSER .................................................................................................................... 21 Copy Media between Computer and Tablet ................................................................. 21 Connected to the local area network shared folders ................................................ 22 Delete files ........................................................................................................................... 22 22 MY MUSIC ............................................................................................................................... 22 Play Music .....................................…

Text truncated - open the document above for the full version.

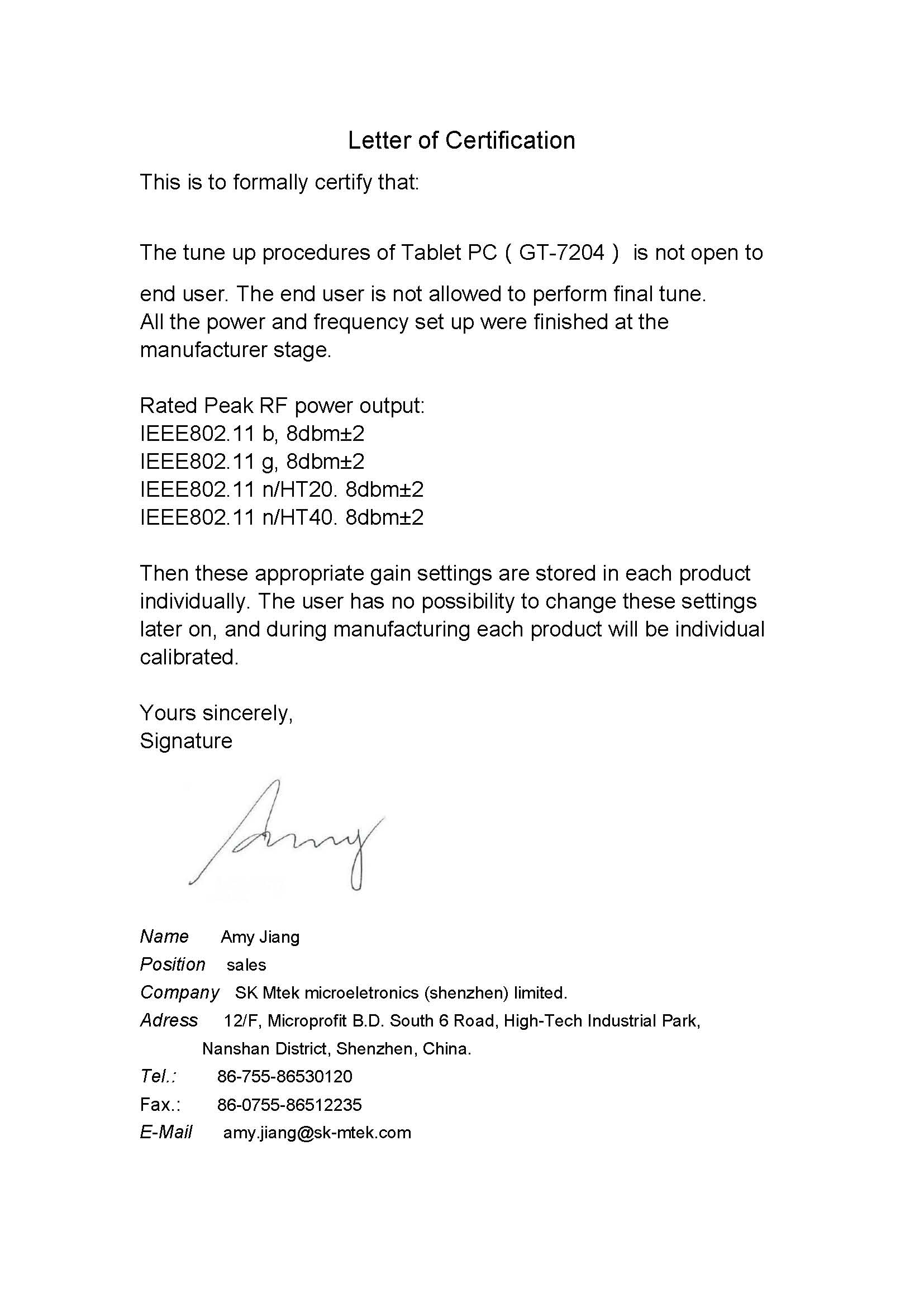

SK Mtek microelectronics (Shenzhen) limited. 12/F, Microprofit B.D. South 6 Road, High-Tech Industrial Park, Nanshan District, Shenzhen, China. PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 2013-01-6 Authority to Act as an Agent We declare that the following representative (agent) Name Bovey Yang Position Manager Company Name NTEK Testing Technology Co., Ltd． Address 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street, Bao’ an District, Shenzhen, Guangdong, China Tel / Fax +86-755- 61156588 / +86-755- 61156599 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Tablet PC Model Name GT-7204 Brand Name GENESIS We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Amy Jiang Position sales Company Name SK Mtek microeletronics (shenzhen) Limited. Address 12/F, Microprofit B.D. South 6 Road, High-Tech Industrial Park, Nanshan District, Shenzhen, China. Tel / Fax 86-755-86530120 / 86-755-86512235 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

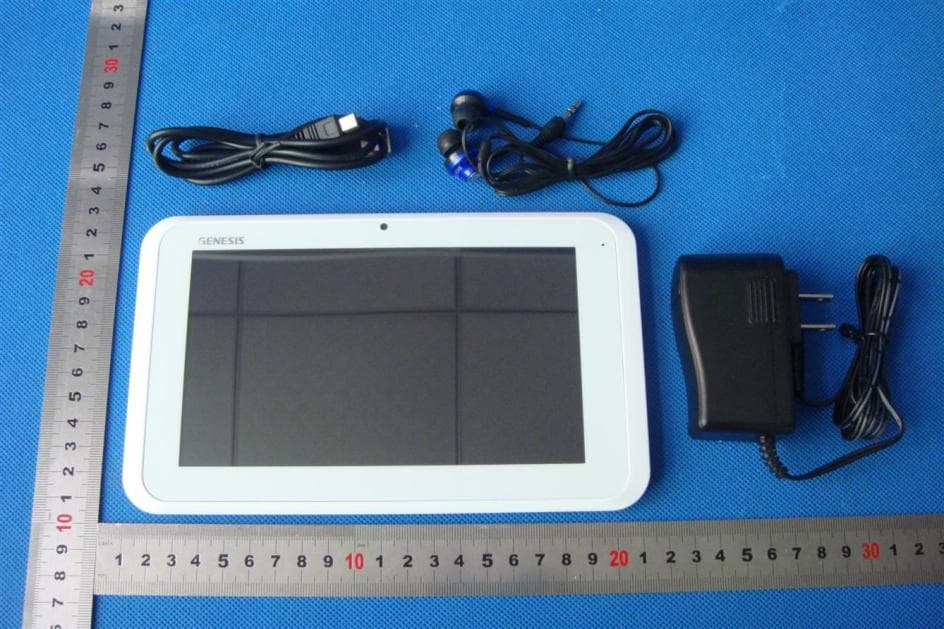

SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 APPENDIX B - EUT PHOTOGRAPHS EUT - Rear View 1 EUT - Rear View 2 SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 EUT - Rear View 3 EUT - Rear View 4 SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 EUT - Rear View 5 EUT - Rear View 6 SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 EUT - Adaptor View

SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 Proposed Label Location on EUT FCC ID Label Location Label size: 60mm*40mm 60mm 40mm Company:SK Mtek microeletronics (shenzhen) limited. Name:Tablet PC Model Number: GT-7204 FCC ID: PDT-SK3741-7204 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Open View EUT – PCB View 1 SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 EUT – PCB View 2 EUT – PCB View 3 SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 EUT – PCB View 4 EUT – Battery View 1

RF EXPOSURE STATEMENT FCC ID: PDT-SK3741-7204 According to KDB616217, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Rang Center Frequency (MHz) Limitation Low Frequency (MHz) High Frequency (MHz) 2412 2462 2445 10 Maximum average measured transmitter power of this device is: Maximum average output power(mW) Max Antenna Gain(dBi) EIRP(mW) 8.87 0 8.87 Threshold at which no SAR required is 10 mW. Maximum Tx power is 8.87 mW EIRP. Conclusion: No SAR is required.

. FCC Part 15C Measurement And Test Report For SK Mtek microeletronics (shenzhen) limited. 12/F, Microprofit B.D. South 6 Road, High-Tech Industrial Park, Nanshan District, Shenzhen, China FCC ID: PDT-SK3741-7204 January 10, 2013 T h i s Re p o r t C on c e r n s : O r ig in a l Re p o r t Eq u i p m e n t T yp e : T a b le t P C Report Number: MT I 1 2 1 2 1 8 0 0 2 RF Test Engineer: Bill Chen Reviewed By: Jason Zheng Approved & Authorized By: Hebe Lee Test Date: January 1- January 10,2013 Prepared By: Shenzhen Microtest Technology Co.,Ltd 6F, Zhongbao Building, Gushu, Bao’ an District, Shenzhen, P.R.China Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of Shenzhen Microtest Technology Co.,Ltd. Report No.：MTI121218002RF Page 2 of 61 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................................................ 4 1.3 TEST METHODOLOGY ................................................................................................................................................. 5 1.4 TEST FACILITY ........................................................................................................................................................... 5 1.5 TEST FACILITY ........................................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION ............................................................................................................ 6 2.1 EUT CONFIGURATION ................................................................................................................................................ 6 2.2 EUT EXERCISE .......................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES ..................................................................................................................................... 6 2.4 LIST OF MEASURING EQUIPMENTS USED ...................................................................................................................... 7 2.5 TEST CONDUCTION ..................................................................................................................................................... 7 2.6 TEST PERIPHERAL INFORMATION ................................................................................................................................. 8 3. SUMMARY OF TEST RESULTS ................................................................................................................ 8 4. ANTENNA REQUIREMENT ....................................................................................................................... 9 4.1 STANDARD APPLICABLE .............................................................................................................................................. 9 4.2 ANTENNA CONNECTED CONSTRUCTION ........................................................................................................................ 9 5. CONDUCTED EMISSION MEASUREMENT ........................................................................................... 10 5.1 LIMITS OF CONDUCTED EMISSION .............................................................................................................................. 10 5.2 TEST SETUP DIAGRAM .............................................................................................................................................. 10 5.3 INSTRUMENT SETTING .............................................................................................................................................. 10 5.4 TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................... 11 5.5 TEST PROCEDURE ................................................................................................................................................... 11 5.6 TEST RESULT .......................................................................................................................................................... 11 6. 6DB BANDWIDTH MEASUREMENT ....................................................................................................... 14 6.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ................................................................................................................ 14 6.2 EUT SETUP ............................................................................................................................................................ 14 6.3 TEST EQUIPMENT LIST AND DETAILS .......................................................................................................................... 14 6.4 TEST PROCEDURE ................................................................................................................................................... 14 6.5 TEST RESULT .......................................................................................................................................................... 14 7. MAXIMUM PEAK OUTPUT POWER........................................................................................................ 21 7.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..................................................................…

Text truncated - open the document above for the full version.

SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 APPENDIX D - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 1G): Radiation Emission Test Setup (Above 1G) SK Mtek microeletronics (shenzhen) limited. Model: GT-7204 Conducted Emission Test Setup
