PEFKB250Auto Sensor Transmitter

User's Manual for Auto sensor transmitter Product description The intelligent advanced technology in the unit will signal the power outlet through RF to shut off the lights on the tipping Xmas tree automatically when the tree is falling down to avoid any fire hazarded. OPEREATION 1.Plug the receiver into a AC outlet, which is ranged from AC100V to AC125V/60HZ. 2. The receiver outlet will stay “OFF" when firstly plugged. . 3. Push the "ON" button on the transmitter, then the LED on the front panel will turn on to indicate transmitter is under proper working status. 4. The LED of the receiver will turn on when receiving the control code from sensor and will supply power to the outlet. 5. Push the “OFF” button on the transmitter, then the LED on the front panel will turn on to indicate transmitter is under proper working status. 6.The LED of the receiver will turn off when receiving the control code from sensor and will stop supplying power to the outlet. 7.CAUTION: The max. consumption current of this device can not over 15A. Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

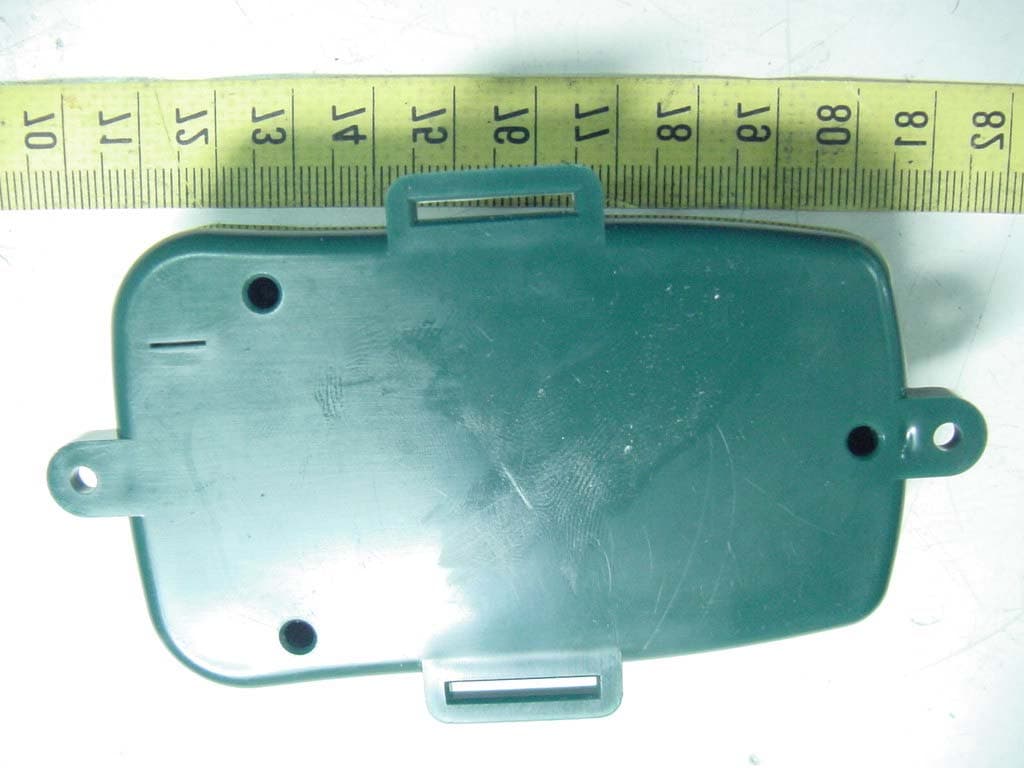

ETC Report No.:ET92R-02-024 Sheet 1 of 3 Sheets FCC ID.: PEFKB250 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. Bottom View of EUT

Model : KB-250T1 FCC ID : PEFKB250 KINTRON SDN.BHD. THIS DEVICE COMPLIES WITH PART 15 OF THEFCCRULES. OPERATIONS IS SUBJECT TO THEFOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOTCAUSE HARMFUL INTERFERENCE AND(2) THIS DEVICE MUST ACCEPTANY INTERFERENCERECEIVED, INCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION USES 12V TYPE 23A BATTERY PAT.PENDING

ETC Report No.:ET92R-02-024 Sheet 2 of 3 Sheets FCC ID.: PEFKB250 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Internal View of EUT 4. Component View of Main PCB ETC Report No.:ET92R-02-024 Sheet 3 of 3 Sheets FCC ID.: PEFKB250 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5.Solder View of Main PCB

Characteristics of Device: The unit tied onto the x’mas tree will automatically detect & transmit a signal to turn the power of the receiver off when the tree tilts. This unit signals 3secs per minute until deplete the battery.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Auto sensor transmitter FCC ID. : PEFKB250 MODEL : KB-250T1 Working Frequency : 315.050 MHz for APPLICANT : HO WAH GENTING KINTRON SDN . BHD.TAIWAN BRANCH(MALAYSIA) ADDRESS : 8F, No. 387, Chung Cheng Rd., Hsin Chuang City, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : ET92R-02-024 ETC Report No.:ET92R-02-024 FCC ID.: PEFKB250 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : HO WAH GENTING KINTRON SDN . BHD. TAIWAN BRANCH(MALAYSIA) 8F, No. 387, Chung Cheng Rd., Hsin Chuang City, Taipei Hsien, Taiwan, R.O.C. Manufacturer : HO WAH GENTING KINTRON SDN . BHD. Lot 5, Phase 1, Kulim Industrial Estate, 09000 Kulim, Kedah Darul Aman, Malaysia. Description of EUT : a) Type of EUT : Auto sensor transmitter b) Trade Name : KINTRON c) Model No. : KB-250T1 d) FCC ID : PEFKB250 e) Working Frequency : 315.050 MHz f) Power Supply : DC 12V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : May 13, 2003 Test Engineer : ( Eric Chen ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET92R-02-024 FCC ID.: PEFKB250 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.4 FIELD STRENGTH CALCULATION..........................................................................................................................................9 4.5 ACTIVATE TIME........................................................................................................................................................................9 4.6 CALCULATION OF DUTY FACTOR.........................................................................................................................................9 4.7 RADIATED TEST EQUIPMENT...............................................................................................................................................10 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................................10 4.9 RADIATED MEASUREMENT PHOTOS...................…

Text truncated - open the document above for the full version.

ETC Report No.:ET92R-02-024 Sheet 11 of 21 Sheets FCC ID.: PEFKB250 Rev. No 1.0 4.9 Radiated Measurement Photos
