PEG36007Cordless Telephone System

2 080105A-1 SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation, to protect it from overheating. These openings should never be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 11. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contractor when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustments of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinctive change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use the telephone to report a gas leak in the vicinity of the leak. 080105A-1 3 INSTALLATION PRECAUTIONS 1. Never install telephone wiring during a lightning storm. 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 4. Use caution when installing or modifying telephone lines. MAINTENANCE 1. Use a damp cloth to clean the plastic cabinet. A mild soap will help to remove grease or oil. Never use polish, solvents, abrasives or strong detergents since these can damage the finish. 2. Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other appliance that produces heat. CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instruction. read and follow these instructions: 1. Use only the 3.6V, 450mAh, Ni-Cd battery pack. 2. Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions. 3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. 4. Exercise care in handling the battery in order not to short the battery with conducting material such as rings, bracelets and keys. The battery or conductor may overheat and cause burns. 5. Recharge only the battery provided with or identified for use with this product. The battery may leak corrosive electrolyte or explode if it is not the correct type. 6. Do not attempt to rejuvenate the battery provided with or identified for use with this product by heating them. Sudden release of the battery electrolyte may occur causing burns or irritation to eyes or skin. 7. When inserting the battery into this product, the proper polarity or direction must be observed. Reverse insertion of batteries can cause charging that may result in leakage or explosion. 8. Do not store this product, or the battery provided with or identified for use with this product, in high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be stabilized at room temperature prior to use after cold storage. 9. Disconnect telephone lines before installing batteries SAVE THESE INSTRUCTIONS FCC NOTICE The FCC requires that you be advised of certain requirements involving the use of this telephone. 1. This telephone is hearing aid compatible. 2. This equipment complies with 47 CFR Part 68 requirement. On the bottom of this equipment is a label that contains, among other information, the ACTA registration number and Ringer Equivalence Number (REN) for this equipment. If requested, provide…

Text truncated - open the document above for the full version.

SENTON Enterprises Limited Flat 10, 17/F, Fo Tan Industrial Centre, 26-28 26-28 Au Pui Wan Street, Fo Tan, Shatin, N.T., Hong Kong 1710 Tel: (852) 2687-1712 Fax: (852) 2687-4125 : () () E-mail address: [email protected] : () APPENDIX B Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: SENTON Enterprises Limited FCC ID: PEG36007 To whom it may concern, Request is hereby submitted by SENTON Enterprises Limited to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: SENTON Enterprises Limited has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Engineering Manager SENTON Enterprises Limited

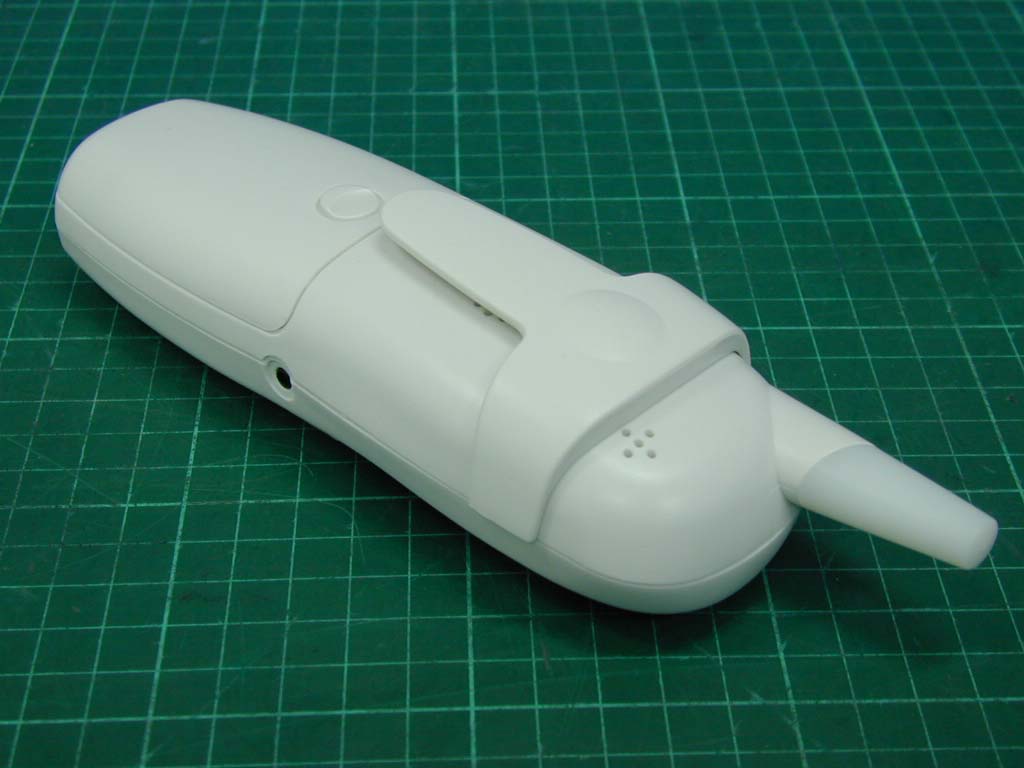

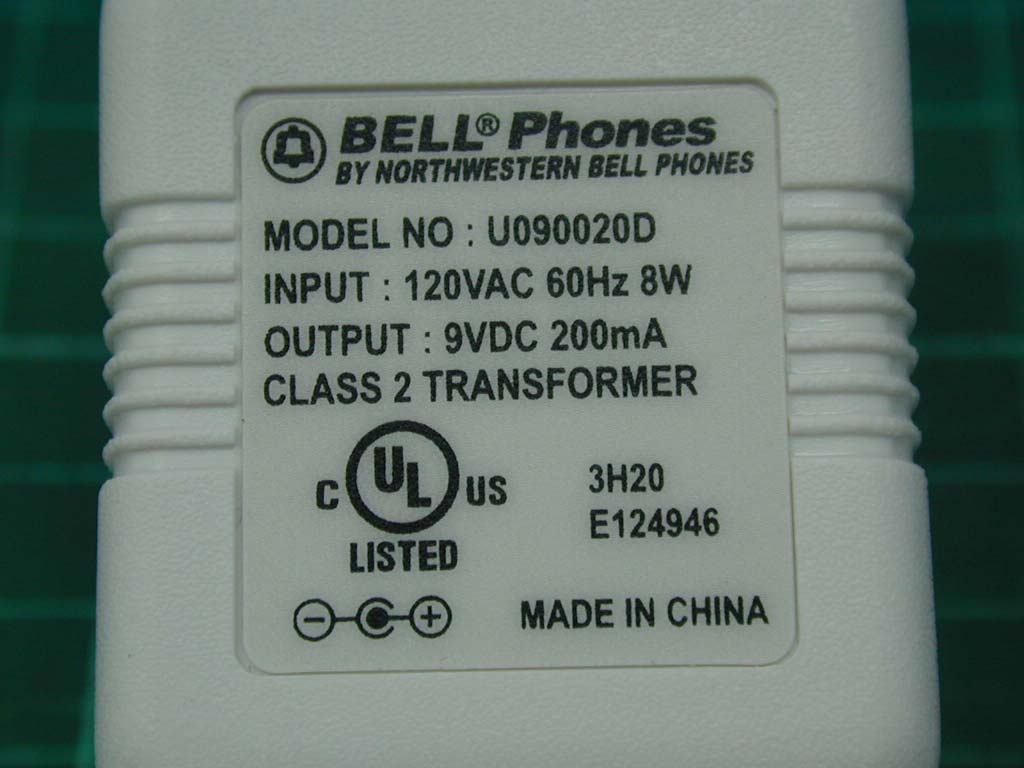

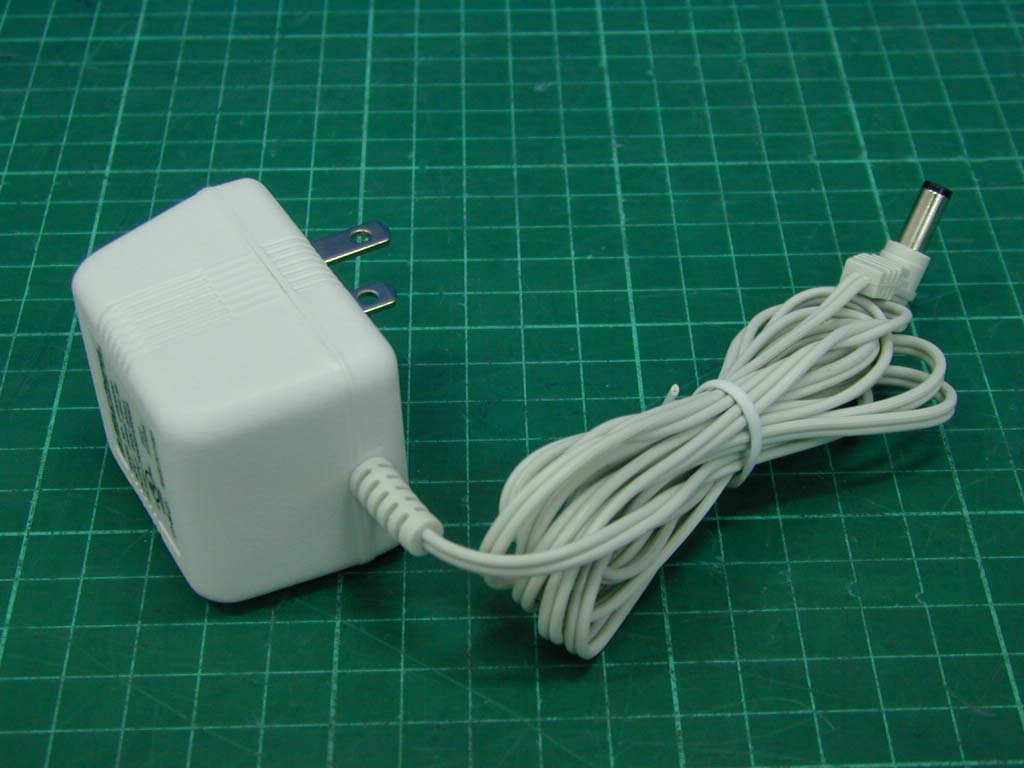

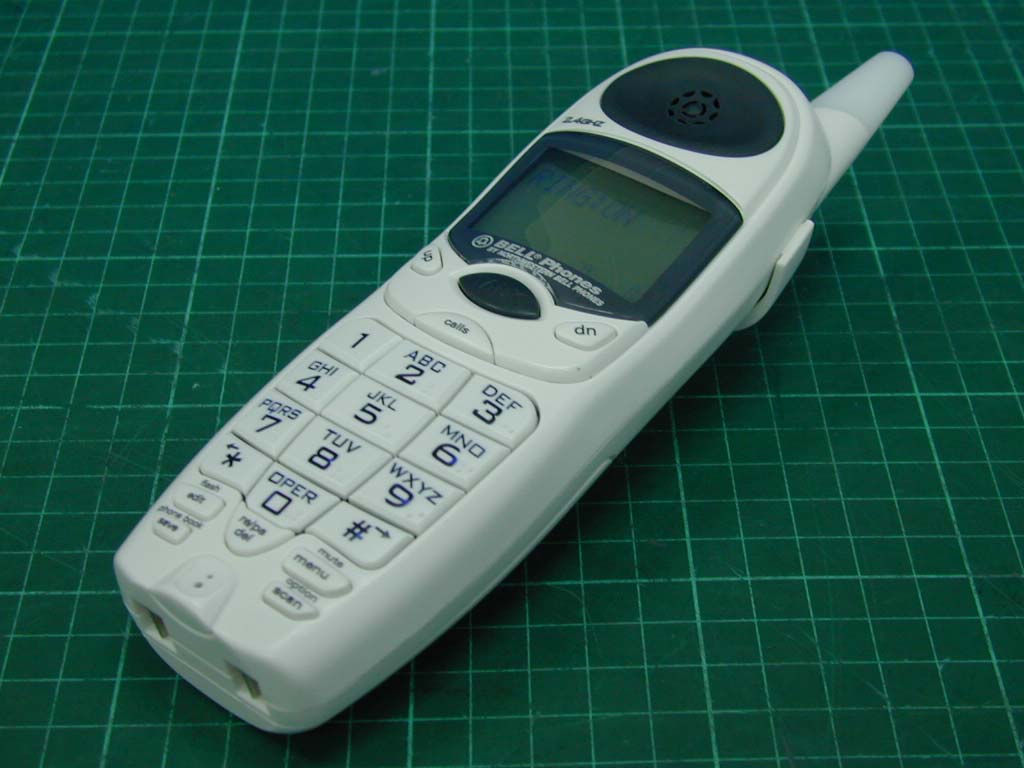

Photo 1: External photo of EUT (Handset) 36007 Photo 2: External photo of EUT (Handset) 36007 Photo 3: External photo of EUT (Base) 36007 Photo 4: External photo of EUT (Base) 36007 Photo 5: External photo of Adapter Model No.: U090020D Photo 6: External photo of Adapter Model No.: U090020D Photo 7: External photo of Adapter Model No.: U090020D

FCC ID Location 15mm 9mm 45mm 22mm FCC ID Location

Photo 1: Internal photo of EUT (Base) 36007 Photo 2: Internal photo of EUT (Base) 36007 Photo 3: Internal photo of EUT (Base) 36007 Photo 4: Internal photo of EUT (Base) 36007 Photo 5: Internal photo of EUT (Base) 36007 Photo 6: Internal photo of EUT (Base) 36007 Photo 7: Internal photo of EUT (Base) 36007 Photo 8: Internal photo of EUT (Handset) Photo 9: Internal photo of EUT (Handset) Photo 10: Internal photo of EUT (Handset) Photo 11: Internal photo of EUT (Handset) Photo 12: Internal photo of EUT (Handset) Photo 13: Internal photo of EUT (Handset) Photo 14: Internal photo of EUT (Handset)

FCC ID. : PEG36007 Report No.: EME-060404 Page 1 of 23 EMC TEST REPORT Report No. : EME-060404 Model No. : 36007, MB6007 Issued Date : Jun. 27, 2006 Applicant : SENTON Enterprises Limited Flat 10, 17/F., Fotan Ind. Centre, 26-28 Au Pui Wan St., Fo Tan, Shatin, N. T. Hong Kong Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 23 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : PEG36007 Report No.: EME-060404 Page 2 of 23 Table of Contents SUMMARY OF TESTS ................................................................................................... 3 1. GENERAL INFORMATION ....................................................................................... 4 1.1 IDENTIFICATION OF THE EUT................................................................................... 4 1.2 ADDITIONAL INFORMATION ABOUT THE EUT........................................................... 4 1.3 ANTENNA DESCRIPTION........................................................................................... 5 2. TEST SPECIFICATIONS ............................................................................................ 6 2.1 TEST STANDARD...................................................................................................... 6 2.2 OPERATION MODE.................................................................................................... 6 2.3 TEST EQUIPMENT..................................................................................................... 7 3. RADIATED EMISSION TEST FCC 15.249 (C) ......................................................... 8 3.1 OPERATING ENVIRONMENT...................................................................................... 8 3.2 TEST SETUP & PROCEDURE...................................................................................... 8 3.3 EMISSION LIMIT....................................................................................................... 9 3.3.1 FUNDAMENTAL AND HARMONICS EMISSION LIMITS............................................... 9 3.3.2 GENERAL RADIATED EMISSION LIMITS................................................................ 10 3.4 RADIATED SPURIOUS EMISSION TEST DATA..............................................................11 3.4.1 MEASUREMENT RESULTS: FREQUENCIES EQUAL TO OR LESS THAN 1 GHZ...........11 3.5 MEASUREMENT RESULTS: FREQUENCY ABOVE 1GHZ............................................ 13 3.6 RADIATED EMISSION ON THE BAND EDGE FCC 15.249(C) ..................................... 15 5. CONDUCTED EMISSION TEST FCC 15.207......................................................... 20 5.1 OPERATING ENVIRONMENT.................................................................................... 20 5.2 TEST SETUP & PROCEDURE.................................................................................... 20 5.3 EMISSION LIMIT..................................................................................................... 21 5.4 UNCERTAINTY OF CONDUCTED EMISSION.............................................................. 21 5.5 POWER LINE CONDUCTED EMISSION TEST DATA.................................................... 22 FCC ID. : PEG36007 Report No.: EME-060404 Page 3 of 23 Summary of Tests 2.4GHz cordless phone -Model: 36007 FCC ID: PEG36007 Test Reference Results Power Line Conducted Emission test 15.207 Pass Radiated Emission test 15.249(c), 15.209 Pass FCC ID. : PEG36007 Report No.: EME-060404 Page 4 of 23 1. General information 1.1 Identification of the EUT Applicant : SENTON Enterprises Limited Product : 2.4GHz cordless phone Model No. : 36007 FCC ID. : PEG36007 Frequency Range (Base) : 2403.05MHz ~ 2405.00MHz Frequency Range (Handset) : 2474.00MHz ~ 2475.95MHz Channel Number : 40 channels Frequency of Each Channel (B) : 2402.55MHz + 0.05k MHz k=0~39 Frequency of Each Channel (Hdt) : 2474MHz + 0.05k MHz k=0~39 Type of Modulation : FM Power Supply : 120Vac, 60Hz with adapter (U090020D) Power Cord : N/A Sample Received : Apr. 6, 2006 Test Date(s) : Apr. 7, 2006 ~ Jun. 21, 2006 A DoC report has been generated for the client. 1.2 Additional information about the EUT The EUT is a 2.4GHz cordless phone; it consists of handset unit and base unit. The models listed below are identical to model 36007 (EUT). Different brand serves as marking strategy. Trade Name Model Number Unical 36007 Bell Phone 36007 Moutain Bell MB6007 For more detail features, please refer to Users manual as file name “Users Manual.pdf” FCC ID. : PEG36007 Report No.: EME-060404 Page 5 of 23 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0dBi max Antenna Type : Soldering antenna Connector Type : Lead Wire FCC ID. : PEG36007 Report No.: EME-060404 Page 6 of 23 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Paragraph 15.249 for non-spread spectrum devices. The test of radiated measurements according to FCC Part15 Section 15.33(a) had been conducted and the field strength of this frequency band were all meet limit requirement, thus we evaluate the EUT pass the specified test. 2.2 Operation mode During radiated emission test, the EUT was operated in continuously transmitting. The EUT was operated in charging and ringing mode in conducted emission test. FCC ID. : PEG36007 Report No.: EME-060404 Page 7 of 23 2.3 Test equipment Equipment Brand Frequency rangeModel No. Intertek ID No. Next Cal. Date EMI Test Receiver Rohde & Schwarz 9kHz~2.75GHz ESCS 30 EC303 04/16/2007 EMI Test Receiver Rohde & Schwarz 20Hz~26.5GHz ESMI EC317 08/07/2006 Spe…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo 36007 Photo 2: Conducted Emission Test Set-up photo 36007

Photo 1: Radiated Emission Test Set-up photo (Base) 36007 Photo 2: Radiated Emission Test Set-up photo (Base) 36007 Photo 3: Radiated Emission Test Set-up photo (Handset) Photo 4: Radiated Emission Test Set-up photo (Handset) Photo 5: Radiated Emission Test Set-up photo (Handset)
