Appendix F. Users Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 1 of 3 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Appendix F. Users Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 2 of 3 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Appendix F. Users Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 3 of 3 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB NOTICES TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer for technical assistance. Appendix F. Users Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023,Korea 4 of 3 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB

Appendix E. Block Diagram ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB X- Tal 8MHz FLASH USB DRIVE T33520FL MICROCONTROLLER

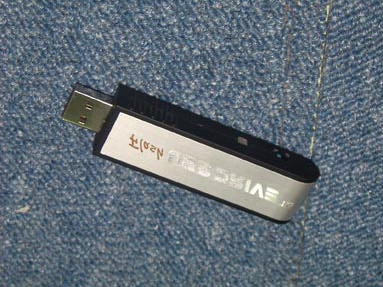

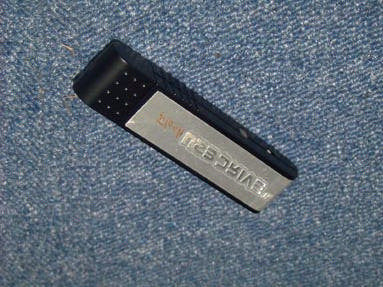

Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 2 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Appendix C. External Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 3 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB

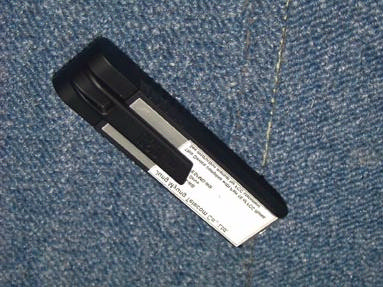

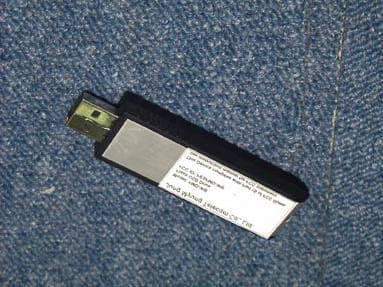

Appendix A. FCC ID Label and Location ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 12, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The statement according to the section 15.19 labeling requirement is placed in the instruction manual due to the device size is so small. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Jung Myung Telecom Co.,Ltd. Model : FMD-WB Flash USB Drive FCC ID : PESFMD-WB This device complies with part 15 of the FCC Rules. See Instruction manual for FCC statement

Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 1 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 2 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 3 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 4 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 5 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 6 of 6 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001 Appendix D. Internal Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 7 of 7 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC ID : PESEMD-WB Report No:E01.0713.FCC.279N Date of Test : Jul 13, 2001

www.ETL.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This Flash USB Drive, Model FMD-WB has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Kayoung Kim Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea PRODUCT : Flash USB Drive MODEL/TYPE NO : FMD-WB FCC ID : PESFMD-WB APPLICANT : Jung Myung Telecom Co.,Ltd. 5FL Silla-Technovil, 39-3, Dang-Dong, Koonpo-City, Korea Attn. : Su Hong, Bu / Chief Engineer FCC CLASSIFICATION : Part 15 Class B Unintentional Radiators Computing Device Peripheral(JBP) FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : JMT TEST REPORT No. : E01.0713. FCC.279N DATES OF TEST : Jul 13, 2001 DATES OF ISSUE : Jul 23, 2001 TEST LABORATORY ETL Inc ( FCC Registration Number : 95422) 371-51, Gasan-Dong, Geumcheon-Gu, Seoul, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 16 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279.N Date of Test : July 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 16 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279.N Date of Test : July 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Flash USB Drive l Model Number : FMD-WB l FCC Identifier : PESFMD-WB l S/N : Prototype l Freq. Range : N/A l Modulation : N/A l FCC Rule Part(s) : Part 15 Subpart B Unintentional Radiators l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Computing Device Peripheral(JBP) l Dates of Tests : July 13, 2001 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Ganam-Myun, Yoju-Kun, Kyoungki-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E01.0713.FCC.279N Applicant Name : Jung Myung Telecom Co., Ltd. Address : 5FL Silla-Technovil, 39-3, Dang-Dong, Koonpo-City, Korea Attention : Su Hong, Bu / Chief Engineer ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 16 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279.N Date of Test : July 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the Jung Myung Telecom Co., Ltd. , Model : FMD-WB ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 16 FCC ID : PESFMD-WB Report No:E01.0713.FCC.279.N Date of Test : July 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test(EUT) is a compact, light and portable storage device(external drive) by the Jung Myung Telecom Co., Ltd. . 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 8MHz l Chipset Brand & Part No. : t33520FL – trumpion : K9K1208U0M-YCB0 – SAMSUNG : SST39VF512 – SAMSUNG l Number of Layers : Main board – 1Layers, Memory board – 2 Layers l PC System with USB Ports : IBM PC / AT & Notebook & Sub-Notebook l Operating System : Windows 98, Windows SE, Windows ME, Windows 2000, Mac l Memory Capacity : 16MB / 32MB / 64MB / 128MB / 256MB / 512MB / 1GB l Interface : USB Spec 1.1 UHCI (Universal Host Con…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea FCC ID : PESFMD-WB Report No:E01.0719.FCC.279N Date of Test : Jul 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea FCC ID : PESFMD-WB Report No:E01.0719.FCC.279N Date of Test : Jul 13, 2001 Jung Myung Telecom Co., Ltd. Flash USB Drive Model : FMD-WB Conducted Emission Test Setup
