PF4050000BRadio Controlled Toy

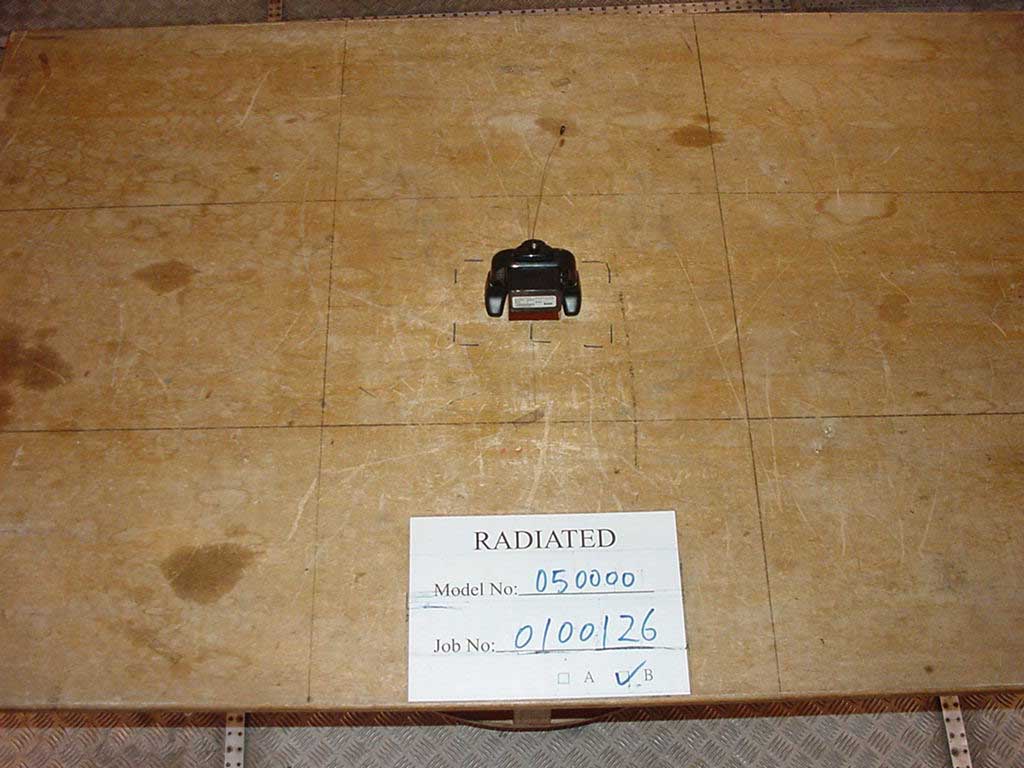

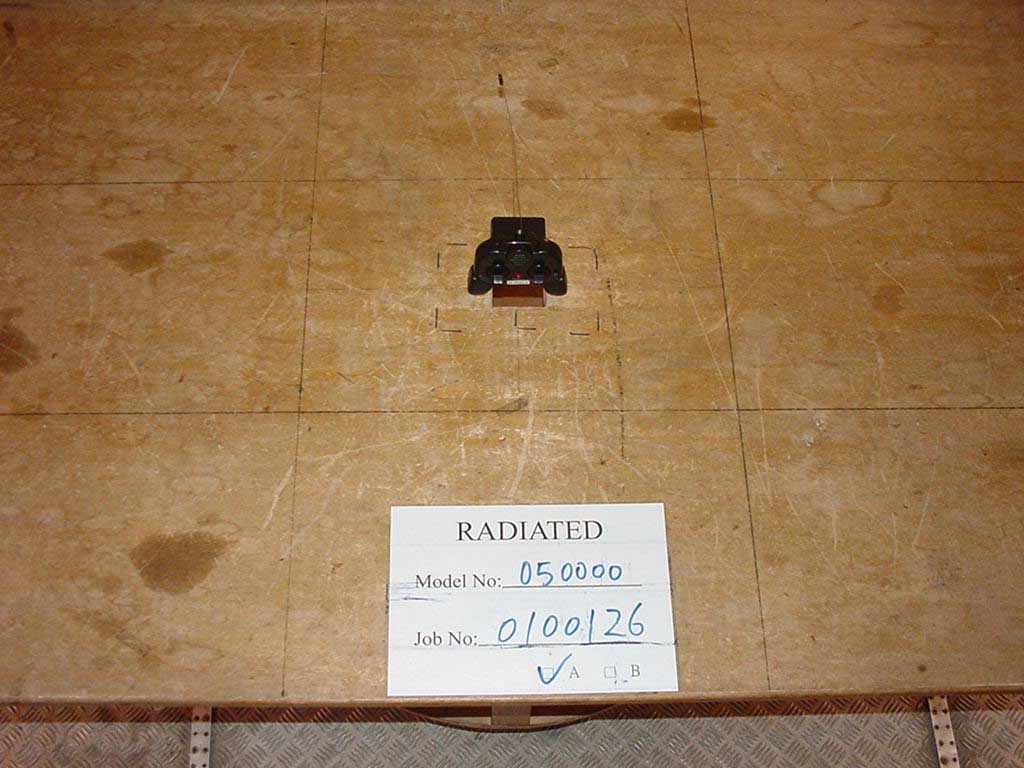

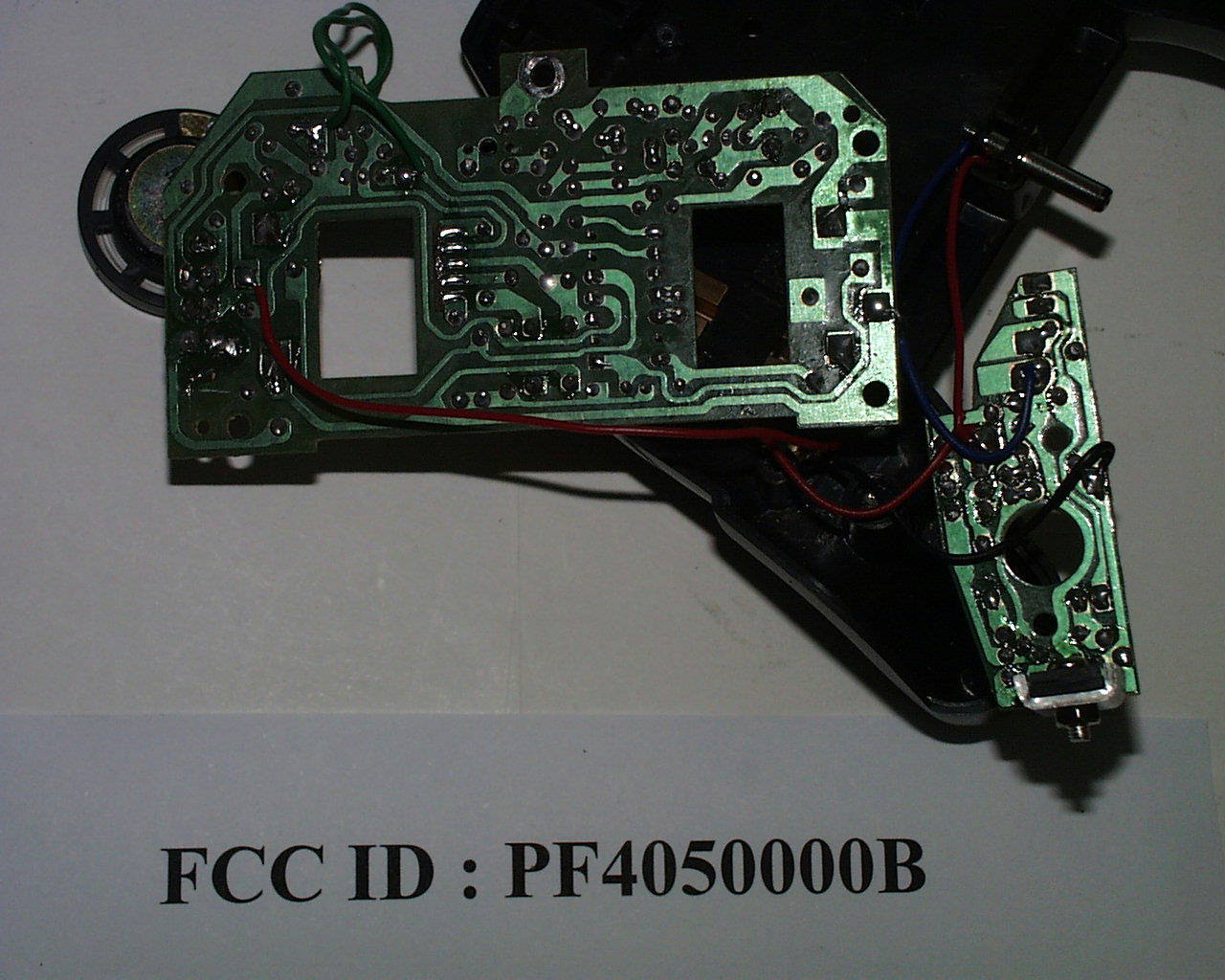

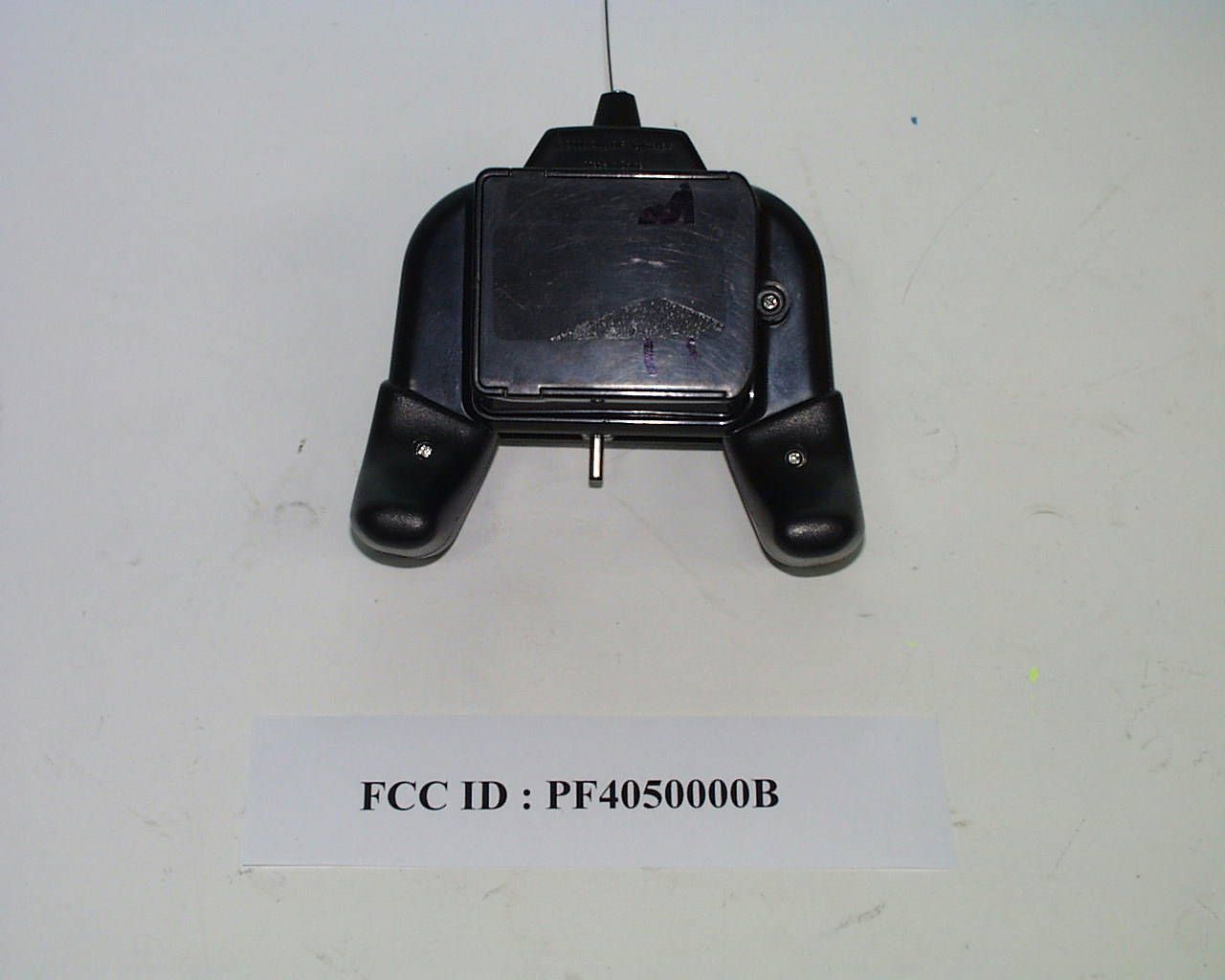

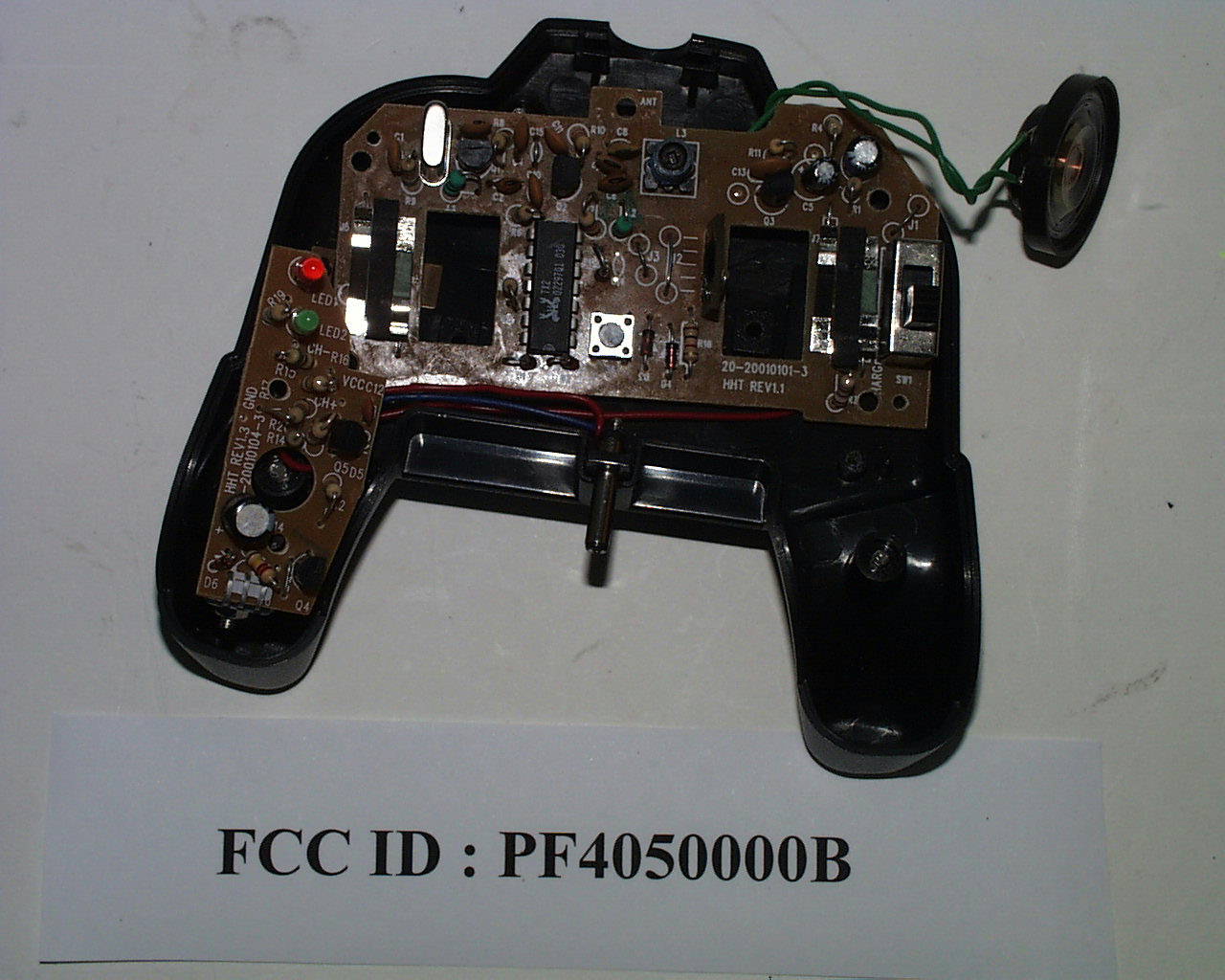

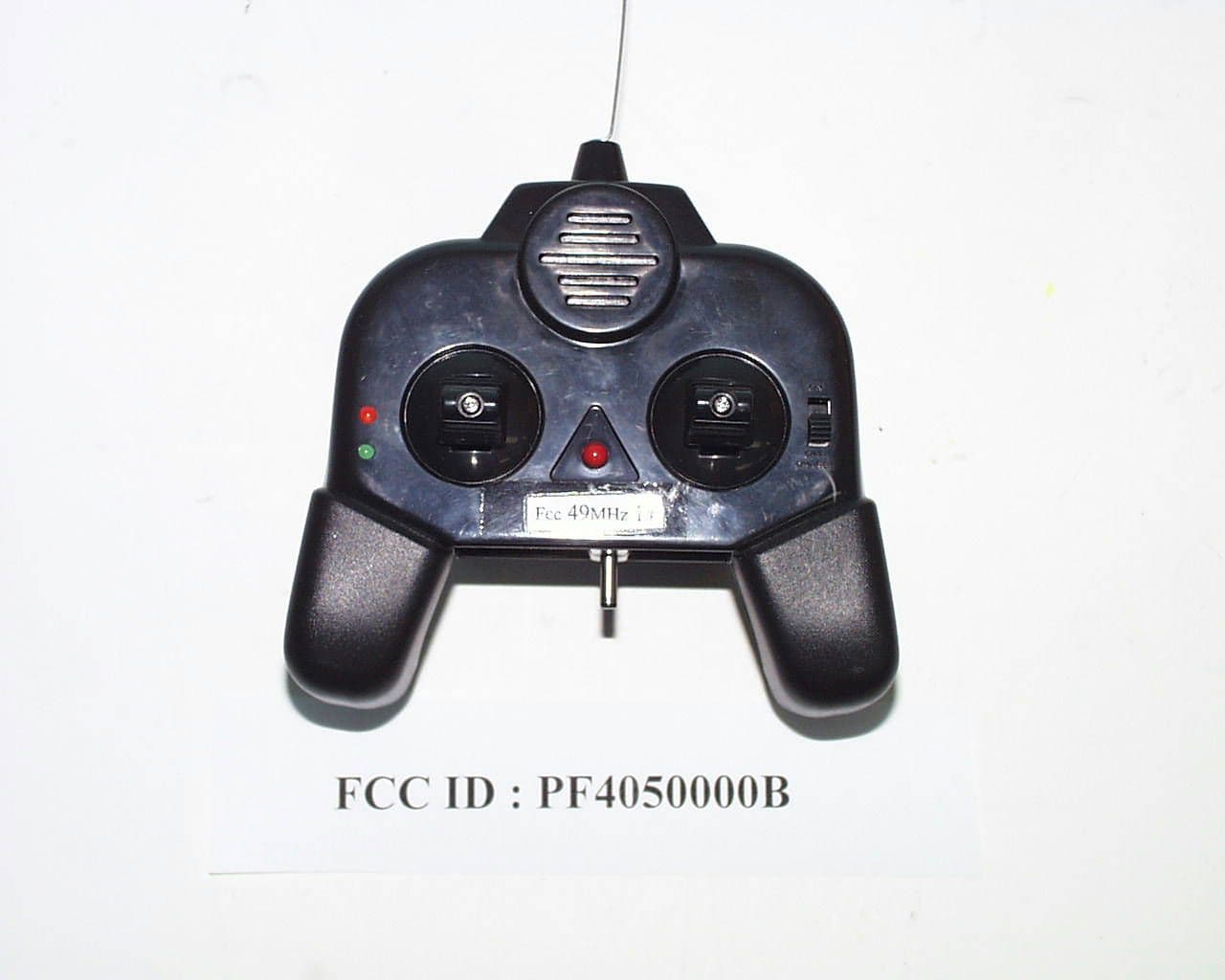

The equipment under test (EUT) is a transmitter for Remote Control Toy operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by six AA size Batteries. There are a on/off switch a sound button and two control stick on the EUT. Press the sound button to control the sound effect of the EUT. The left control stick control the forward/backward movement of the ship. The right control stick control the left/right turning of the ship The brief circuit description is listed as follows: - X1, Q1, L1 and associated circuit act as Local Oscillator. - Q2 and associated circuit act as Output Amplifier. - IC1 and associated circuit act as Code Generator. - U1 and associated circuit act as Sound Generator. - Q4, Q5, Q6 and associated circuit act as Batteries Charger. Permanent wire antenna has been used on the EUT.

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed FCC ID : PF4050000B Original San Francisco Toymakers Mfg. Ltd. (PB Division) Application For Certification (FCC ID: PF4050000B) Transmitter, Model : 050000 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-99 edition] WO# 0100126 WN/at February 13, 2001 INTERTEK TESTING SERVICES FCC ID: PF4050000B i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual EXHIBIT 8 :Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PF4050000B ii MEASUREMENT/TECHNICAL REPORT Original San Francisco Toymakers Mfg. Ltd. (PB Division) - MODEL: 050000 FCC ID: PF4050000B February 13, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: PF4050000B iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description............................................................................................................. 2 1.2 Related Submittal(s) Grants.................................................................................................2 1.3 Test Methodology................................................................................................................ 3 1.4 Test Facility......................................................................................................................... 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification.......................................................................................................................... 5 2.2 EUT Exercising Software ....................................................................................................5 2.3 Special Accessories ............................................................................................................. 5 2.4 Equipment Modification......................................................................................................6 2.5 Support Equipment List and Description ............................................................................ 6 3.0 Emission Results ...................................................................................................................... 8 3.1 Field Strength Calculation ................................................................................................... 9 3.1 Field Strength Calculation (cont’d) ................................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................................. 11 3.3 Radiated Emission Data .................................................................................................... 12 4.0 Equipment Photographs ....................................................................................................... 15 5.0 Product Labelling .................................................................................................................. 17 6.0 Technical Specifications ........................................................................................................ 19 7.0 Instruction Manual ................................................................................................................ 21 8.0 Miscellaneous Information ................................................................................................... 23 8.1 Measured Bandwidth.........................................................................................................24 8.2 Emissions Test Procedures ................................................................................................ 25 8.2 Emissions Test Procedures (cont'd)................................................................................... 26 INTERTEK TESTING SERVICES FCC ID: PF4050000B iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test ReportBandwidth Plotbw.pdf External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto2.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: PF4050000B 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PF4050000B 2 1.0 General Description 1.1Product Description The equipment under test (EUT) is a transmitter for Remote Control Toy operating at 49.860 MHz which is c…
