PF6-KC0118Maitre Door Key Code Transmitter

Page 1 Syver-Tech, Inc. Operation Manual Table of Contents INTRODUCTION General Notes & Information The “Teach Cycle” Page 2 SAFETY FEATURES Auto-Reverse Motion/Threshold Sensors Sensor Mats Page 3 OPERATING INSTRUCTIONS Before You Begin Start the Teach Cycle Adjust Motion/Threshold Sensors Programming: Buttons, Mats, KeyFobs (Remotes Only) Program Devices Program the Keycode Keypad Using the Keycode Keypad Page 4 Page 5 Page 6 LOCK MODES Hard-Lock Soft-Lock Page 7 FEATURES Descriptions and Factory Settings Page 9 – 11 CHANGING FACTORY SETTINGSPage 12 – 14 OTHER INFORMATION The Main Keypad Button Behavior Page 15 SWITCH SET- UP AND FUNCTIONS POSITIONING LOCK LEVER Page 16 – 18 TROUBLESHOOTINGPage 19 – 22 SAFETY CHECKPage 23 – 24 OPERATOR MAINTENANCEPage 24 FCC COMPLIANCEPage 24 Page 2 INTRODUCTION: General Information • The “Maitre D’oor” sliding door operator is for re si de ntia l use only. ( called the “Operator”). • The “Operator” has 13 factory set features. These settings can be changed to accommodate your needs . • The “Operator” can only be used on doors that the inside door panel slides. • Door must travel freely with no tight spots. The “Operator” is not a cure for a sticky door in need of repair. The free moving door force should not exceed 20 lbs. To get through the door's seal, force should not exceed 25 lbs. • The 3 foot “Operator” will accommodate doors with up to a 30-1/2 ” opening. • The 4 foot “Operator” will accommodate doors with a 32” to 42” opening. • The “Operator” is not guaranteed for use in subfreezing temperatures. Due to ice buildup and or frozen seals, the “Operator” may not function reliably. Before operating under these conditions, clear your door of any snow and ice. Then initiate a new “Teach” cycle. The “Teach Cycle” The “Maitre D’oor” operator must go through a learning mode to measure various elements of your door. These calculations are used in the operator to: • Set power requirements • Detect obstructions during normal operations • Enable the inherent safety features. The “Teach Cycle” also measures any extra force required to pull the door past a stiff or tight seal and all the way closed. This “Extra Force” is set during the “Teach Cycle” using no more force than necessary. See Switch Functions and Set-up section for important safeguards regarding this feature. Page 3 SAFETY FEATURES • Auto-Reverse • When closing, if the door meets an obstruction: ⇒ The door will stop and reverse to the open position giving an obstruction signal. ⇒ The door will then try again to close, moving slower, until it is closed. ⇒ If the door meets an obstruction on this second try, it will stop, reverse to the open position and stop. ⇒ The door will now stay open, giving an obstruction signal every 4 seconds for approx. 30 seconds. ⇒ The “Operator” will shut down in the open position. ⇒ To reactivate the door, remove the obstruction and press the “Door” button twice. • If the door meets an obstruction when opening, it will stop, signal an obstruction and reverse. • Motion/Threshold Sensors Additional safety is assured with the use of motion /threshold sensors. ⇒ The primary function of the sensors is to prevent the door from closing if a person or object is in the threshold. The door will remain open as long as there is movement in the sensor range. ⇒ Can also be used as an opening device. • Sensor Mats Additional safety is assured with the use of sensor mats. ⇒ The primary function of the sensor mats is to open the door. ⇒ They will also hold the door open b y trans mi tti ng co nti nuo us signals as long as the object remains on the mat. ⇒ The mats must be placed and secured as close to the door as possible. ⇒ The trans mi tter (attac hed to the ma t) sho uld be secured to the door jamb with the velcro strips provided. Page 4 OPERATING INSTRUCTIONS Before You Begin: ♦ Check the switch positions and lock lever position for proper set-up before initiating the “Teach Cycle. (See Pg 16– 18) ♦ Keep all objects clear of the door and motion sensors while in the teach cycle. Do not interfere when door is teaching. ♦ The operator will not function until this step is successfully completed ♦ Safety features are activated upon completion of the teach cycle. STEP 1: Start the “Teach Cycle” • Close the door. • Press and hold bot h the “PROGRAM” and “DOOR” buttons for 2 se conds, until you hear a tone; then release. ⇒ The “On/Status” LED goes out, the “DOOR” LED lights up amber, the keypad will emit tones. ⇒ The door will begin with partial cycles, then full cycles at various speeds. This will take a few minutes—approximately 12 cycles, depending on the door. ⇒ The “Operator” will emit tones and return to the normal operating mode when the “Teach cycle” is complete. The “On/Status” LED is lit. Important Note: If the "Operator" did not initiate a teach cycle, or did not complete a good teach cycle, it will emit 3 low tones. Refer to the troubleshooting guide. Page 5 STEP 2: Adjust Motion /Threshold Sensors Please refer to the Optex instructions that came with your sensors for proper adjustments. Step 3: Programming: Buttons, Mats, KeyFobs (Remote devices only) The operator will accommodate two (2) devices of each type listed above. One designated for Inside operation and one for Outside operation. We recommend programming all Inside devices as (Gree n) and all Outside devices as (Red). The main keypad is used to program these devices. Pay attention to the LED’s next to the type of device you are programming. Once programmed, w henever a remote device is activated, the corresponding LED for that device will light up in either green or red on the keypad. Caution: Program all devices in their proper area. It is possible to program a button as a mat, or a mat as a keyfob etc. If this happens, the device will take on the functions of the type of device programmed rather than the actual device itself. Program Devices This mode times out after 20 seconds if no device has been programmed. If…

Text truncated - open the document above for the full version.

1234 A B C D 4321 D C B A Title Date PrintedSheetof Drawn by Brock in Protel Revision Customer Address 20 Park Place CircleHawthorn Woods, IL 60447 5-Dec-2000 25 0 FileQ:\Syver\3194\rev1\sch\BLOCK_KEYPAD_R3.sch Smartdoor Block Diagram - Wired Keypad Size A Drawing Status final 3194 TBR Job # Microcomputer 10MHz RJ11 to Linear Regulator 315MHz Receiver Antenna beeper Keypad 1x4 LEDs Memory main unit Watchdog Bidirectional Communication 4800 Baud

FCC ID: PF6-KC0118 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for Syver-Tech, Inc., a Maitre D’oor Key Code Transmitter, Model Number KC0118, with a FCC ID: PF6-KC0118 for a Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.231. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/mm

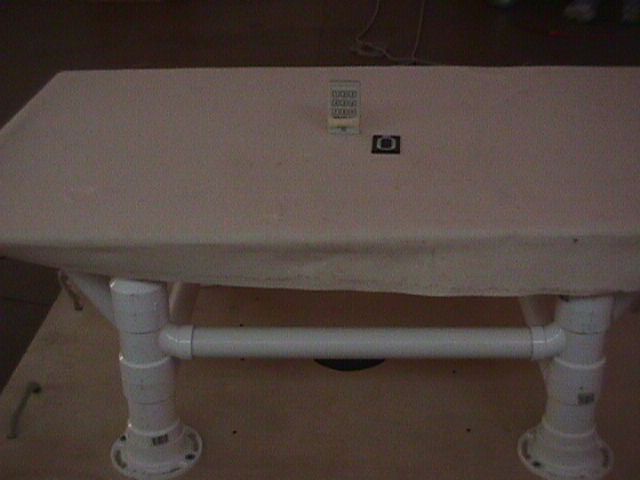

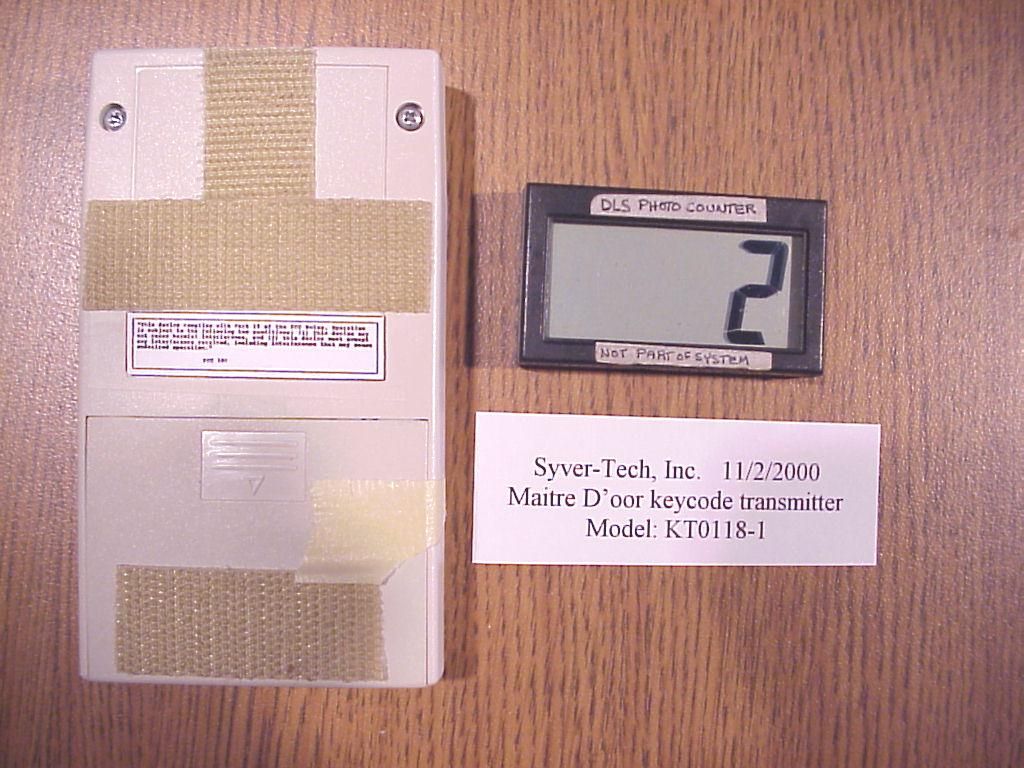

Syver-Tech, Inc. FCC ID: PF6-KC0118 Batter y Co mpartme nt Syver-Tech, Inc.FCC LABEL PLACEMENT 20 Park Place Circle Hawthorn Woods, IL 60047 Keycode Transmitter Label size: 1/2" x 1-1/2"

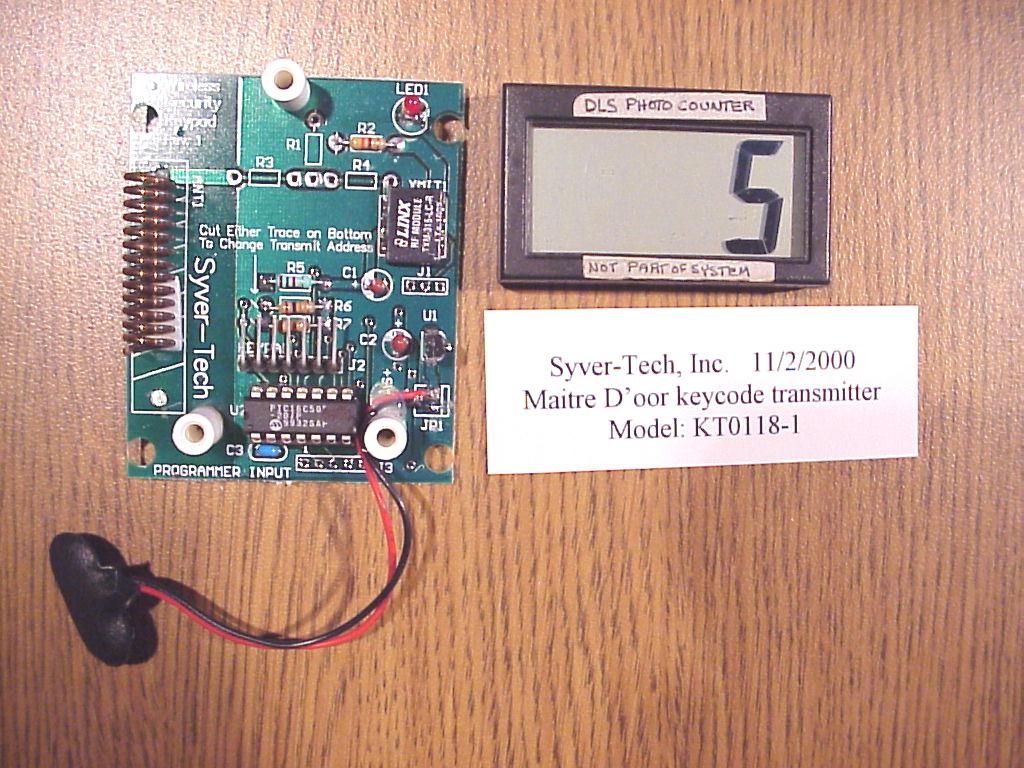

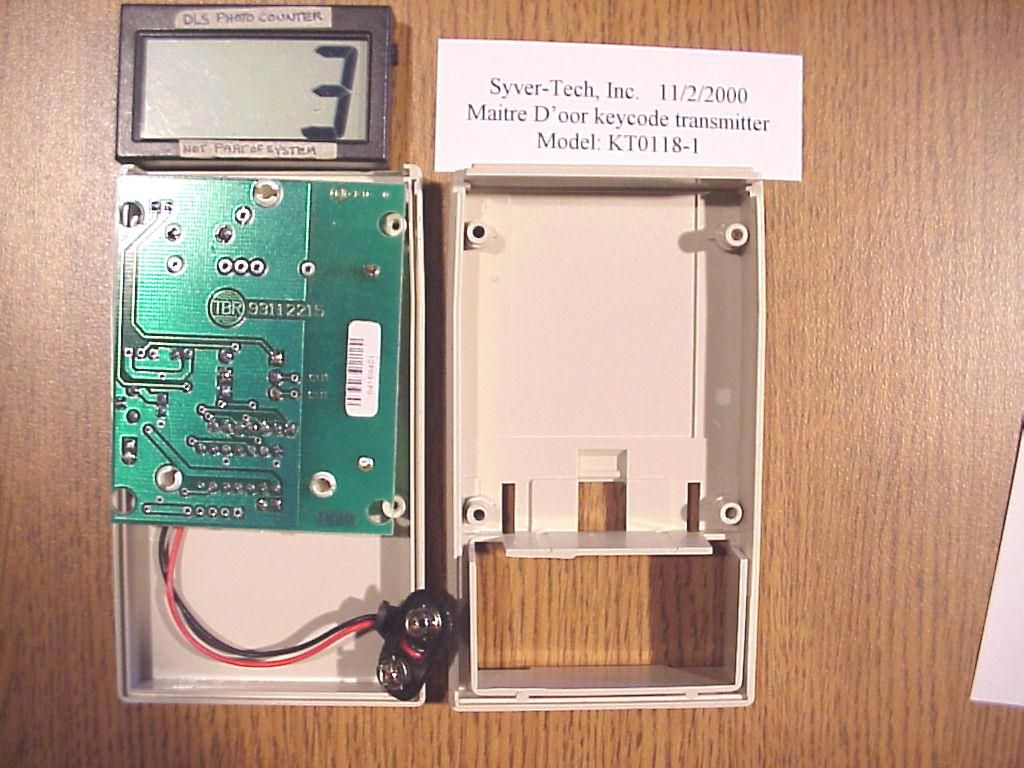

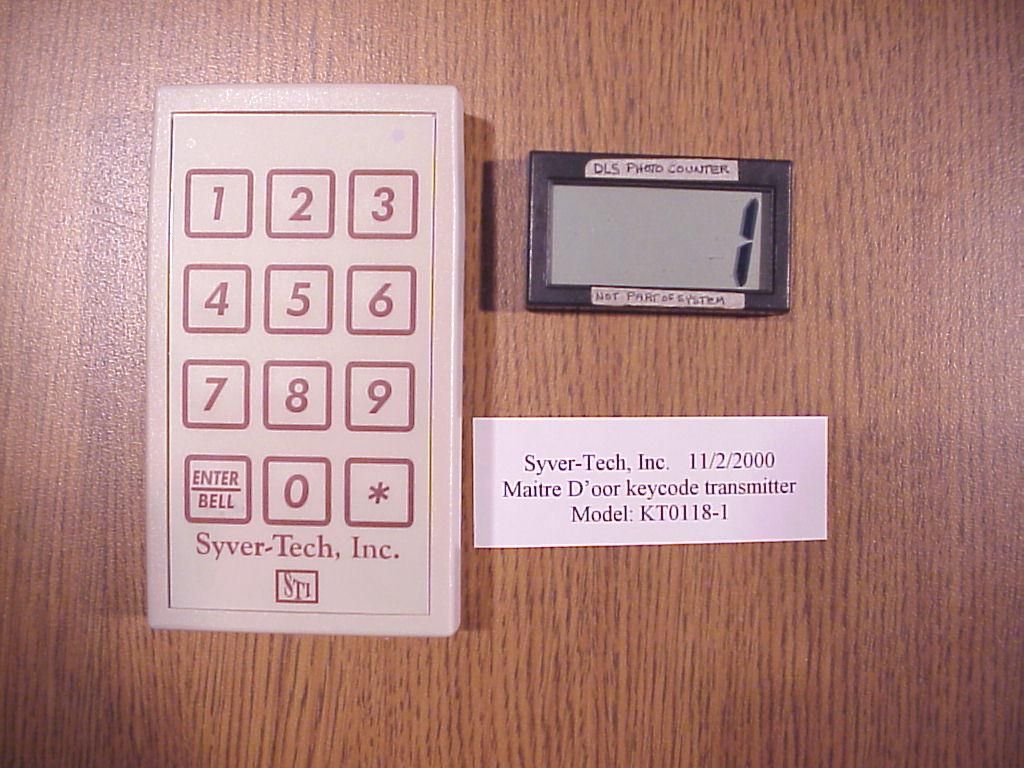

Page 1 of 1 1220LakeviewCourt,Romeoville,IL60446-6500 Phone:(630)378-3500Fax:(630)378-3519 CIR-CAD JAJ Syver-Tech Security Keypad Operational Description ASSE-0584 The Wireless Security Keypad transmits an ID code and button information at 315MHz whenever a button is pressed. It also sends the last three keypresses, in case one was missed. Power is applied to the circuit at all times. The processor goes into sleep mode until a button is pressed. The LED is on whenever the device is transmitting. The ID code informs the mainboard that it is a security keypad, and stays the same on every transmission. One alternate ID code can be selected by cutting two traces on the PC board. This allows for the rare case that two security keypads are misinterpreted as the same one. This case should never occur, since each keypad is given a different ID # when the processor is programmed.







 !





" #$ %   &'(
&'( &'(
"
#
)
*! #  !
 *

+, ! -


! .


! # ! -
- !

/  ,
/

.


   #
 ..#

"%
 "/

"%. "
)
