PFH-KP2KKeypad Transmitter

Introduction The following steps describe how to configure the keypad transmitter. Note: the keypad contains a permanently mounted radio frequency transmitter and antenna. These components are permanently fixed inside the keypad and non-replaceable by the end user. Step 1 – Install a battery in the keypad(s) Remove a voter keypad from the packaging. Turn the keypad over so that the keys are facing down. Remove the battery cover by pressing in on the arrow while sliding the cover down. Install a 9-volt battery. Place excess battery wire below and beside the battery so that it does not get pinched when the cover is replaced. Replace the cover by aligning the cover tabs with the openings in the case then push down on the arrow and slide the cover upward. Step 2 – Assign a transmit frequency for the keypad(s) Handle the keypad so that the keys are facing upward. To assign a channel frequency for the keypad, press the ‘F’ key then select a number between 0 and 5 on the keypad. This selects one of six a frequencies for the keypad to transmit. Step 3 – Assign an address to the keypad Keypad addresses have three digits. Each digit may have a value of 0 thru 9. Valid addresses are ‘000’ thru ‘199’ corresponding to addresses 0 thru 199. This comprises 200 possible addresses. To assign an address to a keypad first press the ‘A’ key on the keypad. Then press three digits corresponding to the keypad address. To assign the address of ‘0’ to the keypad, press the ‘A’ key then press the ‘0’ key three times. Assignment of keypad addresses is summarized in figure 1. Keypad Address Press ‘A’ then 1 ‘001’ 2 ‘002’ 3 ‘003’ 199 ‘199’ 200 ‘200 . . . The keypad transmitter is now ready for use. Other Notes This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

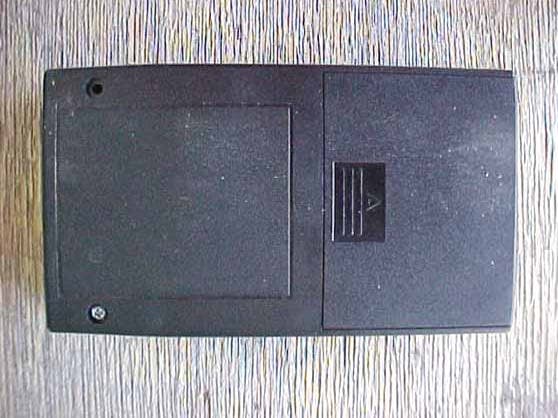

ExpertComm keypad transmitter FCC ID label placement. FCC ID: PFH-KP2K This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired o peration. Battery Compartment Cover Enclosure Screws Label placement on back of keypad transmitter

FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART C TEST REPORT for KEYPAD TRANSMITTER Model: KP2000 Prepared for EXPERTCOMM, LLC 9920 S. RURAL ROAD, SUITE 108, BOX 29 TEMPE, ARIZONA 85284 COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: DECEMBER 22, 2000 REPORT APPENDICES TOTAL BODY A B C D PAGES 16 2 2 11 15 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Band Edge Plots of the Low and High Channels 15 8. CONCLUSIONS 16 FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Modifications to the EUT B Additional Models Covered Under This Report C Diagrams, Charts and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors D Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: Keypad Transmitter Model: KP2000 P/N: 30700 Product Description: See Expository Statement. Modifications: The EUT was modified during the testing. Please see Appendix A for a list of the modifications. Manufacturer: ExpertComm, LLC 9920 S. Rural Road, Suite 108, Box 29 Tempe, Arizona 85284 Test Dates: December 19 and 20, 2000 File # For Canada: IC2154-D Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT is powered by a nine volt battery only. 2 Radiated RF Emissions, 10 kHz - 9300 MHz Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249 FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Keypad Transmitter Model: KP2000. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.249. FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel ExpertComm, LLC Mike Saaty President Compatible Electronics Inc. Kyle Fujimoto Test Engineer Scott McCutchan Lab Manager 2.4 Date Test Sample was Received The test sample was received on December 19, 2000. 2.5 Disposition of the Test Sample The test sample was returned to ExpertComm, LLC on December 20, 2000. 2.6 Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RF Radio Frequency EMI Electromagnetic Interference EUT Equipment Under Test P/N Part Number S/N Serial Number HP Hewlett Packard ITE Information Technology Equipment CML Corrected Meter Limit LISN Line Impedance Stabilization Network FCC ID: PFH-KP2K Report No.: B01220D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 16 3. APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPEC TITLE CFR Title 47, Subpart C. FCC Rules – Radio frequency devices (including digital devices) – Intentiona…
