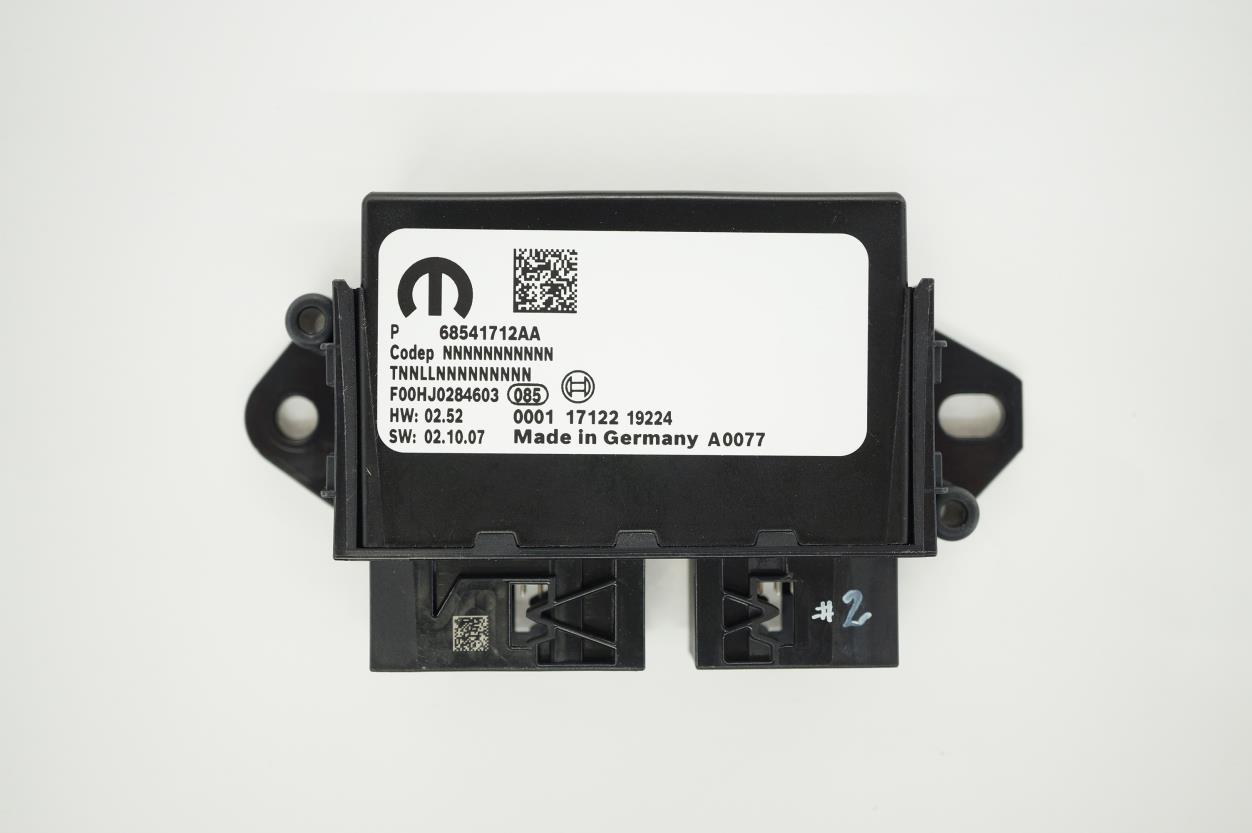

Internal| AE/QMM-AU | 2021-06-03 © Robert Bosch (Australia) Pty. Ltd. 2021. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. Stick-on Label Label SPAAK Master 1 Label locatedon back ofECU. Photograph ofsample withdraft label. Final labelshownabove. Internal| AE/QMM-AU | 2021-06-03 © Robert Bosch (Australia) Pty. Ltd. 2021. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. Stick-on Label Label SPAAK Master 2 FieldField DescriptionData Field 1Data Matrix code NA Field 3Customer Part number NA Field 4 Alternative Customer Part Number NA Field 5FCA Traceability NumberNA Field 6Robert Bosch Part NumberF00HJ02846 Field 7Hardware Part NumberHW: 02.52 Field 8Software Part NumberNA Field 9ECR CounterNA Field 10Country of OriginAssembled in Mexico Field 11Manufacturing Date NA Field 12Supplier CodeNA Field 13Serial Number NA Field 14Plant Code864 Field 16HVINHVIN: PKM250 Field 17ModelMODEL: PKM250 Field 18Brazil IDNA Field 19Canada ID IC: 909C-PKM250 Field 20FCC IDFCC ID: PFJPKM250 Field 22HW Symbol NA Label locatedon back ofECU

BNetzA - CAB - 02/21 - 102 RF Exposure Evaluation according to KDB 447498 D01 v06 Report identification number: 1-4394/22-01-09 Exemption / MPE (FCC) contains the module with the following certification numbers FCC ID PFJPKM250 This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications Radio Communications Test report no.: 1-4394/22-01-09 © cetecom advanced GmbH Page 2 of 3 1. MPE at given distance (KDB 447498 D01 General RF Exposure Guidance v06) Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna PG = Output Power including antenna gain The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) 2. EUT technologies Declared minimum safety distance: 20 cm Technologies: Max. measured E.I.R.P. per BW=1MHz: BW Max. declared E.I.R.P. for Full BW: Max.decl.E.I.R.P. @1MHz x (BW/1MHz) # (dBm) (μW) (MHz) UWB 3100 to 10600 MHz -42.7 0.054 621 0.054μW x 621 = 33.5μW (=-14.75dBm) A Technologies: Max. measured power [dBm] Max. declared EIRP [dBm] # conducted EIRP BT LE 2450 MHz -0.5 3.5 4.0 (=2.51mW) B Details and origins of the measurements shown in the table above: # Results from test reports: Additional information: A 1-4394/22-01-03 Page 31 B 1-4394/22-01-05 Page 19 (gain) Page 23 (conducted) Test report no.: 1-4394/22-01-09 © cetecom advanced GmbH Page 3 of 3 3. MPE results: f Min f Max #P ERP P EIRP P RF Exp S Result S Limit % Bluetooth LE 24022480BN/A4.04.00.001.000.05% UWB 7.67 GHz 310010600AN/A-14.8-14.80.001.000.00% Output Power [dBm] SRD Technology Frequency [MHz] Reference Power Density [mW/cm²] Share of Limit Details and origins of the measurements shown in the table above: # Results from test reports: Additional information A 1-4394/22-01-03 Page 31 B 1-4394/22-01-05 Page 19 (gain) Page 23 (conducted) 4. Collocation overview: BT LE 2.4 GHz 0.05% UWB 7.67 GHz 0.00% Technology Share of Limit Sum 0.05% Conclusion This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Conclusion: RF exposure evaluation is not required.

Clayton 07 September 2023 From Our Reference Tel XC-HWP/EAA41-AU Raj Murugan +61 3 9541-5481 Page 1 of 2 PKM_Antenna_Information.docx BLE Antenna information • Antenna Type: PIFA (planar inverted-F monopole antenna) • Antenna Gain: Source: Test report no.: 1-4508/22-01-03 2480 MHz Conducted power [dBm] Measured with GFSK modulation (1 Msps) -0.3 Radiated power [dBm] Measured with GFSK modulation (1 Msps) 3.5 Gain [dBi] Calculated 3.8 • Antenna Diagram Issue Antenna Information for STLA PKM Topic FCC certification ID: PFJPKM250 Description Antenna information for the completion of FCC certification ID: PFJPKM250 Report From Our Reference Tel XC-HWP/EAA41-AU Raj Murugan +61 3 9541-5481 Issue Antenna Information for STLA PKMenter issue Topic FCC certification ID: PFJPKM250Please enter topic Clayton 07 September 2023 Page 2 of 2 Report PKM_Antenna_Information.docx UWB: • Antenna Type: PCB Dish monopole antenna • Antenna Gain: 3.62 dBi @ 8 GHz (UWB; simulation maximum) • Antenna Diagram: XC-HWP/EAA41-AU
